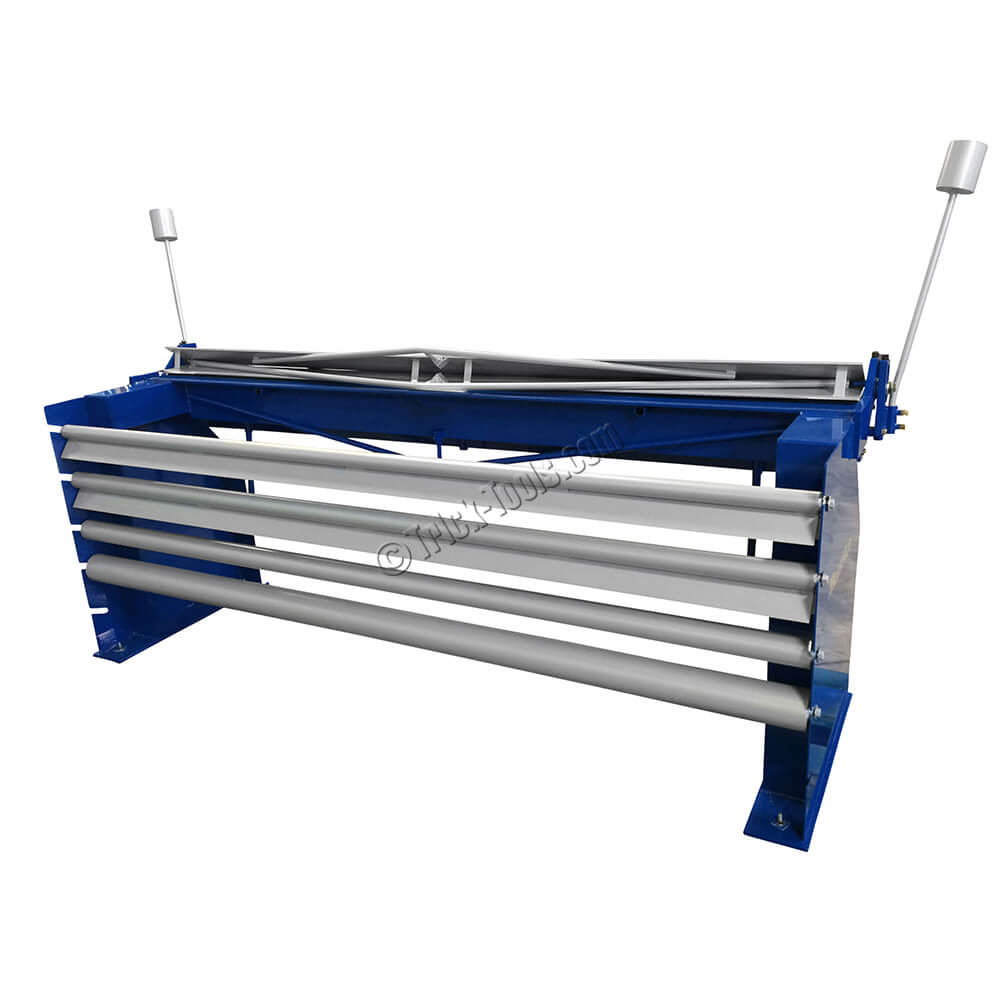

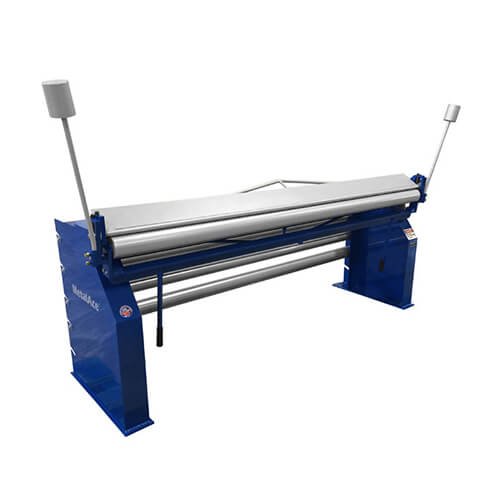

MetalAce 8 foot Radius Brake with 5 Radius Rolls, 18 gauge

The MetalAce RB9618 8-Foot Radius Brake is built for professional fabricators who need to form smooth, consistent radius bends across large sheet metal panels. With an impressive 96 inch working length, this heavy-duty manual brake is ideal for race car bodies, large automotive panels, aircraft skins, trailer components, architectural metal, and other applications where shorter brakes simply do not provide enough forming capacity.

Unlike a traditional sheet metal brake that folds material over a sharp nose bar, the MetalAce Radius Brake forms the panel around interchangeable radius rolls. Its unique apron design swings outside the radius and rolls the material around the selected former, helping minimize stretching, stress, distortion, and cracking during the bending process. This controlled forming action is particularly valuable when working with long aluminum panels where maintaining a smooth, consistent radius across the entire part is critical.

The RB9618 includes five interchangeable radius rolls, giving you the flexibility to create bends ranging from a tight 1/2 inch radius up to a broad 2 inch radius. Tooling changes are quick and straightforward, allowing fabricators to move between different bend radii without complicated setup. Convenient onboard roll storage keeps the tooling organized and readily available.

With capacity for 18 gauge mild steel, .080 inch aluminum, and 22 gauge stainless steel across its full 96 inch working length, the RB9618 provides the size and versatility needed for serious large-panel fabrication. Heavy plate construction gives the machine the rigidity required to maintain consistent bends across long workpieces while providing the durability expected in professional fabrication environments.

Included Radius Rolls:

• 1 inch OD former for a 1/2 inch bend radius
• 2 inch OD former for a 1 inch bend radius
• 2-1/2 inch OD former for a 1-1/4 inch bend radius
• 3 inch OD former for a 1-1/2 inch bend radius
• 4 inch OD former for a 2 inch bend radius

Key Features & Benefits:

• 96 inch working length accommodates full-size and oversized sheet metal panels
• Ideal for race car bodies, aircraft skins, trailers, architectural metal, and large custom panels
• 18 gauge mild steel capacity across the full working length
• .080 inch aluminum capacity makes it an excellent choice for large race car and aircraft panels
• 22 gauge stainless steel capacity expands its versatility
• Creates smooth bends from 1/2 inch through 2 inch radius
• Includes five interchangeable radius forming rolls
• Quick tooling changes make switching between bend radii fast and easy
• Built-in radius roll storage keeps tooling organized and readily accessible
• Heavy-duty plate construction provides the rigidity needed for consistent bends across long panels

Special Notes:
- Liftgate delivery is not available for this item.
