National 4 foot Box & Pan Brake, 12 gauge

Part #: U4812
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,249.00

BEST SELLER

2, 3, and 4 inch finger widths
Apron stop for repeat bends
Heavy truss rods and braces for greater strength
Two large cast counterweights

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

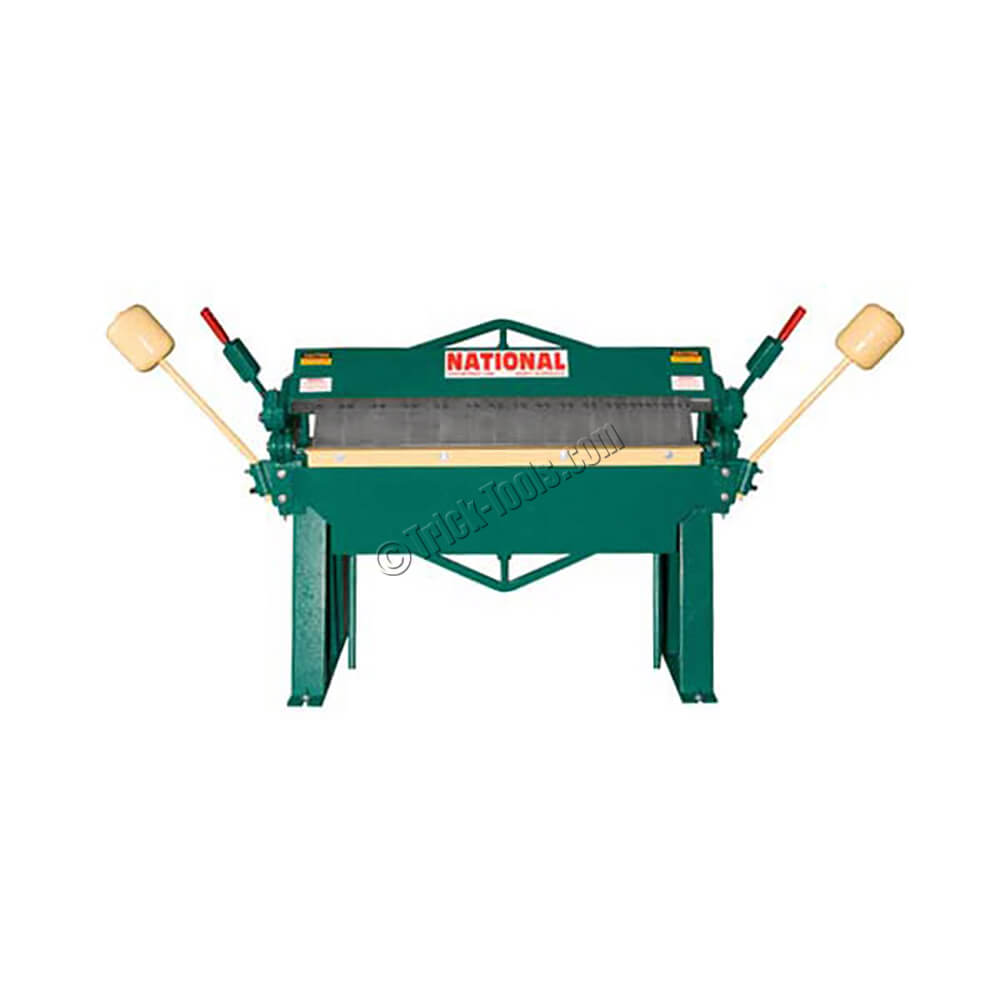

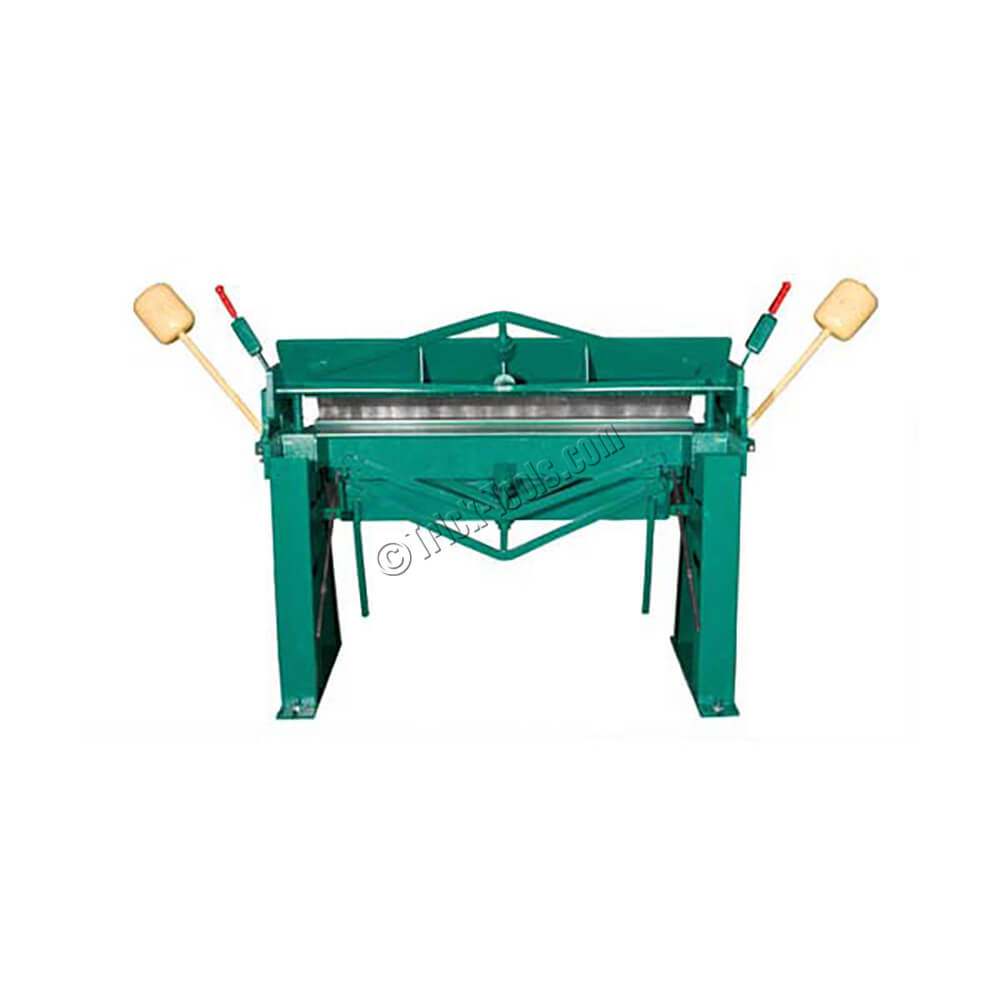

This National Sheet Metal Machines 48 inch 12 gauge floor model box and pan brake is designed to be easy and simple to operate. Standard with 2, 3, and 4 inch finger widths, stop rods for repeat bends, two large counterweights, and precision bearings on the apron. They are constructed with an all steel body with extra heavy duty tie rods for minimum deflections.

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 12 gauge (2.6mm)
•Stainless Capacity: 16 gauge (1.6mm)
•Working Length (inches): 48
•Max Depth Of Box (inches): 4
•Minimum Flange Capacity (inches): 1
•Number/Width Of Fingers: 2 inch, 3 inch, 4 inch
•Max Forming Length (inches): 49
•Weight (pounds): 1150
•Dimensions (LxWxH): 95 x 27 x 55
