ProLine 36 inch Cast Iron Planishing Hammer

Part #: 050095
Ships From: Our warehouse
Availability: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: Panel Pro 36
Price: $12,500.00
  • 36 inch deep throat
  • Sturdy cast iron frame
  • Foot pedal control
  • Made in the USA
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

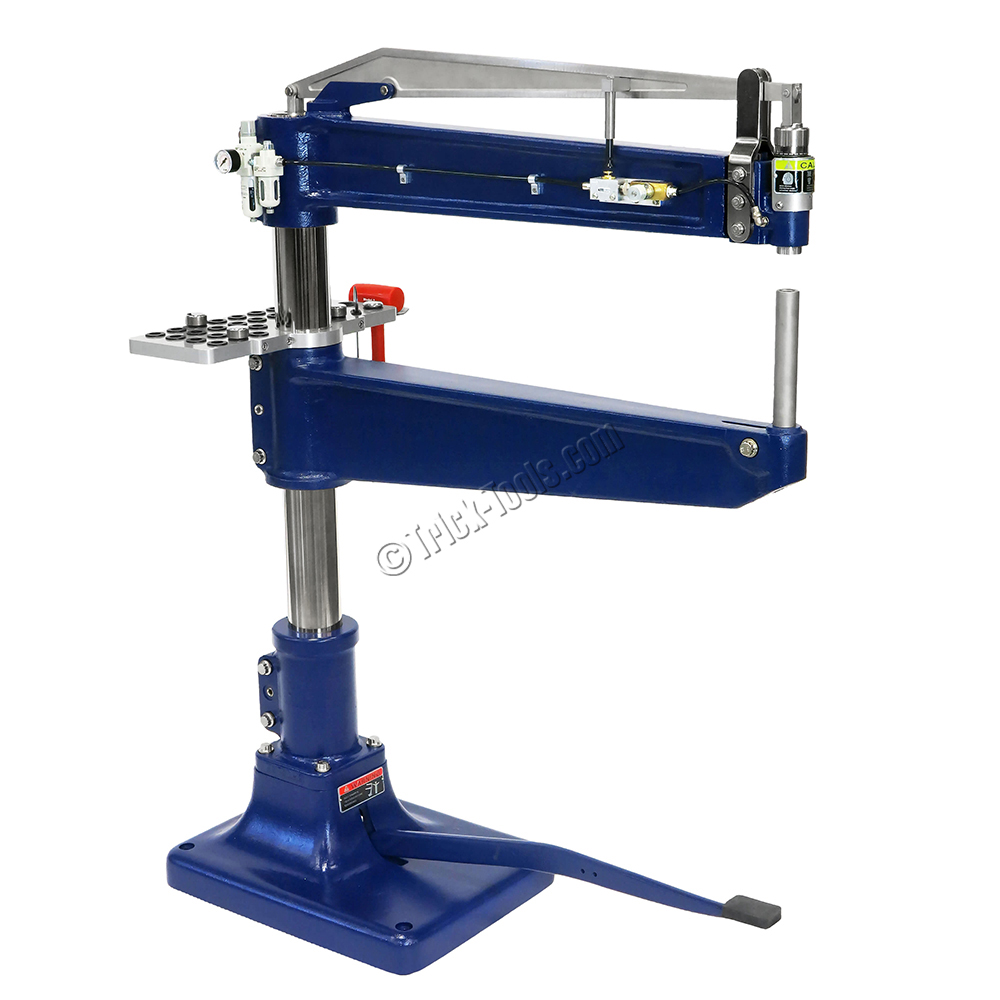

The ProLine 36 inch Pneumatic Planishing Hammer is a floor standing industrial quality unit, based on the classic Chicago Pneumatic design, used for forming or planishing compound curves in sheet metal. It is used in many industries, including automobile and aircraft restoration, race car fabrication, sheet metal stamping shops, artistic applications, etc. A ProLine planishing hammer takes the work out of metal work and saves the experienced metal worker hours of time, leading to increased production.

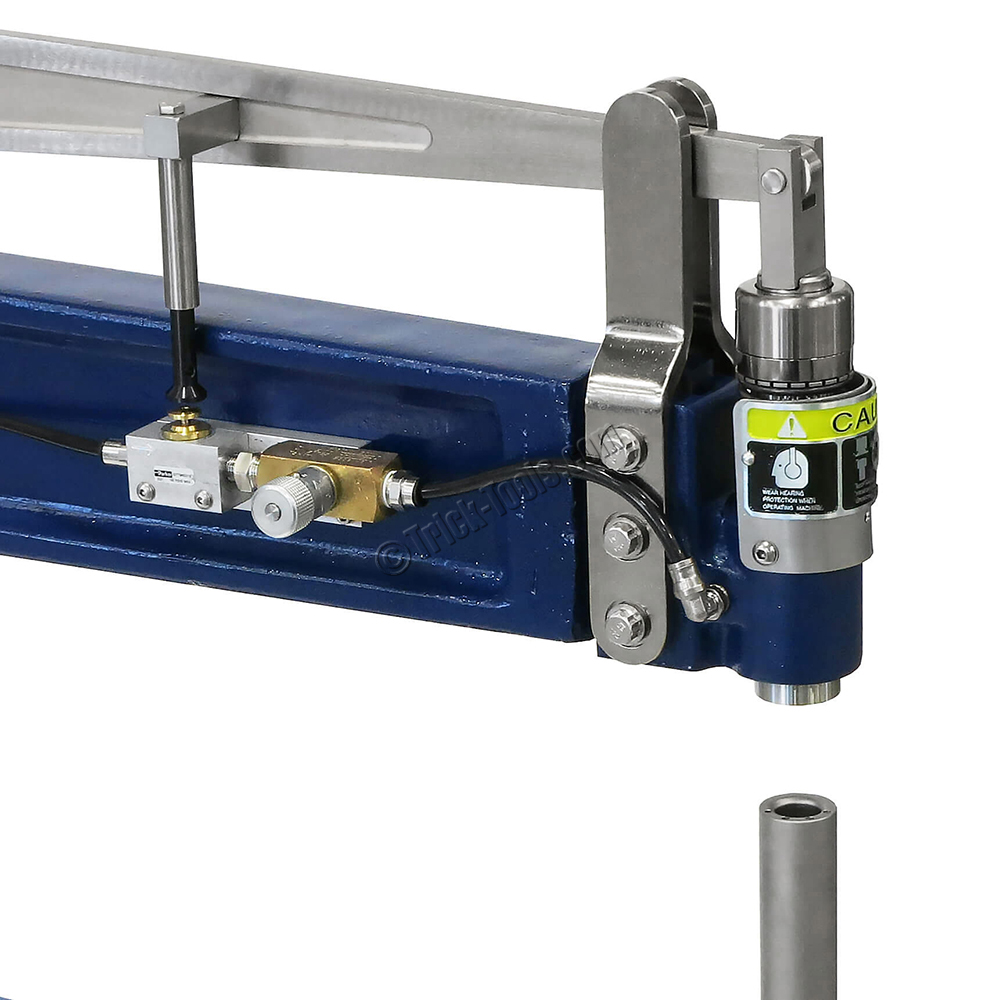

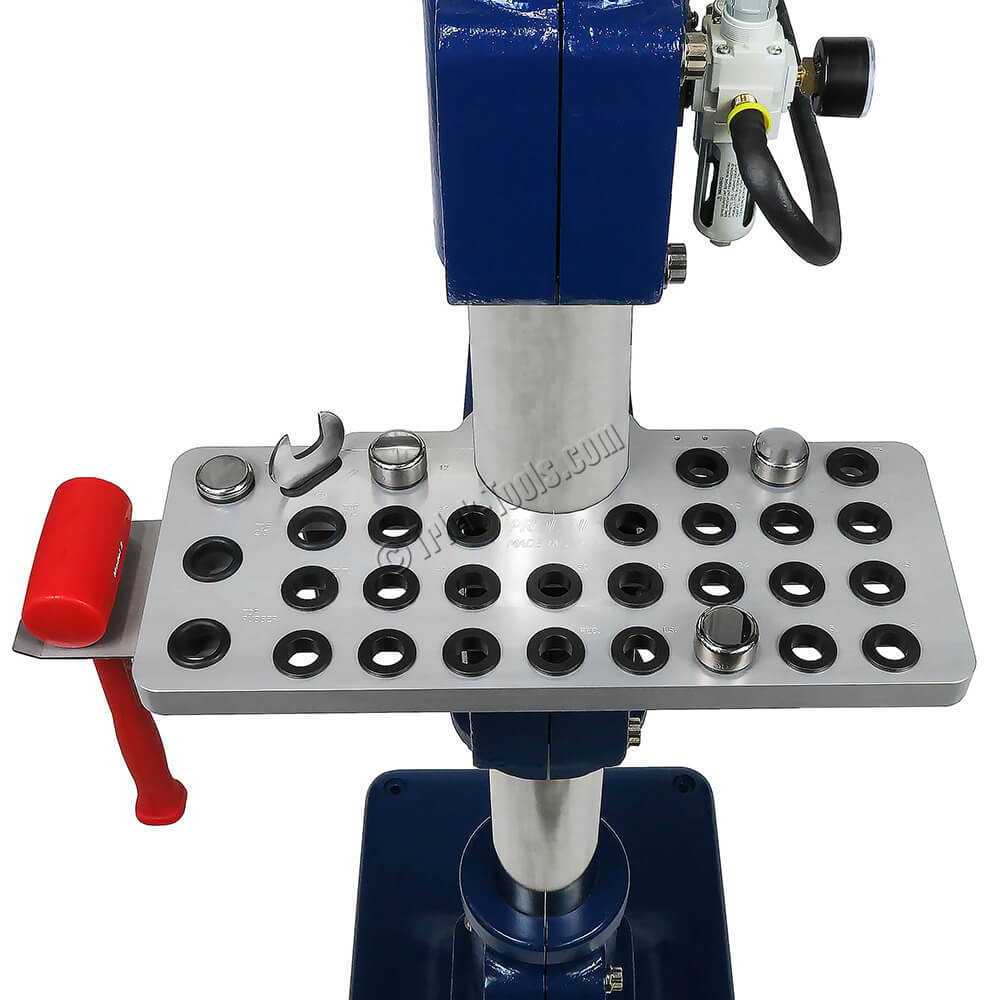

One huge advantage in the design of the ProLine hammers is the foot pedal activation. By pressing the foot pedal down once the material is in place, you bring the dies together and start the air motor in one step. This not only allows for easy removal of your part when open, but gives very precise control of the pressure and allows for feathering off at the end of a shape. This is not possible with most planishing hammers that have a fixed die gap. The lower arm on these cast iron floor models can be lowered to accommodate an optional bottom anvil holder for deeper parts. They feature heavy duty purpose built pneumatic motors and sturdy cast iron frames. A needle valve allows for fine tuning of power output and an automatic air cutoff switch shuts off air to the motor when the foot pedal is up. (Shown with optional die rack)

These hammers are completely fabricated in the USA. If you are looking for uncompromising quality, then you have found it with ProLine, the finest planishing hammers on the market today.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Throat Depth (inches): 36
Air Consumption: 0-6.5
Air Pressure: 125 psi
Weight (pounds): 595

INCLUDES

  • 36 inch cast iron planishing hammer
  • Upper die
  • 3R, 12R and 36R lower dies
  • Die extraction wrench
  • Dead blow mallet
  • Air tool oil and applicator bottle
  • User manual
