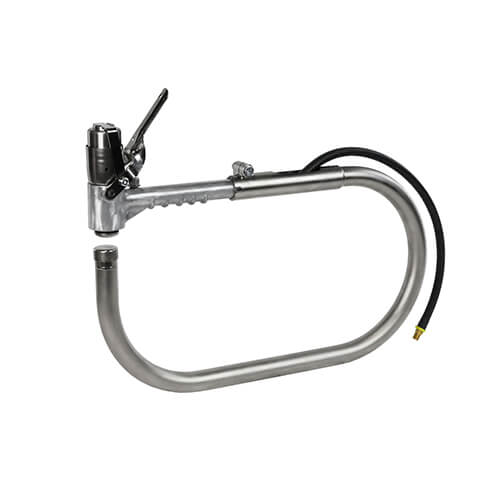

ProLine Hand-Held Tubular Planishing Hammer 90-90-90

Part #: 030078
Ships From: Our warehouse
Availability: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $2,995.00
  • Tubular Yoke
  • Includes upper die and 3 lower dies
  • Made in the USA
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

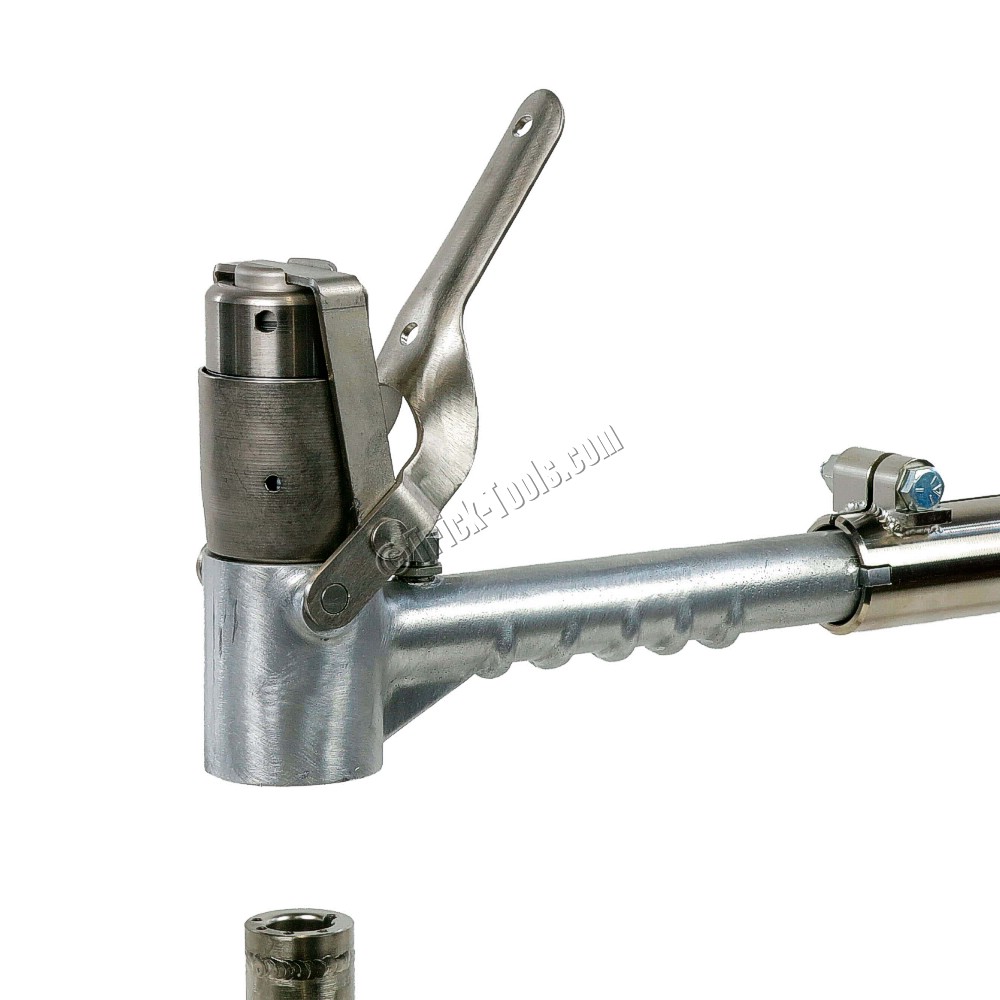

ProLine Hand-Held Planishing Hammers take the work out of metal work and saves the experienced metal man hours of time, leading to increased production. These hammers are designed for forming or planishing light gauge sheet metal shapes and utilize CP style tooling. The head can be used with or without the yoke and quickly changes out to use optional yoke shapes for difficult to reach areas. The air motor is purpose built with a no-compromise design for total quality control and extreme durability.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Throat Height (inches): 10.5
Throat Depth (inches): 22.75
Air Consumption: 0-6.5
Air Pressure: 125 psi
Weight (pounds): 30
Dimensions (LxWxH): 25 x 3 x 19

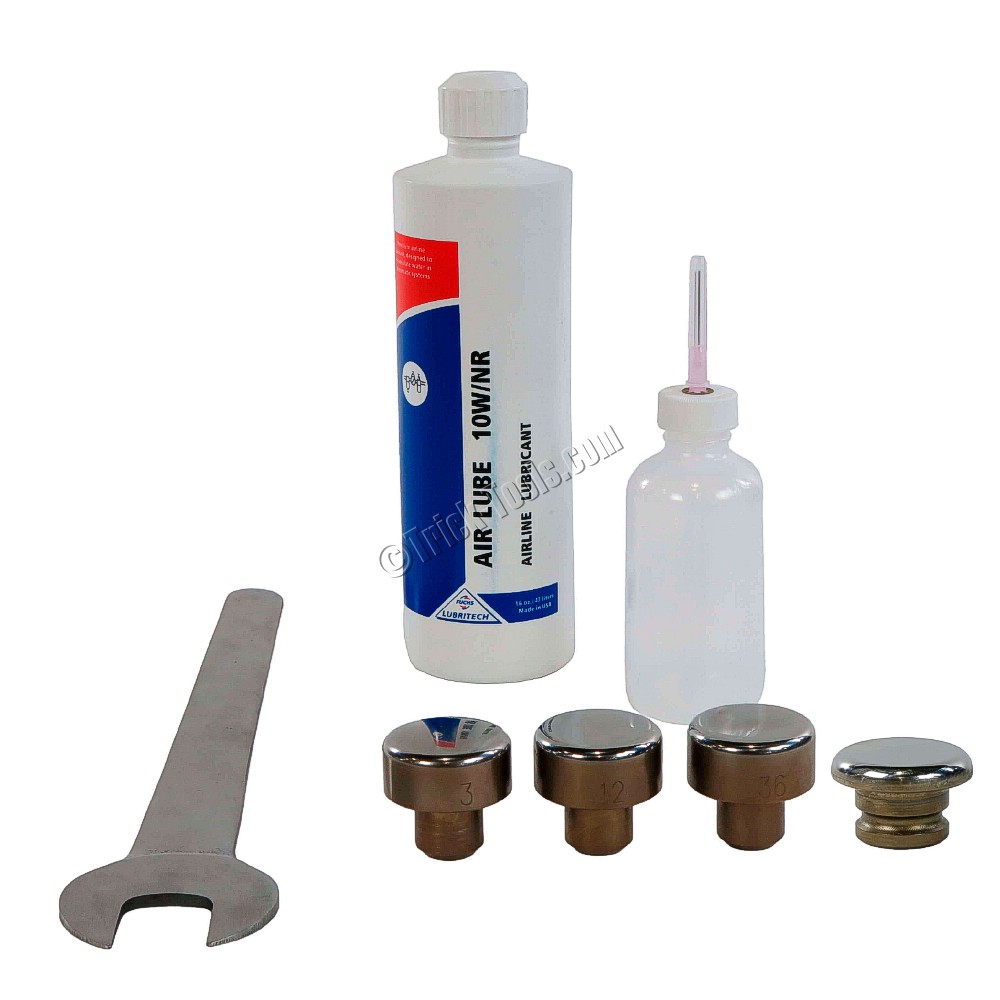

INCLUDES

  • Upper die
  • 3R, 12R and 36R lower dies
  • Die extraction tool
  • Oil and special oil bottle
