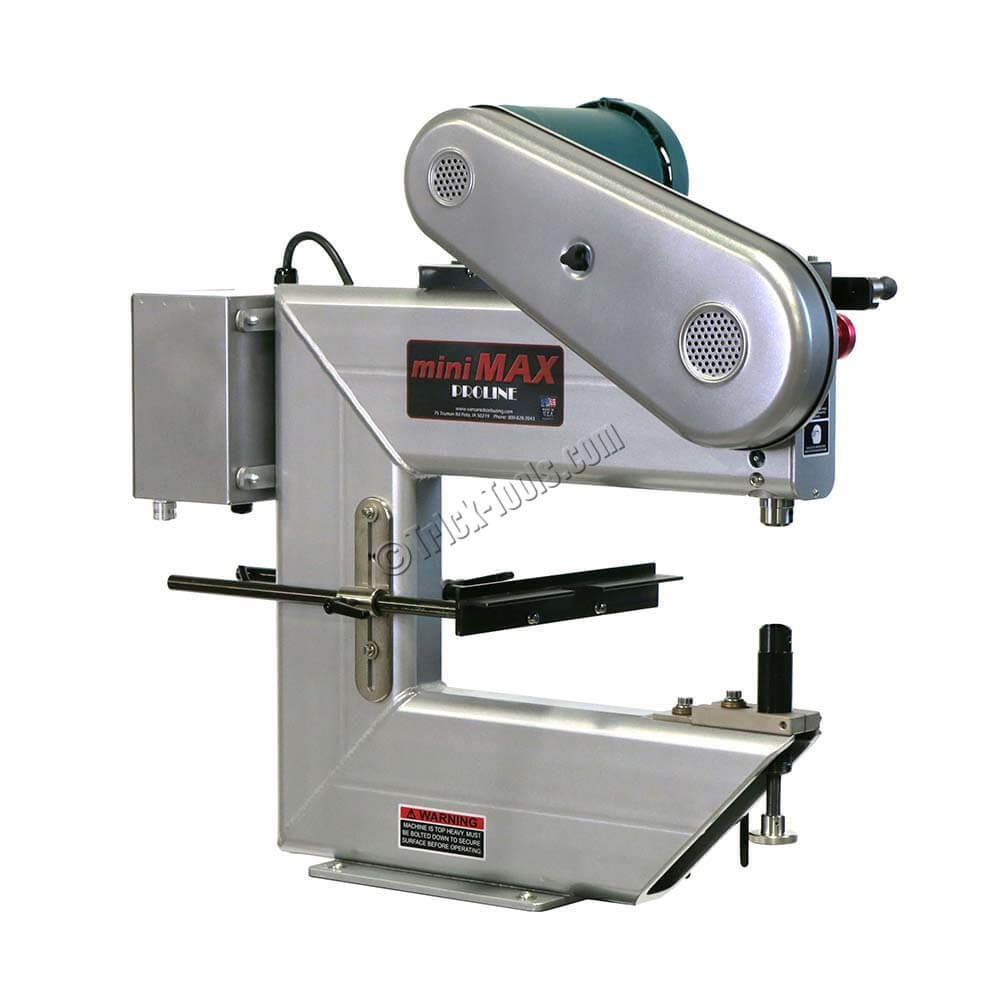

ProLine mini-Max Power Hammer

Part #: 090282
Ships From: Our warehouse

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $7,500.00

16 gauge mild steel capacity
18 inch throat
Variable speed foot pedal control
Accepts 16mm Pullmax tooling
Made in the USA

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The mini-Max is a fifth-generation design by well known and respected metal shaper Loren Richards. Loren, not being in the manufacturing business, contacted C. Cook Enterprises builder of ProLine Tools to take his design and build a new, small, versatile machine that performs like the Pullmax and much larger machines. The mini-Max can shrink, stretch, dome, edge turn, bead, offset — it is limited only to your imagination.

Mount it on a sturdy bench or on the optional stand with casters to move it next to the job. The variable-speed motor with foot pedal control is ideal for safety and ease of use. The mini-Max is the perfect complement to any Planishing Hammer or English Wheel. We offer quality ProLine tooling to make this machine even more flexible.

The mini-Max uses 16mm square shank Pullmax tooling.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Throat Height (inches): 9
•Throat Depth (inches): 18
•Steel Capacity: 16 gauge (1.5mm)
•Strokes per Minute: up to 1150
•Motor: 110 volt, 3/4 hp
•Weight (pounds): 235
•Dimensions (LxWxH): 30 x 12 x 34
