ProLine mini-Max Power Hammer Ultimate Package

Part #: miniMax-ultimate
Ships From: Our warehouse

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $15,890.00
Sale Price: $15,625.00

EXCLUSIVE

16 gauge mild steel capacity
18 inch throat
Variable speed foot pedal control
Includes complete set of ProLine tooling
Made in the USA

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

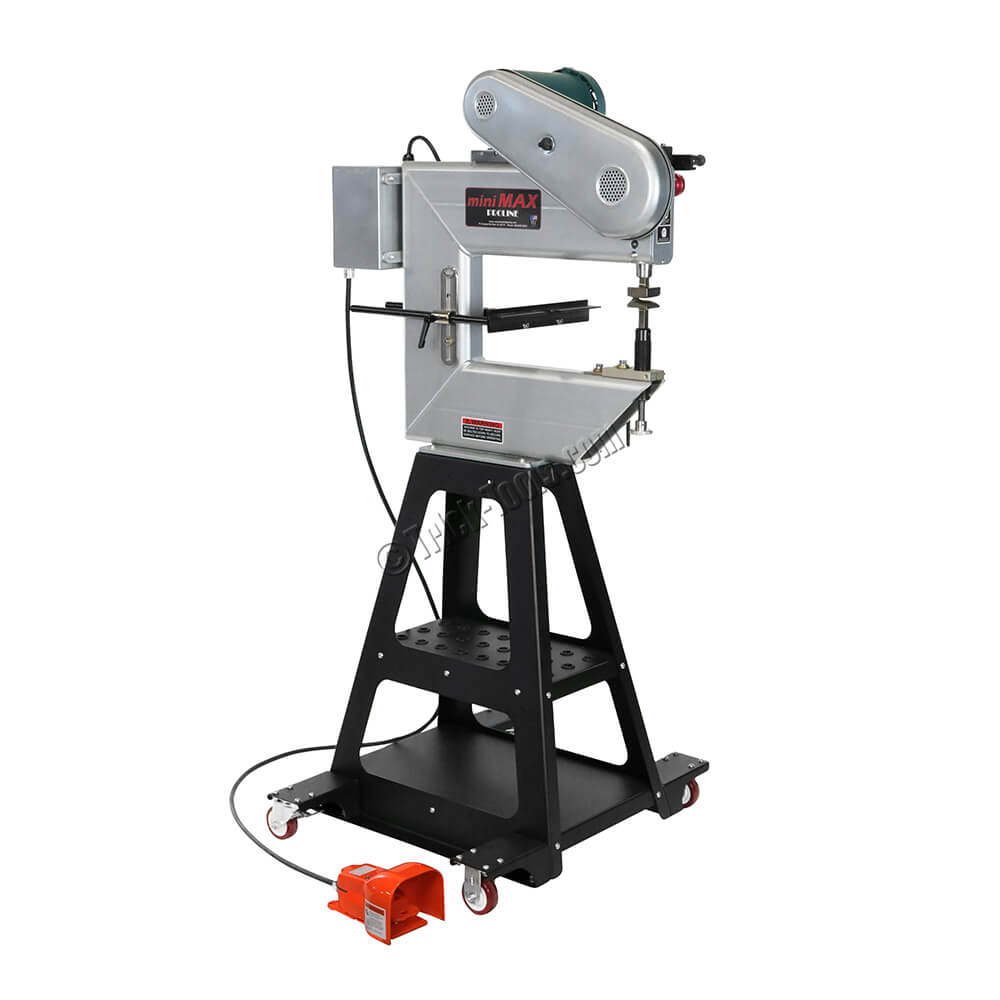

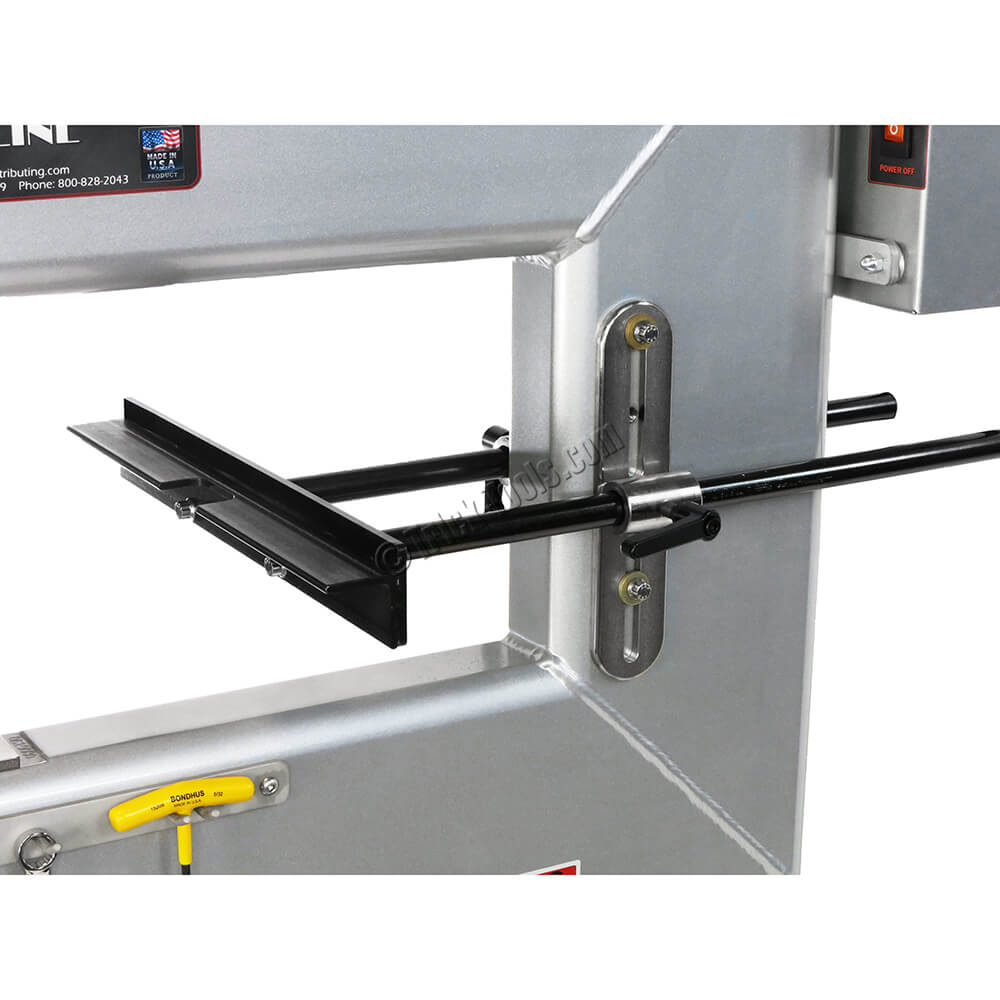

The mini-Max is a fifth-generation design by well known and respected metal shaper Loren Richards. ProLine has taken this design and built a machine that performs like a Pullmax reciprocating machine, only in a much smaller and portable version. Features include a variable speed foot pedal control, quick-change tooling, and a cam action upper die holder to allow for easy placement and removal of the workpiece.

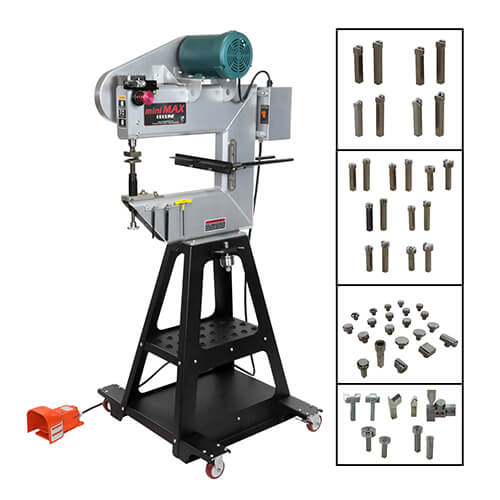

The mini-Max can shrink, stretch, dome, edge turn, bead, offset — it is limited only to your imagination. It's the perfect complement to any Planishing Hammer or English Wheel. This Ultimate Package includes a full set of all available ProLine tooling. See the Includes tab for a detailed list.

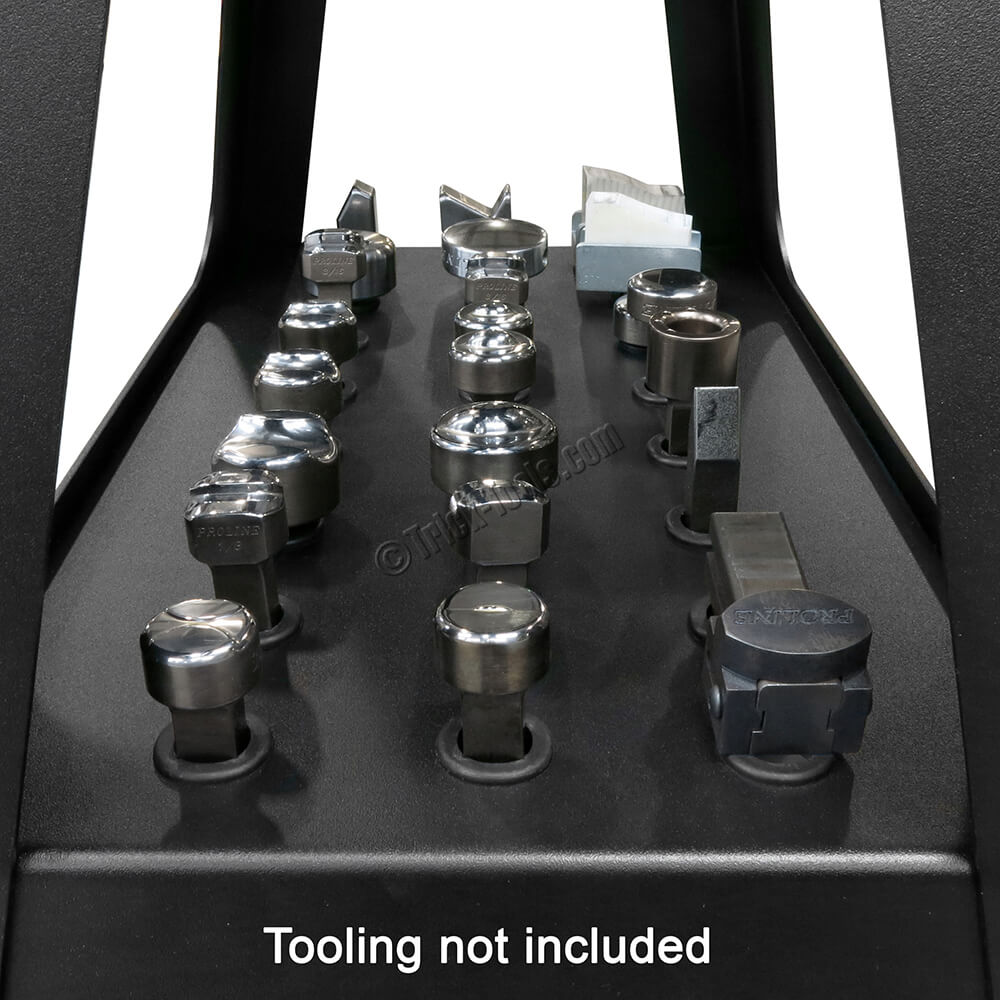

The mini-Max uses 16mm square shank Pullmax tooling.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Throat Height (inches): 9
•Throat Depth (inches): 18
•Steel Capacity: 16 gauge (1.5mm)
•Strokes per Minute: 1150 max
•Motor: 110 volt, 3/4 hp
•Weight (pounds): 360
•Dimensions (LxWxH): 34 x 29 x 70
