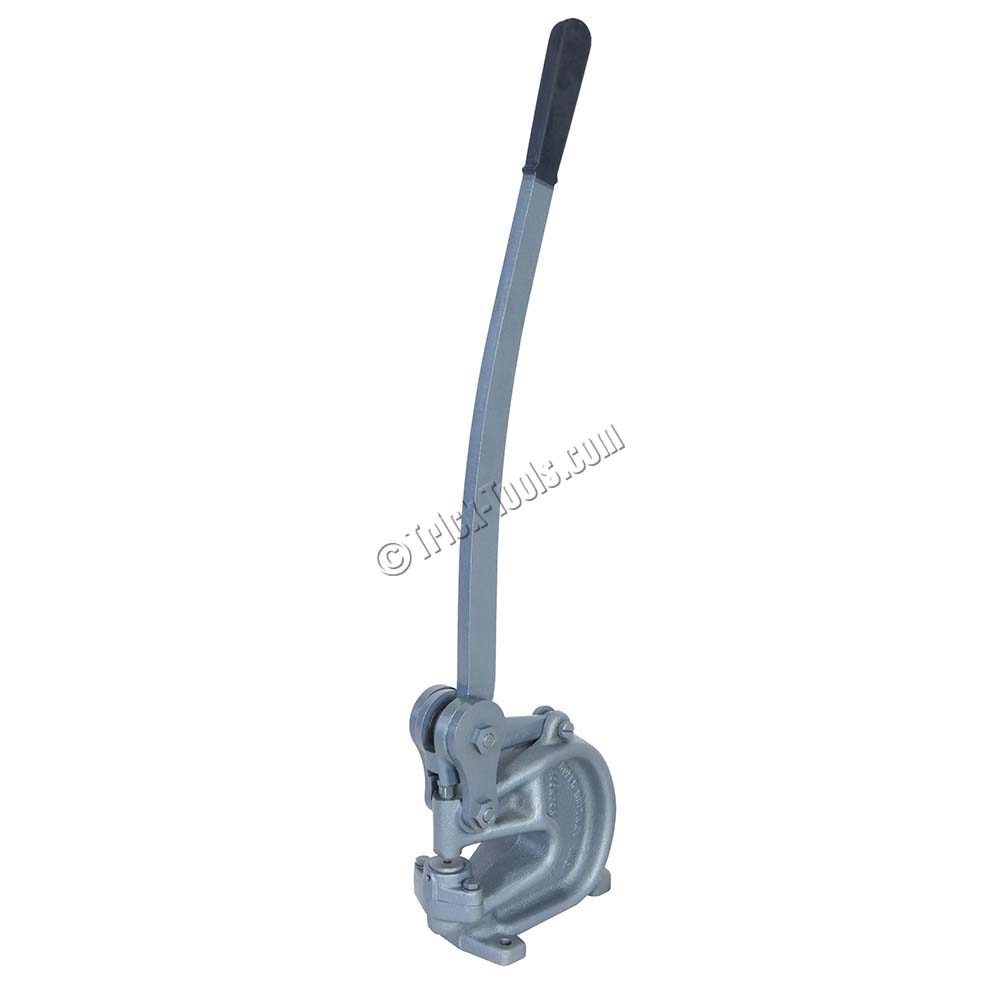

Roper Whitney No. 16 Medium Duty Bench Punch

Part #: 131020160
Model: No. 16
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $663.00

BEST SELLER

7.3 tons of punching power
Easy, linear pull handle
Solid forged steel frame
Made in the USA

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

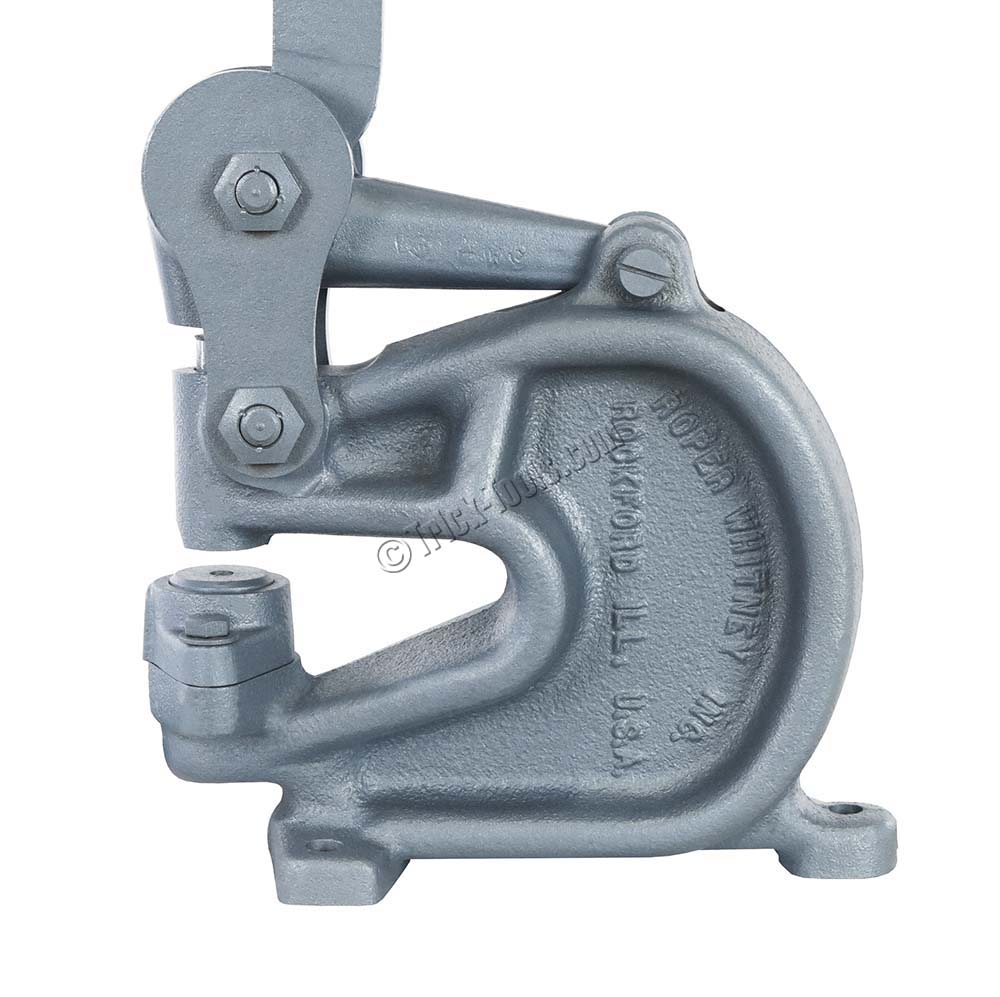

The Roper Whitney No. 16 punch features a heavy solid forged steel frame and is designed to be mounted to a sturdy work bench. It delivers 7.3 tons of punching power - more than enough to punch a 9/16 inch hole through 1/8 inch mild steel plate! The lower die shoe is adjustable to permit the proper alignment of punches and dies for punching thin sheet metal. This punch is also great for punching spring steel for mounting race car bodies! See the accessories tab for the proper annealed punches.

The advantage bench mounted punches have over portable rotary punches is that they feature a more convenient linear pull handle, and provide additional throat depth. The number 16 punch allows for punching up to 3-1/4 inches from the edge of the material.

An optional work table and a variety of bench and pedestal mounting options are also available for this punch. See the accessories tab.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 7.3 tons
•Tool Opening (inches): .375
•Throat Depth (inches): 3.25
•Throat Height (inches): 1.75
•Weight (pounds): 26.5
•Dimensions (LxWxH): 8.5 x 4 x 34
