Roto-Star 3 Rotary Welding Positioner with 16 inch Plate

Part #: Roto3-P
Model: 31343790210, 31343790250
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $4,982.00
Sale Price: $4,449.95

FREE SHIPPING

Save BIG and receive a FREE American Flag with the purchase of this Roto-Star Positioner.

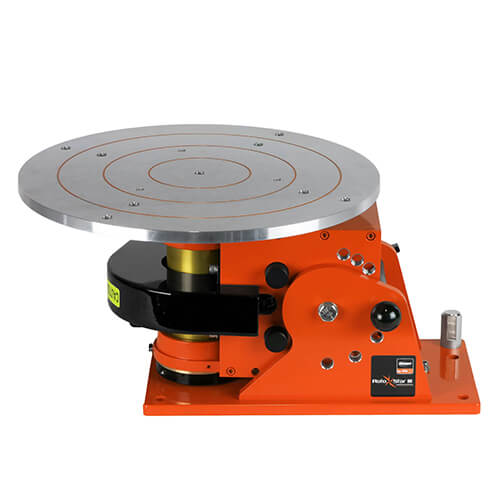

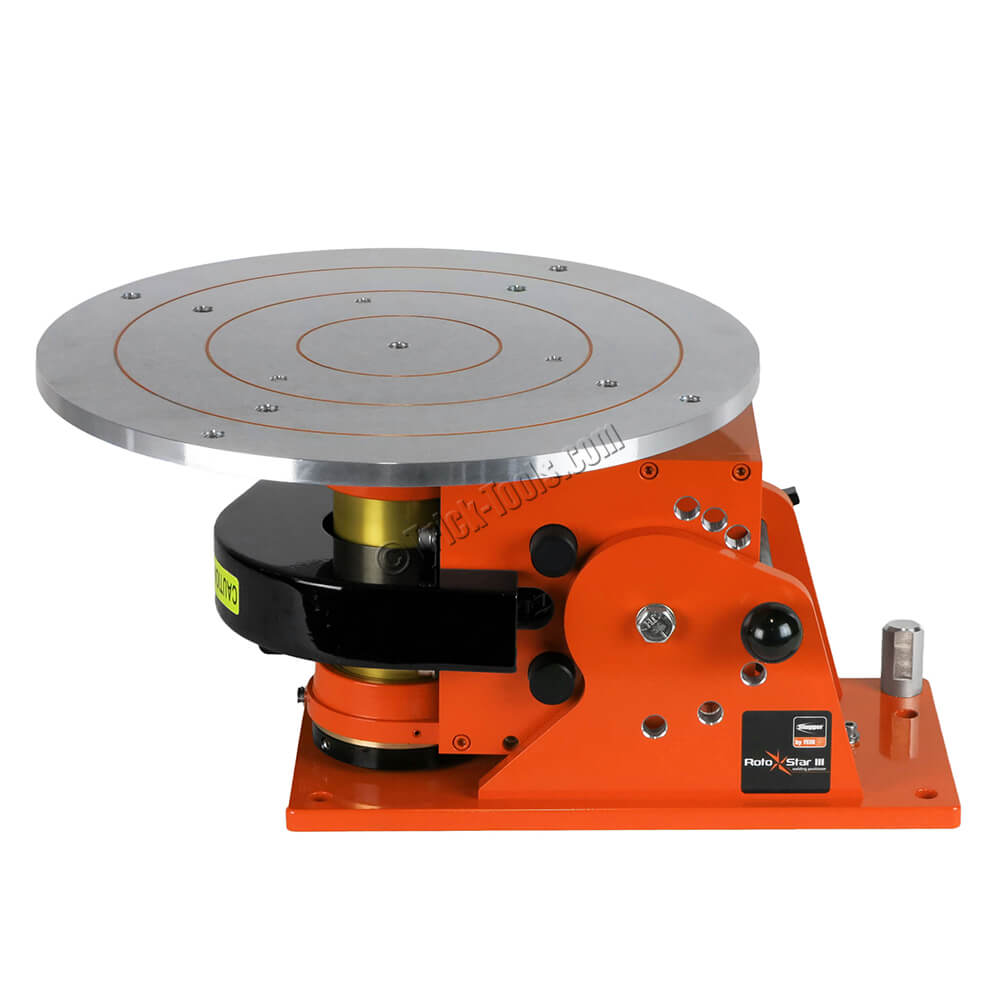

16 inch surface plate
Variable speed
Reversible control

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

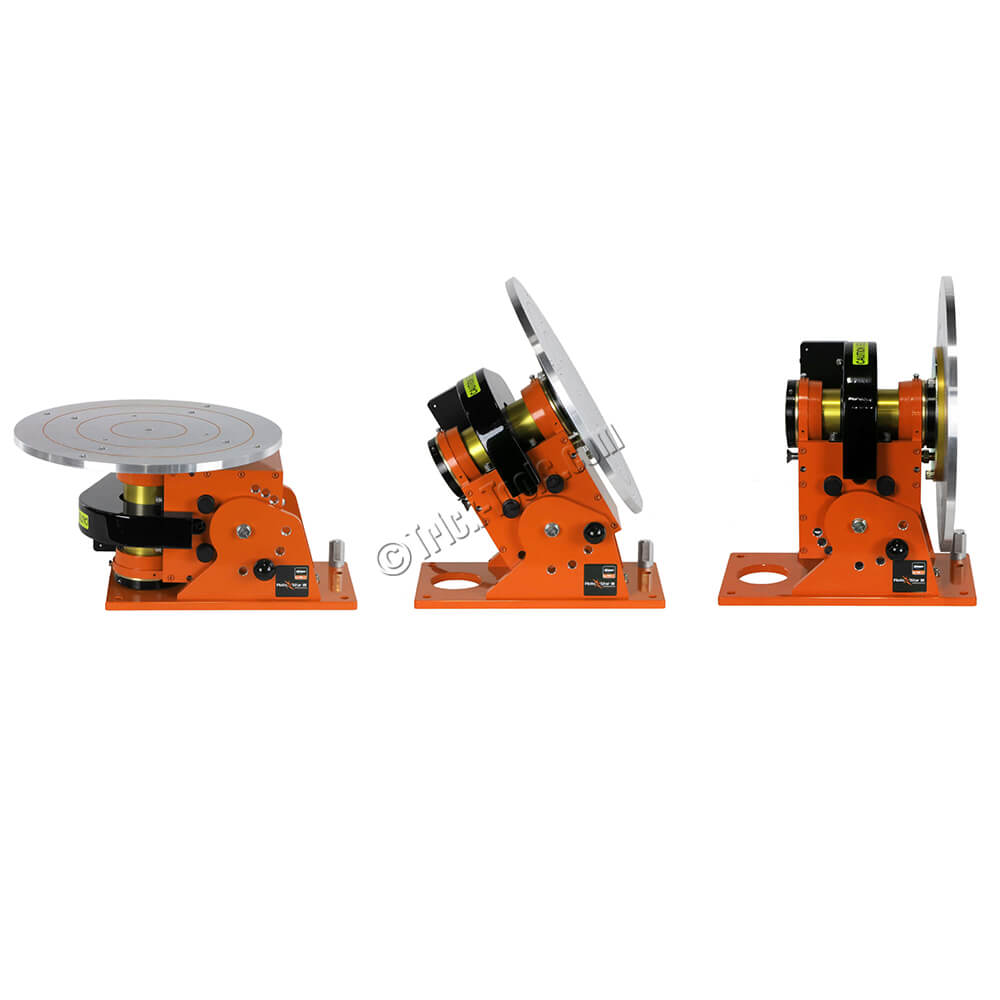

The Roto-Star welding positioners are a must for precision welding. These heavy-duty units were designed to increase productivity and improve quality for a variety of applications. They are also adjustable from 0 to 90 degrees by 15-degree increments and feature a 300 amp double grounding system which eliminates feedback during high-frequency welding.

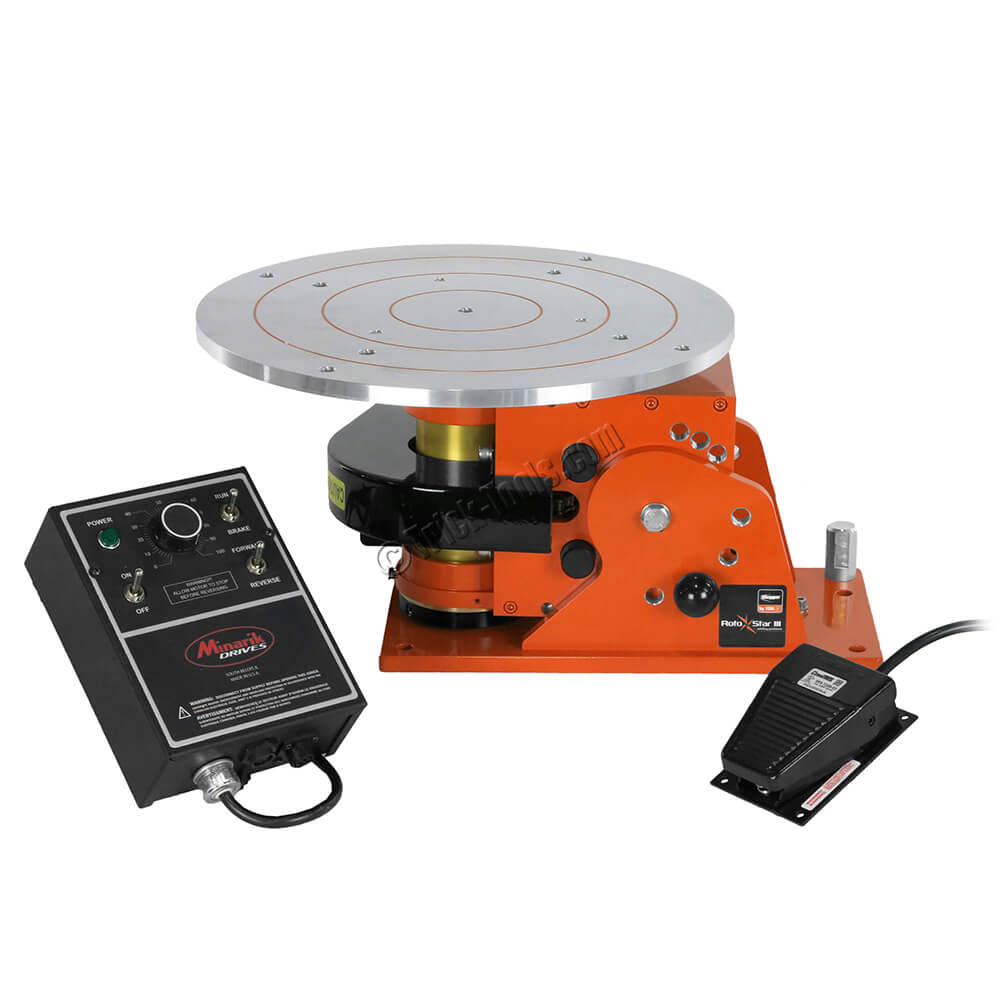

This unit is equipped with a 16-inch surface plate for fixturing workpieces as well as a reversible variable speed control unit. Optional accessories include an adjustable idler roller assembly, variable speed foot pedal control, and arm rest. Roto-Star welding positioners are manufactured in the USA and carry a full one-year warranty.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Degrees of Rotation: 360
•Angle(s): 0 - 90, 15 degree increments
•Max Swing (inches): 20
•Vertical Weight Cap (pounds): 250
•Horizontal Weight Cap (pounds): 200
•Thru Spindle Capacity (inches): 2-1/2
•Spindle Rotation: 360 degrees
•Spindle RPM: 1-8
•Grounding Cap: 300 amp
•Voltage: 110 volt
•Weight (pounds): 71
•Dimensions (LxWxH): 18 x 14 x 15
