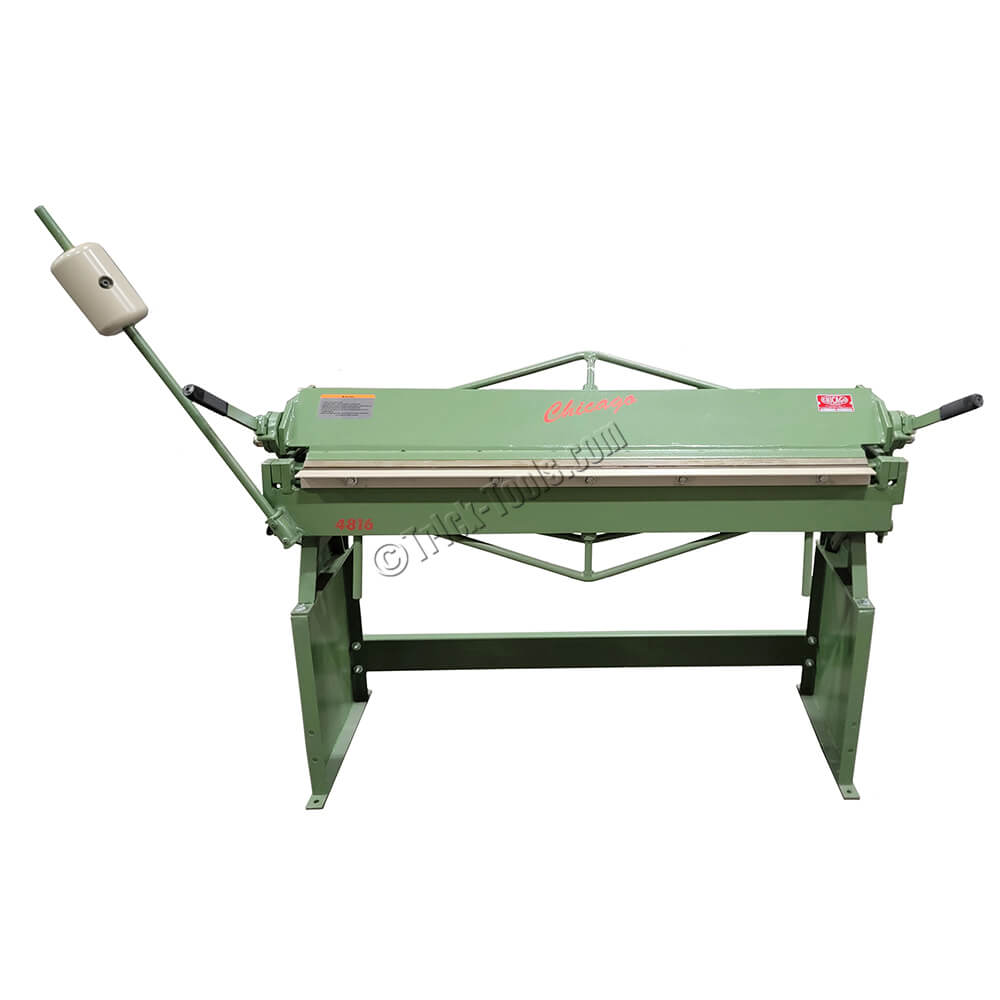

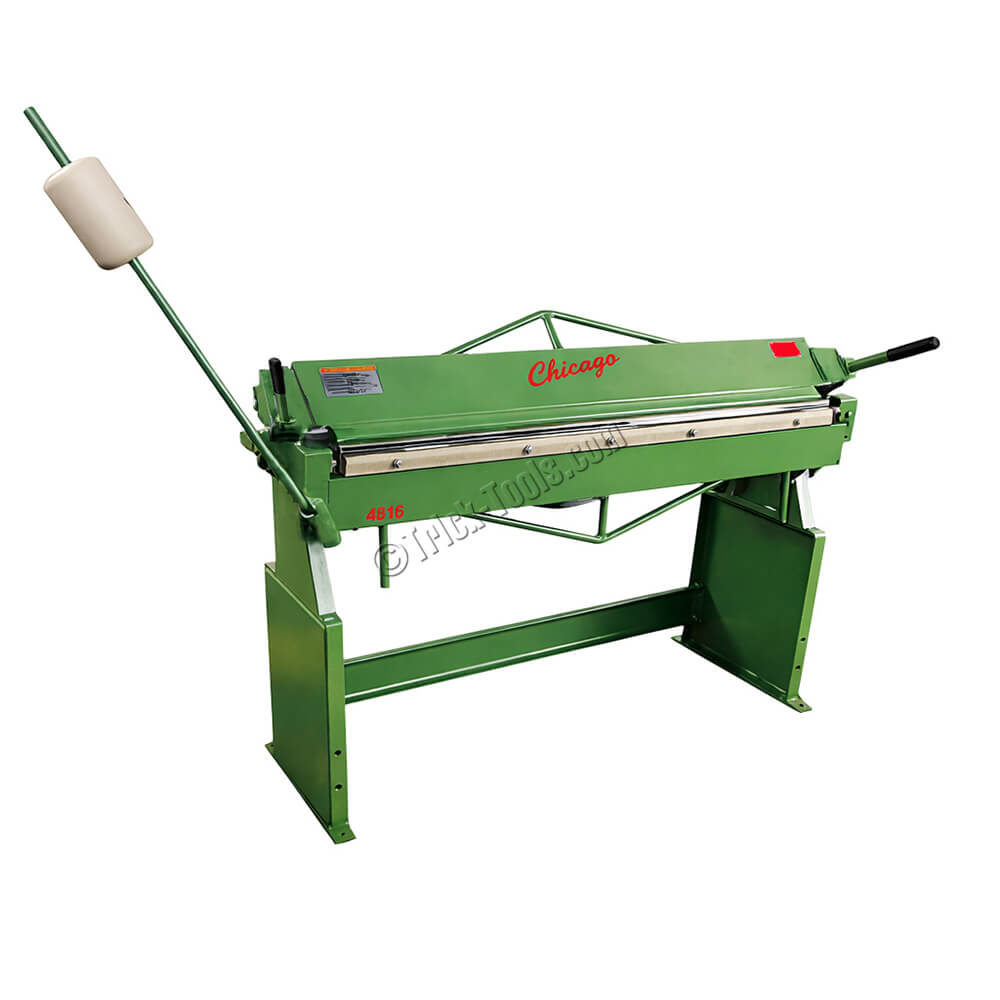

Chicago 4 foot Straight Brake, 16 gauge

Name: Chicago 4 foot Straight Brake, 16 gauge
Brand: Chicago
SKU: SB-4816
Price: 2400.00 USD
Availability: InStock

Part #: SB-4816
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,400.00

NEW

Easily adjusted
Removable apron insert
Heavy steel construction

FREIGHT:

ORIGIN:

DESCRIPTION

Since 1896, Dreis & Krump has been providing quality bending tools for sheet metal shops, industrial manufacturers, and schools. The Chicago 4-foot Straight Brake is a must-have machine in many shops or job sites and is great for HVAC work. The SB-4816 features a fully welded steel frame that is robust enough to bend up to 16-gauge mild steel across the full width, brass hinge pins for smooth operation, an adjustable counterweight to assist with bending thick material, and legs to place the machine at a comfortable work height.

Made in Taiwan to Dreis and Krump's high standards, these brakes are ready to go to work for you.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 48
•Max Lift Of Beam (inches): 1.75
•Front To Rear Adj (inches): .5
•Min Reverse Bend (inches): .375
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 48-1/2
•Weight (pounds): 480
