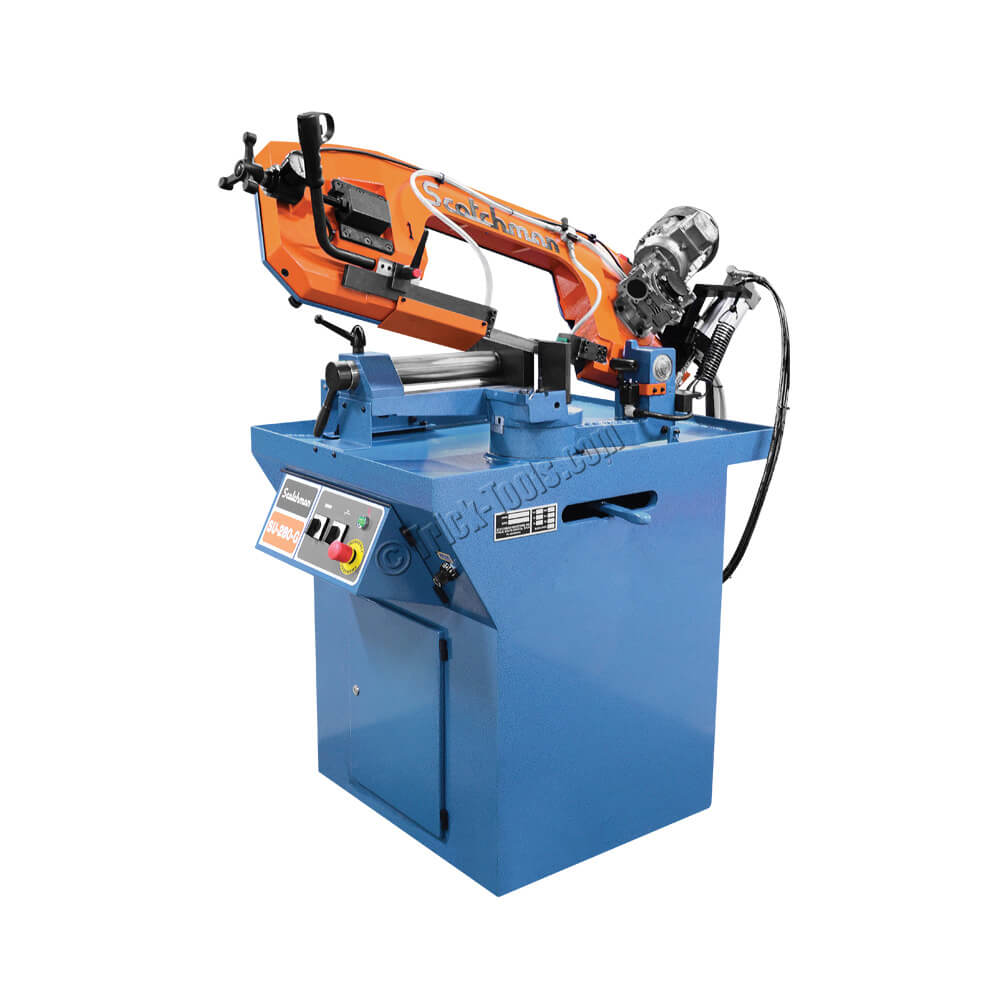

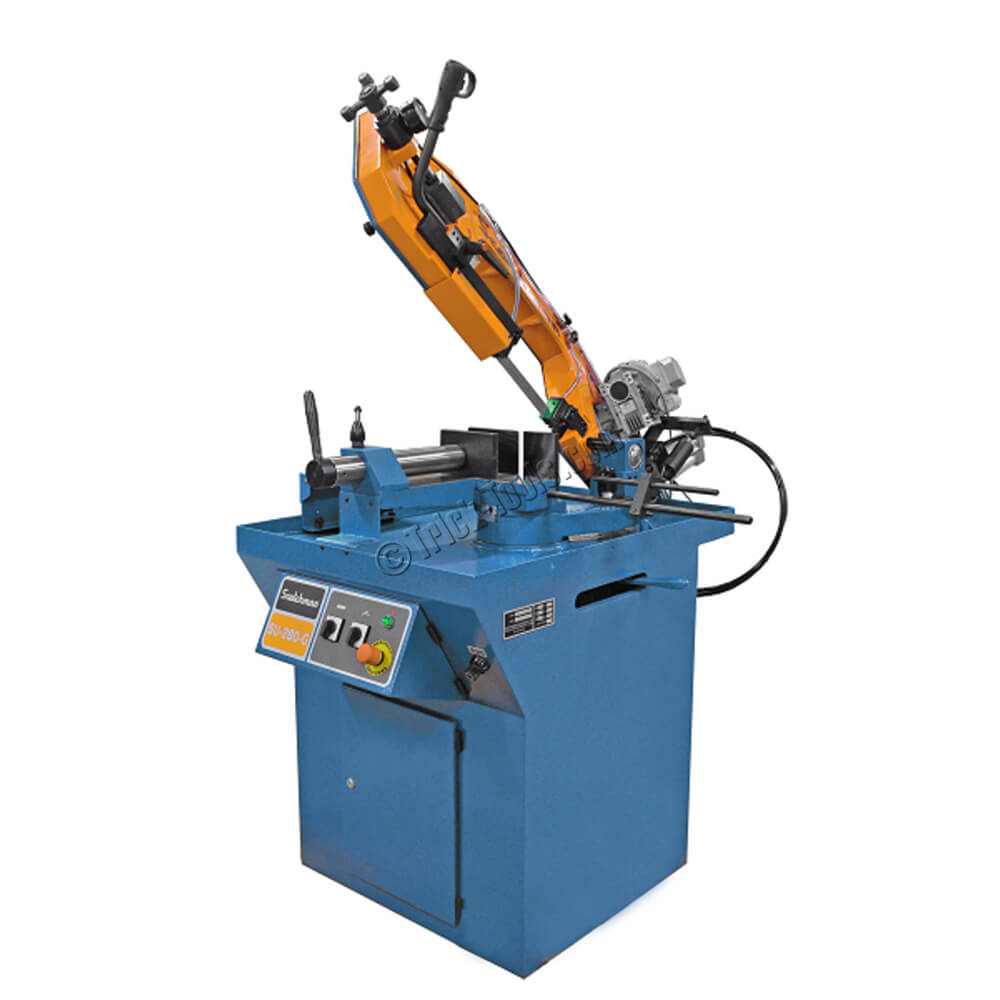

Scotchman SU-280 G Mitering Head Horizontal Band Saw

Part #: SU-280G
Model: 1078, 1079, 1080
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $8,420.00

NEW

8 inch round capacity
1 inch blade
Carbide blade guides
60 degree right hand miter

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

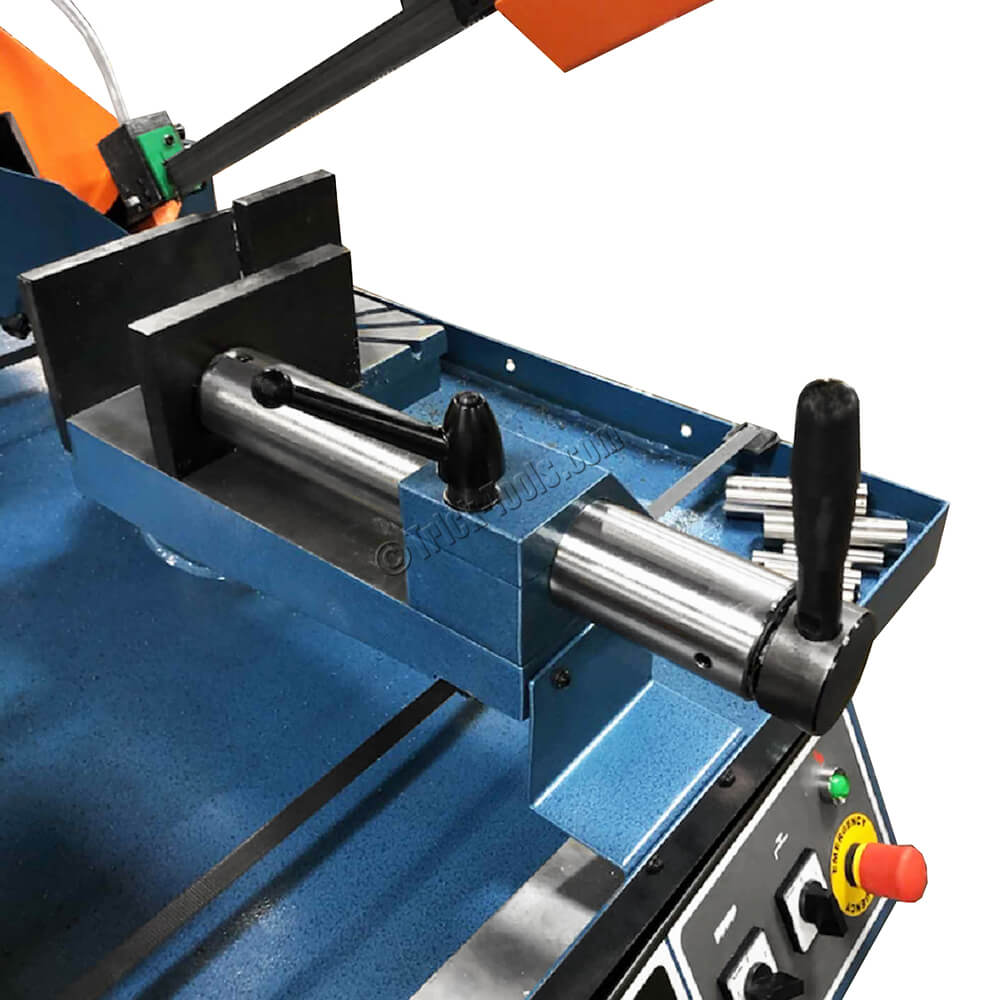

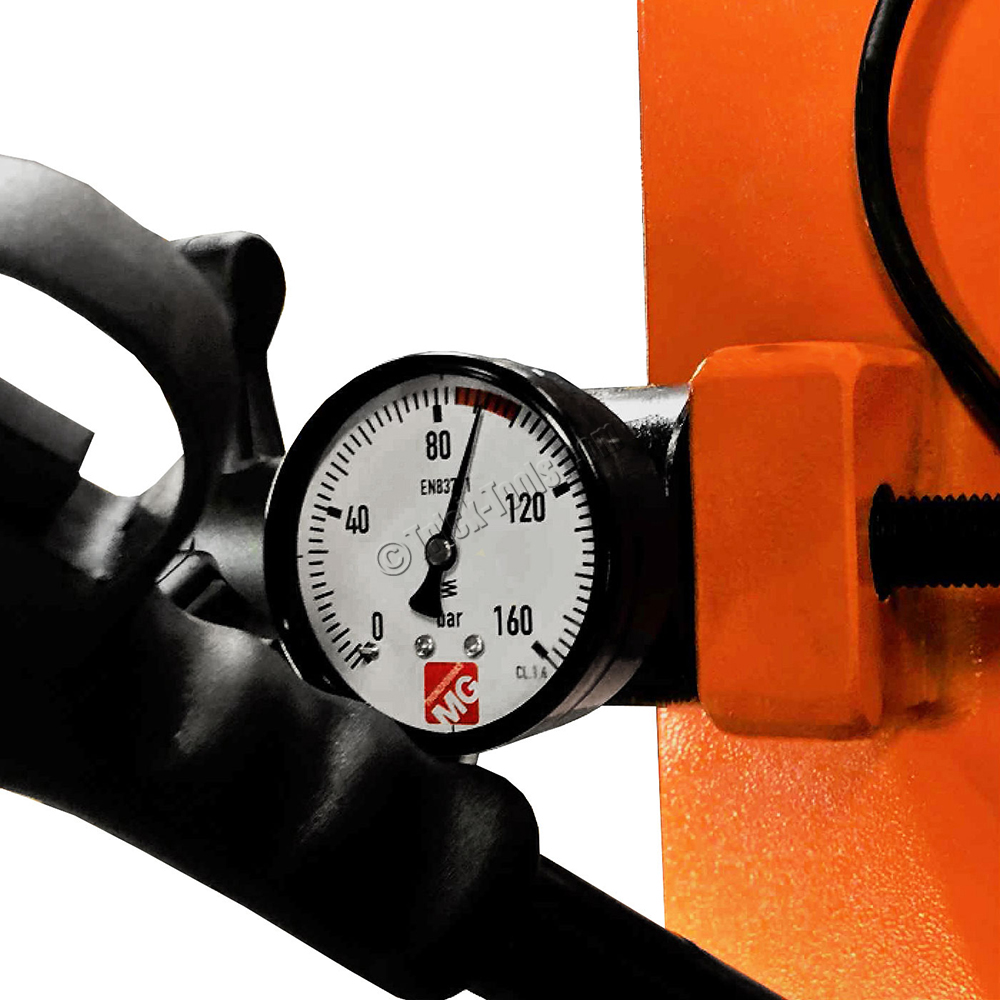

Quickly and accurately make miter cuts up to 60 degrees with the Scotchman SU-280 G Utility Band Saw. This saw features carbide blade guides with roller supports, quick action locking vise, blade tension gauge, adjustable down-feed, cooling system, and a 3-year parts warranty. The SU-280 G is available in a single-speed 220v single-phase option, or two-speed when selecting a 3-phase power option.

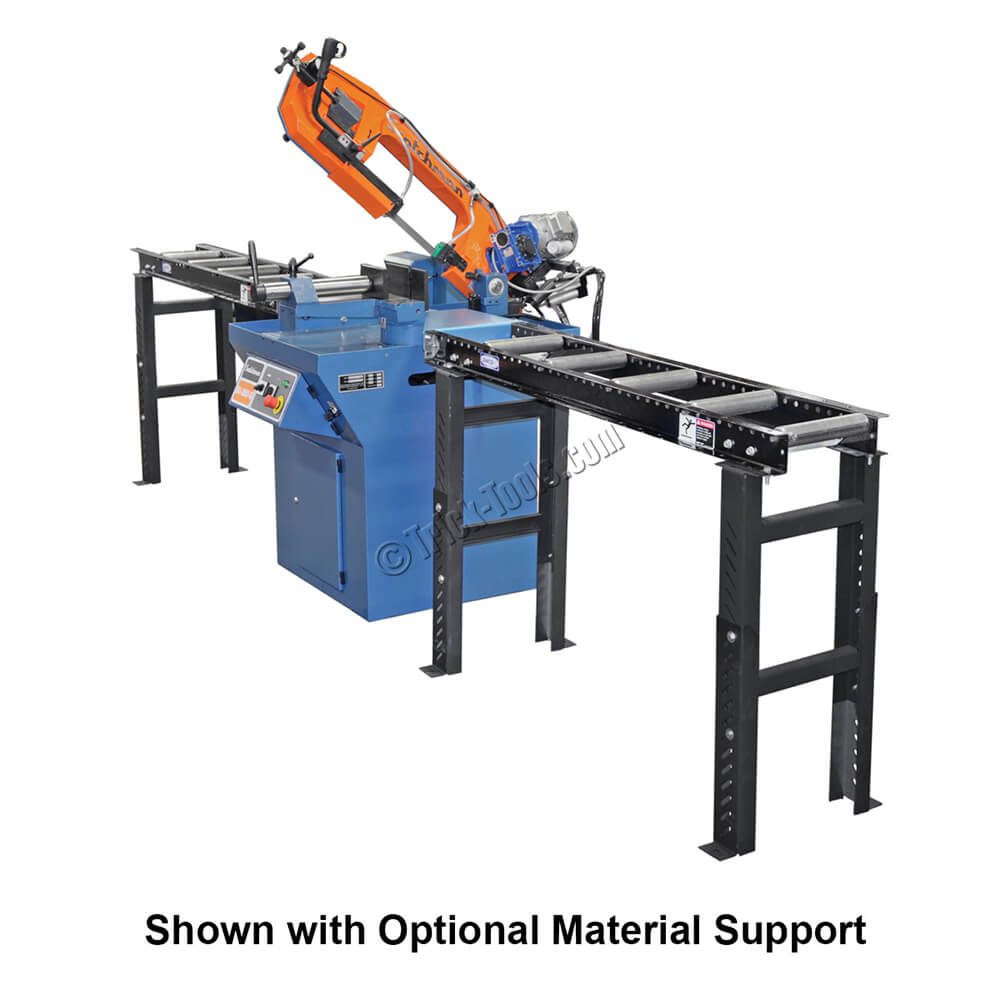

The 8-inch round cutting capacity at 90 degrees, or 7-inch at 45, and 4-1/4 inch at 60 degrees make this a great option for job shops or manufacturing. Additional infeed and outfeed rollers are available and listed under the accessories tab.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 1.3 hp
•Blade Width (inches): 1
•Blade Length (inch): 96
•Speed(s): 196 FPM (220v 1ph) | 131/262 FPM (230/460v 3ph)
•Mitering Range: Head pivots 60 degrees right
•Round Tube Capacity 90 Deg (inches): 8
•Round Tube Capacity 45 Deg (inches): 7 (4-1/4 at 60 degrees)
•Square Tube Capacity 90 Deg (inches): 8
•Square Tube Capacity 45 Deg (inches): 6-1/4 (4 at 60 degrees)
•Rectangle Tube Capacity 90 Deg (inches): 11 x 7-3/4
•Rectangle Tube Capacity 45 Deg (inches): 7 x 6-1/4 (4-1/4 x 4 at 60 degrees
•Weight (pounds): 650
•Dimensions (LxWxH): 55 x 33.5 x 69
