Scotchman 50514-EC, 50 ton Ironworker

Part #: 50514-EC
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $16,690.00

5 stations
Universal open tooling station
Dedicated coper/notcher station
14 inch capacity bar shear
Punching station: 1-1/4 inch hole through 1/2 inch steel plate
Angle shear 4 x 4 x 3/8

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

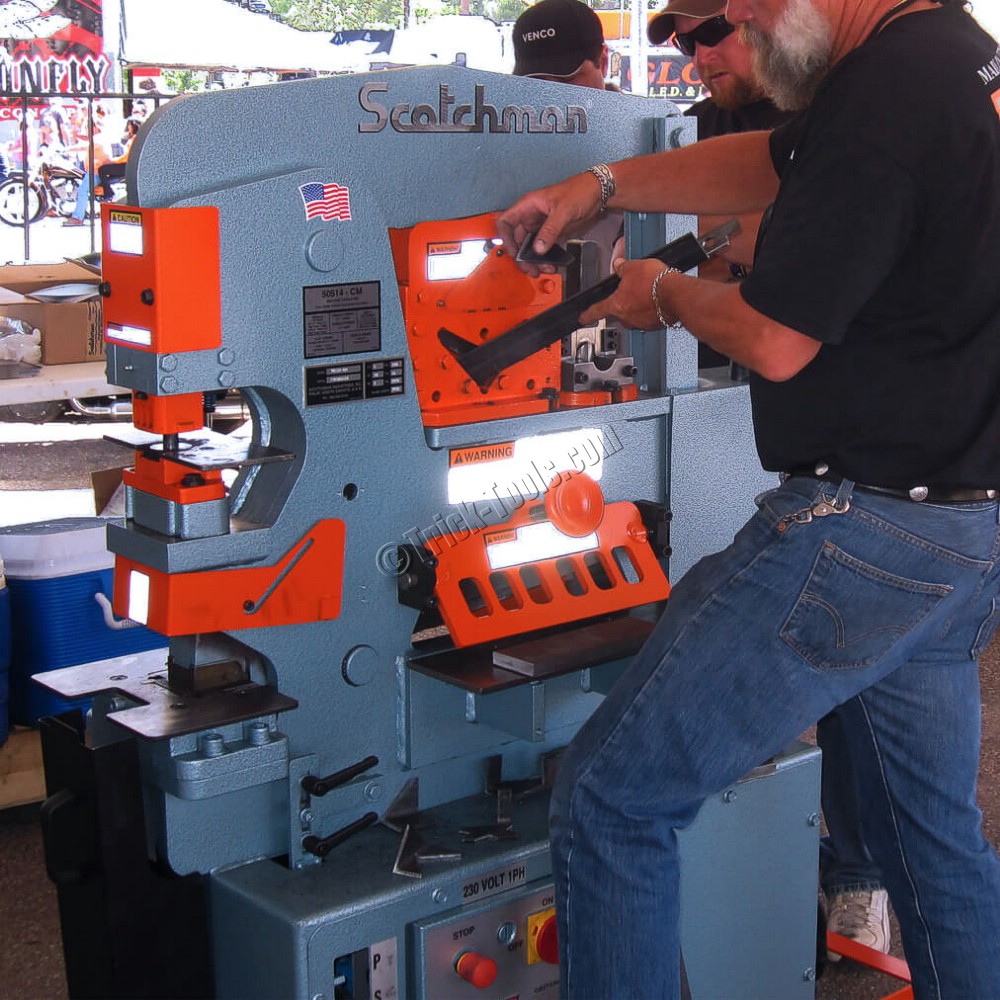

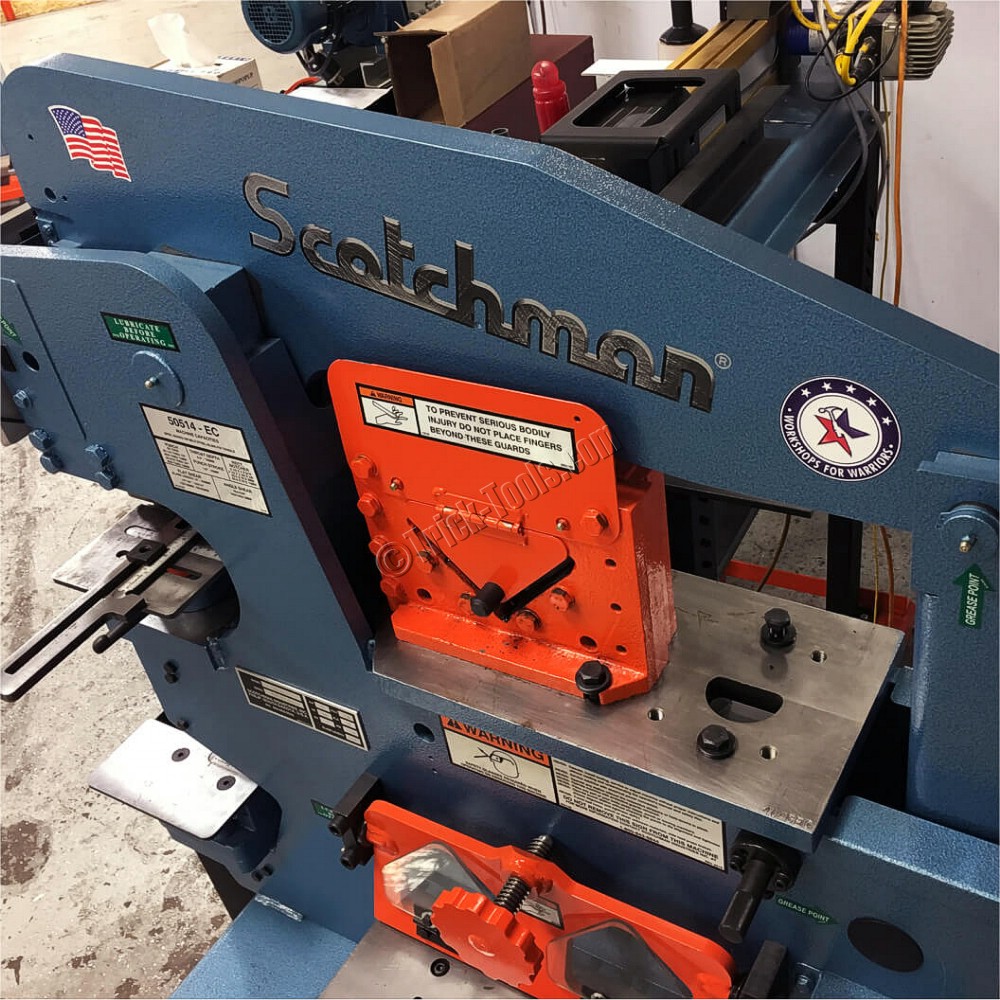

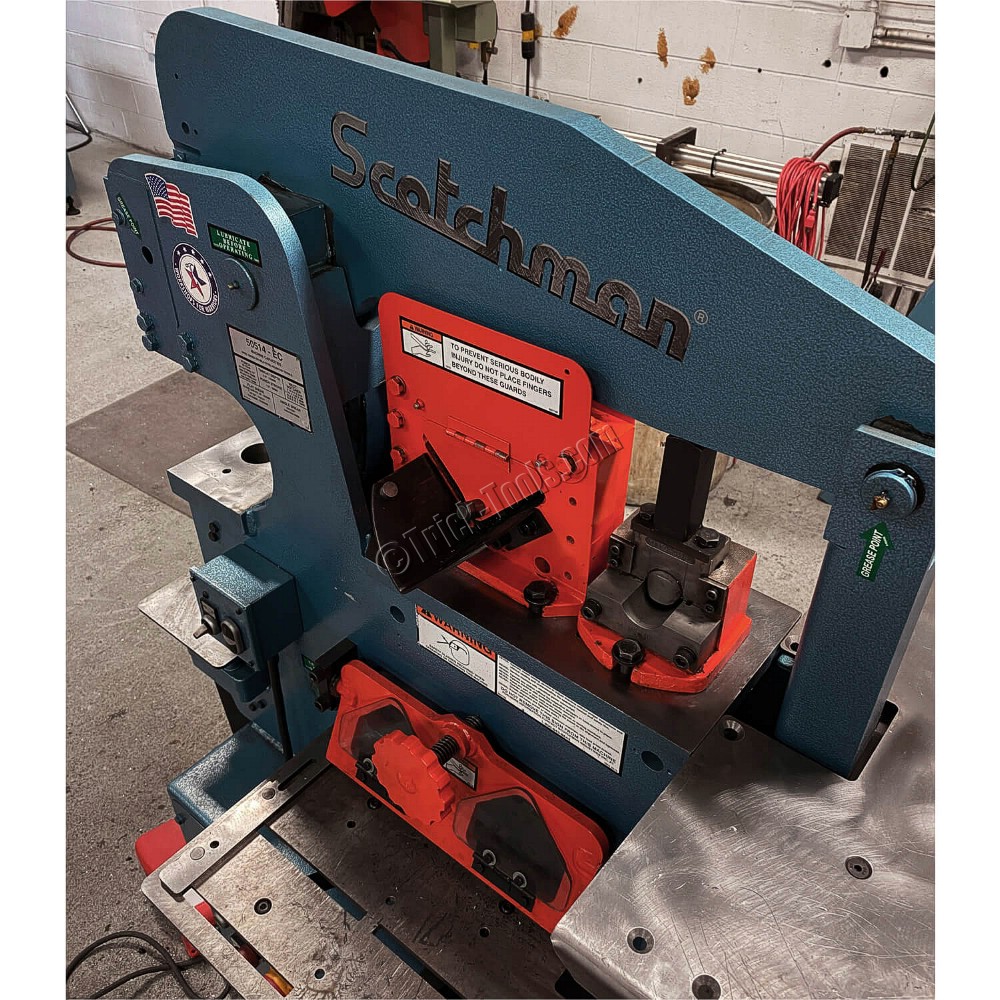

The 50514-EC machine is a new version of Scotchman's popular 50-ton Ironworker. With 50 tons of hydraulic power, it has incredible shearing and notching capability. Comes standard with a punching station, angle and bar shears, and a new rectangular coping station.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Stations: 5
•Rated Capacity (tons): 50
•Punching Capacity (Std): 1-1/4 inch OD in 1/2 inch plate, 13/16 inch OD in 3/4 inch plate
•Punching Throat Depth (inches): 6
•Flat Bar Shearing Max Width (inches): 1/4 x 14
•Flat Bar Shearing Max Thickness (inches): 3/4 x 4
•Angle Shear Max Size 90 Deg (inches): 4 x 4 x 3/8
•Angle Shear Max Size 45 Deg (inches): 2 x 2 x 3/8
•Throat Depth (inches): 6
•Special Tooling Max Cap: 2.25
•Pipe Notcher Capacity (inches): 3/4 to 2 inch
•Rectangular Notcher Capacity (inches): 2 x 1.75 x .25
•90 Deg V Notcher Capacity (inches): 6 x 6 x .125 or 3 x 3 x .25
•Round Bar Shear Capacity (inches): 1/4 to 1
•Square Bar Shear Capacity (inches): 1/4 to 3/4
•Square Tube Shear Capacity (inches): 1/2 to 1
•Picket Tool Capacity (inches): 1/2 to 1
•Cycle Time: 1/4 inch stroke = 40 spm; 3/4 inch stroke = 17 spm
•Motor (Std): 3 hp, 220/440 volt, 3 phase
•Motor (Opt): 5 hp, 220 volt, 1 phase
•Hydraulics: 2100 psi
•Weight (pounds): 1275
•Dimensions (LxWxH): 29 x 47 x 59

INCLUDES

50 ton punch station: 1-1/4 inch hole in 1/2 inch steel plate
Keyed punch ram for safety
6 inch throat depth
2 inch die holder
Punch nut with wrench and stripper
One round punch and die: max diameter 1 inch
Adjustable stroke control
Angle shear: 4 x 4 x 3/8 inch at 90 degrees and 2 x 2 x 3/8 inch at 45 degrees
14 inch Flat Bar shear with 4-way reversible blade
Rectangular notcher: 2-1/2 x 2-3/4 x 3/8 inch
Tool table work area
LED work lights
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt / 3-ph electrics, must specify voltage
All guards necessary to comply with ANSI B 11-5 standards
Made in the USA
