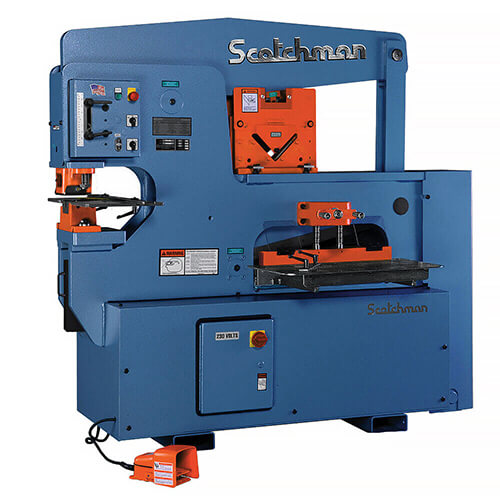

Scotchman 9012-24M, 90 ton Ironworker

Part #: 9012-24M
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $33,995.00

4 stations
Universal open tooling station
24 inch capacity bar shear
Punching station: 1-1/8 inch hole through 1 inch steel plate
Angle shear 6 x 6 x 1/2

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The 9012-24M machine is Scotchman's 90 ton Ironworker. Its 5 hp motor gives it the ability to shear 6 x 6 inch angle and 24 inch of 1/4 inch flat bar! It also has increased tonnage at the tool table over the smaller machines in the lineup. Comes standard with punching station, angle and flat bar shears. The machine also features an electric stroke control for precision applications and custom tool setups.

Note: Liftgate delivery is not available for this item.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 90
•Punching Capacity (Std): 1-1/8 inch OD in 1 inch plate
•Punching Throat Depth (inches): 12
•Flat Bar Shearing Max Width (inches): 1/4 x 24
•Flat Bar Shearing Max Thickness (inches): 1 x 8
•Angle Shear Max Size 90 Deg (inches): 6 x 6 x 1/2
•Angle Shear Max Size 45 Deg (inches): 3 x 3 x 3/8
•Throat Depth (inches): 12
•Special Tooling Max Cap: 4
•Pipe Notcher Capacity (inches): 3/4 to 2 inch
•Rectangular Notcher Capacity (inches): 2 x 2.5 x .375
•90 Deg V Notcher Capacity (inches): 6 x 6 x .313
•Round Bar Shear Capacity (inches): 1/4 to 1-1/4
•Square Bar Shear Capacity (inches): 1/4 to 1
•Square Tube Shear Capacity (inches): 1/2 to 2
•Picket Tool Capacity (inches): 1/2 to 1
•Cycle Time: 1/4 inch stroke = 37 spm; 3/4 inch stroke = 24 spm
•Motor (Std): 5 hp, 220/440 volt, 3 phase
•Motor (Opt): 5 hp, 220 volt, 1 phase
•Hydraulics: 2600 psi
•Weight (pounds): 3900
•Dimensions (LxWxH): 26 x 76 x 70

INCLUDES

90 ton punch station: 1-1/8 inch hole in 1 inch steel plate
Keyed punch ram for safety
12 inch throat depth
Punch gauging table with fence and scale
Die holder complete with 2 inch die insert
Punch nut with wrench and stripper
One round punch and die: max diameter 1-1/4 inch
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear: 6 x 6 x 1/2 inch at 90 degree
24 inch Flat Bar shear with 4-way reversible blade
Tool table work area
Two-stage hydraulic pump
LED work lights
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt / 3-phase electrics, must specify voltage
All guards necessary to comply with ANSI B 11-5 standards
Made in the USA
