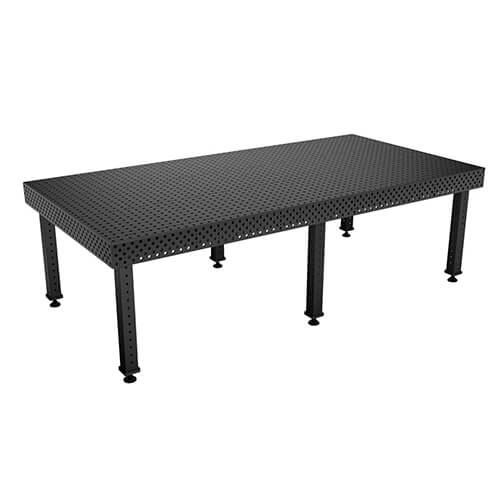

BuildPro ALPHA 5/8 Welding Table, 120 x 60 inch

Part #: TA5-12060Q
Model: TA5-12060Q-A1, TA5-12060Q-A2, TA5-12060Q-B1, TA5-12060Q-C1, TA5-12060Q-C2
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $11,695.00

FREE SHIPPING

5 sides for additional fixture mounting options
5/8 inch holes spaced 2 inches apart
Table flatness of .005 per 24 inches
Nitride coating for corrosion protection and anti-spatter

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

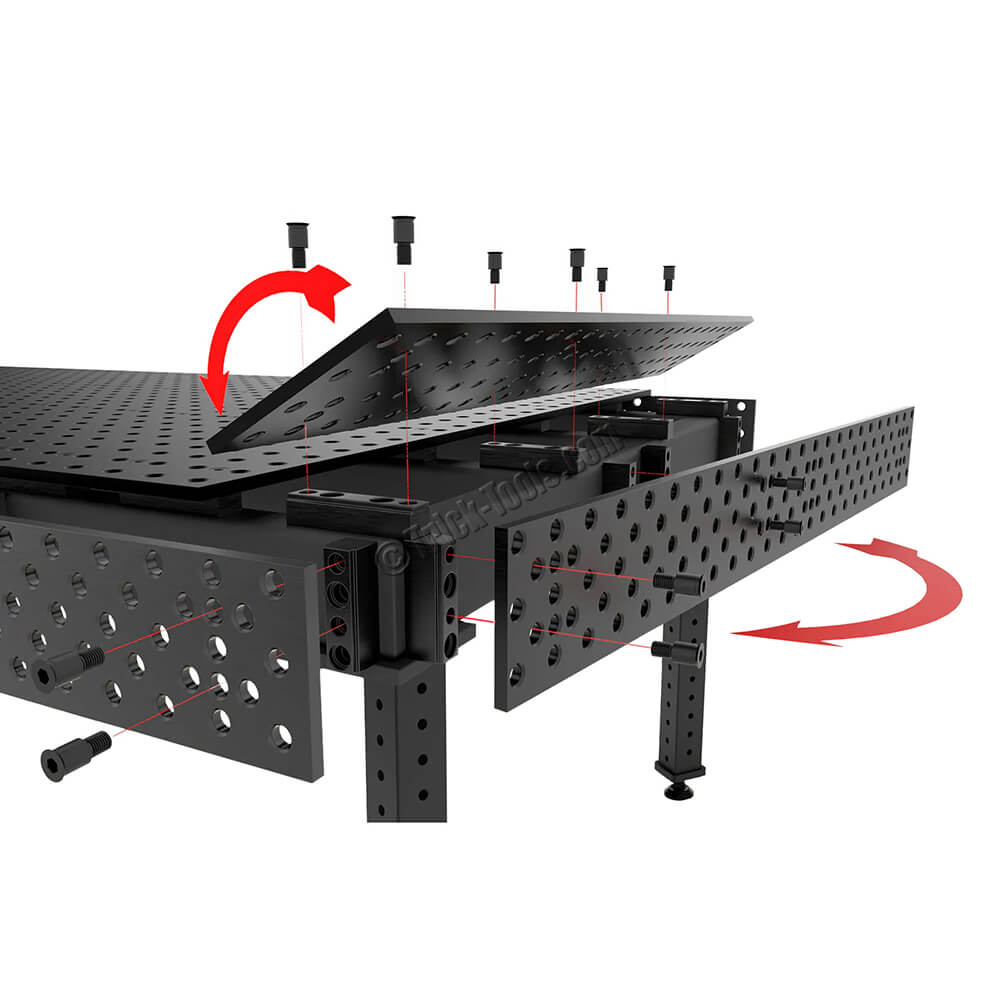

The ALPHA 5/8 Imperial Modular Welding Tables feature a continuous mounting surface and 5 sides with 5/8 inch holes for maximum versatility. Their flexible, modular design makes them easy to adapt to your project, no matter the size. The Build Pro ALPHA tables also feature a heavier support base and legs than the standard Build Pro Tables. Reversible, precision-ground steel plates and heavy-duty steel legs with self-leveling feet make this one of the nicest fixturing tables on the market for your dollar!

Table flatness of .005 per 24 inch x 24 inch

Hole diameter: .625 +.002/-.000

Hole spacing: 2.000 +/- .001

Plate thickness: .47 +/- .004

Tabletop finish: Nitrided (heat-treated)

Top plate material: P20

Top plate hardness: HV 750

Side plate material: Q345B

Side plate hardness: HV 550

Coefficient of friction: 0.37

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 7,000 lbs (2,000 lbs with casters)
•Size: 60 x 120 inches
•Flatness: +/- .005 inches per 24 x 24 inches
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 +/- .001 inches
•Plate thickness: .47 +/- .004 inches
•Weight (pounds): 1923
