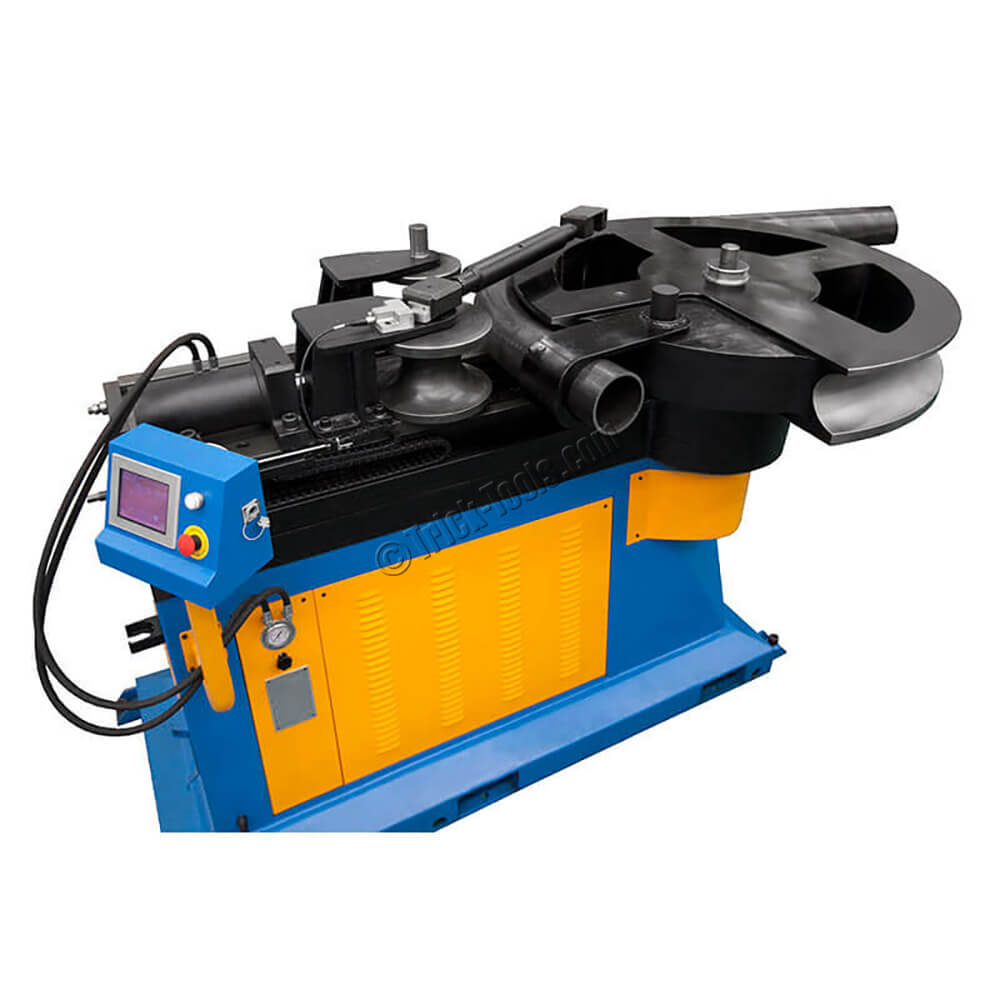

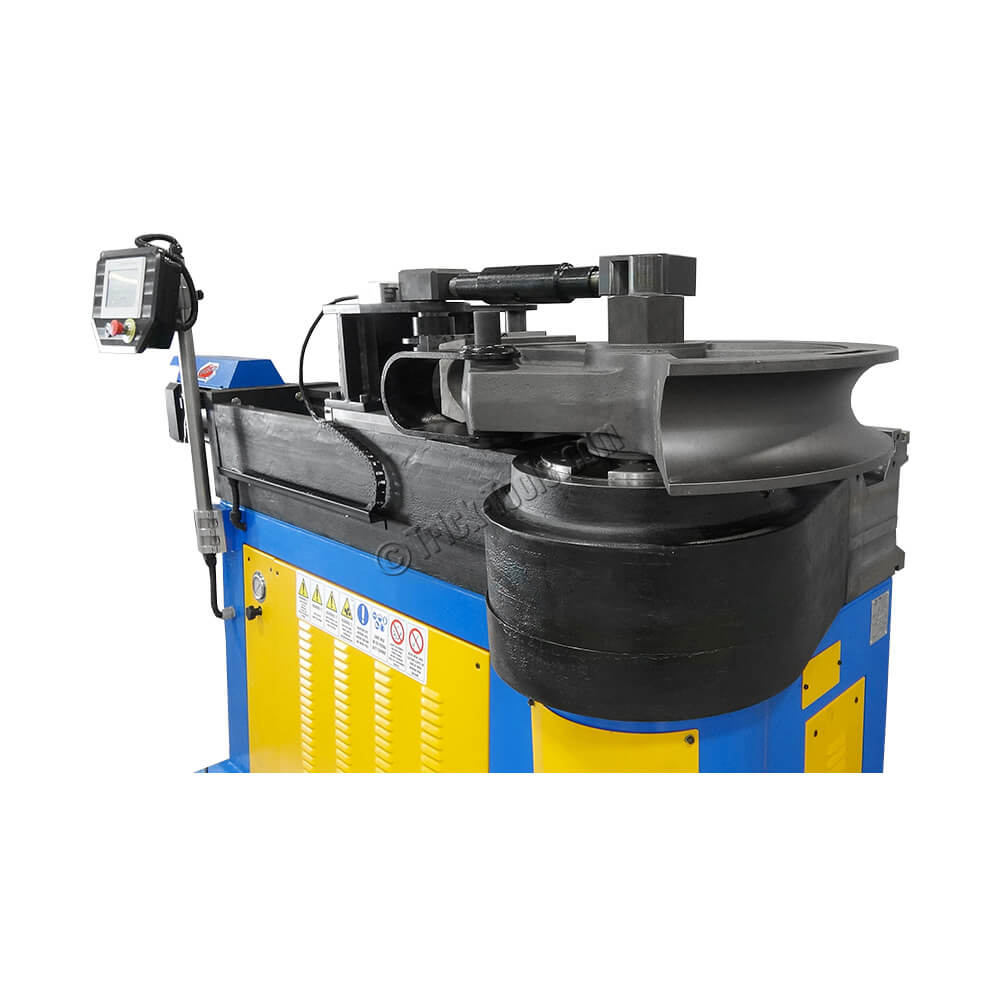

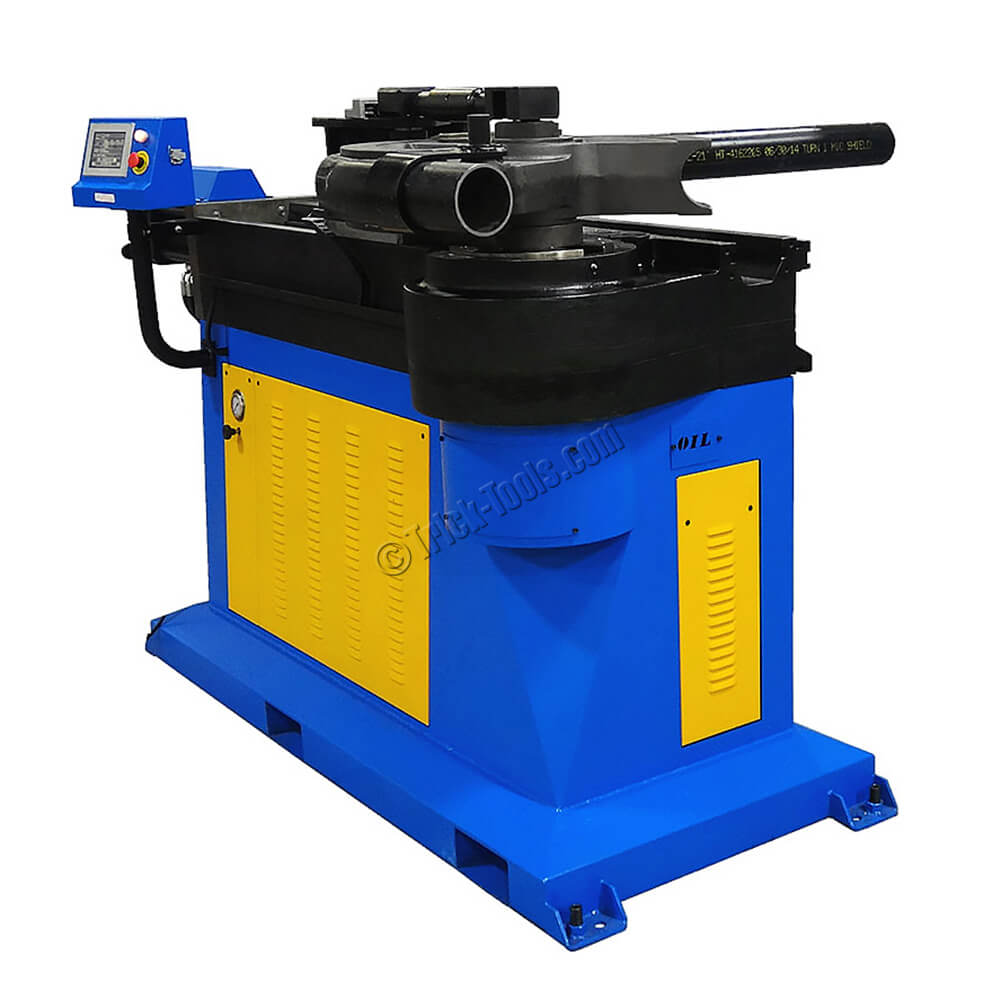

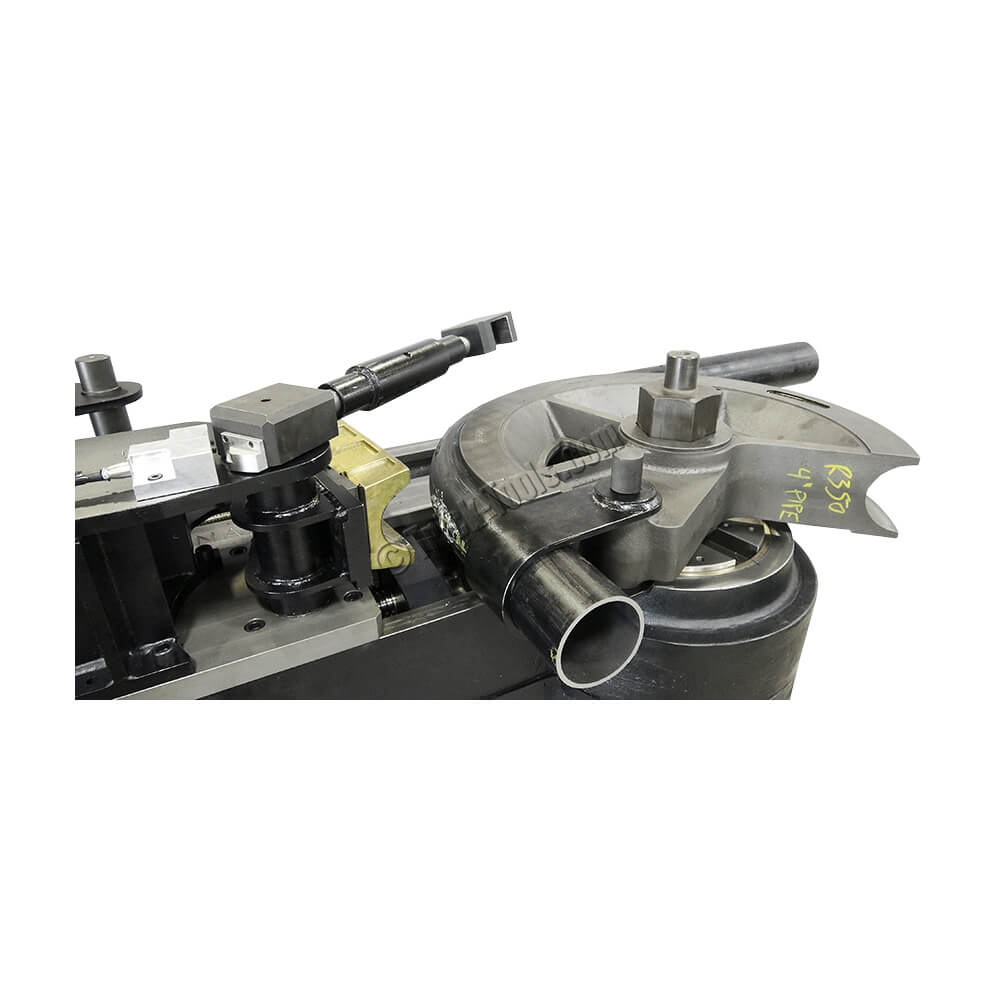

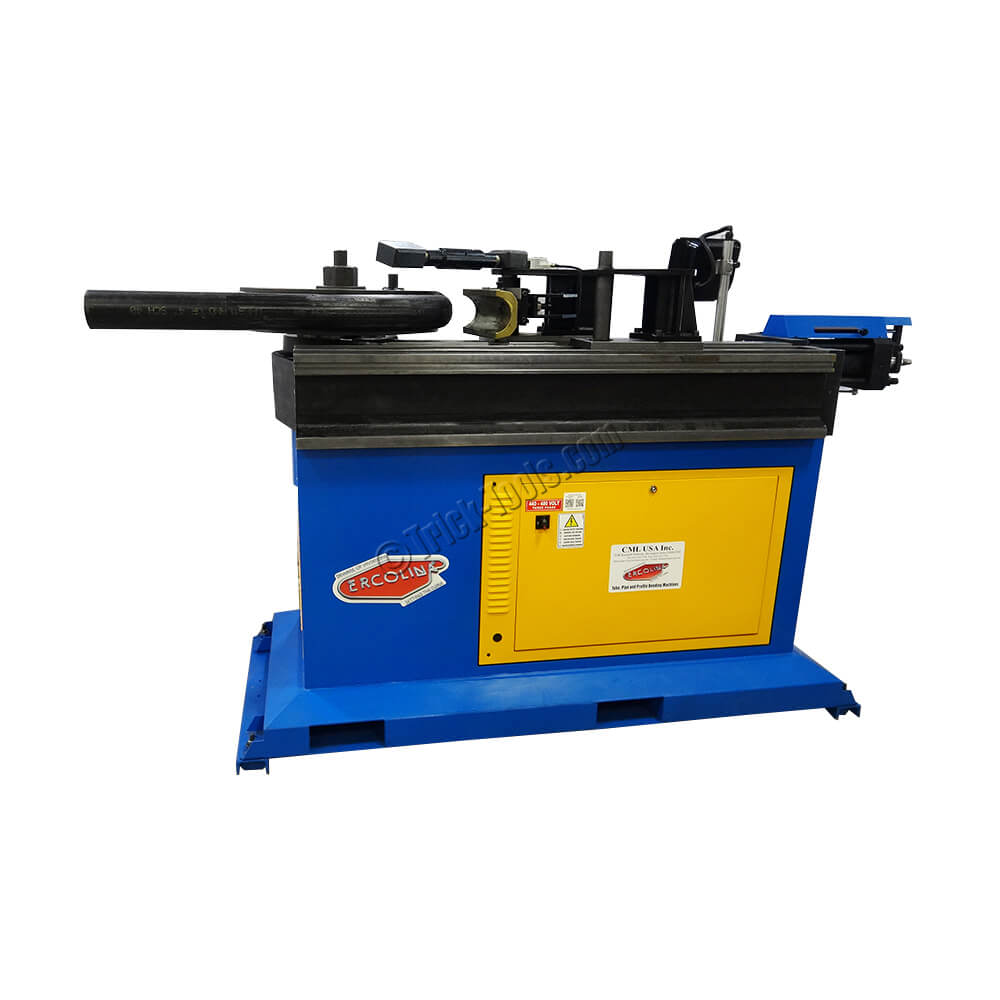

Ercolina TB180 Tubing Bender

Part #: TB180
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $158,600.00

NEW

6 inch OD capacity
Electric gear drive
One touch simple programming
Hydraulically controlled counter die

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

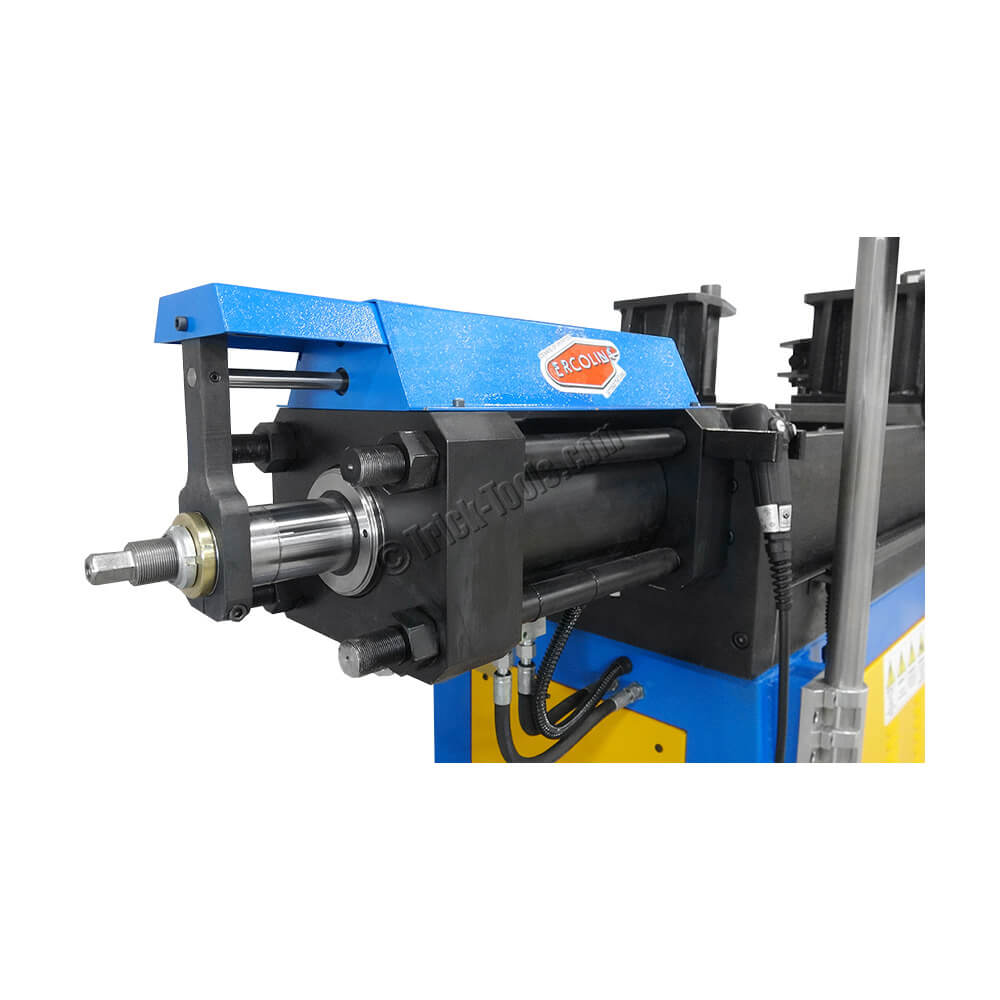

Ecrolina offers a large variety of high-quality benders and the largest in this lineup is the TB180 Top Bender which has an impressive 6 inch round tubing, 6 inch Schedule 40 pipe, or 4 inch square tubing capacity and centerline radii up to 23-1/2 inches. The programmable touch screen can handle up to 12 bends per program and an unlimited number of programs when used with a removable USB drive. The TB180 also features a hydraulically operated counter die vise to help control material springback.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 6
•Round Dom Capacity (inches): 6
•Nominal PIPE Capacity: 6 inch Sch 40 (4 Sch 80 Stainless)
•Square Mild Steel Capacity (inches): 4 x .250
•Solid Bar Mild Steel Capacity (inches): 3
•Minimum OD (inches): 1-1/2
•Min Center Line Radius (inches): 4-1/2
•Max Center Line Radius (inches): 23-1/2 (31-1/2 with case extension)
•Max Degree of Bend: 180
•Motor: 440v, 3 phase
•Control Method: programmable on board computer
•Maximum OD (inches): 6
•Weight (pounds): 6000
•Dimensions (LxWxH): 75 x 40 x 59 inches
