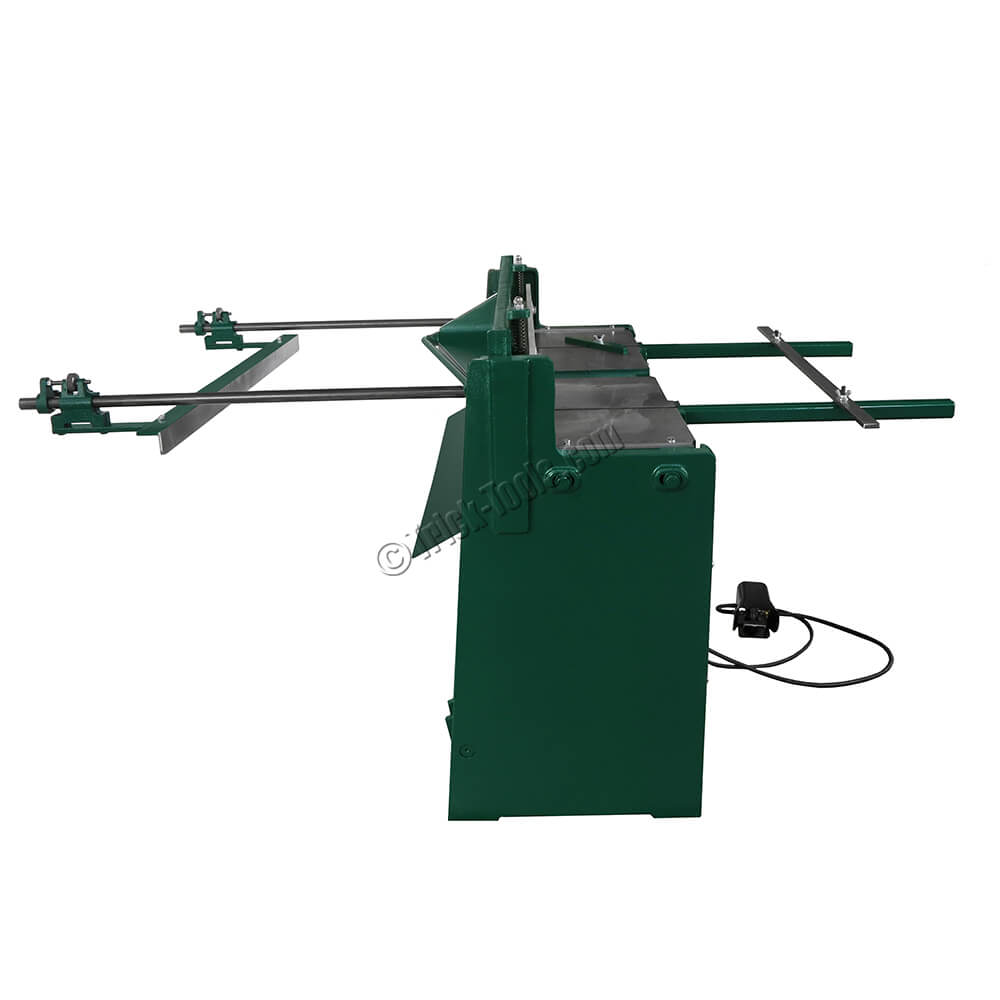

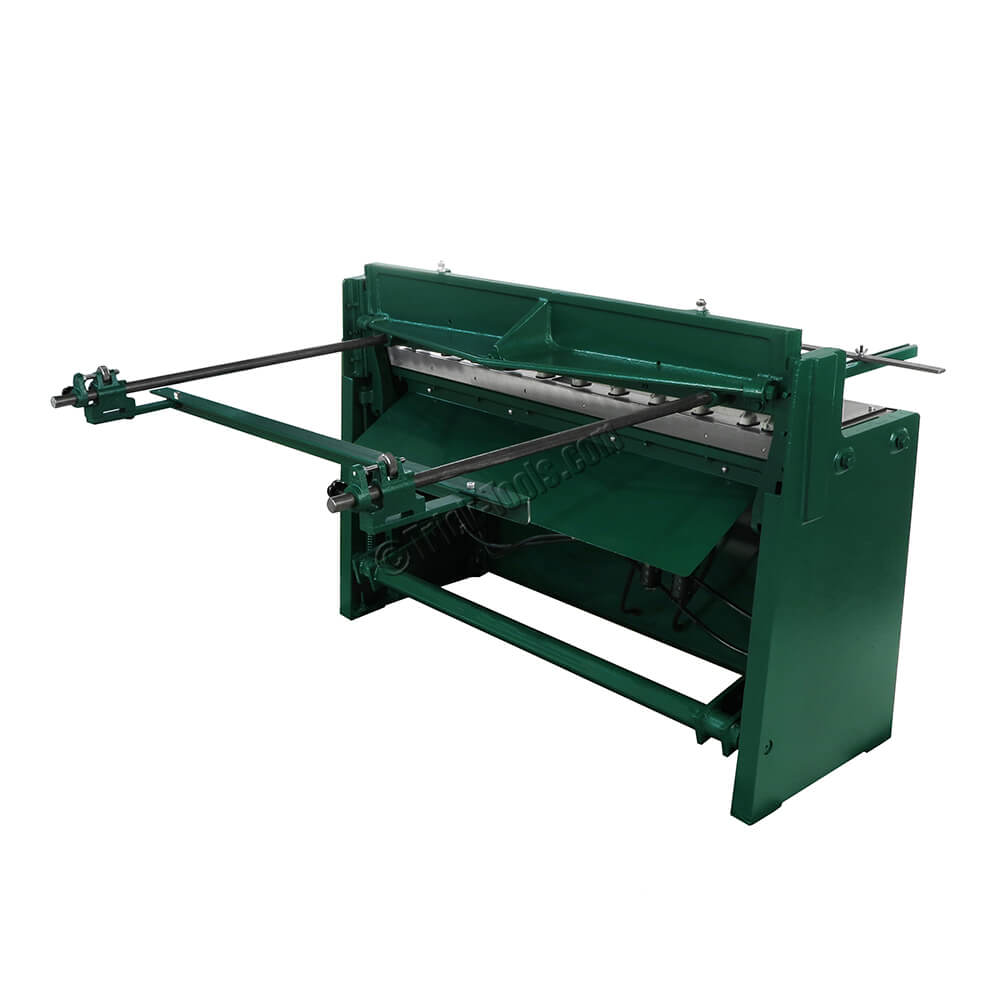

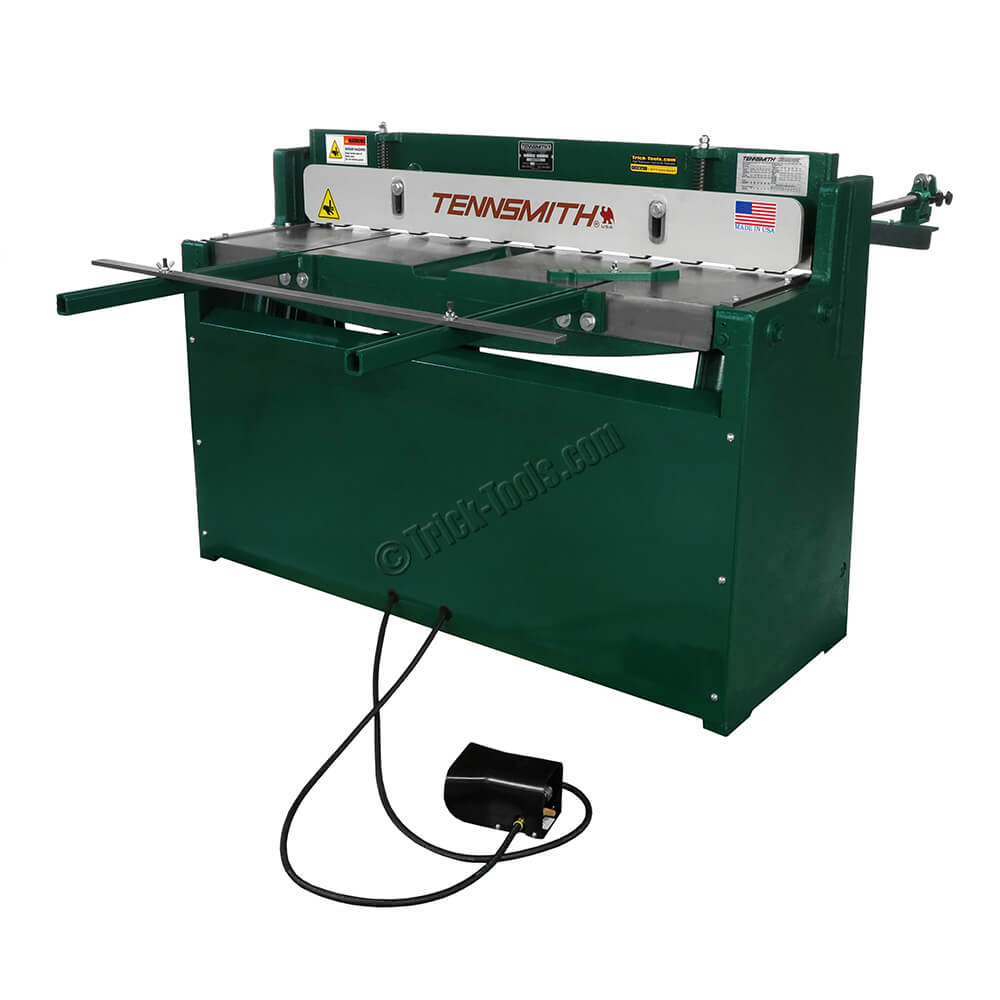

Tennsmith 52 inch Air Powered Shear, 16 gauge

Part #: 52A
Model: 81060
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $7,275.00

Heavy cast construction
Up to 40 strokes per minute
Pneumatic operation
Standard back gauge

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

Tennsmith's power shears combine all the features of our foot shears with the advantage and convenience of air-powered operation. Tennsmith power shears are a productive addition to any shop. The air shears utilize heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials.

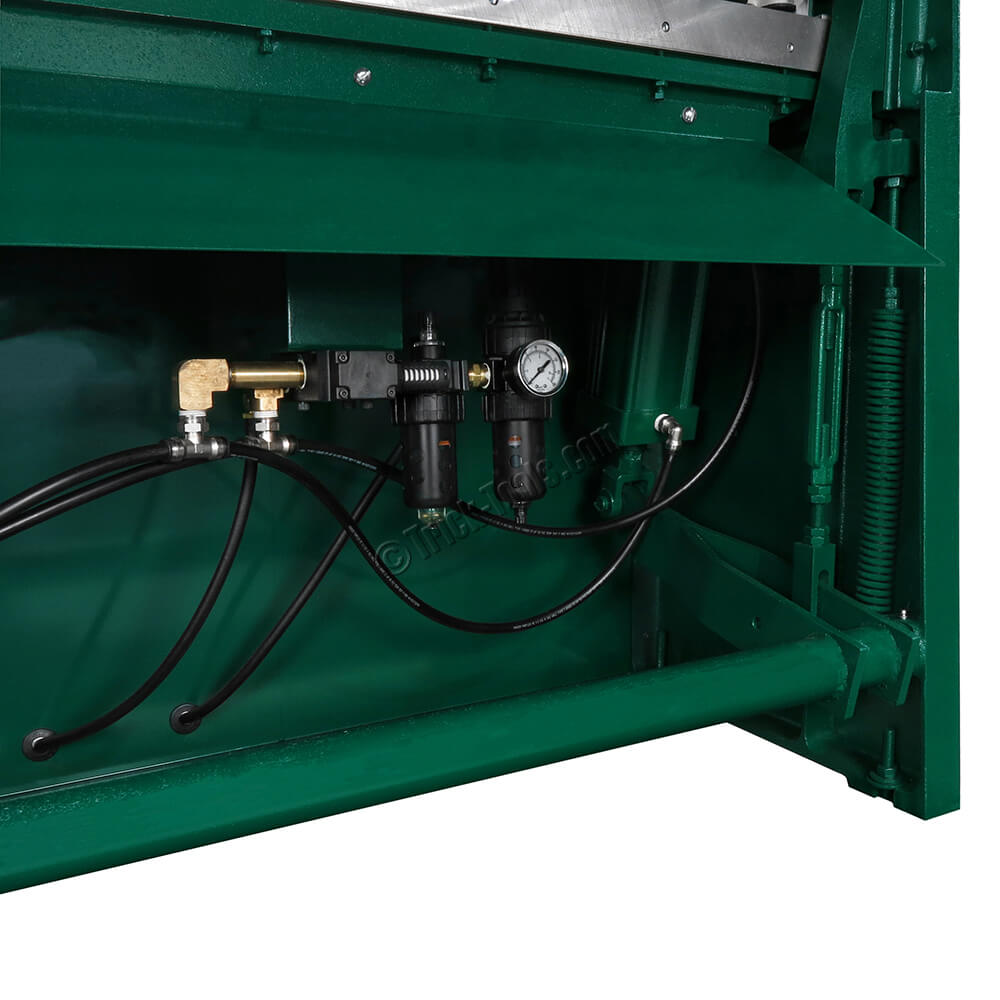

A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups, and neoprene, padded hold down feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Air consumption is 1.33 cubic feet per stroke.

All shears are standard equipped with high-carbon high-chromium (HCHC) blades.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: pneumatic
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Cutting Length (inches): 52
•Strokes: 40/minute
•Air Pressure (psi): 75
•Air Consumption: 1.33 cubic feet per stroke
•Weight (pounds): 950
•Dimensions (LxWxH): 61 x 36 x 42
