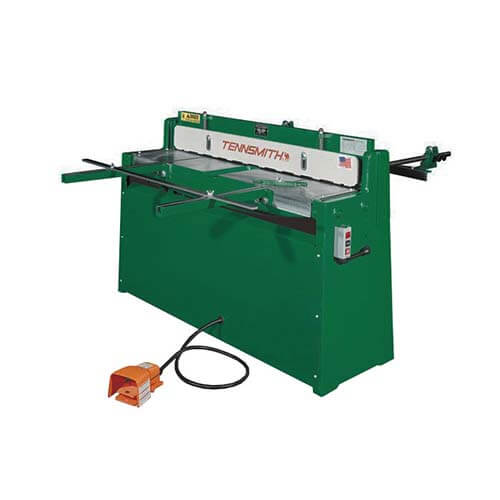

Tennsmith 52 inch Hydraulic Shear, 16 gauge

Part #: 52H
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $8,925.00

Heavy cast construction
Up to 45 strokes per minute
Hydraulic operation
Standard back gauge

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The model 52H cycles at 45 strokes a minute, thanks to its first class hydraulic system. The unit features a solenoid actuated valve, 3hp electric motor, 10 gallon tank with sight gauge and thermometer, pressure gauge, check valve and industrial quality cylinders. The motor is protected by a magnetic starter.

Other electrical safety features include a low voltage on/off switch; low voltage, shrouded, electric foot switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. All shears are standard equipped with high-carbon high-chromium (HCHC) blades.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: hydraulic
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Cutting Length (inches): 52
•Motor: 3hp 60hz 1745 rpm
•Strokes: 45/minute
•Weight (pounds): 950
•Dimensions (LxWxH): 61 x 36 x 42
