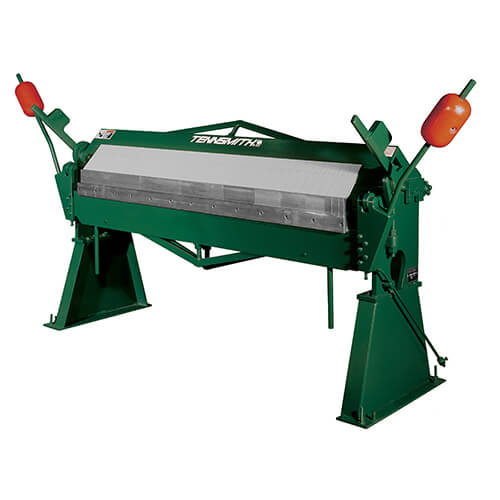

Tennsmith 6 foot Box & Pan Brake with Segmented Lower, 16 gauge

Part #: HBT72-16
Model: 85450
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,250.00

Removable upper and lower fingers
Facilitates bending of complex parts
Includes apron stop
Heavy steel construction

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

Tennsmith's HBT72-16 is designed to provide forming capabilities for complex parts. This machine is truly a universal hand brake, which allows for the removal of both upper and lower segments of fingers. Complex parts such as HVAC transverse duct forming and down flanged parts, as well as architectural sheet metal and signage applications, can easily be formed using this machine.

The HBT72-16 is built with the same high-quality features and standards that Tennsmith brakes are recognized for throughout the industry.

Note: This brake must ship flatbed. Please call or email for a shipping quote.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: segmented lower
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 72
•Max Depth Of Box (inches): 4
•Max Lift Of Beam (inches): 1.5
•Front To Rear Adj (inches): .5
•Min Reverse Bend (inches): .625
•Minimum Flange Capacity (inches): 1
•Number/Width Of Fingers: Top Segment Widths: 2, 3, 4 inch. Lower Segment Widths: 1, 1.5, 4, 6, 8, 12, 20 inch. Bending Segment Widths: 1, 1.5, 6, 8, 12, 20 inch.
•Weight (pounds): 2200
•Dimensions (LxWxH): 90 x 36 x 53
