Beveler USA UZ12 Ultralight Beveling Kit

Part #: UZ12
Model: 1912, 1818
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $8,887.00

NEW

Shear style cutter for fast feed rates
Kit includes 22.5, 30, 37.5, 45, and 50 degree arms
Can be used stationary or self propelled
Up to 12mm bevel widths
Only 66 lbs

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

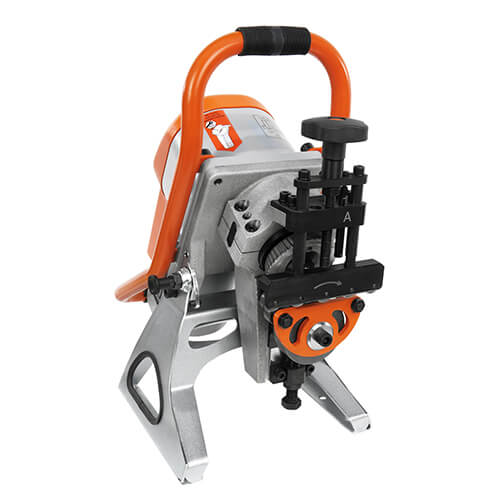

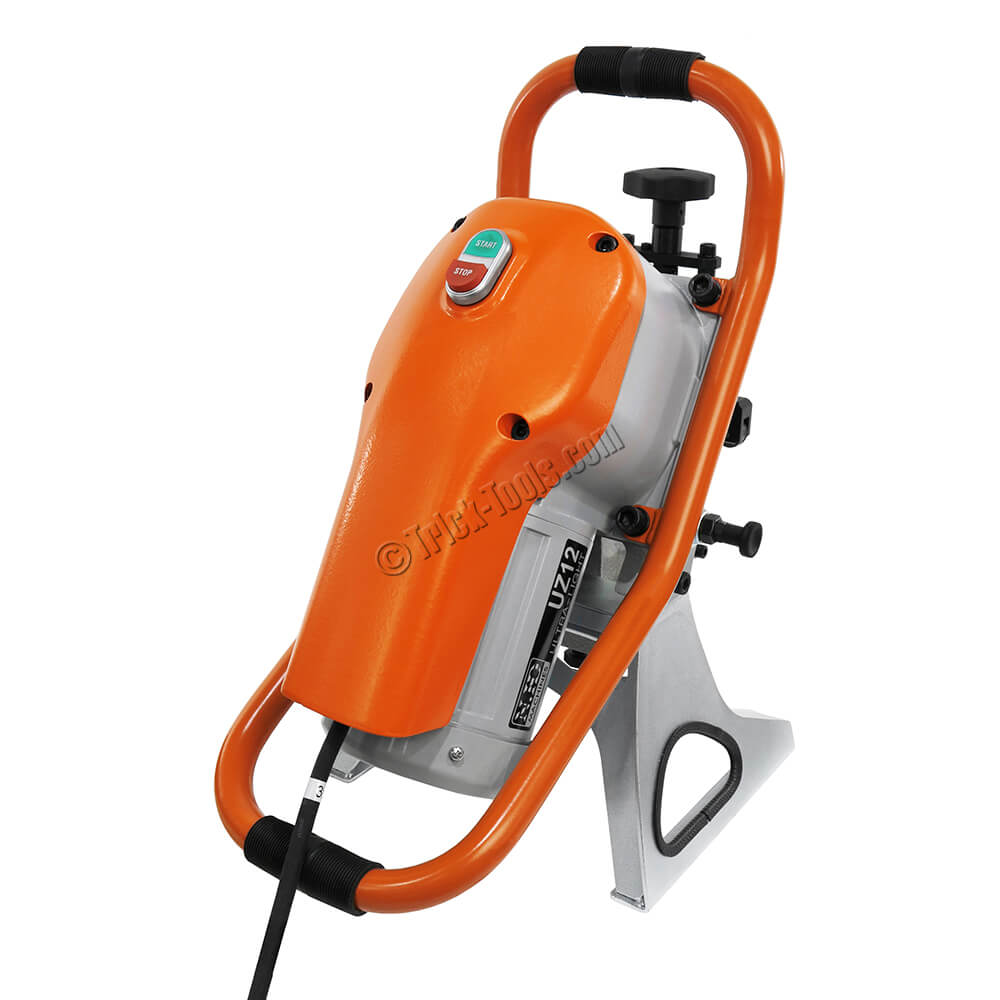

The UZ12 Ultralight Beveler from Beveler USA is the lightest self-propelled beveling and chamfering machine on the market. It uses a shearing action with HSS steel blades for extremely fast and quiet operation at 5.9 feet/min. For smaller parts like weld coupons or gussets, the UZ12 can be placed on a workbench and pieces fed through. This machine is great for processing mild steel, brass, copper, and aluminum with bevel widths up to 12mm.

This kit includes the cast arms needed to do 22.5, 30, 37.5, 45, and 50-degree bevels along with a tube and pipe beveling attachment. The tube and pipe beveling attachment can be used on material from 3.74 inch ID and larger.

Additional Specs:

Power input: 220 volt 3 phase
Bevel angle: 22.5°, 30°, 37.5°, 45°, and 50°
Bevel width maximum: 0.47 inches (12 mm)
Material thickness: 0.12-1.37 inches (3-35mm)
Minimum material length: 2.6 inches (60mm)
Feed type: automatic
Feed rate: 5.9 ft/min (1.8 m/min)
Weight: 66 lb (30 kg)

Warranty:

5 year manufacturer's warranty
