Beveler USA UZ29 Speeder Beveler

Part #: UZ29
Model: UZ29 Speeder, 1903, 1907
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $25,691.00

NEW

Kit includes heads for 30 and 45 degrees
Ultra quiet shear style operation
Up to 29mm bevel widths (18mm on first pass)
Feeds at 5.9 feet per minute

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

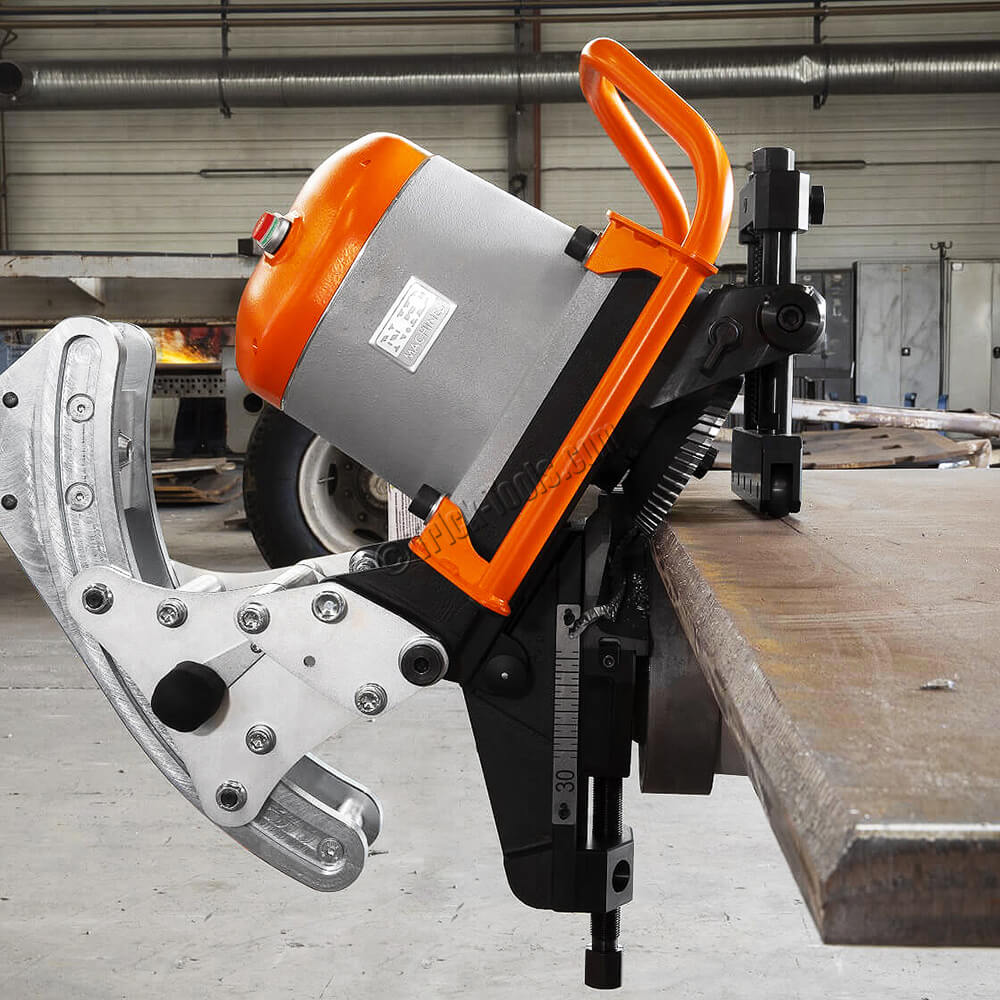

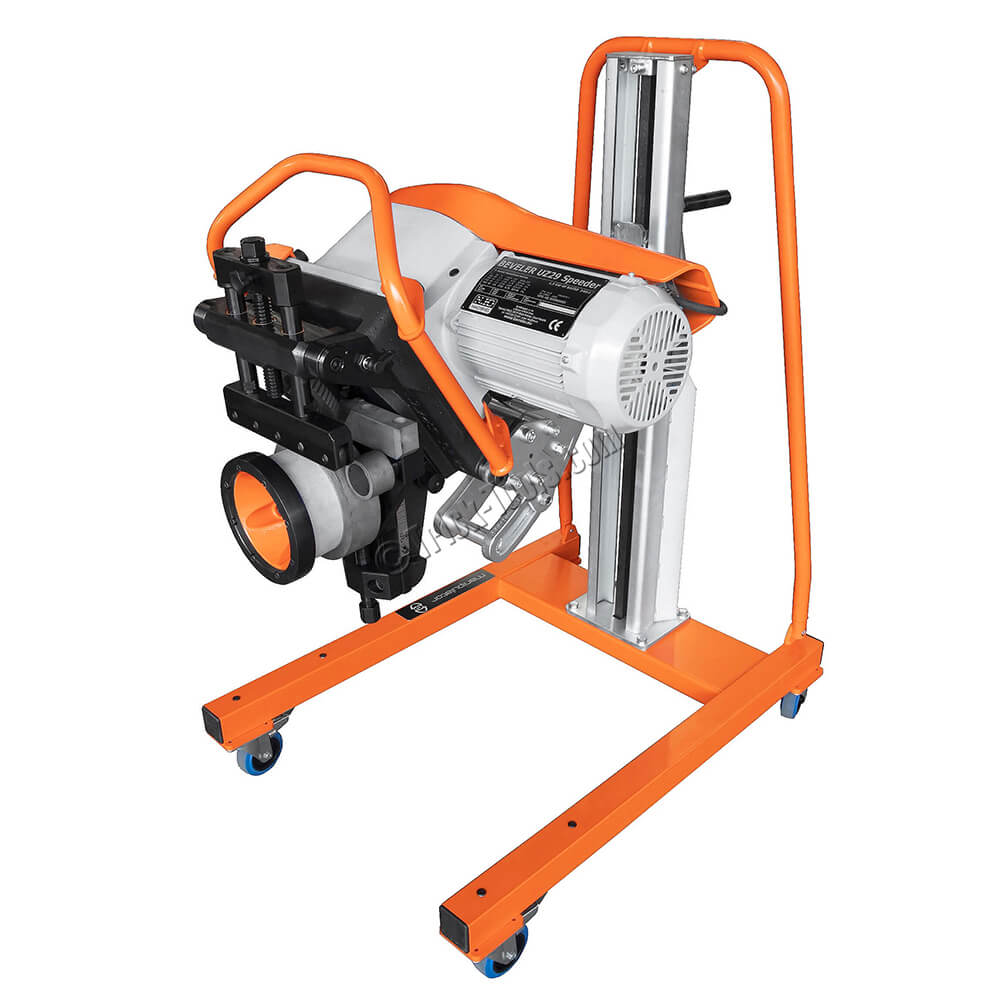

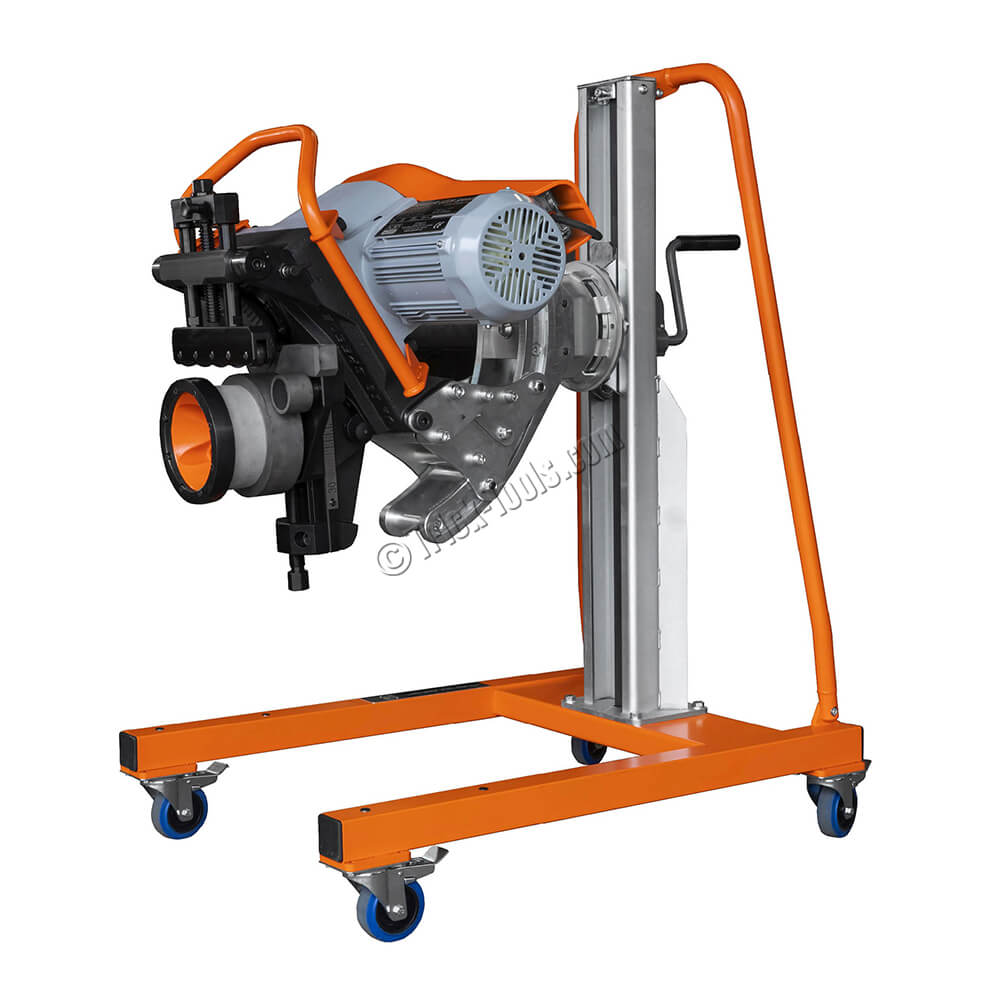

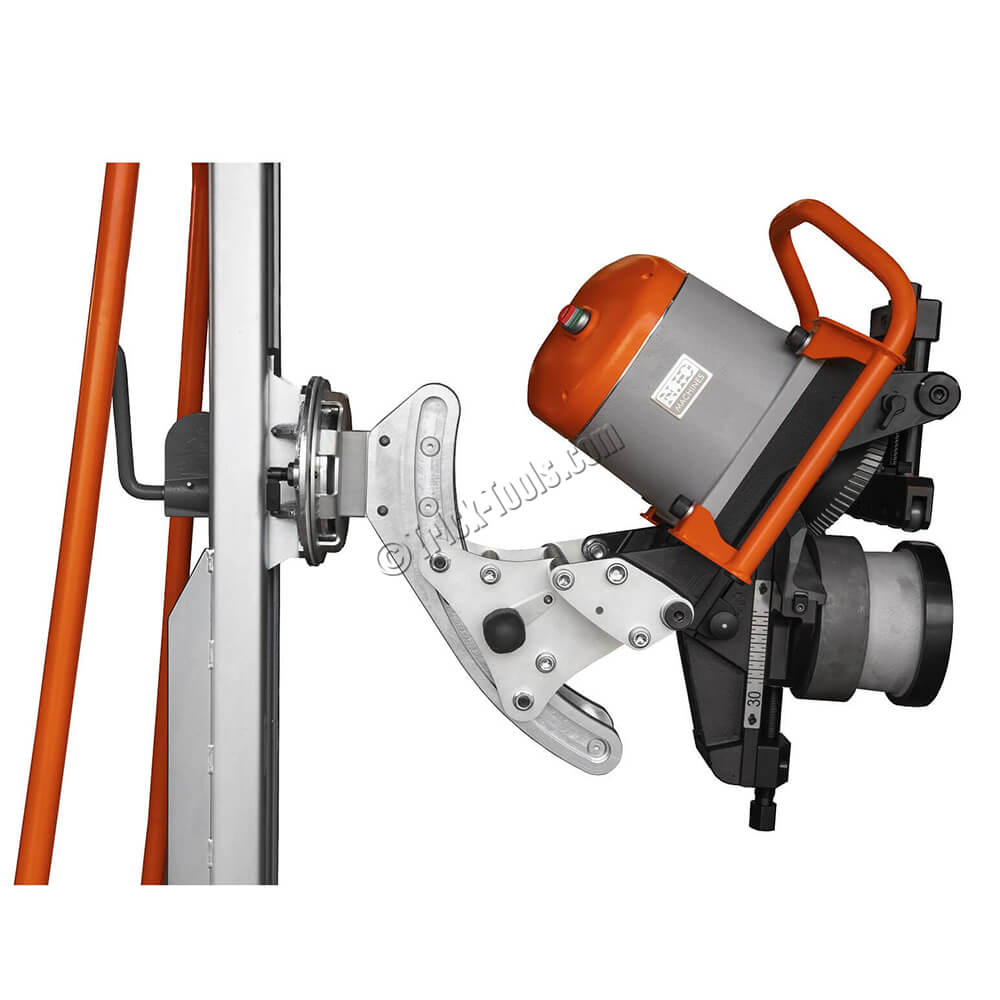

The UZ29 Speeder uses a powerful 1500 watt (2hp) motor to be one of the largest and most powerful rotary cutting beveling and chamfering machines on the market It offers a single pass bevel width of 18mm and a full capacity cutting width of 29mm. The benefits of shear-type rotary bevelers are quick pressing speeds along with very quiet operation. The UZ29 also includes the Manipulator 3D allowing for the machine to self-feed along long workpieces and easily rotate to create double bevels.

Additional Specs:

Power input: 220 volt 3 phase, 2hp (1500 watt)
Bevel angle: 22.5°, 30°, 37.5°, 45°, or 50°
Bevel width maximum: 1.14 inches (29 mm)in material up to 400MPa or 0.98 inches (25mm) in material 400MPa to 700MPa (58,000 - 101,500 PSI)
Bevel width maximum (first pass): 0.7 inches (18mm)
Material thickness: 0.23-2.36 inches (6-60mm)
Feed type: automatic
Feed rate: 5.9 ft/min (1.8 m/min)
Weight: 452 lb (205 kg)

Warranty:

1 year manufacturer's warranty
