Icengineworks 2 inch Header Full Fabrication System

Part #: 2000EHSystem
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $1,379.98
Sale Price: $1,349.99

Design and layout headers quickly and easily
Reduces time and material waste
Blocks simply snap together
Includes Pro Modeling Kit, plus clamps and cutting jig

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

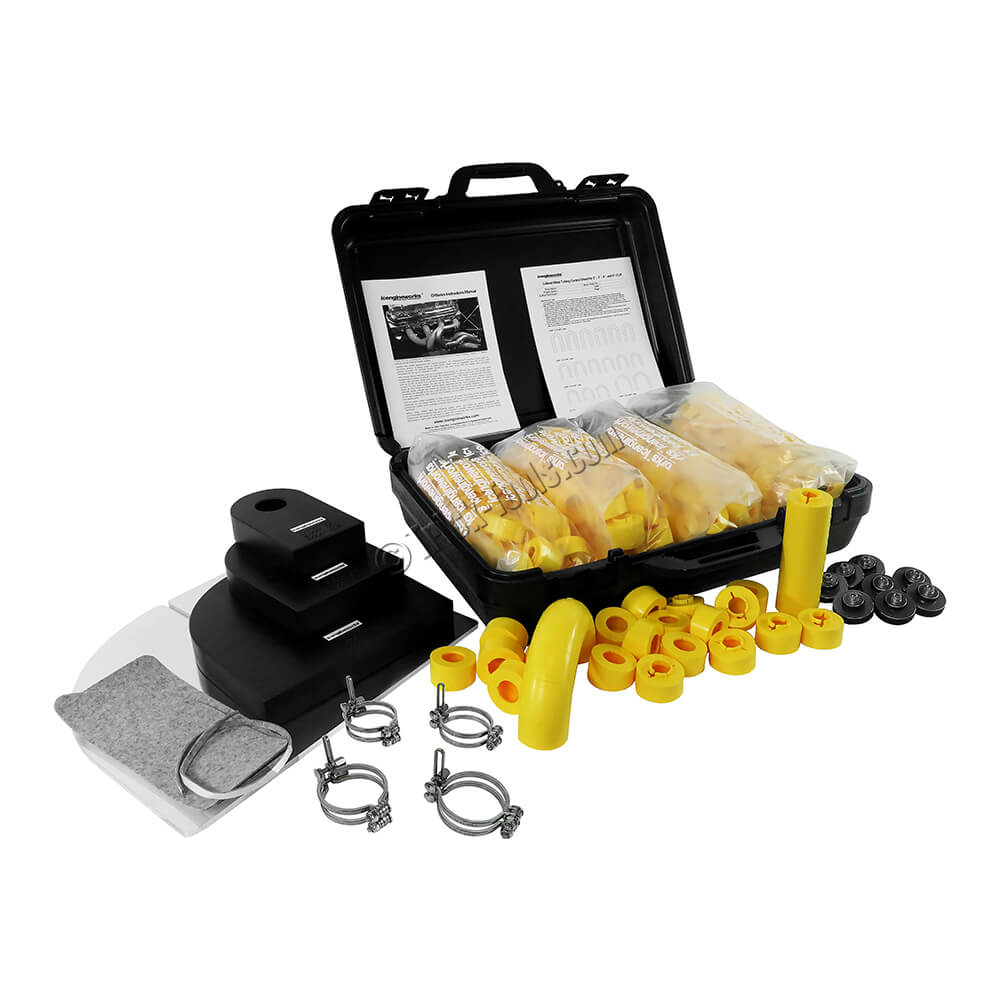

This complete exhaust header fabrication system from Icengineworks will take you from concept to completion of custom headers and turbo manifolds. The system includes modeling blocks, tube cutting jigs, and welding clamps.

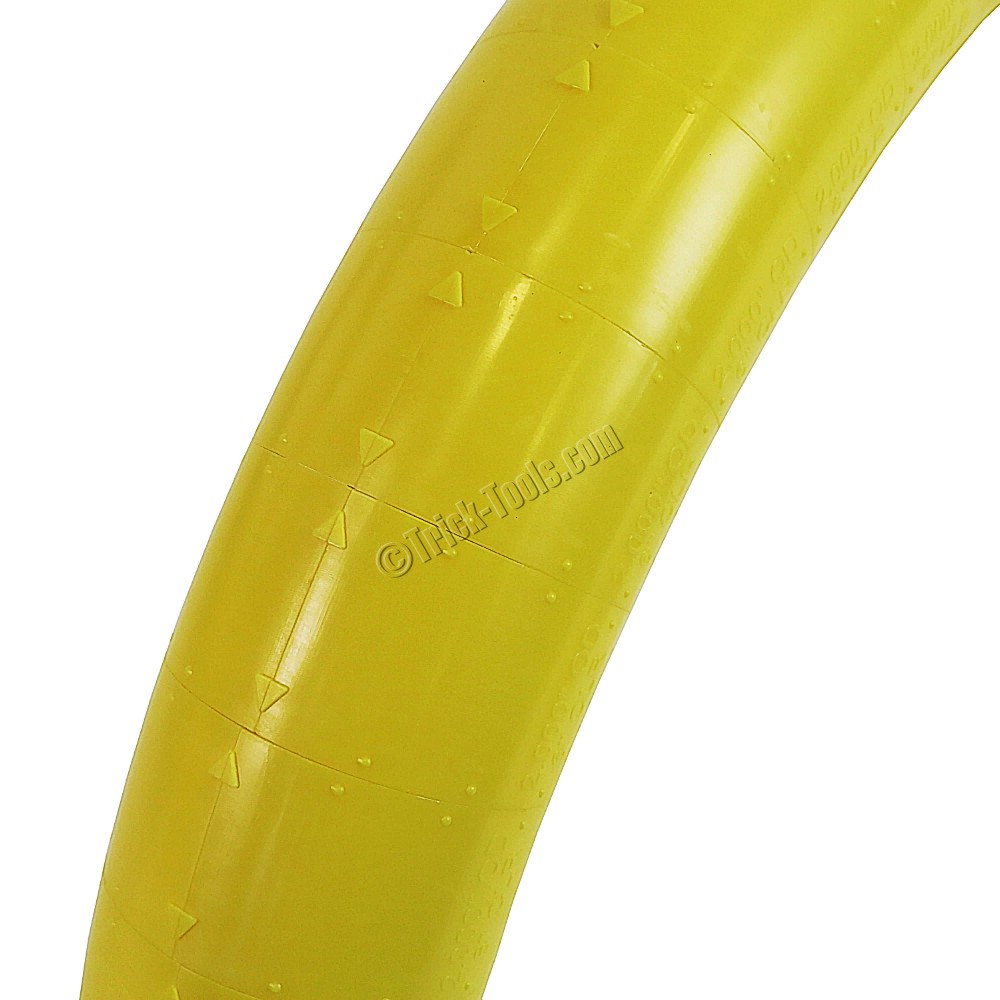

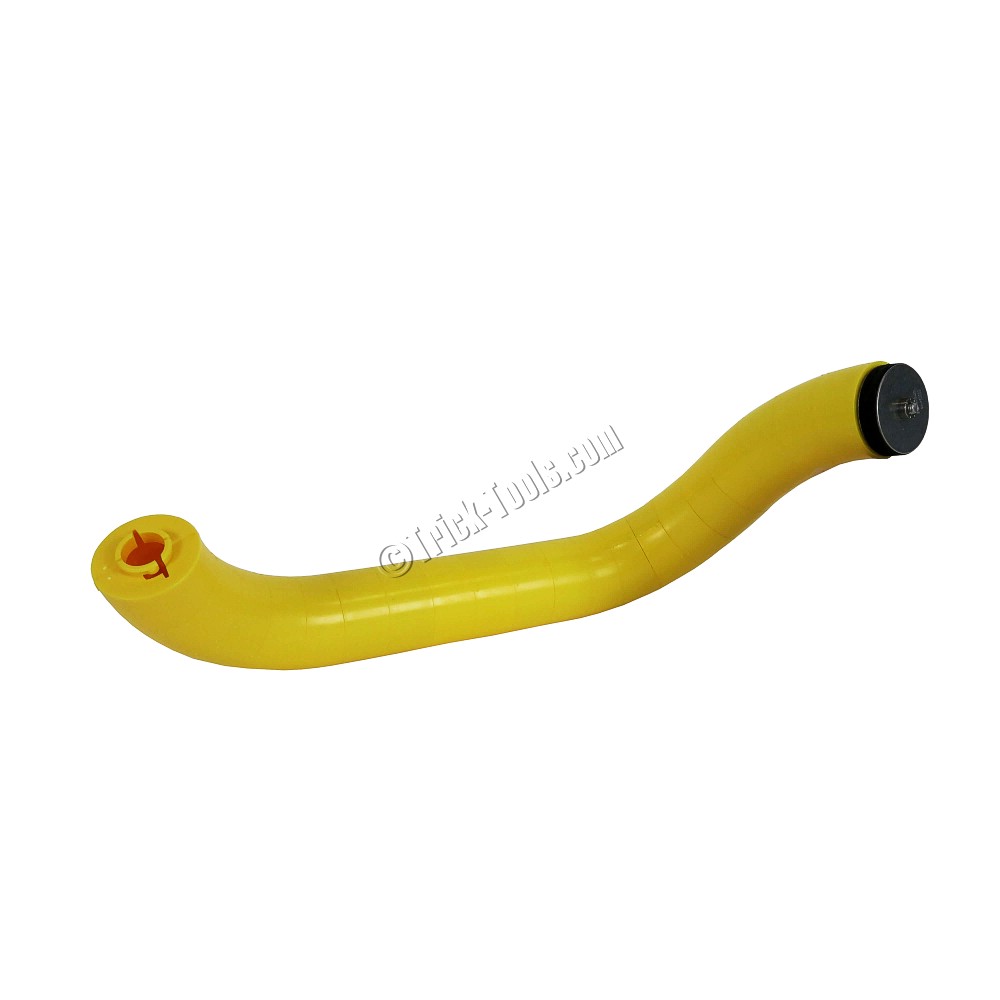

The blocks simply snap together to form header primaries that can then be duplicated by cutting and welding commonly available prebent U-bends and J-bends. Included with each kit are both straight and curved blocks in a variety of radii. Each block represents a 1 inch arc length of tubing. Blocks of different sizes can also be connected to simulate stepped headers. Each block is molded with a series of markings and index points to make the transition to metal as easy as possible.

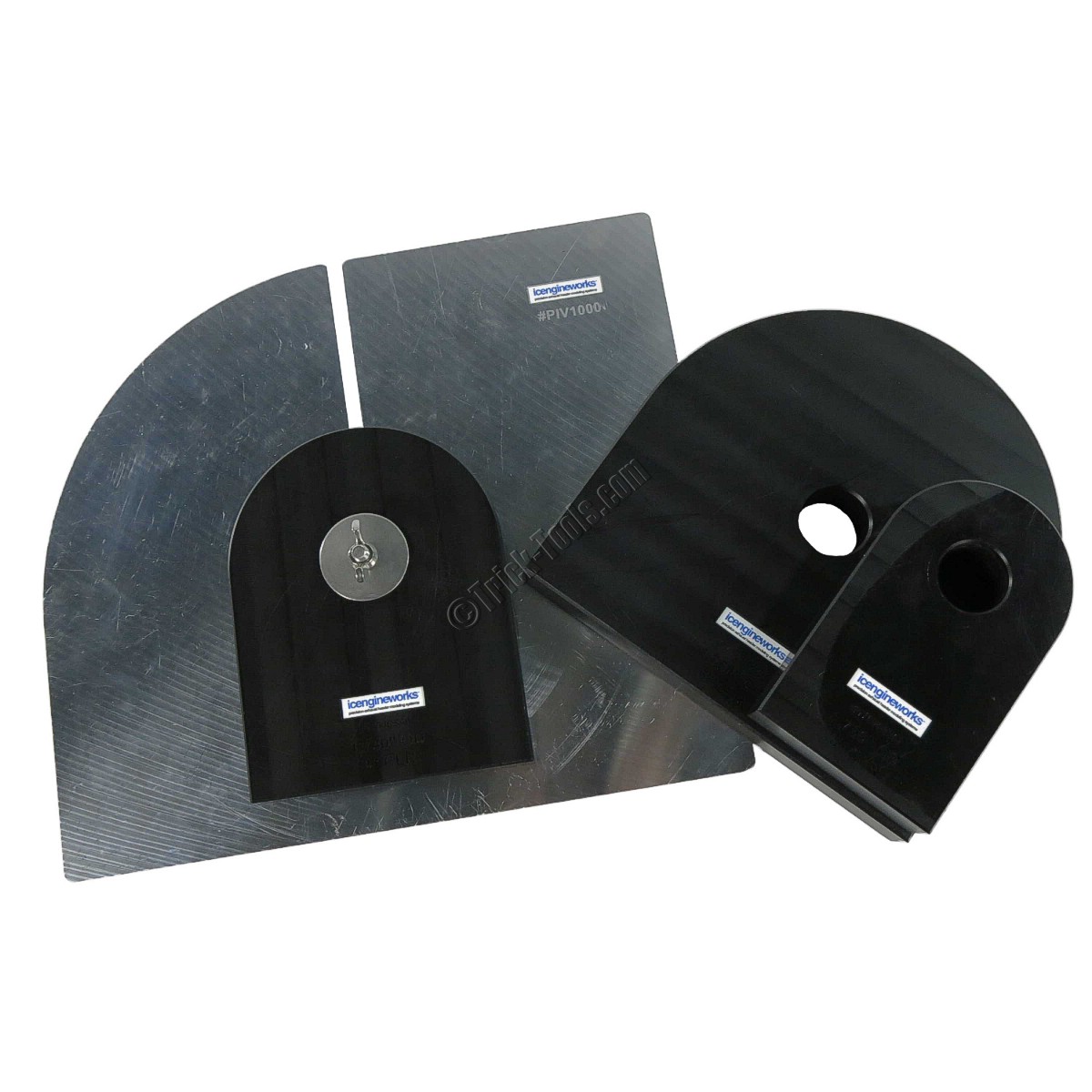

After the modeling process is completed the included cutting board and alignment blocks will assist in duplicating each section of plastic blocks in steel tubing. The aluminum cutting board is designed to be aligned with the fence and slid across the table of a vertical band saw. When used with the included alignment blocks, steel tubing is cut perfectly perpendicular to the tangent.

Finally, the included clamps make positioning the cut tubing for welding extremely easy! The clamps allow the fabricator to preview, adjust, and clock the pieces before they are tack-welded together. Time consuming weld and cut adjustments are avoided and headers can be more precisely assembled.

See the Includes tab for details of specific components of this kit. Additional blocks in each radius are available under the Accessories tab.
