Beveler USA UZ15 Rapid Beveler

Name: Beveler USA UZ15 Rapid Beveler
Brand: Beveler USA
SKU: UZ15
Price: 8999.00 USD
Availability: InStock

Part #: UZ15
Model: UZ15 Rapid, 1933, 1934
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $8,999.00

NEW

Shear style cutter for fast feed rates

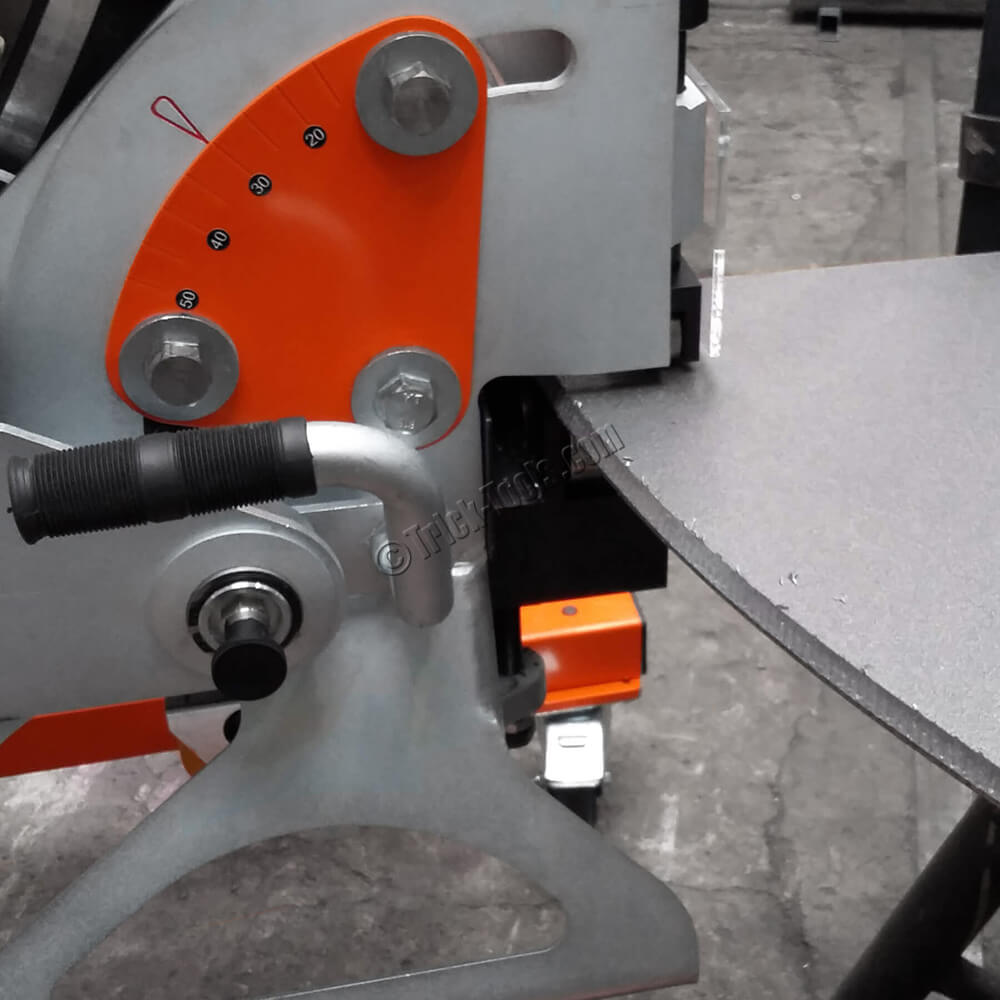

Adjustable from 15 to 50 degrees
Can be used stationary or self propelled
Up to 15mm bevel widths

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

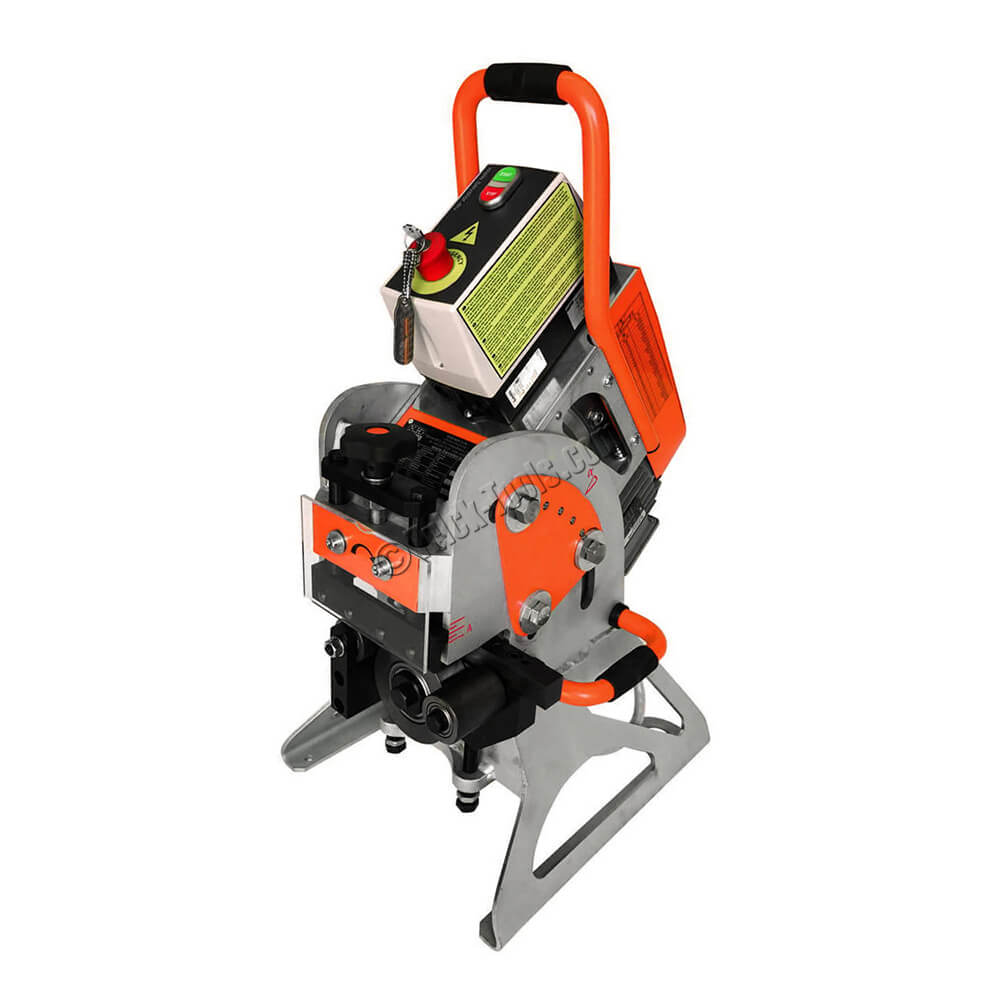

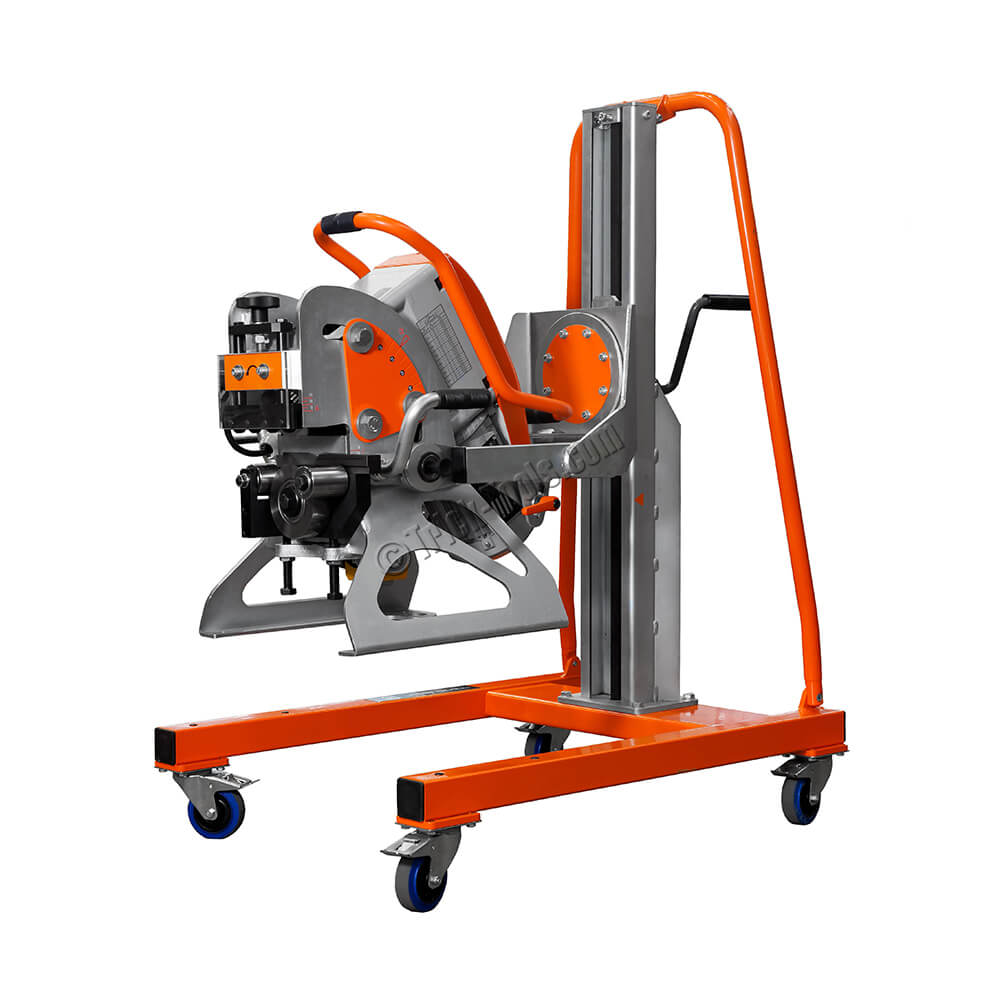

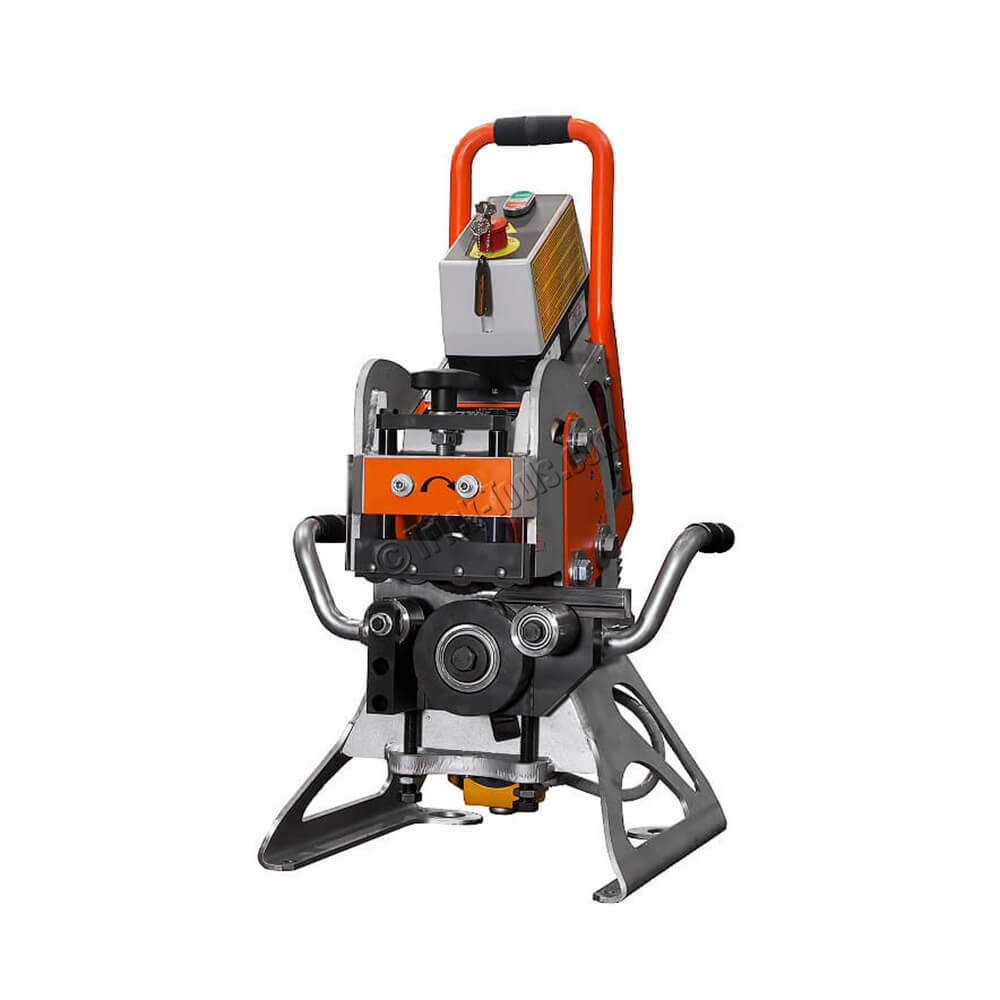

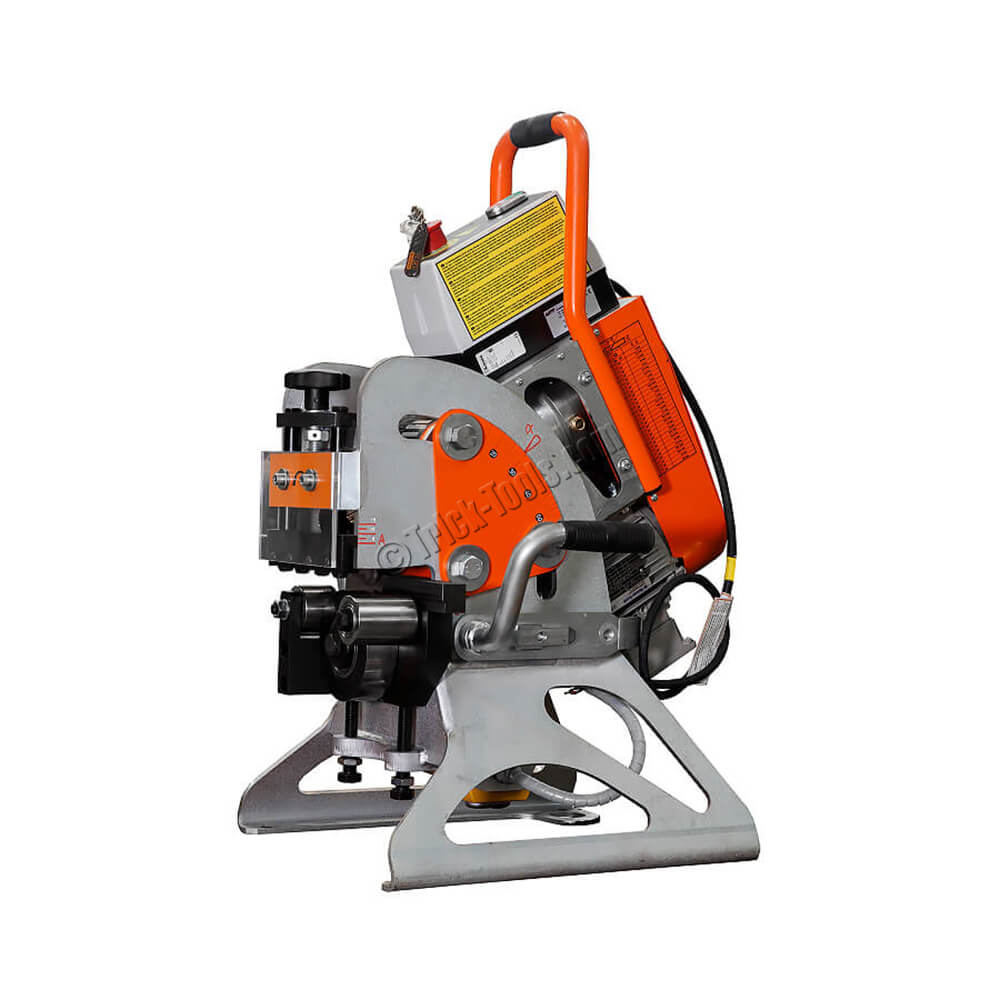

The UZ15 Rapid is the quickest machine in the Beveler USA lineup bosting a staggering 11.5 feet per minute. It uses HSS steel shearing blades for long life and an ultra-quiet operation. The UZ15 can be used in the stationary position or paired with the Manipulator 3D for traveling along longer workpieces. Another feature of the UZ15 is the adjustable head allowing this unit to bevel anywhere from 15 to 50 degrees without tooling changes.

Additional Specs:

Power input: 220 volt 3 phase, 2hp (1500 watt)
Bevel angle: Adjustable from 15° to 50°
Bevel width maximum: 0.60 inches (15 mm)
Material thickness: 0.23-1.57 inches (6-40mm)
Minimum material width: 2.7 inches (70mm)
Minimum material length: 5.9 inches (150mm)
Feed type: automatic
Feed rate: 11.48 ft/min (3.5 m/min)
Weight: 207 lb (94 kg)

Warranty:

1 year manufacturer's warranty
