B15 AIR Beveling Tool

Part #: 27220
Model: B15 AIR
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $2,592.00

NEW

Tooling available to create bevels from 30-60 degrees
Powerful pneumatic motor for the toughest jobs
Precise depth adjustment with scale

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

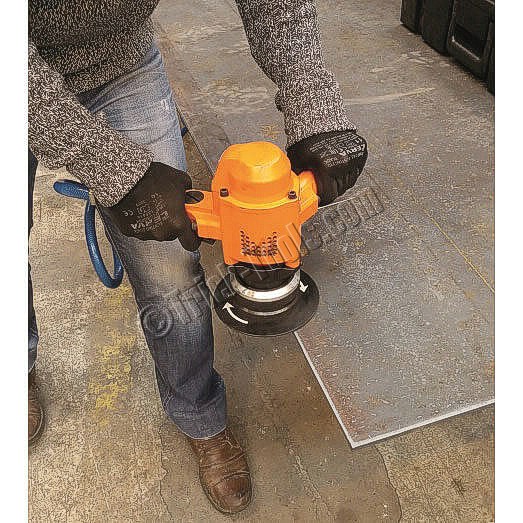

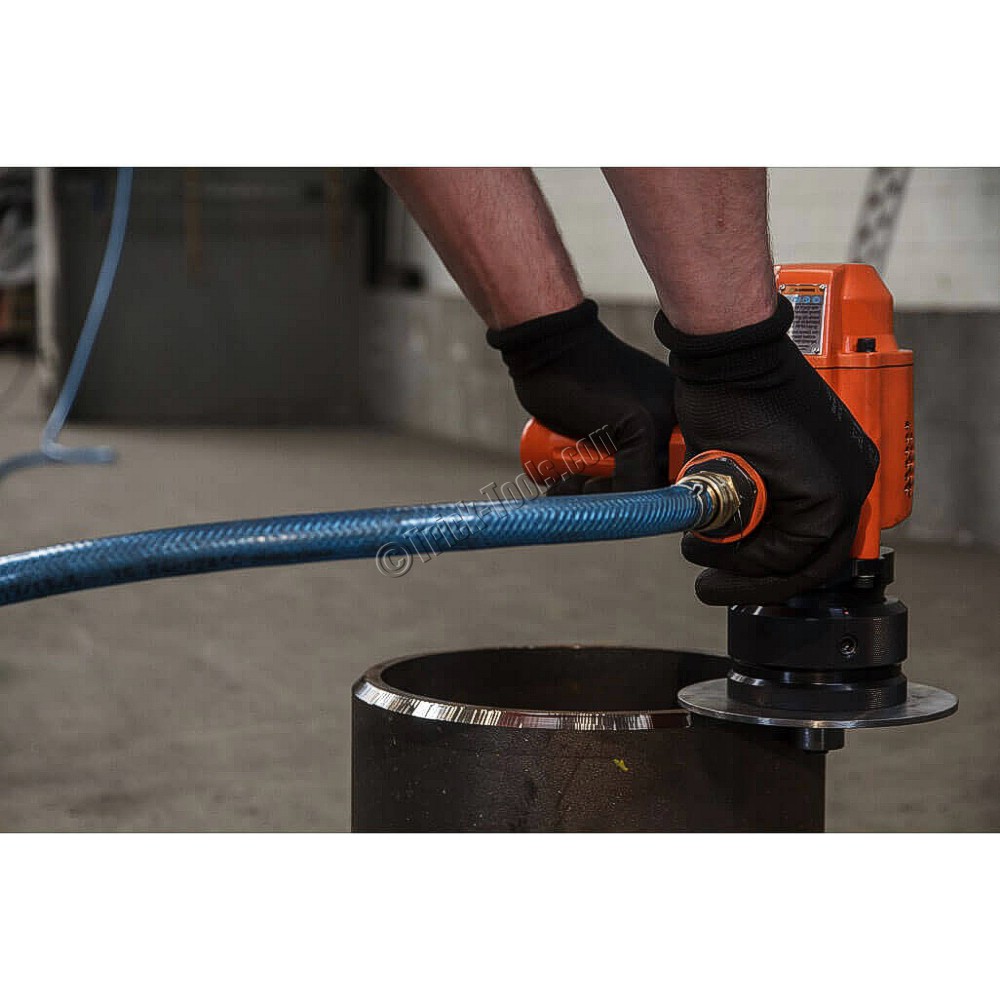

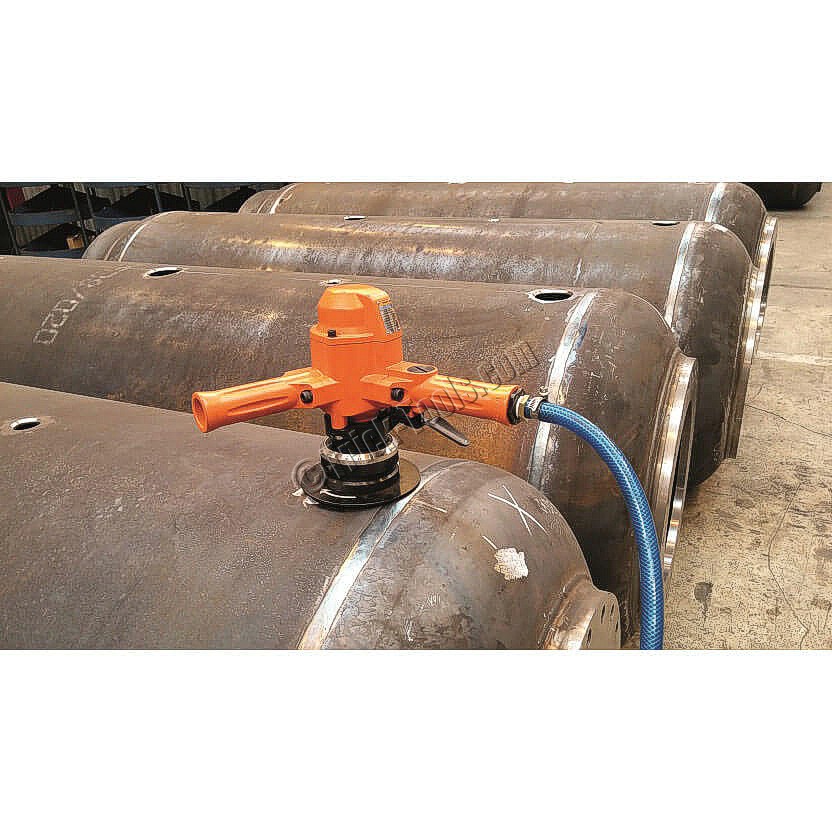

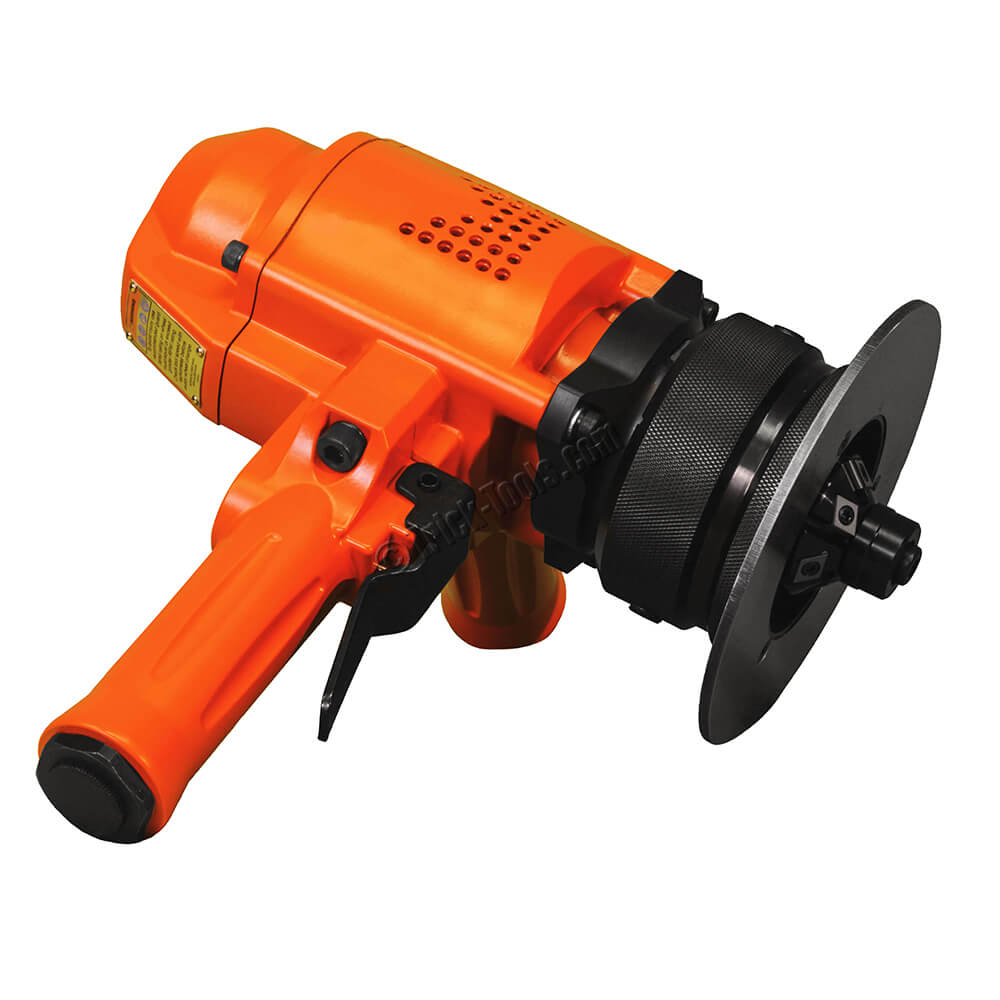

The B15 AIR from Beveler USA is a powerful beveling and edge finishing tool that can cut mild steel, stainless steel, aluminum, copper, plastic, and other materials. The heavy-duty pneumatic motor ensures years of use on the most demanding jobs.

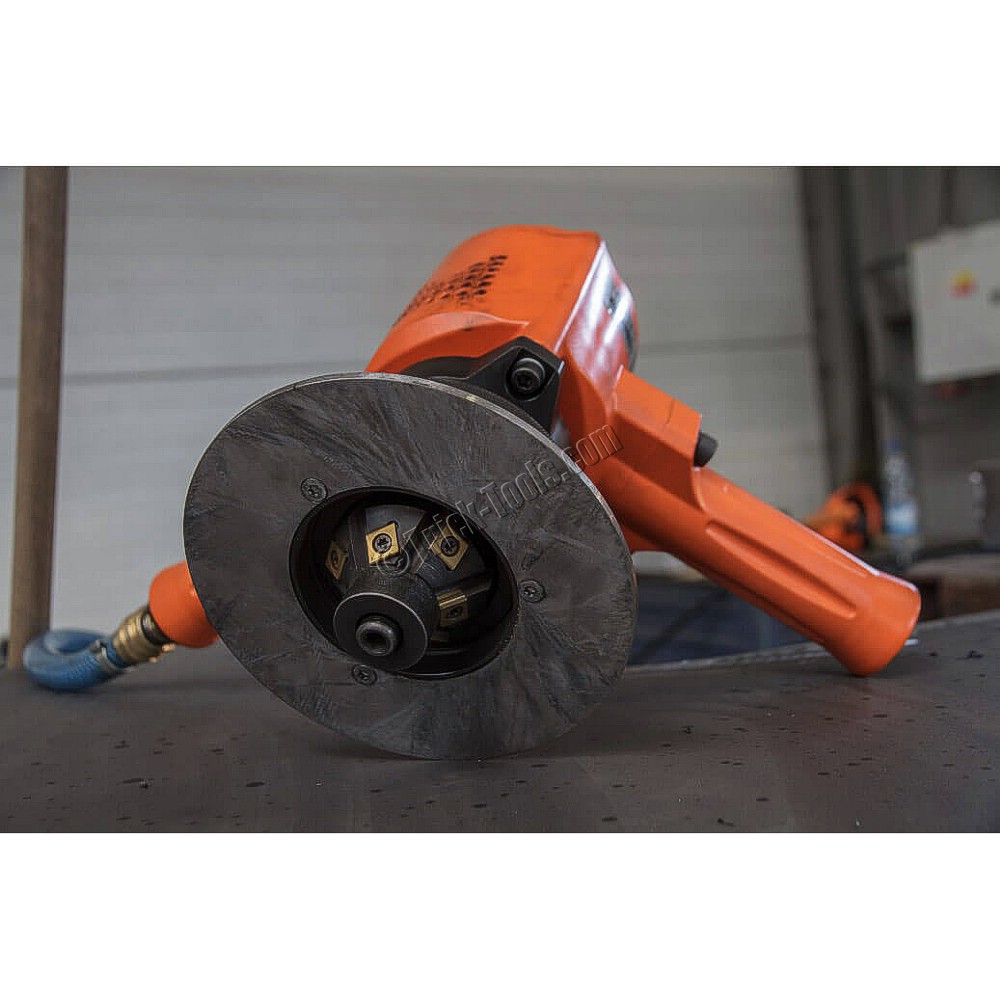

Cutting heads are available for beveling 30-60 degree angles, 2.5-4mm radiused edges, and a grinding attachment for edge cleanup. (Cutting heads are not included, please see accessories tab for available attachments)

Additional Specs:

Power input: pneumatic
Bevel angle: 30°, 37.5°, 45°, 50°, 60°
Bevel width maximum: 0.6 inches (15 mm)
Rounding radius: 0.1, 0.14, and 0.16 inches (2.5, 3.5, and 4mm)
Speed 4,500 rpm
Air consumption: 26.5 CFM (750l/min)
Feed type: manual
Weight: 16.5 lb (7.5 kg)
Number of cutting inserts: 3 pcs with premium cutting head (sold separately)

Warranty:

1 year manufacturer's warranty
