Xpipe Beveler Attachment for B10, B15, or B15 Air

Part #: 25500
Model: Xpipe
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,594.00

NEW

For 3-1/2 inch OD and larger tubes/pipe
Fits Beveler USA B10, B15, or B15 Air
One-way bearings
Easily move around the shop or take on the jobsite

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

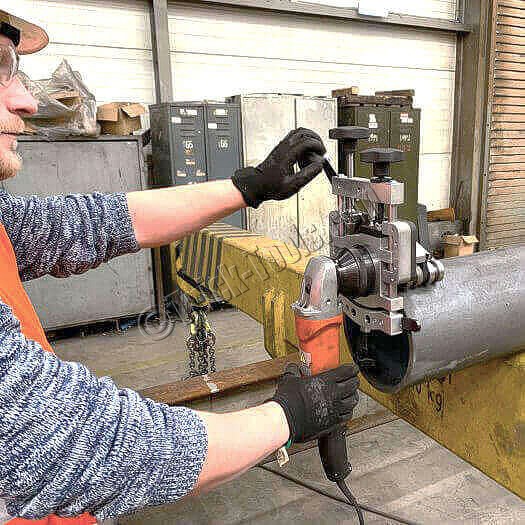

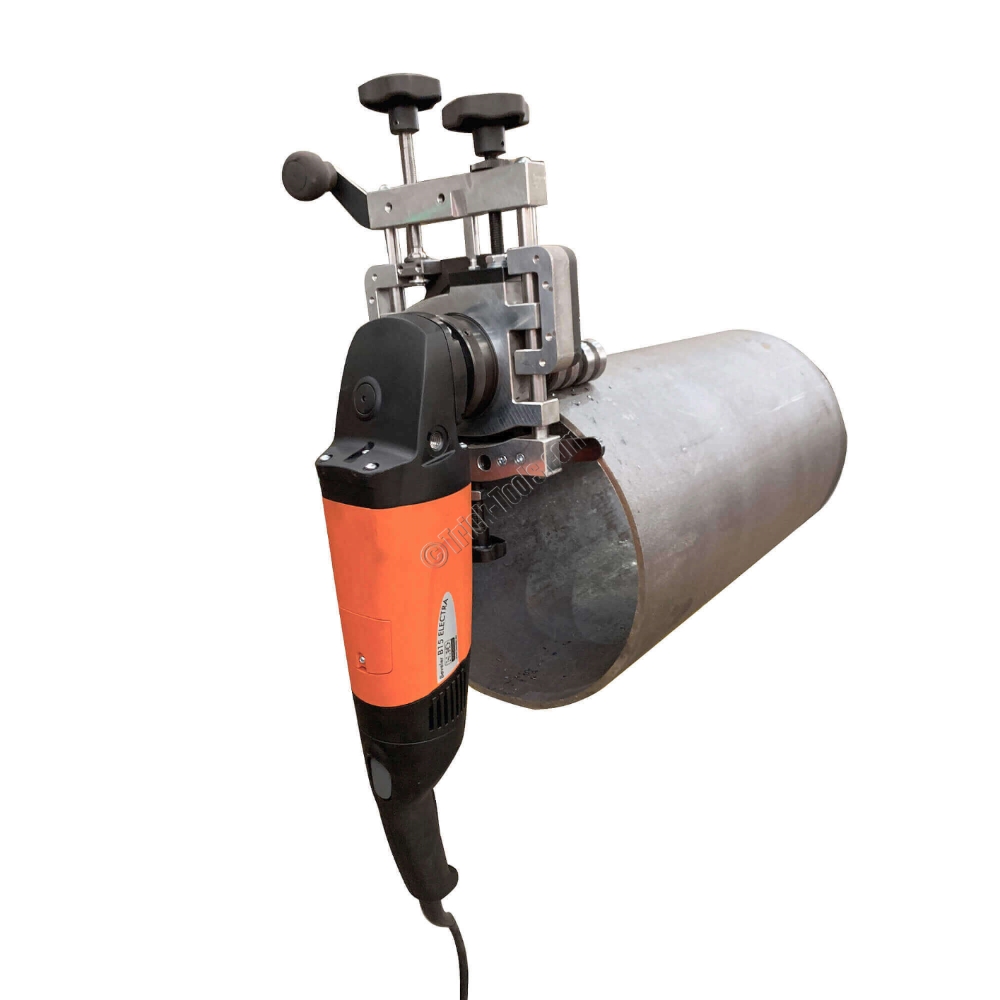

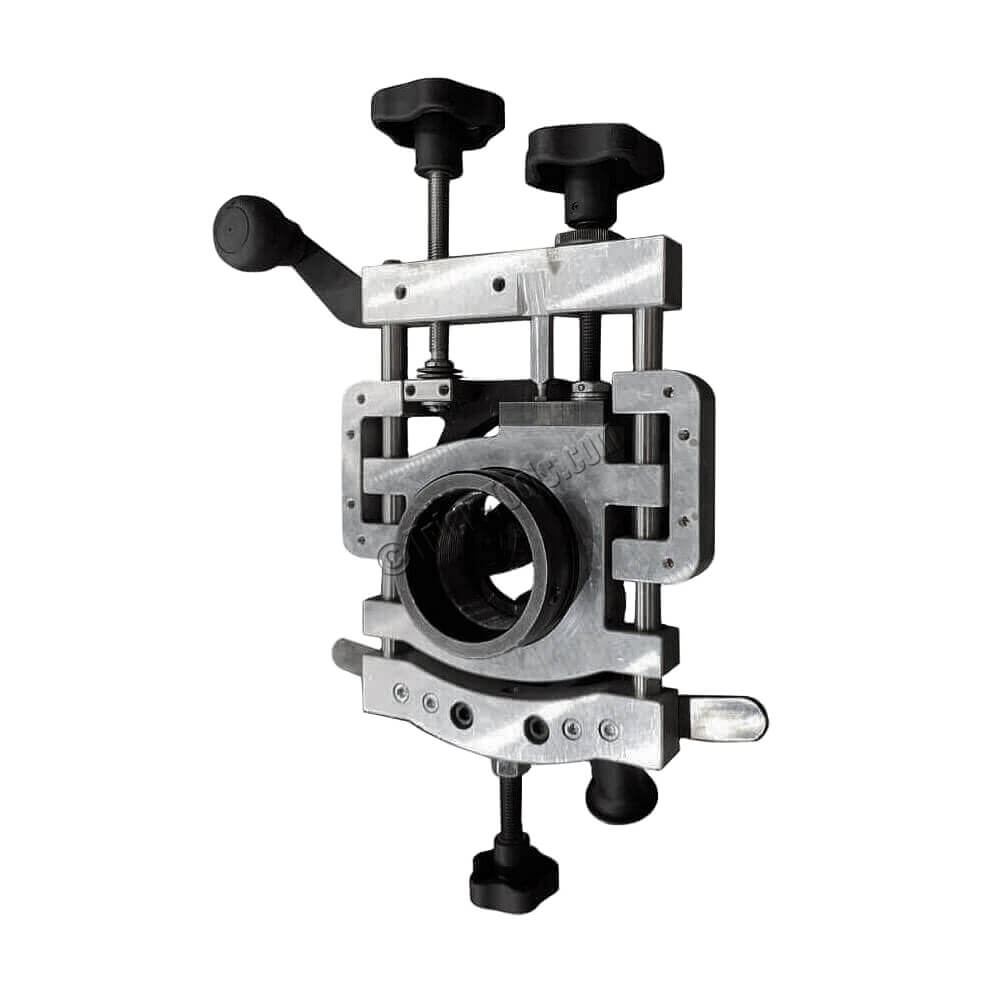

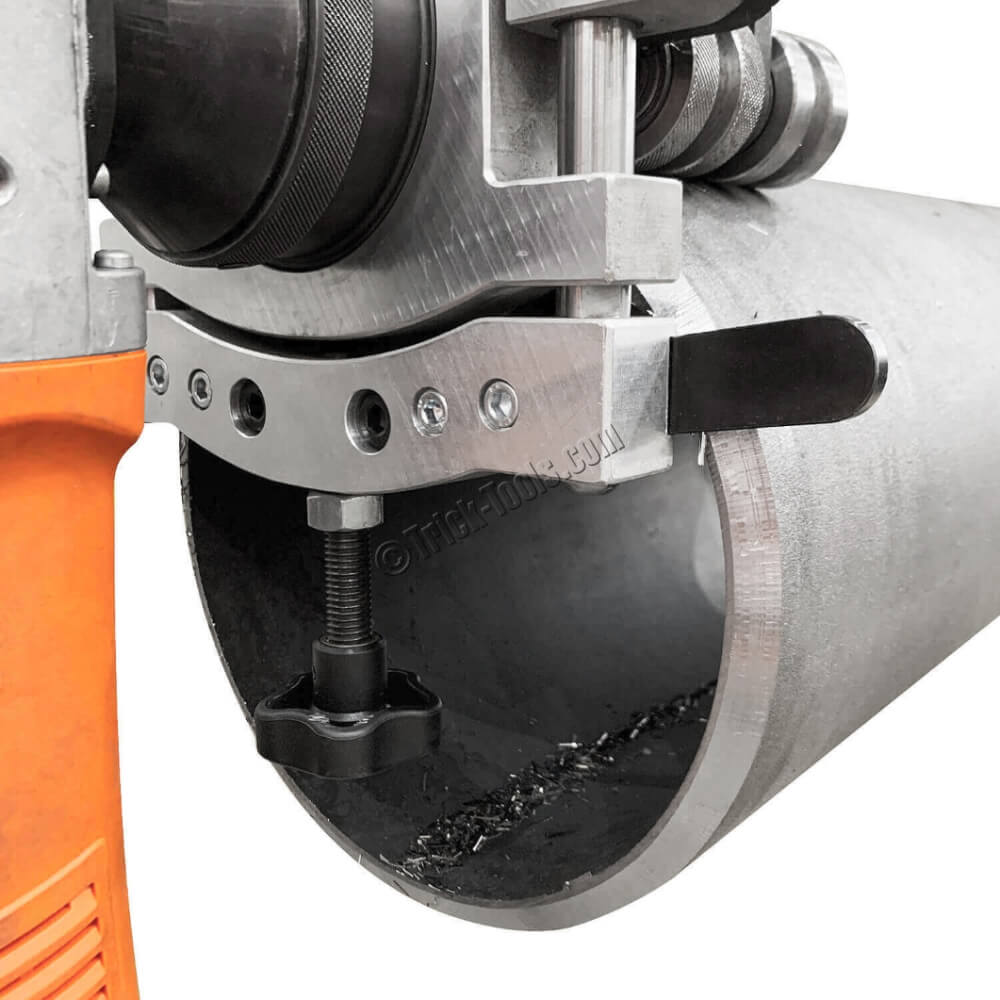

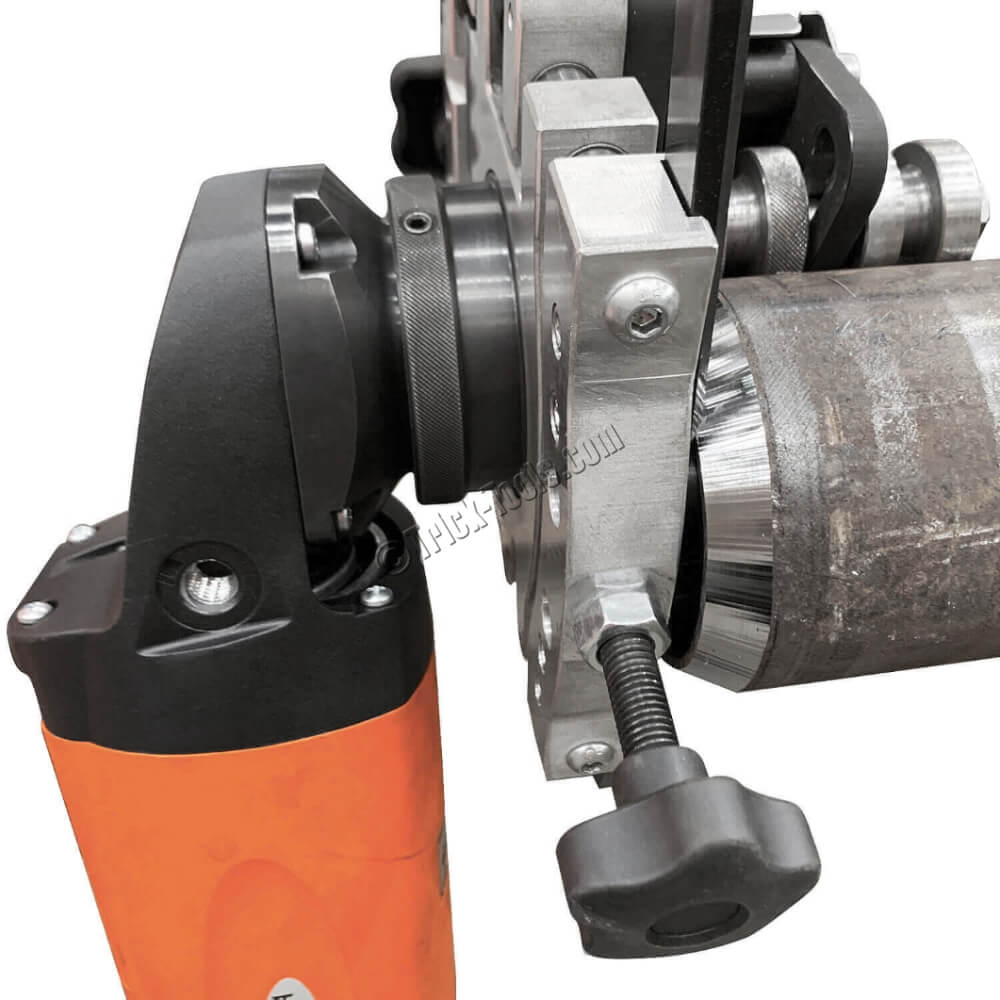

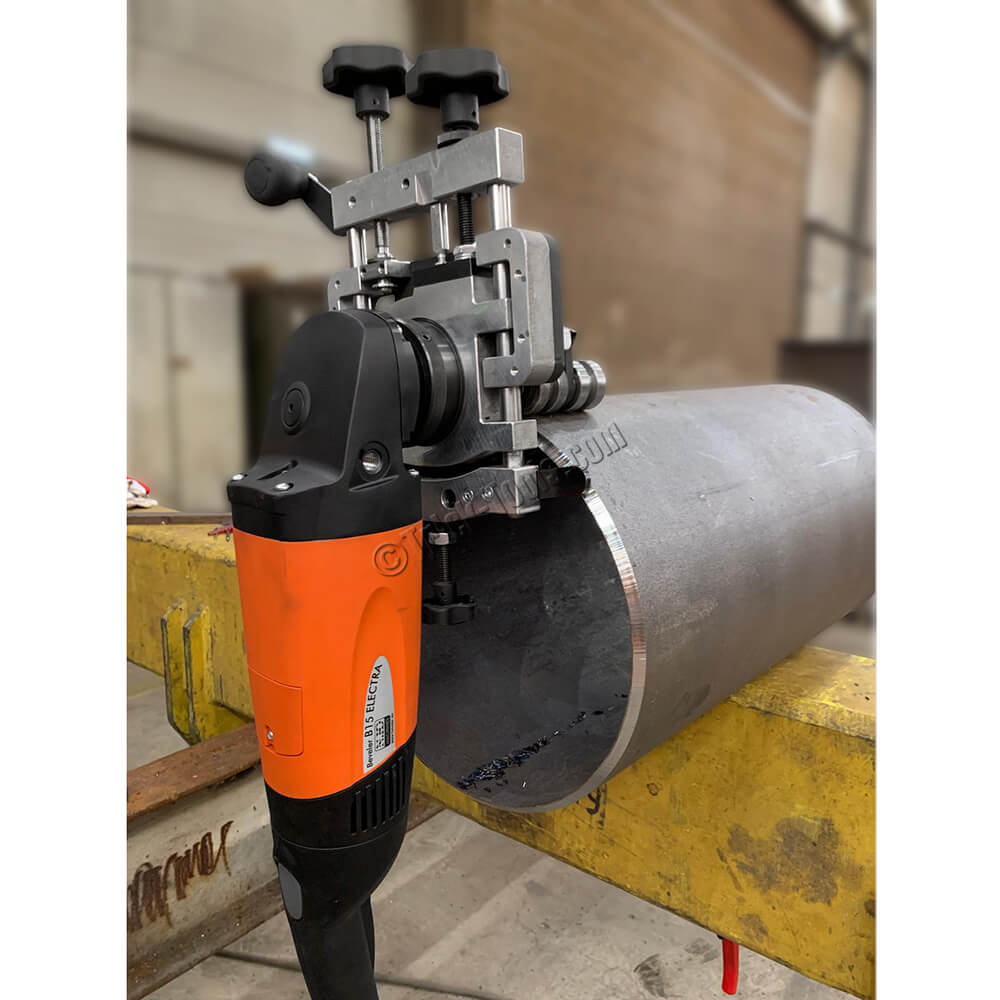

The Xpipe Beveler Attachment ensures a clean, even bevel on your tube or pipe every time. This attachment works with the Beveler USA B10 Electra, B15 Electra, or B15 Air and is ready to operate in a matter of minutes. The Xpipe attachment can mount to any tube or pipe that is 3-3/4 inch OD or larger in only a few seconds. It features one-way bearings to prevent kickback, built-in scale, depth stop for repeatable bevels, a safety cover for directing chips downward, lightweight aluminum construction, and an ergonomic rotating handle.

Additional Specs:

Bevel angle: 30°, 45°, 60°
Bevel width maximum: 0.4 inches (10 mm)with B10 and 0.6 inches (15mm) with B15 or B15 Air
Rounding radius: 0.1, 0.14, and 0.16 inches (2.5, 3.5, and 4mm) with apropiate cutting head
Minimum ID (outside machinging): 3.36 inches (85mm)
Minimum ID (inside machinging): 19.7 inches (500mm)
Wall Thickness (outside machining): 0.10 to 0.60 inches (2.5 to 15mm)
Wall Thickness (inside machining): 0.20 to 0.60 inches (5 to 15mm)
Feed type: manual
Weight: 18.5 lb (8.4 kg)

Warranty:

1 year manufacturer's warranty
