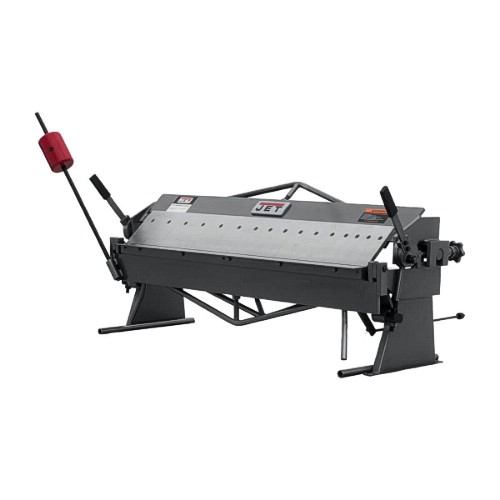

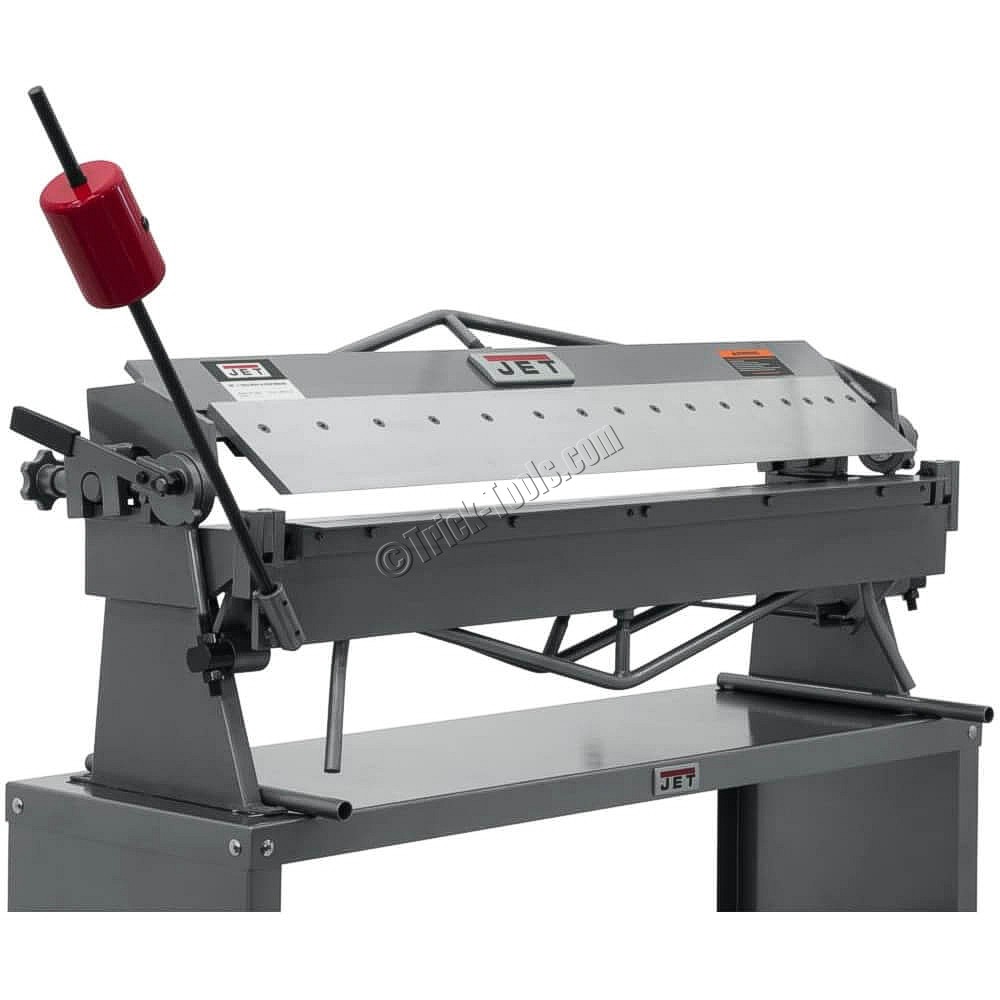

JET 4 foot Box & Pan Brake, 16 gauge

Part #: 754105
Model: BPB-1650
Ships From: Factory shipped

Lead Time: Discontinued

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,512.36
Sale Price: $1,655.20

1/32 radius fingers
Removable apron insert
Includes apron stop
50 inch bending length

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

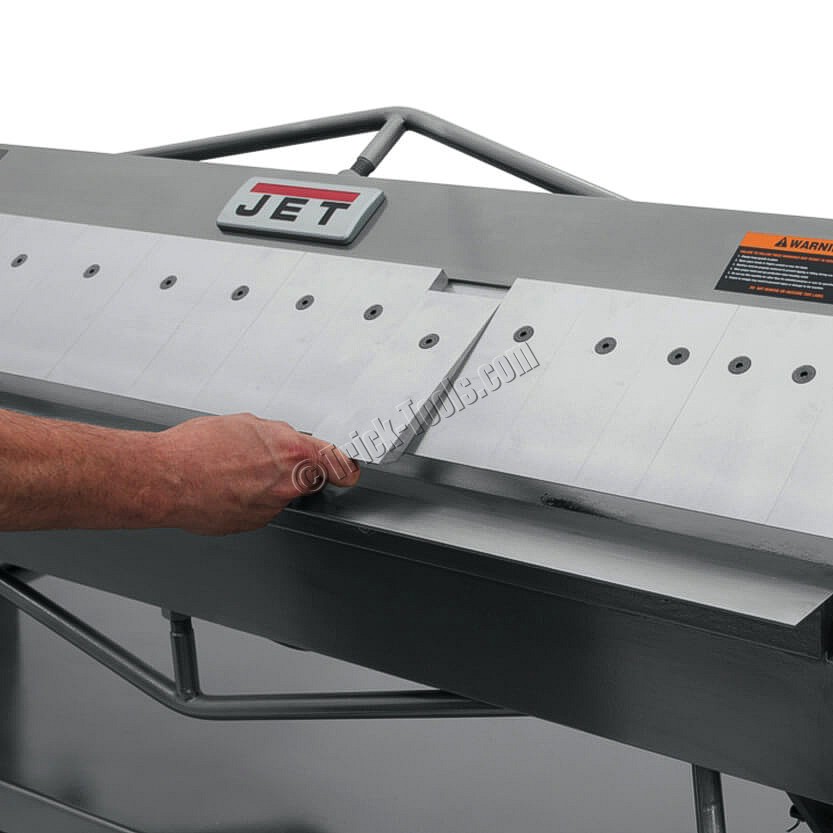

The JET BPB-1650 Benchtop Box and Pan Brake has a 16 gauge mild steel capacity at full length across its 50-inch bed. The 2, 3, and 4-inch wide fingers have a 1/32 inch radius and are removable to create a box up to 4 inches in depth. The BPB is easily adjustable and includes an apron stop for repeatable bending.

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 50
•Max Depth Of Box (inches): 4
•Max Lift Of Beam (inches): 1.25
•Front To Rear Adj (inches): .625
•Min Reverse Bend (inches): .25
•Minimum Flange Capacity (inches): 1
•Number/Width Of Fingers: 2, 3, 4 inch
•Max Forming Length (inches): 50
•Weight (pounds): 448
•Dimensions (LxWxH): 66 x 23.25 x 32.25
