JET 4 foot Box & Pan Brake, 12 gauge

Part #: 754110
Model: BPF-1248
Ships From: Factory shipped

Lead Time: Discontinued

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,495.21

4 inch depth of box
All welded body construction
Stop for repeatable bends
12 gauge mild steel capacity

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

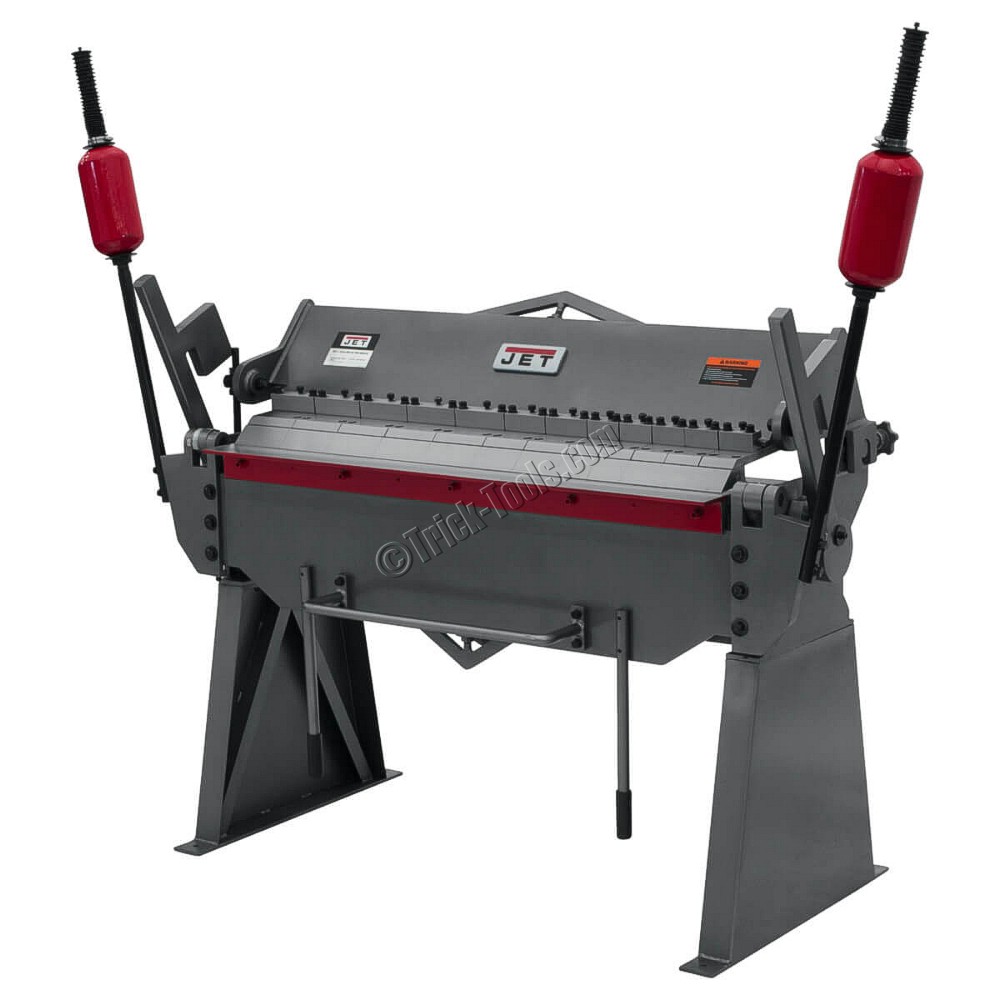

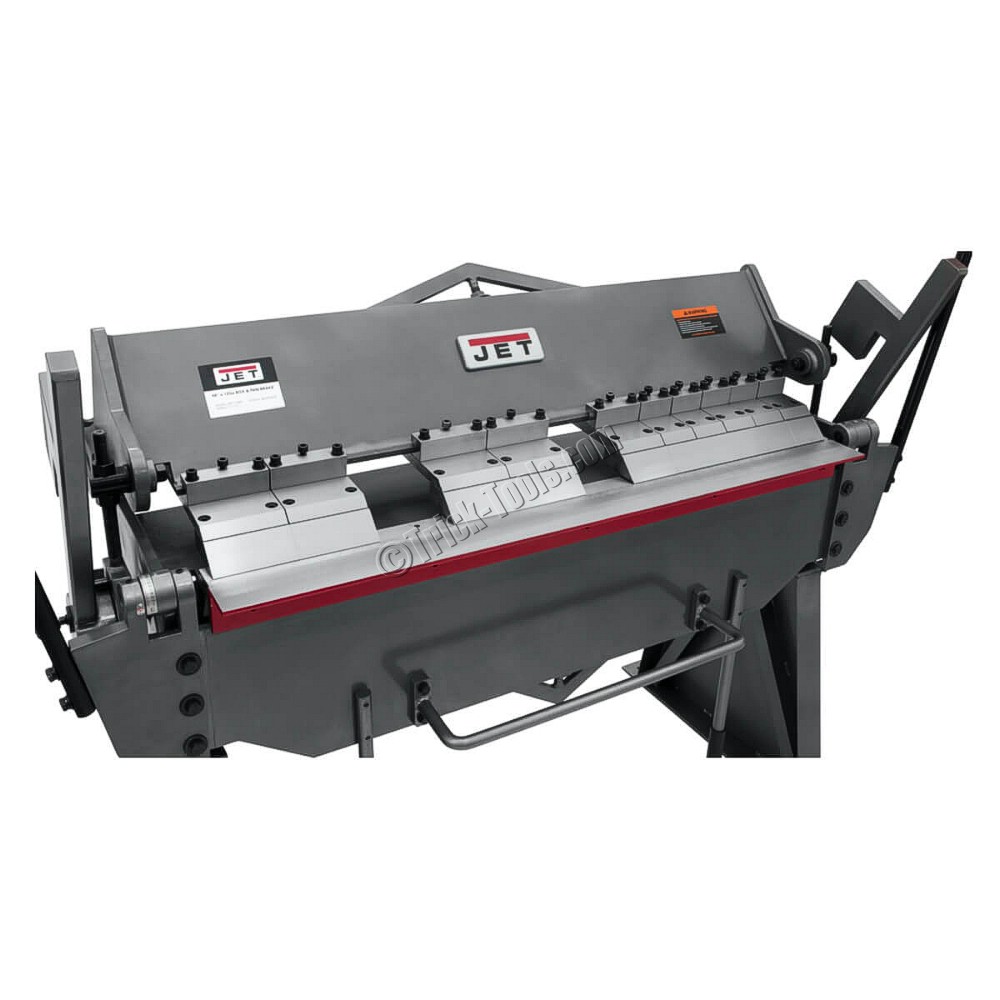

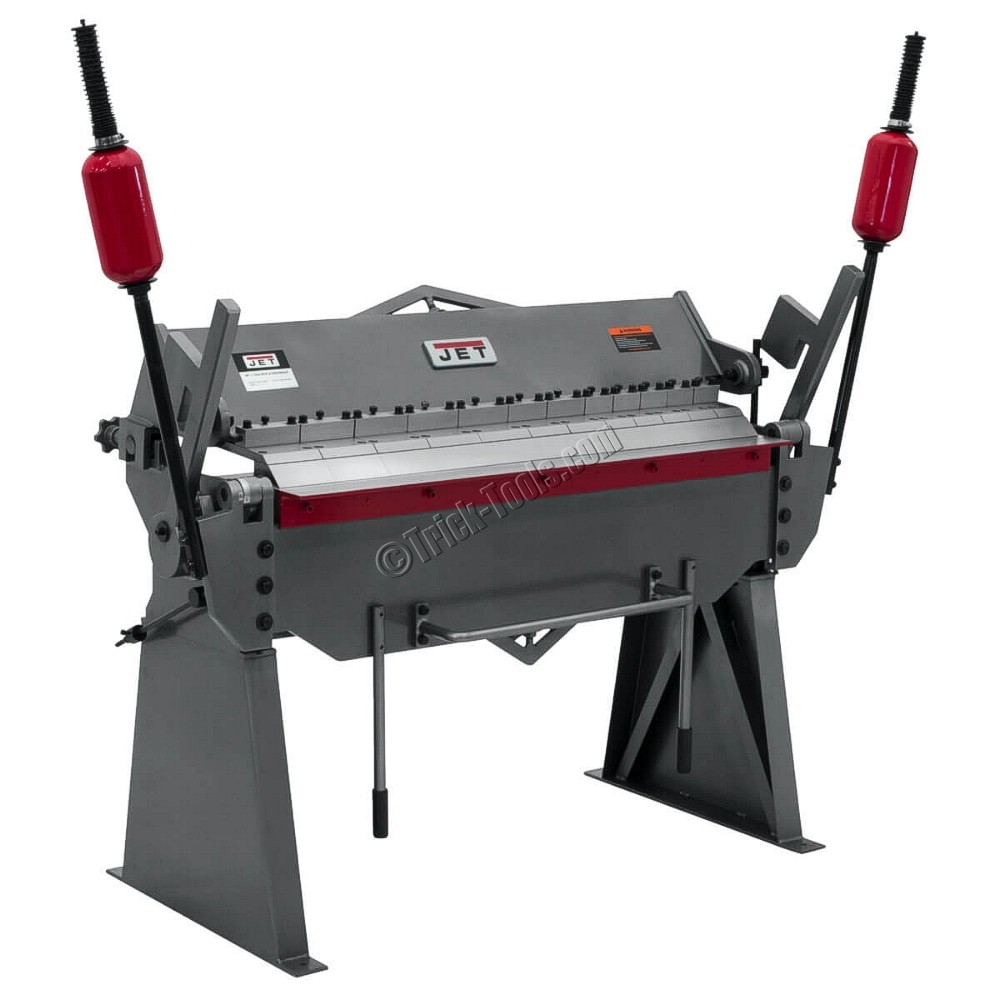

The JET BPF-1248 Box and Pan Brake offers a mild steel capacity of 12 gauge at the full 48 inch bending length. The welded steel plate frame construction makes for a solid machine and years of operation. The adjustable fingers are 3, 4, and 5 inches in width and offer a 4 inch maximum depth of box. The BPF-1248 also includes a stop rod for repeatable bending.

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 12 gauge (2.6mm)
•Aluminum Capacity: 10 gauge (3.5mm)
•Stainless Capacity: 16 gauge (1.6mm)
•Max Depth Of Box (inches): 4
•Max Lift Of Beam (inches): 1.5
•Front To Rear Adj (inches): .875
•Number/Width Of Fingers: (5) 3 inch, (2) 4 inch, (5) 5 inch
•Finger Nose Angle: 45
•Max Forming Length (inches): 48
•Weight (pounds): 1100
•Dimensions (LxWxH): 87 x 59 x 70 inches
