ArcLight Dynamics ArcMax Unlimited 5x10 CNC Plasma Table

Part #: AMU-5x10
Ships From: Factory shipped

Lead Time: Usually ships within 4-6 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $39,995.00

SALE

Save $2,000 on this ArcLight Dynamics Plasma Table when purchased with a table accessory! Sale ends 9/2/25! See details in the description.
ArcMax Unlimited tables can handle up to 3 inch thick plate
Includes Flashcut CNC Software
Ships fully assembled less plasma machine
Ready to handle industrial manufacturing

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

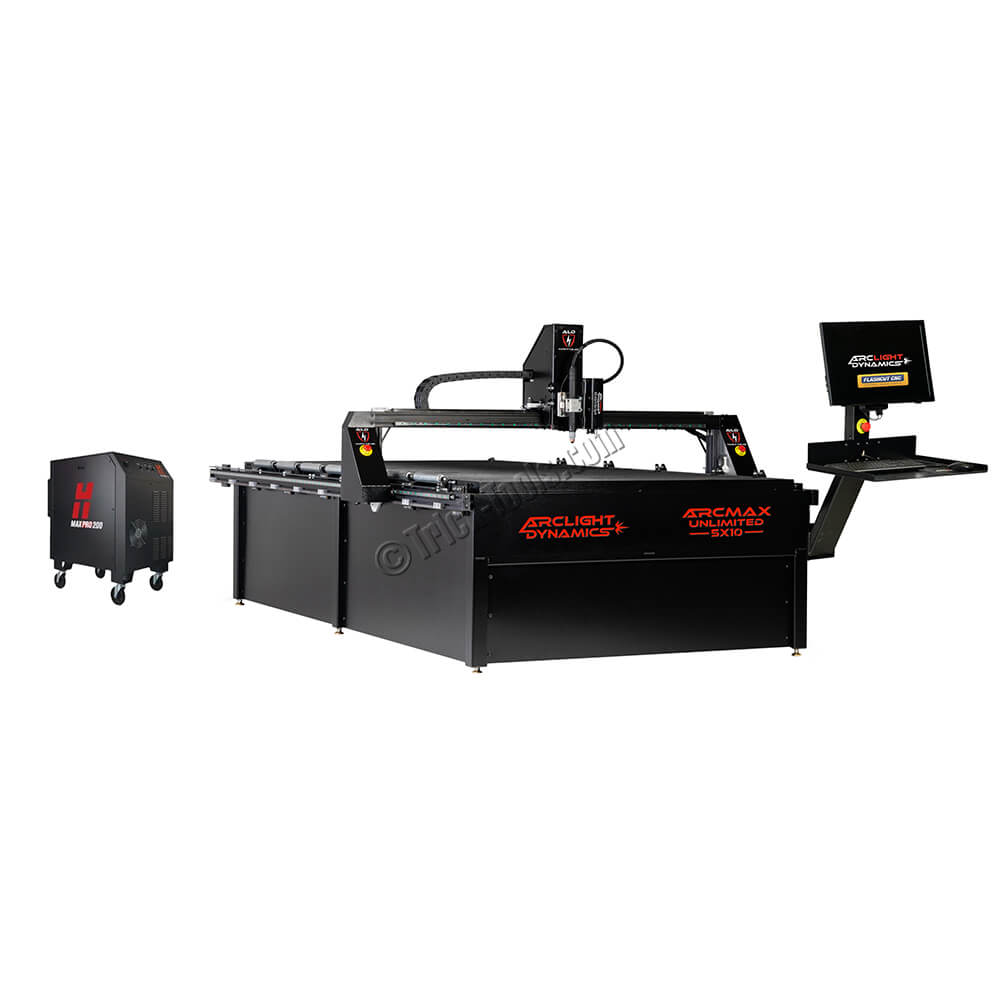

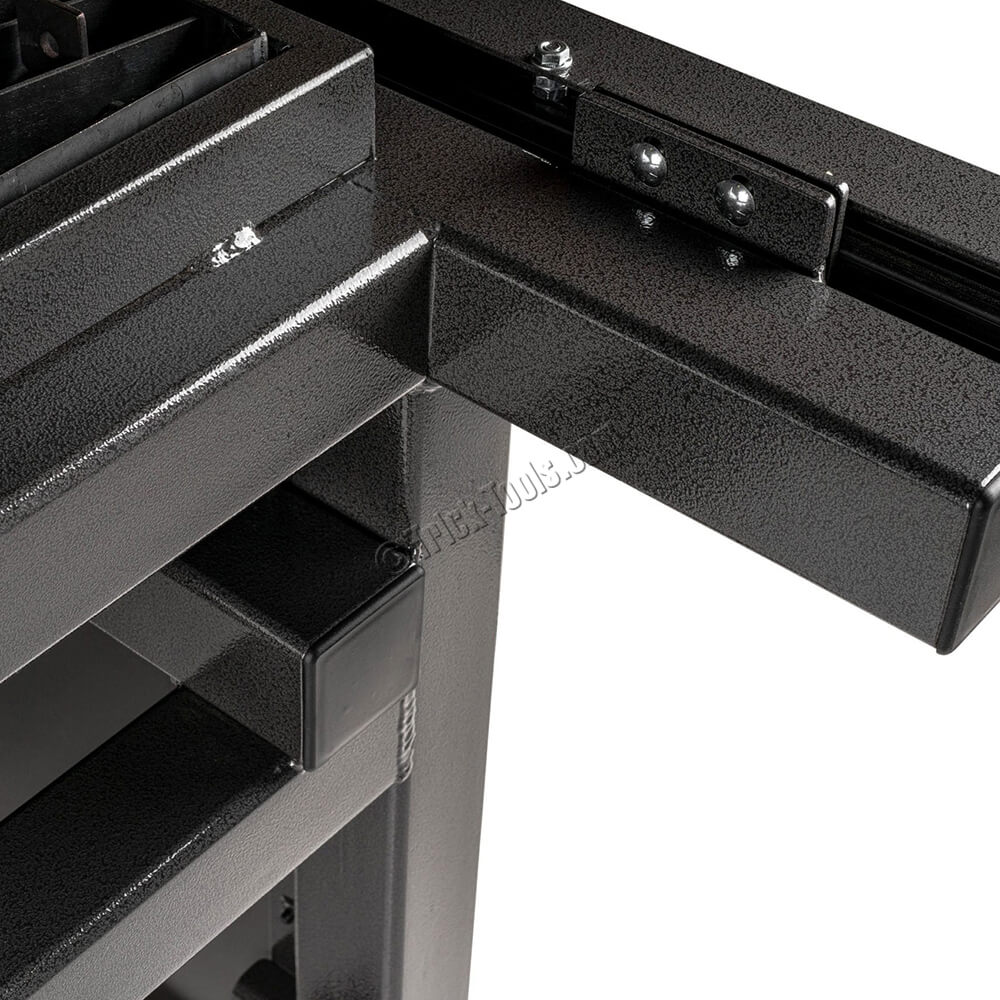

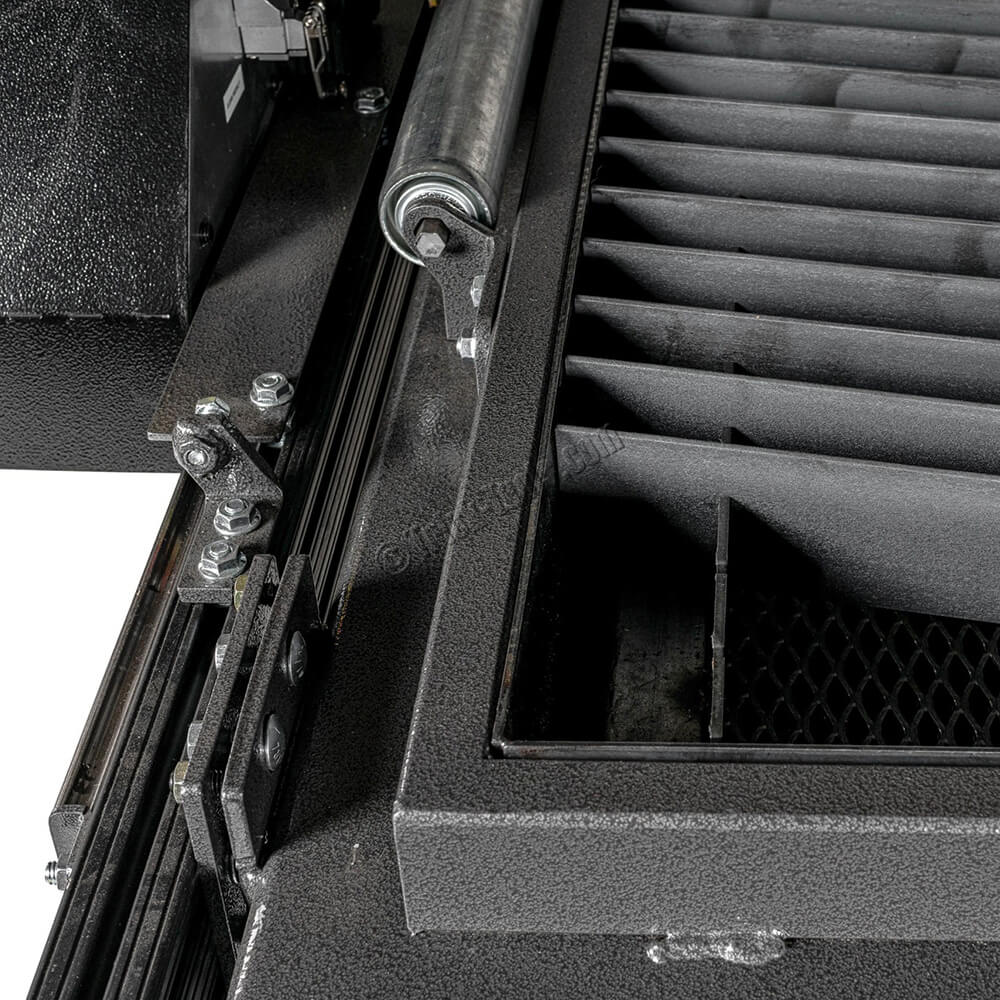

The ArcMax Unlimited 5 x 10 CNC plasma table is the latest addition to the ArcLight Dynamics lineup. This industrial-grade plasma table features a fully welded and powder coated frame made from 3/16 inch wall tubing for a rock-solid cutting platform and a 12 gauge steel, 300 gallon water table. The slat surface is flush with the side of the table and has built-in rollers to assist in loading large plates. The gantry, engineered from aircraft aluminum, provides exceptional rigidity and fast acceleration and deceleration characteristics while the drive system, comprised of precision 20mm linear guide rails and Hiwin linear slide blocks, provides smooth stable motion without inducing table vibration or flex resulting in smooth operation and accurate cuts.

All ArcLight Dynamics Plasma Tables ship fully assembled and tested less plasma torch. If a plasma torch is purchased along with your table it can be complete and ready to run! See the Accessories tab for plasma options.

Save $2,000 on this ArcMax Unlimited package when you pair the table with a table accessory. Please call our sales team at 641-628-3860 to take advantage of this limited-time offer! Sale ends 9/2/25!

Advanced Control Systems:

Blazingly fast Torch Height Control (THC), with improved touch-off speed for faster cuts.
Gantry utilizes dual 20mm linear rails, providing smooth vibration free cutting at high speeds
Industrial fanless computer with solid state drive
Operating System: Windows
FlashCut Pro Integrated CAD/CAM/CNC
- Smart 360 hole cutting technology
- Automated CAM w/ True-Shape Nesting
- Real-time amperage & pressure control
- Cut wizard automatically sets cut parameters
- Intuitive CAD with easy image import
- Comprehensive drawing tools with simple text bridging

Warranty:

Every Table comes will an industry leading 3-year warranty on its controller and control system, 2-year warranty on all electronics, and a limited lifetime warranty on the table frame

Shipping Note: Flatbed shipping is recommended for this table. Please call or email for a quote.

SPECIFICATIONS

•Motors: four 940oz NEMA 34
•Motor Type: stepper
•Voltage: 110 volt
•Cutting Area: 62 x 124 inches
•Cutting Depth: 6.5 inches
•Cutting Speed: 800 IPM
•Resolution: table repeatability .001 inches, standard plasma precision +/- .01
•Construction: welded steel
•Weight (pounds): 3250
•Dimensions (LxWxH): 88 x 143 x 60 inches
