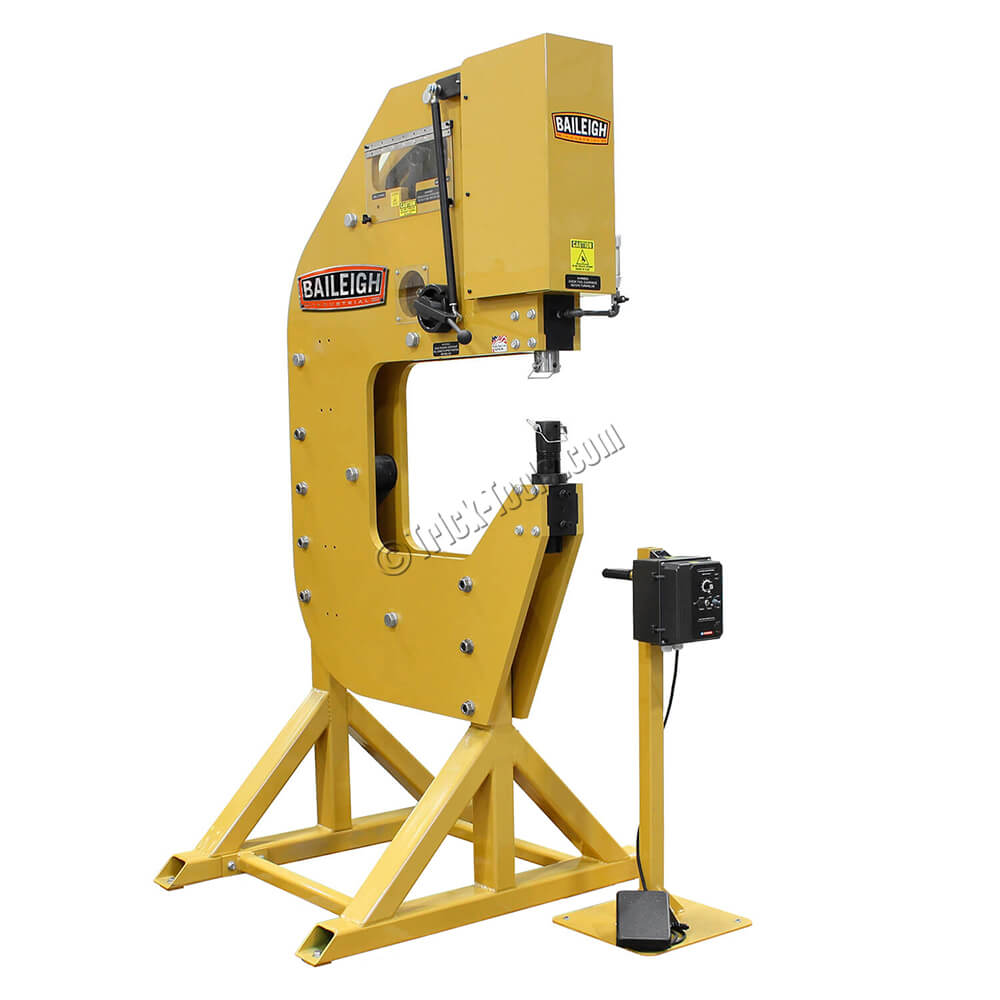

Baileigh PH-28HD-VS Power Hammer

Part #: PH-28HD-VS
Model: BA9-PH28HD
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $25,505.09
Sale Price: $20,759.99

FREE SHIPPING

28 inch throat depth
14 gauge mild steel capacity
3hp variable speed motor
Built in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

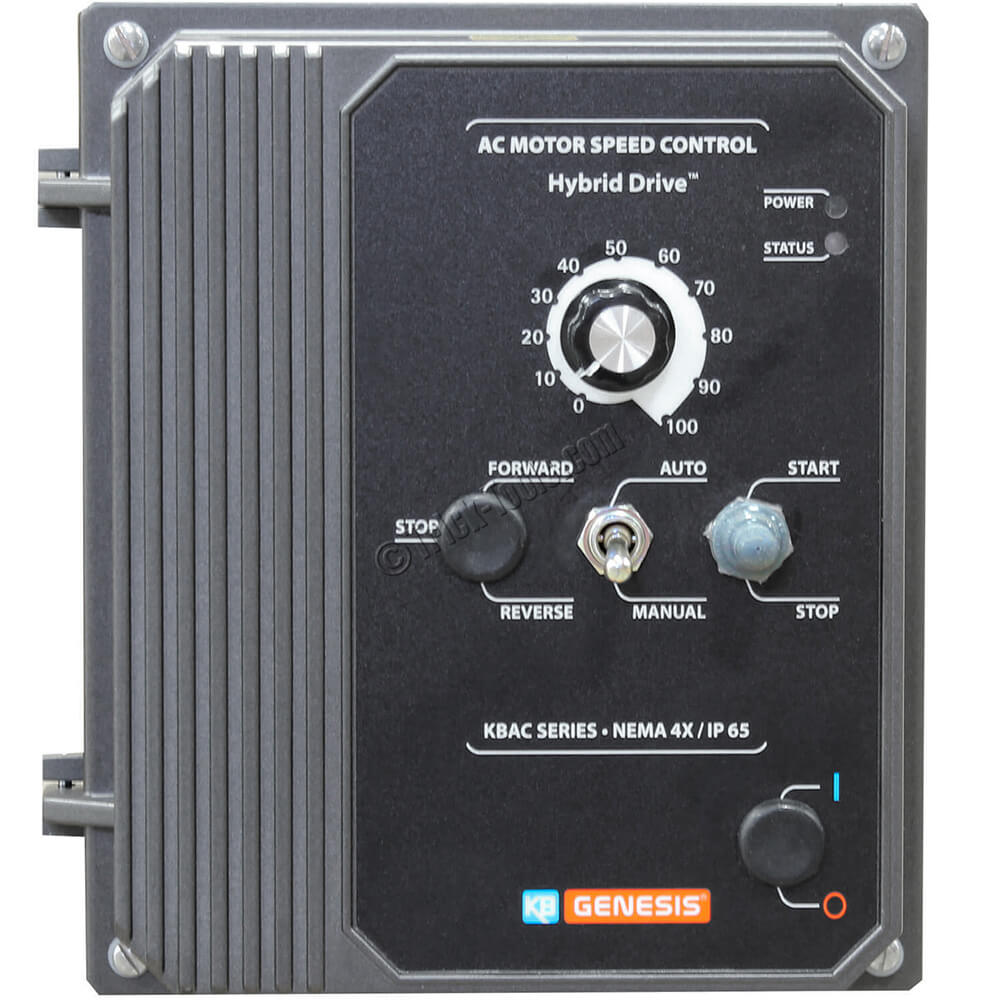

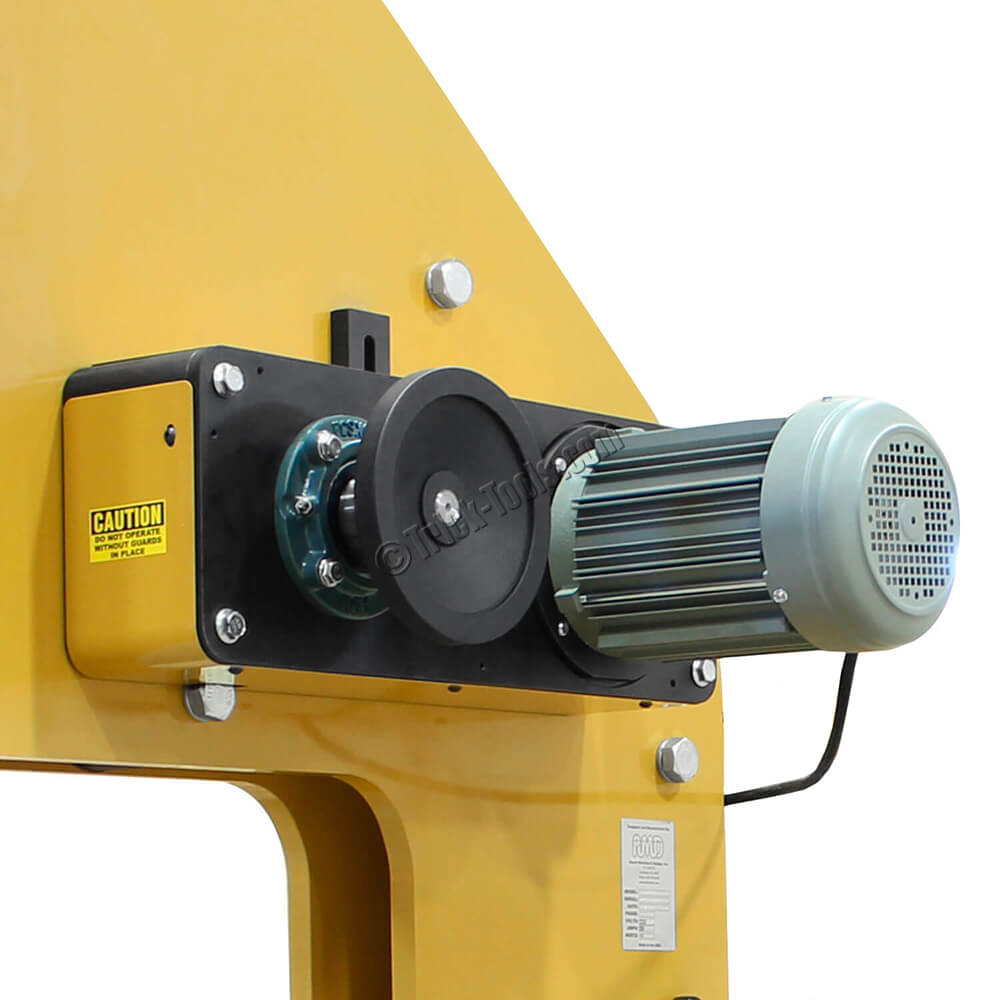

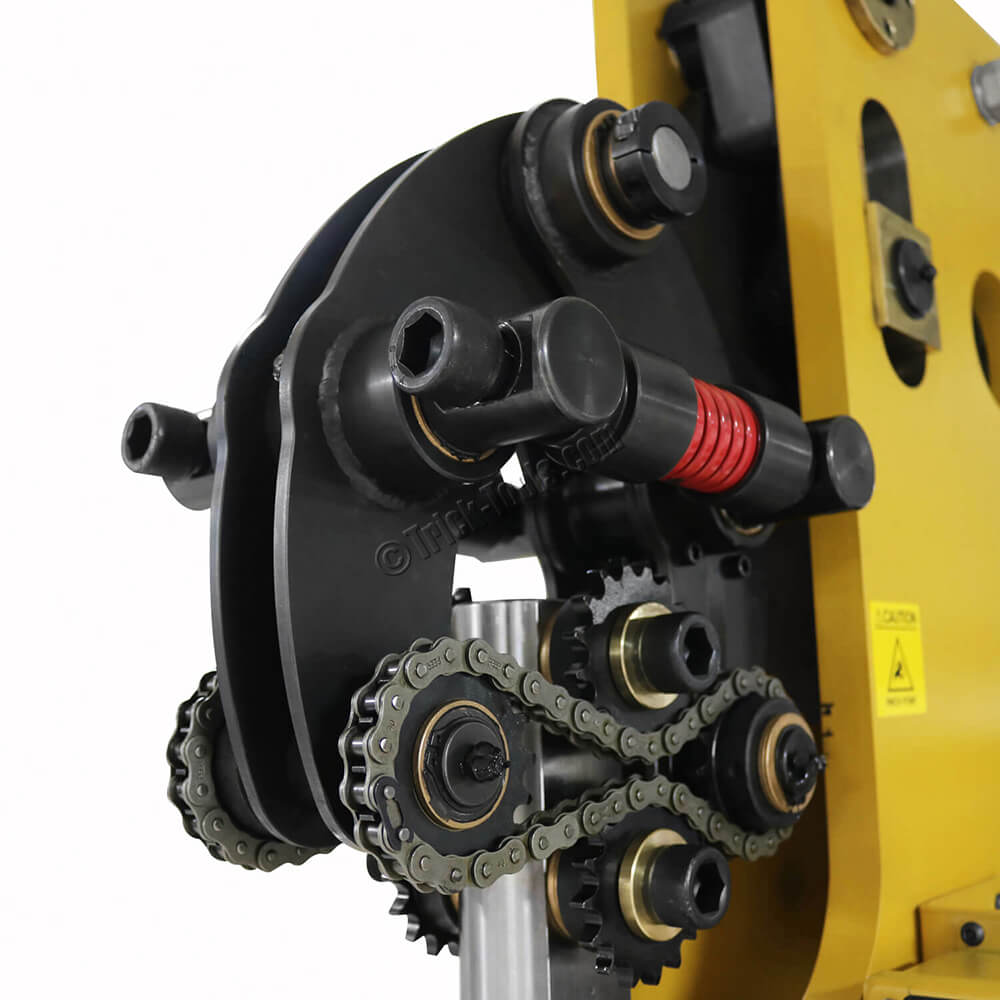

The PH-28HD-VS Industrial Power Hammer is the latest addition to the Baileigh power hammer lineup. Made in the USA and using customer feedback, this yoder style hammer is designed with the metalshaper in mind. The PH-28HD-VS features a variable speed 220v 3hp motor, 28 inch throat depth, and 14 gauge mild steel or 10 gauge aluminum capacity. The unique floating chain and sprocket setup eliminated the leather strap commonly found on hammers of the past.

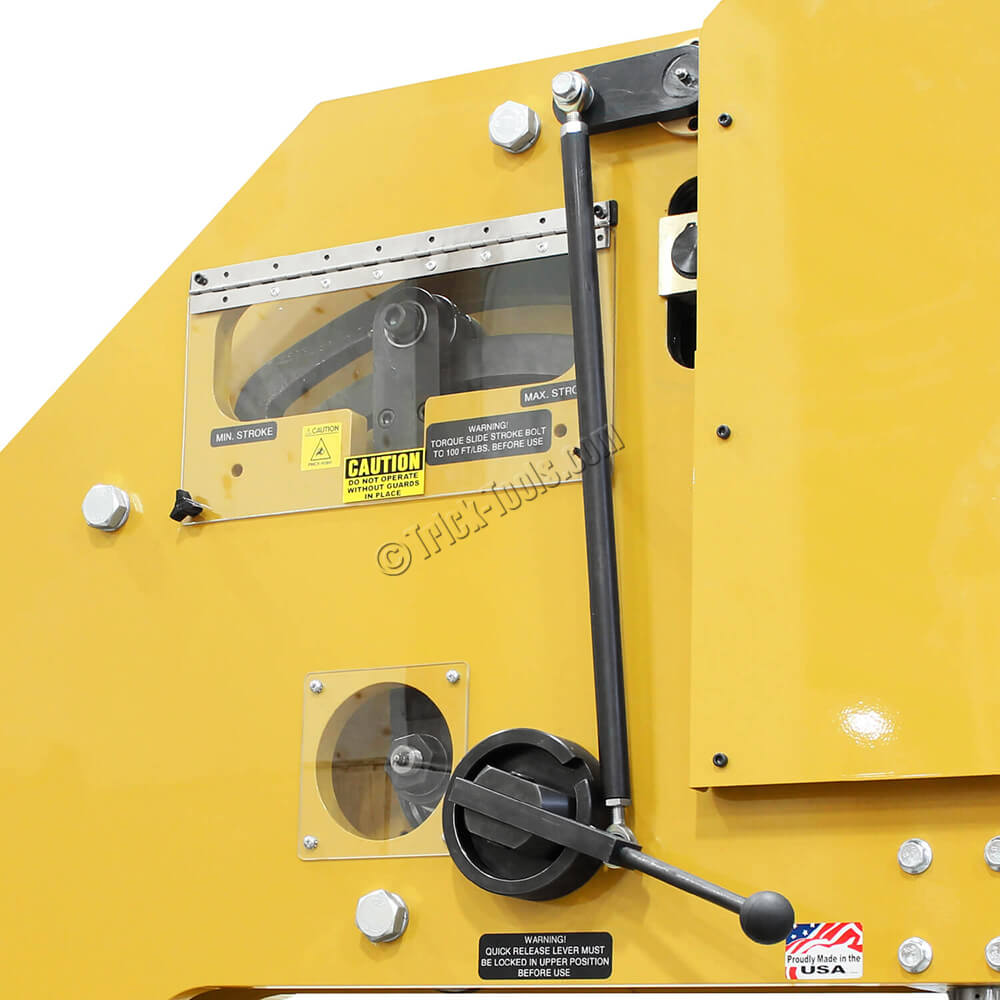

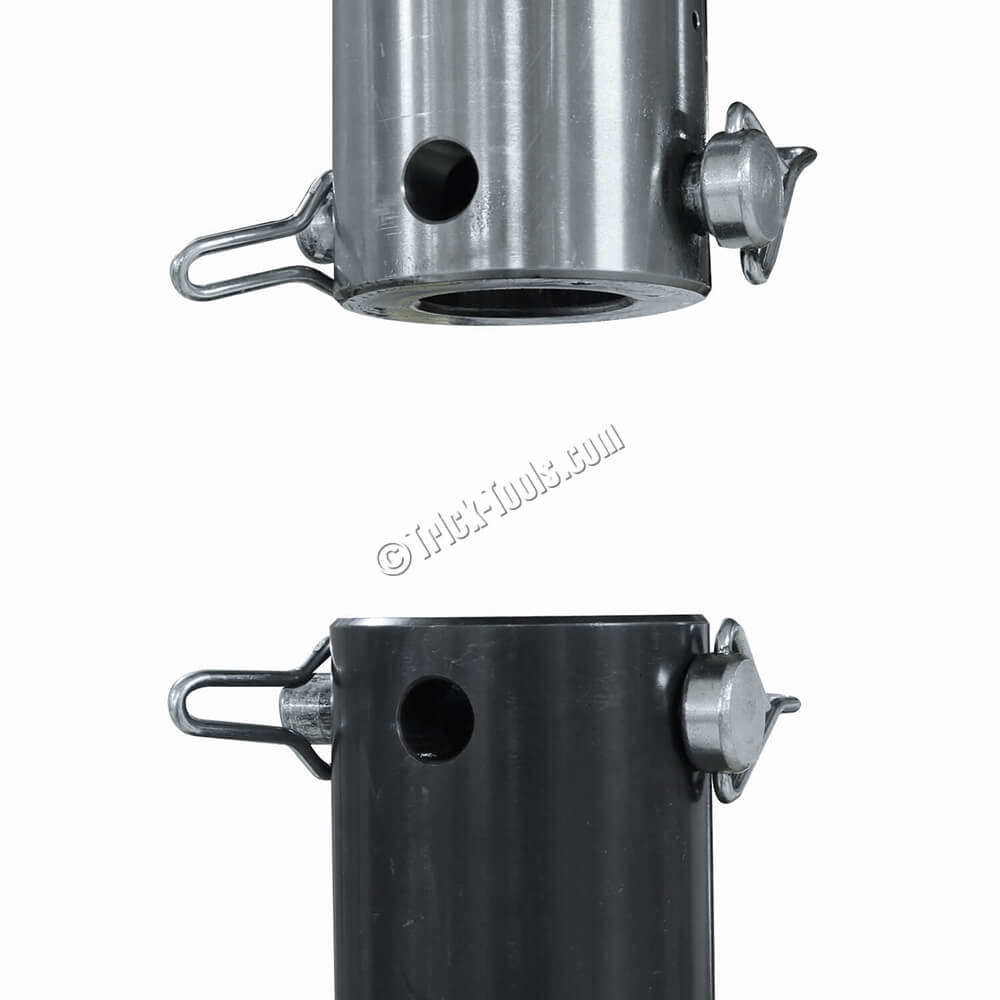

Tooling changes are quick, easy, and tool free using pins and a toggle lifting device to separate the dies. A threaded lower tool mount makes tuning adjustments easy for different dies or material thickness without the need for shims.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Throat Depth (inches): 28
•Steel Capacity: 14 gauge (2.0mm)
•Aluminum Capacity (inches): .100 (2.5mm)
•Work Height (inches): 62.5
•Strokes per Minute: 0-1000
•Motor: 3 hp, 220v, single phase
•Weight (pounds): 2000
•Dimensions (LxWxH): 48 x 48 x 96
