Baileigh RDB-125 Hydraulic Tubing Bender

Part #: RDB-125
Model: 1006776
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $7,125.69
Sale Price: $5,799.99

FREE SHIPPING

2-1/2 inch OD capacity
Electric/hydraulic power
Foot pedal controls
110 volt power

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

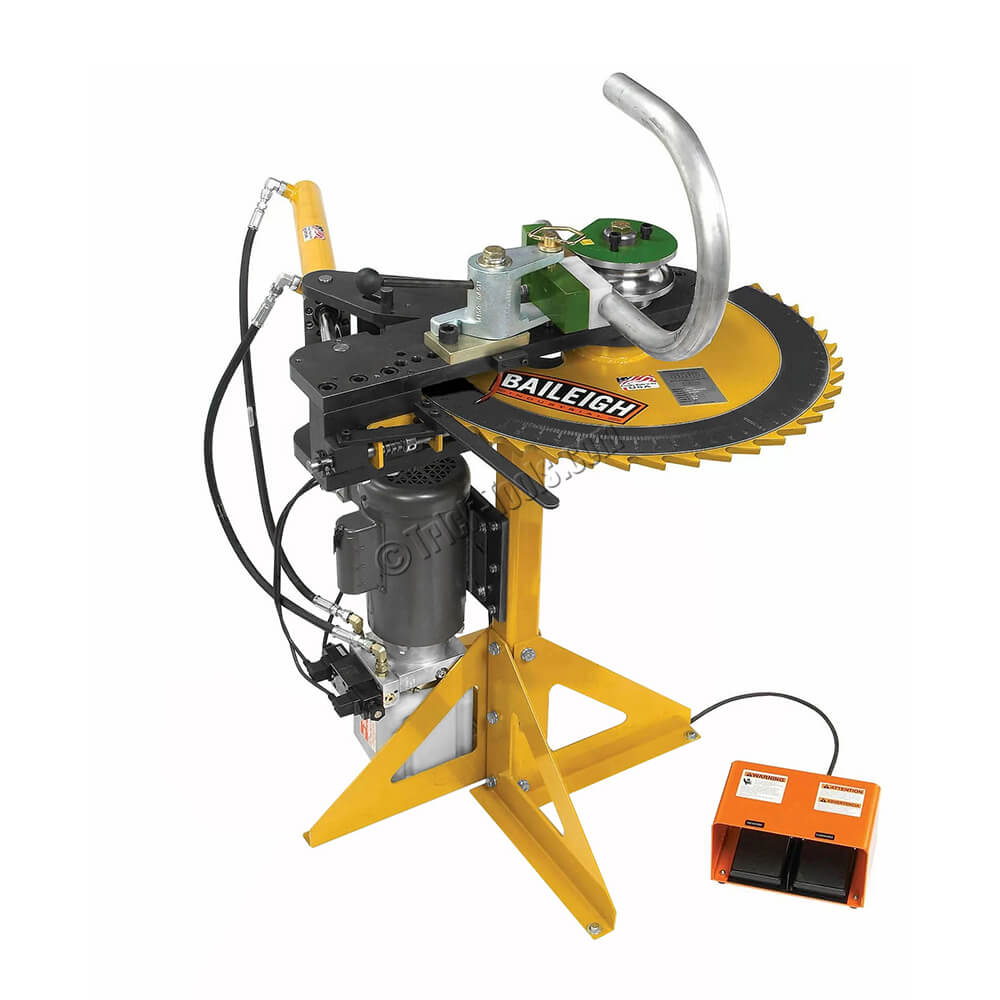

The RDB 125 tubing and pipe bender is the perfect entry level Baileigh/RMD bender. With the ability to bend 2.5 inch round tube or 2 inch Schedule 40 pipe, this bender features big capacity for the money. The tooling used on this machine is the same as that used on larger machines in the Baileigh line-up, so future upgrades can be done easily and cost effectively.

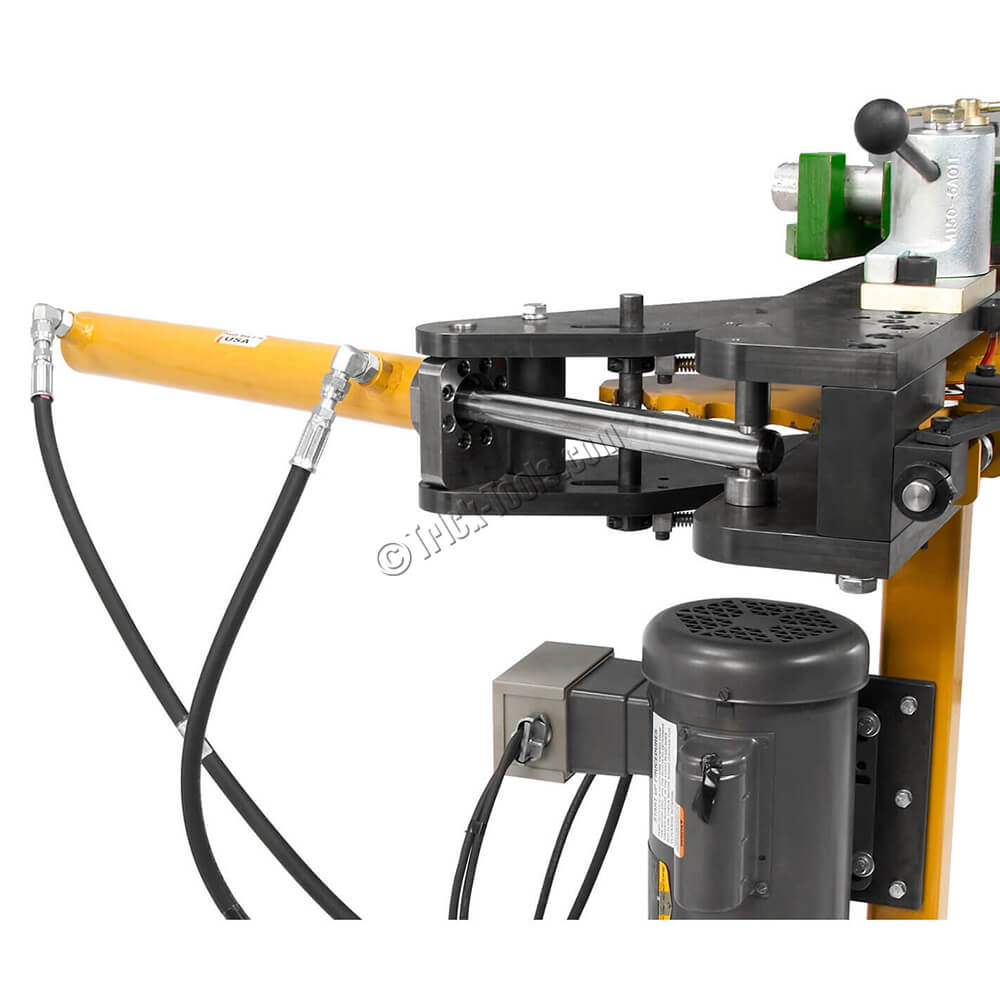

Using a single hydraulic cylinder, the machine is capable of 180 degrees of bend without any repositioning of the tooling. The cylinder can be reset and re-stroked by using the foot pedal control. It also features a quick release counterbend die for easy positioning/removal of the tubing. Using industrial grade hydraulics and heavy steel construction, this machine is built to withstand tough industrial jobs.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Chrome Moly Capacity (inches): 2 x .120
•Round Aluminum Capacity (inches): 2-1/2 x .156
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•Minimum OD (inches): 1/4
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 10-1/2
•Max Degree of Bend: 180
•Motor: 110 volt
•Maximum OD (inches): 2-1/2
•Weight (pounds): 325
