Bead Form 2 Heavy-Duty

Part #: BF2HD
Ships From: Our warehouse

Lead Time: Usually ships within 1-2 days

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $589.00

7/8 inch to 4 inch capacity
Heat treated lower shaft
Needle bearing shafts and replaceable pivot bushings
Meets Milspec and SAE 5131B specs for 1-1/2 inch OD and larger
Great for turbo, fuel, intake, and radiator hose

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

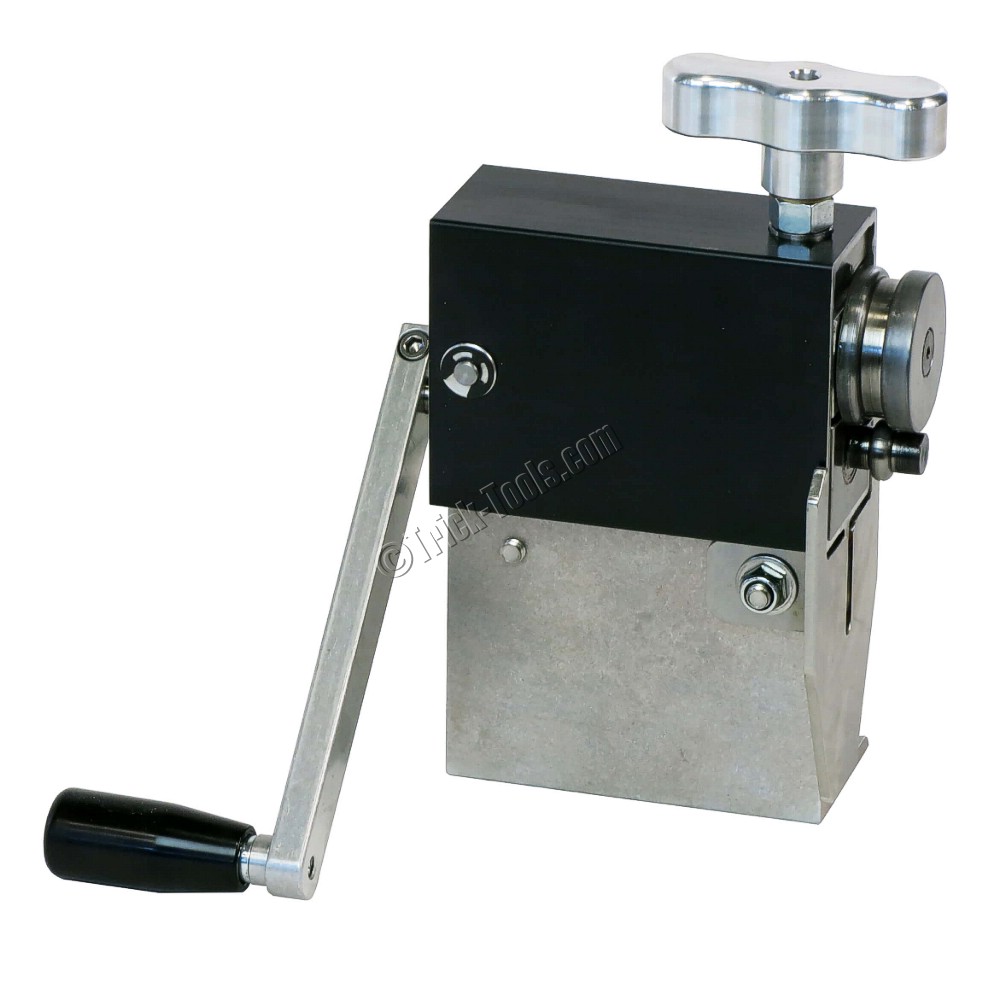

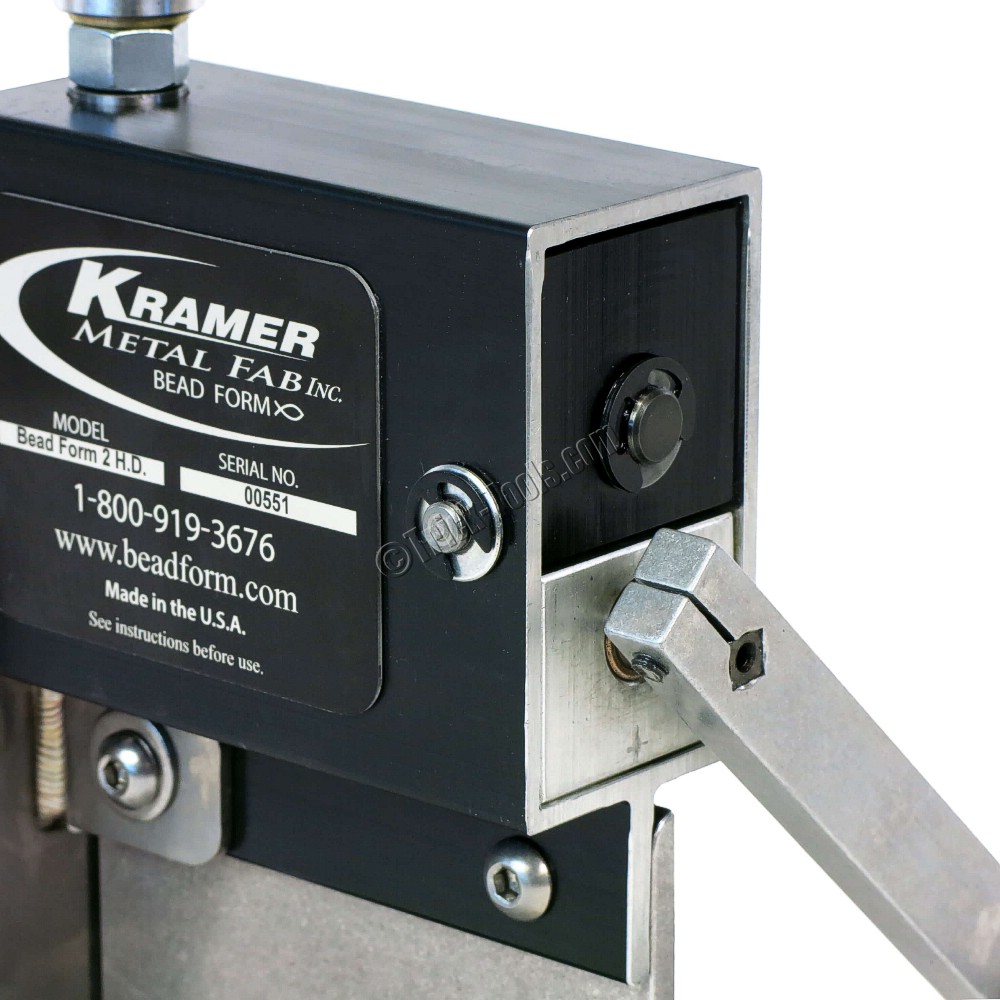

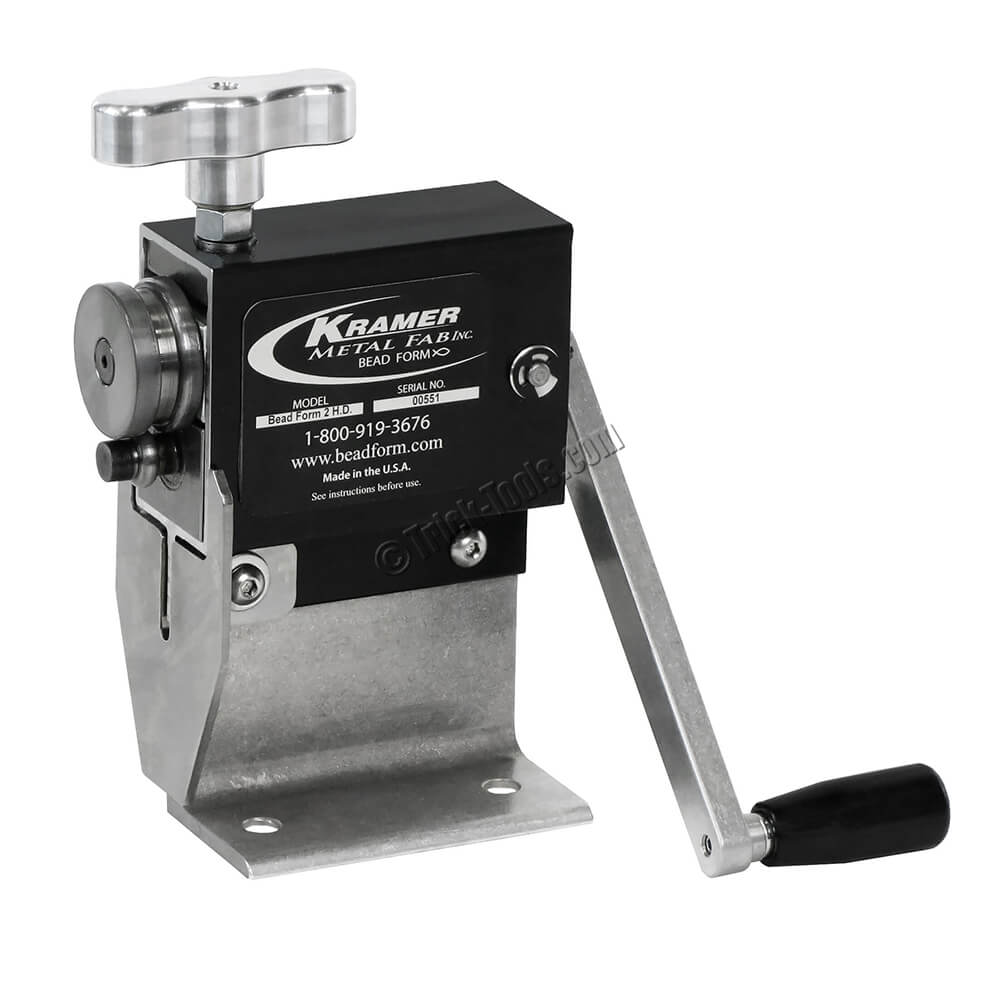

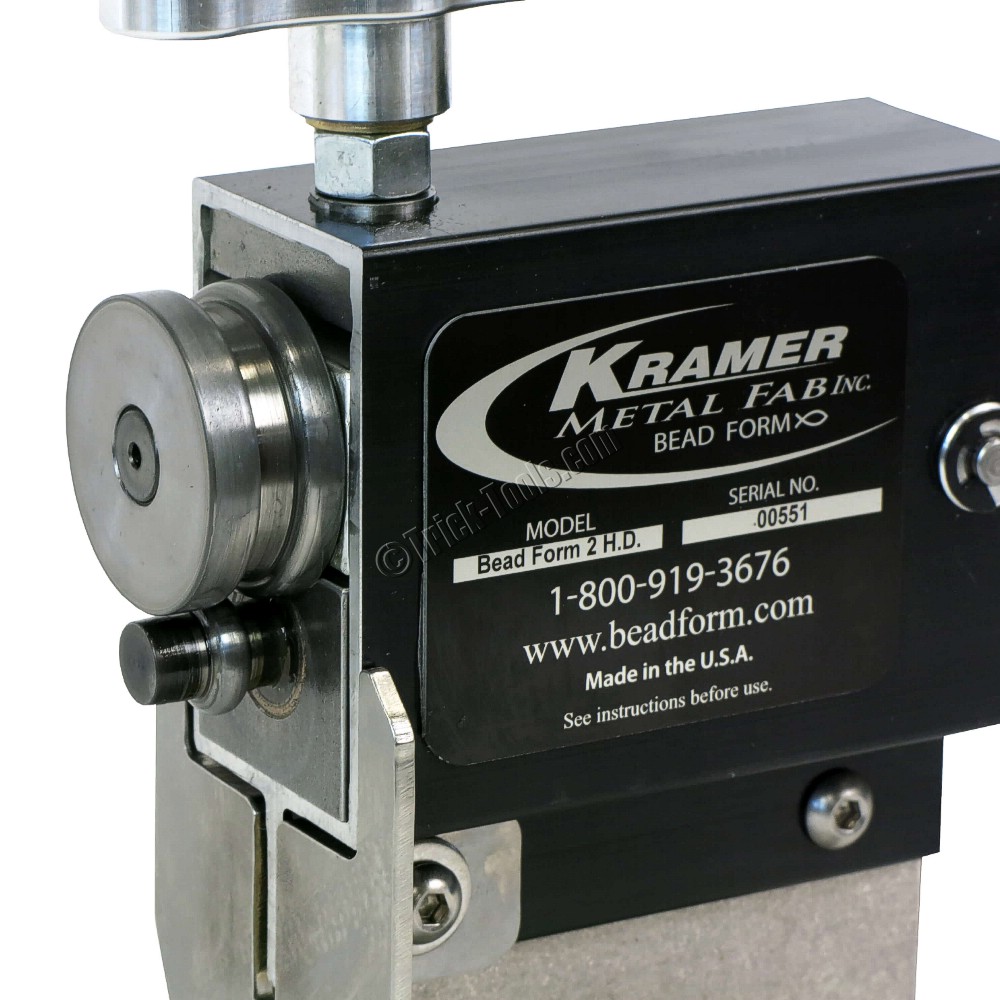

Bead Form 2 HD quickly forms a hose bead on all types of tubing. Heat-treated lower shaft, needle bearings, replaceable pivot bushings, positive action gear drive, and steel form rollers make this tool suitable for production environments. It is designed to work on stainless, aluminum, copper, brass, or mild steel. The bead produced meets Milspec and SAE 5131B specs for 1-1/2 inch OD and larger.

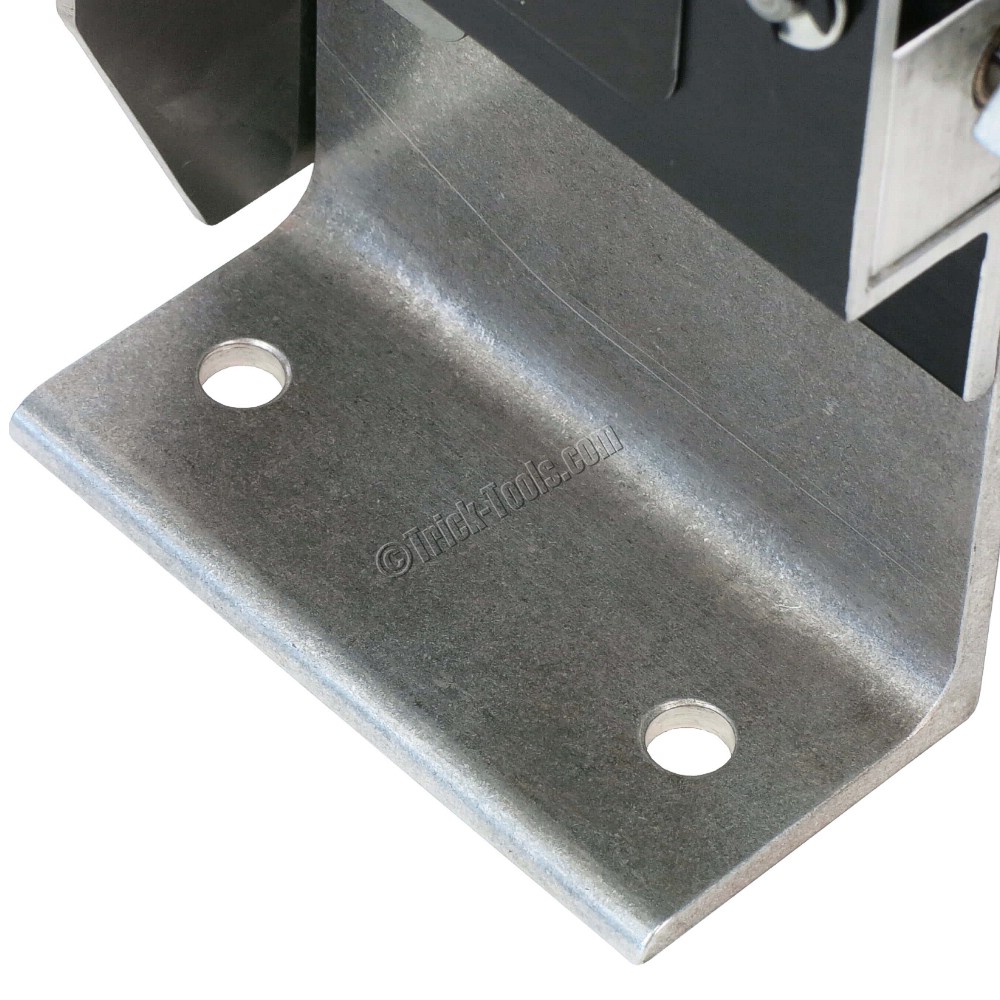

The hand crank can be removed and replaced with a ratchet and 1/4 inch square socket. Can be bench mounted with the included bracket, vise mounted with additional block, and even comes with a handy carrying case and instructions. Great for fuel, intake, turbo, and radiator lines.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Minimum Id (inches): 3/4
•Steel Capacity (inches): .065 wall
•Aluminum Capacity: .065 wall
•Stainless Capacity (inches): .050 wall
•Bead Dimensions (inches): .080 tall x .270 wide
•Throat Depth (inches): .315 to center of bead
•Construction: heat treated lower shaft and steel rollers, extruded aluminum body
•Weight (pounds): 3.55
•Dimensions (LxWxH): 5.5 x 3 x 8
