Roper Whitney 4 foot Box and Pan Brake, 12 gauge

Part #: 155100412
Model: U-412-6
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,375.00

6 inch depth of box capacity
Heavy tie rods for minimum deflection
Removable bending bar and angle
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

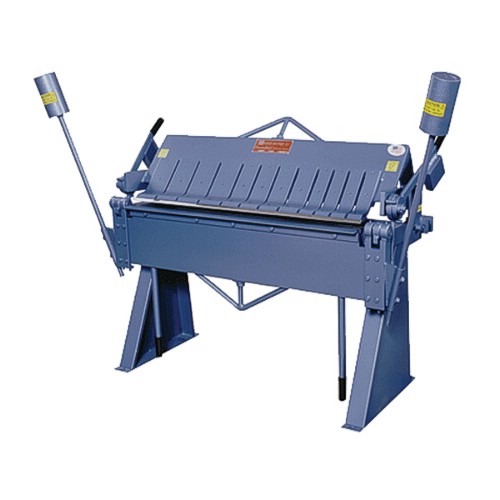

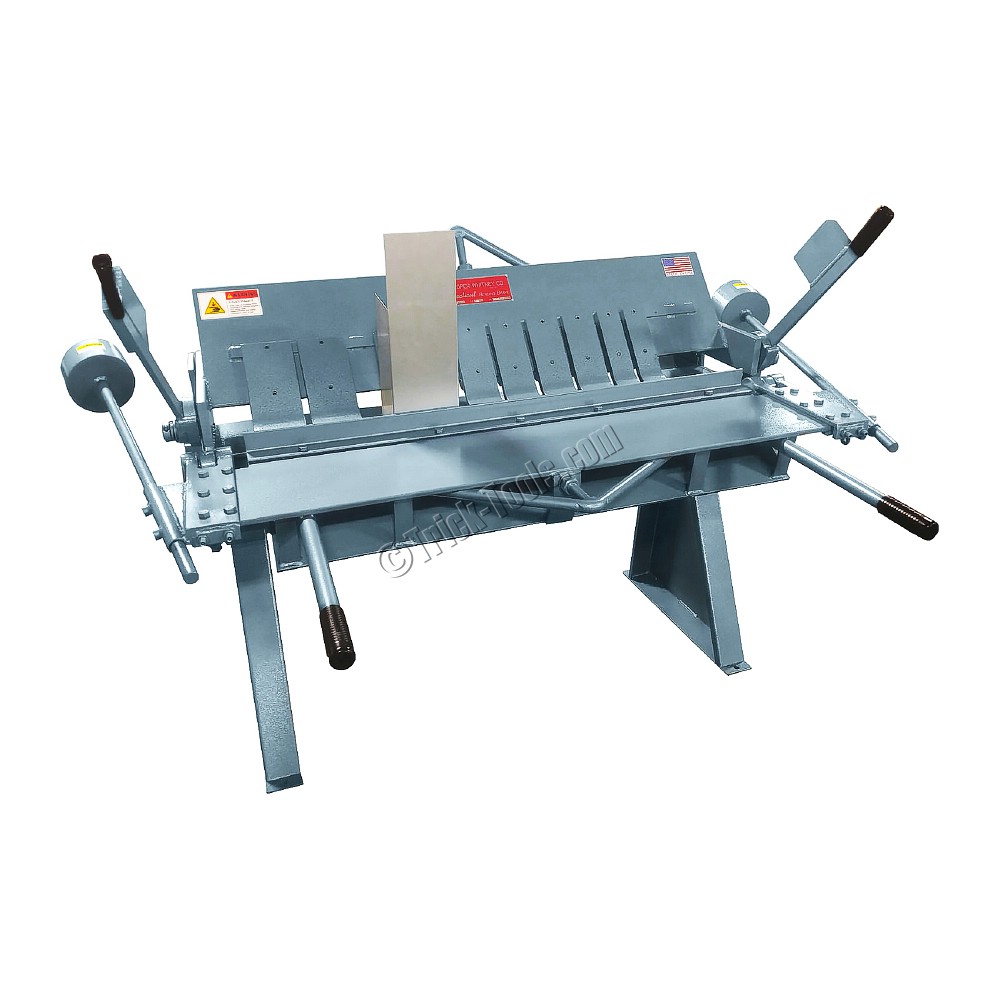

The Roper Whitney Connecticut U-412-6 box and pan brake is a heavy duty floor standing brake designed for the most demanding conditions. It features a 6 inch depth of box capacity, but is equally as useful as a standard straight brake.

The brake also features a removable apron insert for 1/4 inch bends in lighter material. Adjustable clamping pressure, heavy counterweights and an apron stop add to the brake's ease of operation. The heavy duty cast iron fingers have bolt on, replaceable, hardened steel contact points, and the apron also features replaceable bushings and hinge pins.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 12 gauge (2.6mm)
•Stainless Capacity: 16 gauge (1.6mm)
•Working Length (inches): 48
•Max Depth Of Box (inches): 6
•Max Lift Of Beam (inches): 1.625
•Front To Rear Adj (inches): 1.125
•Min Reverse Bend (inches): .250
•Minimum Flange Capacity (inches): 1
•Number/Width Of Fingers: 3, 4, 5 inch
•Weight (pounds): 1205
•Dimensions (LxWxH): 72 x 49 x 56
