Dake SB-16 Floor Model Drill Press

Part #: 977200-1
Model: SB16
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,095.00

Drilling capacity up to 5/8 inch
1/2 hp motor
9 speeds
Floor model

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

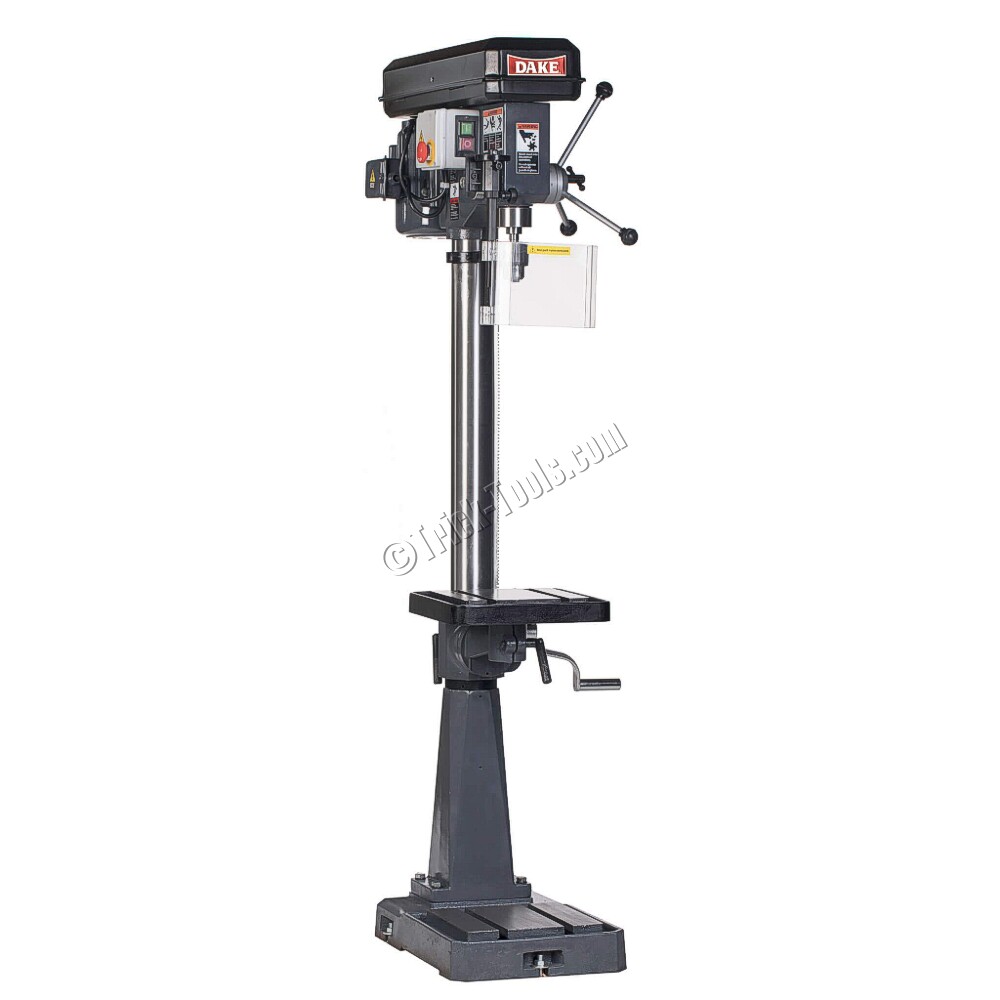

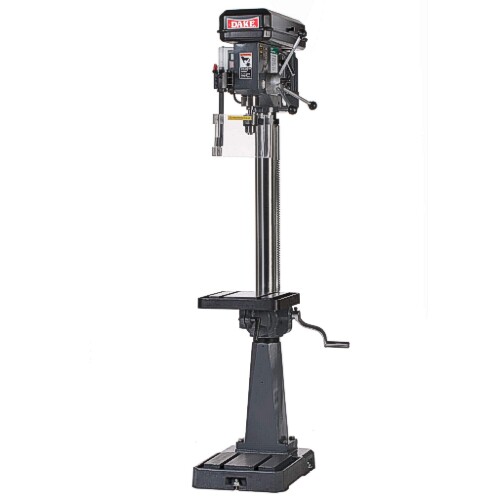

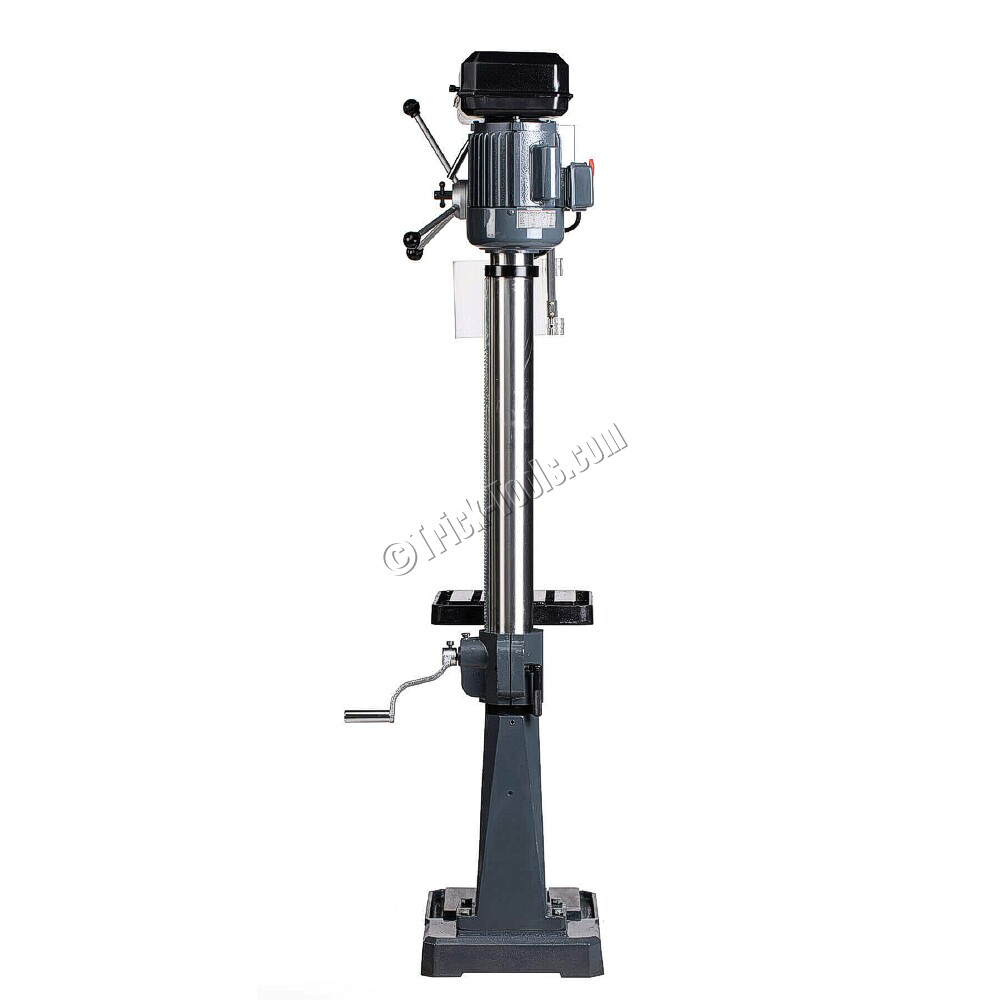

This floor model Dake Drill Press features a locking handle hub, CE safety electrical packages, a large diameter sturdy spindle, and a massive cast head. It is capable of quick bit changes and has a quick belt tension release for easy speed changes.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1/2 hp, 110 volt
•Number of Speeds: 9
•Spindle Speed(s)Range: 240-3400 rpm
•Drills To Center (inches): 14.125
•Drilling Capacity (inches): 5/8
•Spindle Taper: Morse no. 2
•Column Diameter (inches): 3.125
•Spindle Travel (inches): 3.125
•Spindle To Table Max (inches): 28.25
•Spindle To Base (inches): 49
•Table Size (inches): 11.75 x 11.76
•Base (inches): 19.5 x 12.5
•Weight (pounds): 210
•Dimensions (LxWxH): 19.625 x 12.5 x 64
