Eagle CP30E-PR Roll Bending Machine

Part #: CP30E-PR
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $7,990.00
Sale Price: $6,990.00

SALE

2.375 x .065 inch round tube capacity
1.5 x .120 inch square tube capacity
Roll position scale
Foot pedal controls

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

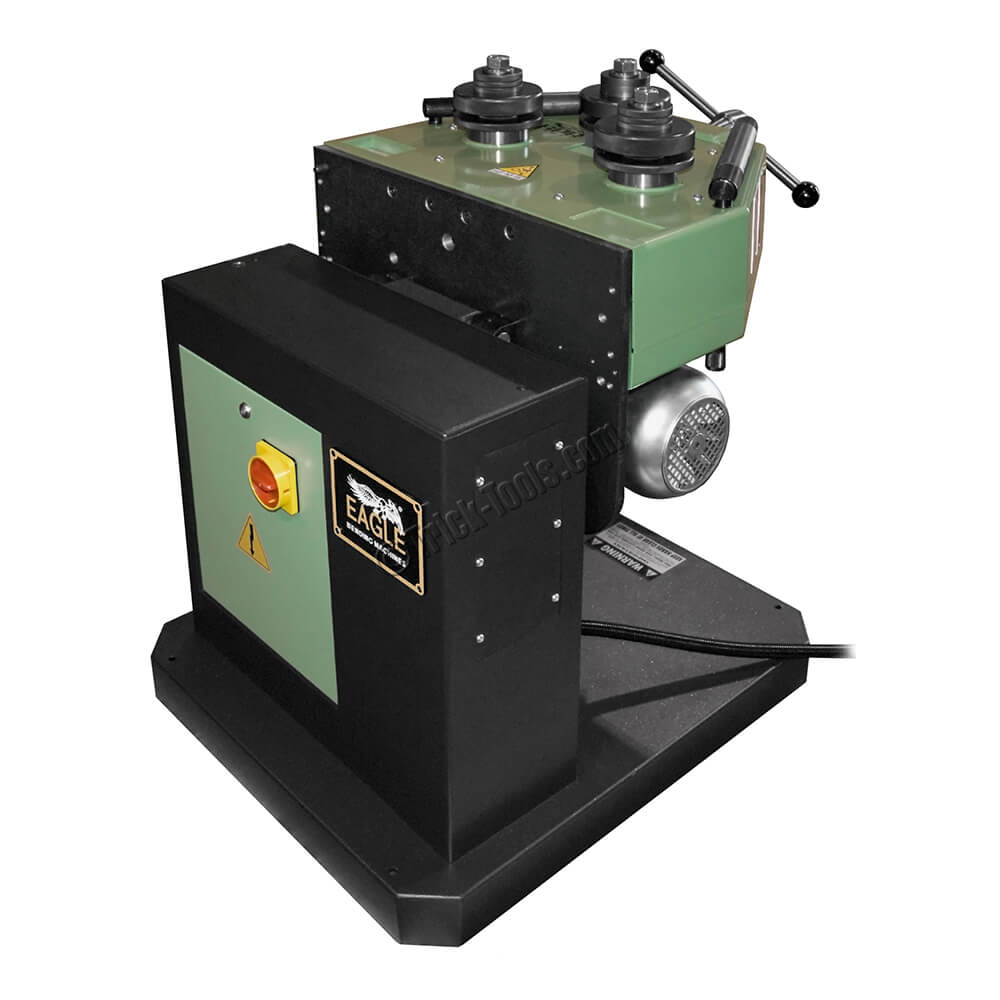

The Eagle CP30 is one of the most used section benders in the world. E-Models are equipped with a manual scale to monitor the bending roll position for repeatability.

The unit uses a powerful pyramid geometry with lower rolls driven and fixed in position while the top roll is adjustable to obtain different bending diameters. Universal tooling supplied in 18 components permits bending of most standard sections/profiles.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-3/8 x .062
•Nominal PIPE Capacity: 1-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 1-1/2 x .120
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•C Channel Mild Steel Capacity (inches): 2 x 1
•Minimum OD (inches): 3/4
•Max Bending Speed: 12 feet per minute
•Driven Rolls: 2
•Bending Style: roll bending
•Size: 30mm shafts
•Max Degree of Bend: 360
•Control Method: foot pedal controls
•Repeatability Control: manual scale
•Bending Roll Adjustment: manual
•Maximum OD (inches): 2-3/8
•Weight (pounds): 543
•Dimensions (LxWxH): 36 x 29 x 42
