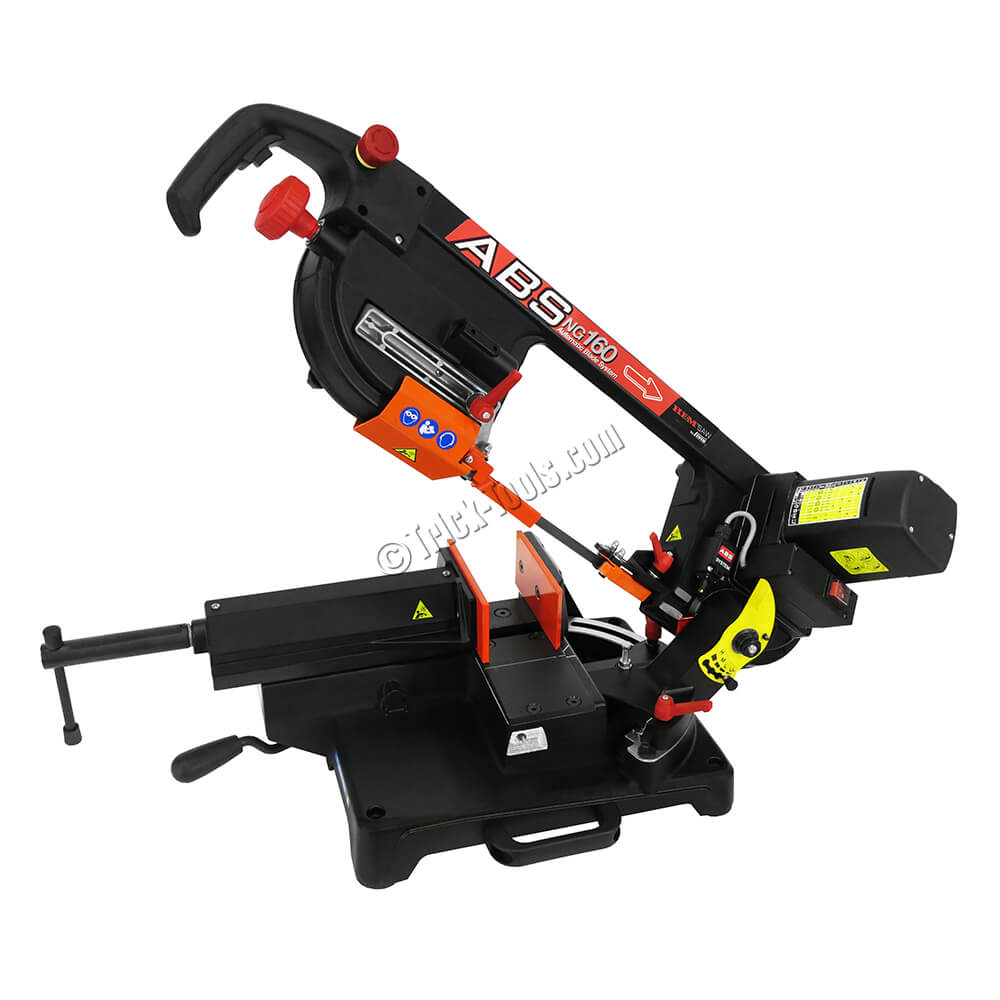

HEM Saw NG160ABS Benchtop Semi-Auto Mitering Band Saw

Part #: F-NG160ABS
 Model: NG160ABS
Ships From: Our warehouse
Lead Time: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
In Stock
Price: $3,195.00
  • Semi-automatic feature
  • 6 inch capacity
  • 45 degree mitering head
  • Variable speed motor
FREIGHT:
Freight
ORIGIN:
European
BRAND:
HEM Saw logo
Quantity:

DESCRIPTION

The HEM Saw NG160ABS by Femi mitering head band saw is excellent for the light to medium duty industrial user with its highly accurate cuts and large capacity. This ABS version of the saw also features a unique semi-auto gravity downfeed. Just set the blade against the material and walk away!

Its die cast aluminum construction of the entire saw's base and head equates to a very lightweight, yet durable cutting platform. The variable speed motor aids in cutting both ferrous and non-ferrous metals, while the 45 degree swiveling miter head makes miter cuts a breeze. Since the saw is a dry cutting saw, there is never any coolant to clean-up. The 'New Generation' reverse blade rotation results in a 60% faster cutting than other saws with a similar capacity. An adjustable length stop is included for easily repeatable cuts.

Gravity downfeed function not recommended for material thinner than .125 inch wall thickness.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: benchtop
•Motor: 2.7 hp, 110 volt
•Blade Width (inches): .500
•Blade Length (inch): 68.25
•Blade Thickness (inches): .035
•Number of Speeds: variable
•Speed(s): 98.5-262.5 feet per minute
•Vise Opening Max (inches): 6.25
•Mitering Range: 45 degrees right
•Round Solid Capacity 90 Deg (inches): 6
•Round Solid Capacity 45 Deg (inches): 4
•Round Tube Capacity 90 Deg (inches): 6
•Round Tube Capacity 45 Deg (inches): 4
•Square Tube Capacity 90 Deg (inches): 6
•Square Tube Capacity 45 Deg (inches): 4
•Rectangle Tube Capacity 90 Deg (inches): 6-1/4 x 5-1/4
•Rectangle Tube Capacity 45 Deg (inches): 4-3/4 x 4
•Weight (pounds): 85
•Dimensions (LxWxH): 38 x 13 x 22

INCLUDES

  • 10-14 TPI blade
  • Adjustable length stop

VIDEO







ACCESSORIES

Have a technical question about this product?
avatar
Popular Questions
4 years ago
Hi , do you have a 230v model and will you ship to australia? See more »
4 years ago
No we do not but this is an Italian built saw so most likely you can find a distributor near you that can supply that voltage. Please check the FEMI.it website
See more answers
2 years ago
See more »
2 years ago
No sorry, the only saws in the Hem Saw line up that go vertical are the 782XL and 784XL. You can find the Vertical tables under the Accessories tab of each product.
See more answers
4 years ago
See more »
4 years ago
Keep in mind NPS pipe does not measure the same Outside Diameter (OD) as tubing so technically you cannot cut 5" Pipe (5.563" OD) to a 30 degree angle and 6" Pipe is over the capacity of the saw. You could cut 5" OD tubing at a 30-degree angle but the most angle you can get on 6" OD would be about 20-degrees.
See more answers
4 years ago
NG160ABS See more »
4 years ago
No if you see the Specifications tab on the product, you can see that it is rated for 6" round at 90 degrees and only 4" at 45 degrees.
