HammerFab Flat Recess Dimple Die Set

Part #: HF-FLAT4
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $225.00

NEW

4 piece Flat Recess set
Add a unique design feature and add strength
Great for rounded head screws
Made in the USA

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

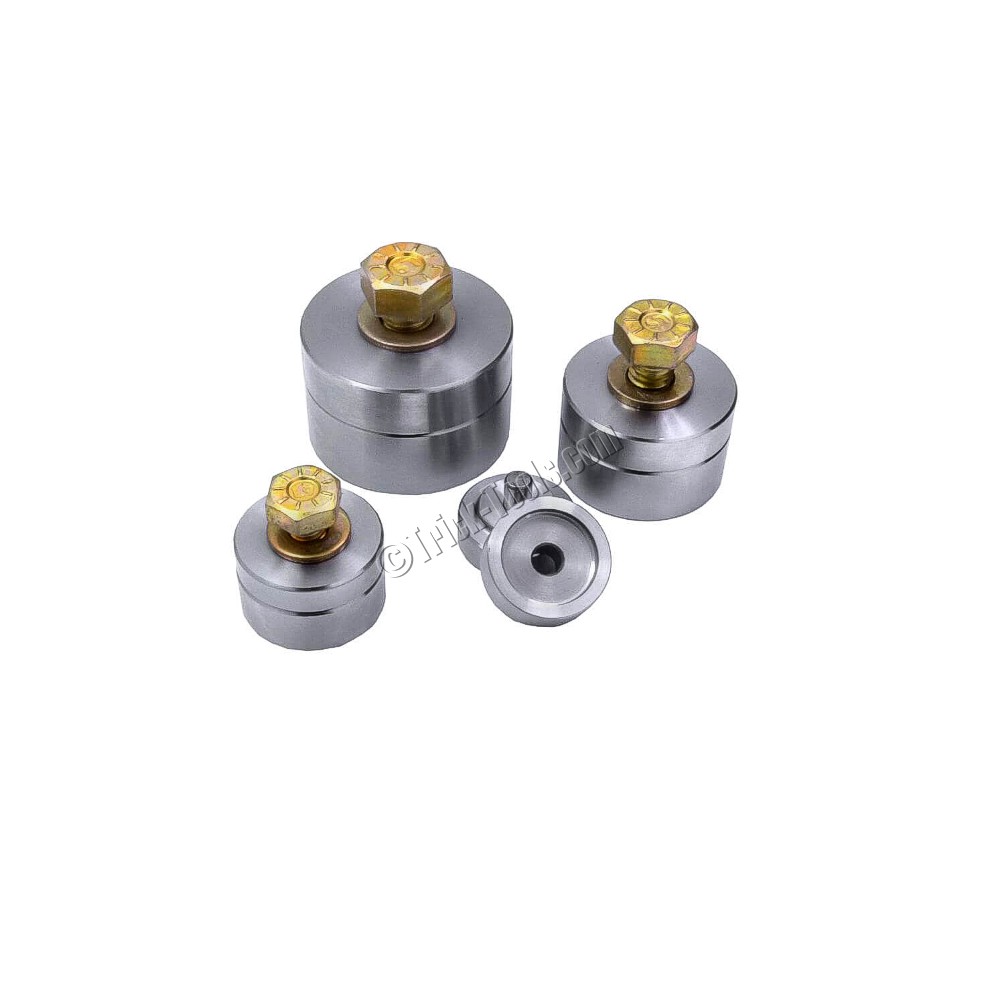

Give your project a unique look while adding strength with the Flat Recess Dimple Die Set from HammerFab. This set includes dies for #10, 1/4, 5/16, and 3/8 inch screws. The Flat Recess Dimple Dies are CNC machined from 4140 alloy steel and heat-treated for years of use. Capacity is rated at 18 gauge mild steel, 20 gauge stainless, and 16 gauge aluminum. All of the dies can be used in a press or vise while the 3 larger sizes can also be used with one of the supplied draw bolts.

The bottom of the recessed circles made by the dimple dies are as follows:
#10 die = Approximately .525 inches
1/4 inch die = Approximately .700 inches
5/16 inch die = Approximately .875 inches
3/8 inch die = Approximately 1.090 inches

The overall outside diameter of the dimple dies are as follows:
#10 die = .800 inch OD
1/4 inch die = .950 inch OD
5/16 inch die = 1.190 inch OD
3/8 inch die = 1.480 inch OD

Note: The draw bolts are a wear item and are not intended to last the life of the die sets.
