Huth 1605 Essentials Bender

Part #: HB1605
Model: 1605, HB05
Ships From: Factory shipped
Lead Time: Usually ships within 6-8 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $9,708.50
Sale Price: $9,223.08
  • Save 10% on select Huth Bending and End Forming Tooling for a limited time!
  • 3 inch OD capacity
  • Built-in expander
  • 220 volt single or three phase power
  • Hands-free controls
FREIGHT:
Freight
ORIGIN:
BRAND:
Huth Manufacturing logo
Voltage:
Packages:
Quantity:

Configuration

DESCRIPTION

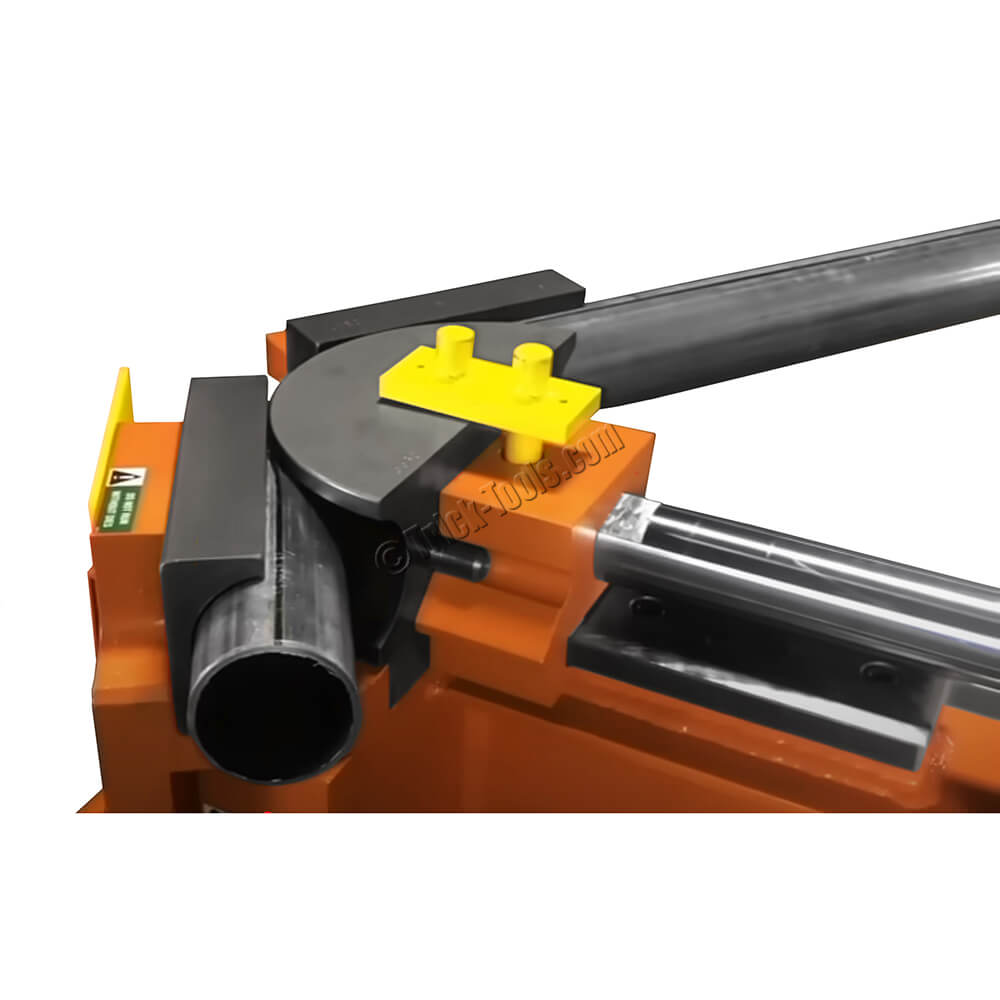

The HB-05 is Huth's entry-level bender, designed to introduce you to Huth quality while showing you incredible profit potential with its standard features. Not only is this machine capable of bending up to 3 inch OD material, but it can also expand for slip joints and create exhaust ball joints. Included in the HB-05 package is the model 1605 bender and tooling for bending and creating joints for exhaust tubing from 2 to 3 inch OD. Additional options allow for bending exhaust brackets and bending square tubing. The bender's 58,000 lbs of bending force is controlled with a convenient knee-pad control that leaves the operator's hands-free for material positioning. Heavy-duty locking casters mean that this powerful machine can be moved wherever the work is in the shop.

Save 10% on select Huth Bending and End Forming Tooling for a limited time! Customers can save 20% on tooling when purchased with a machine. Please contact our sales staff to take advantage of this limited time offer! This sale excludes HB10, HB05, and 028 Tooling Packages. Sale ends 8/31/25.

Included with the optional HB-05 Tooling Kit:
  • 5 inch Radius dies for 2-1/2 and 3 inch material
  • 4 inch Radius dies for 2 and 2-1/4 inch material
  • Full back shoes for 2 through 3 inch material
  • Half shoes for 2 through 2-1/2 inch material
  • Flare segment for 1-1/2 to 2-1/2 inch material
  • 2 to 2-1/2 inch ball joint segments
  • Arbors, Tips, and Expanders for 1-3/4 to 3 inch material
  • Extra O-rings
  • Die Holder
  • Instructional Video


Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Mild Steel Capacity (inches): 3 x .083
Round Aluminum Capacity (inches): 3 x .083
Nominal PIPE Capacity: 1-1/2 inch schedule 40
Square Mild Steel Capacity (inches): 2-1/2 x 14 gauge
Minimum OD (inches): 1/2
Bending Style: ram-style
Min Center Line Radius (inches): 3
Max Center Line Radius (inches): 5
Motor: 5 hp, 220 volt, 3 phase
Maximum OD (inches): 3
•Dimensions (LxWxH): 54 x 24 x 36
