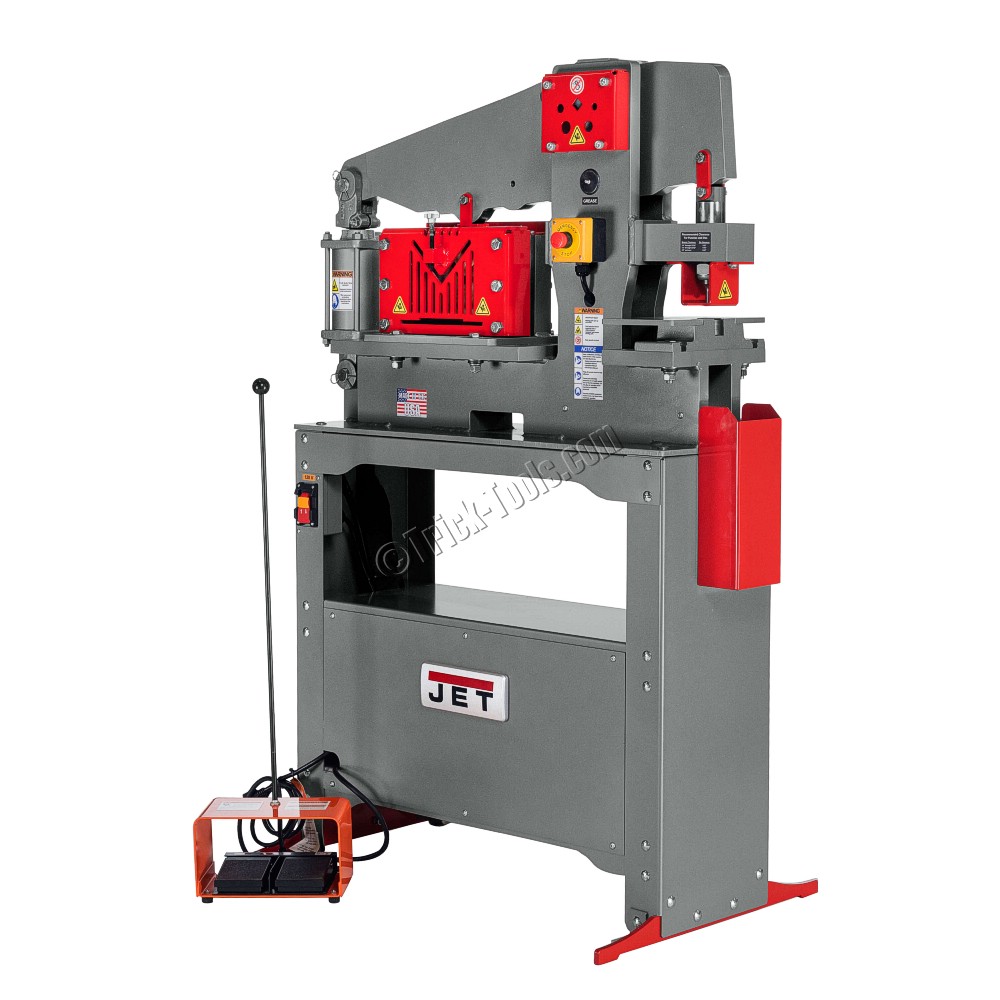

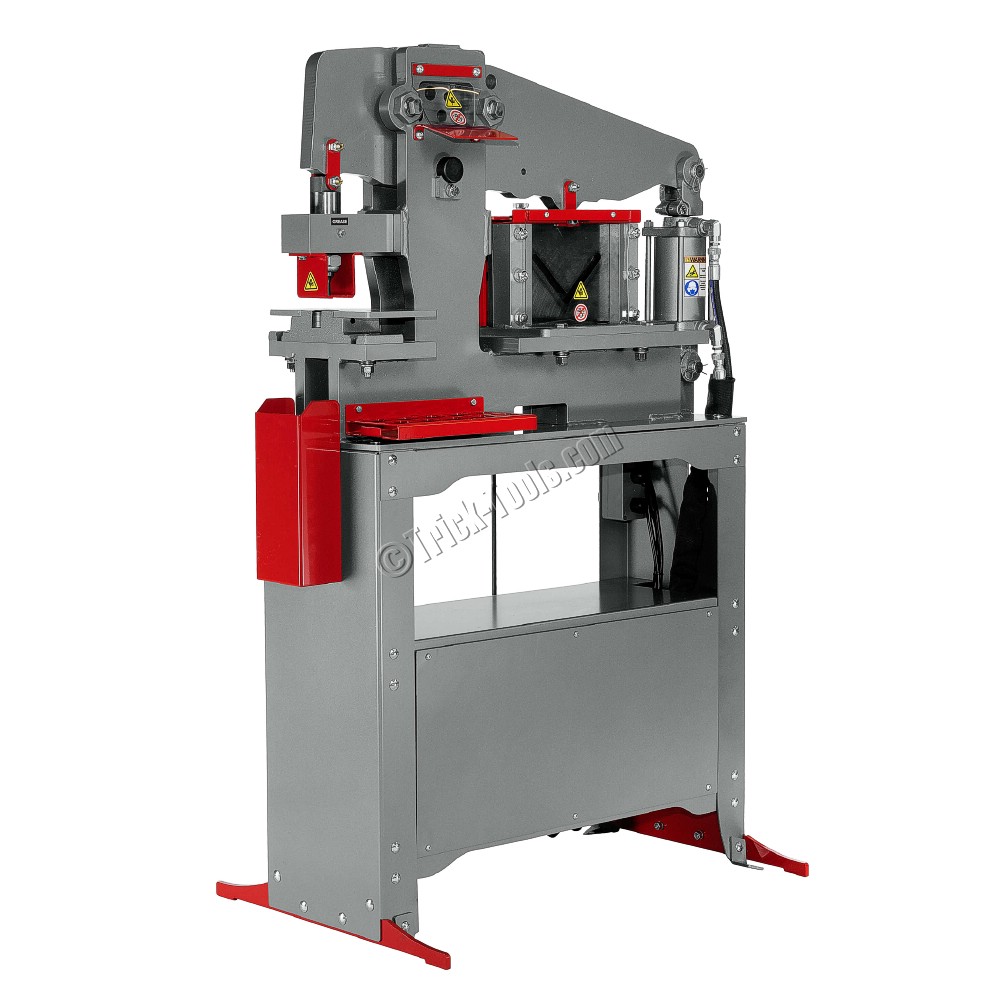

JET 45 ton Ironworker

Part #: 756100
 Model: JIW-45T
Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $7,891.64
Sale Price: $6,999.99
FREE SHIPPING
  • 115 volt operation
  • 8 x 1/4 inch capacity shear
  • Punch 1 inch holes thru 1/2 inch plate
  • 3 x 3 x 1/4 angle shear
  • Made in the USA
FREIGHT:
Freight
WARRANTY:
Jet Red Assurance
ORIGIN:
USA
BRAND:
JET logo
Quantity:

DESCRIPTION

The JET 45 Ton Ironworker is a made in the USA machine designed for the fabrication hobbyist, small production shop, and even projects around the farm. This compact and easy to use ironworker operates on 115v power and features 4 workstations including a punch station, flat bar and angle shear, as well as an integrated 7-size rod shear. The included punch & die storage tray holds up to 10 complete punch & die sets, while the slug receptacle collects all punch blanks, keeping your work area clean and clear.

Blades for the flat bar, angle, and rod shear are made from precision machined quality tool steel and features 2 cutting edges for extended life. This machine is compatible with most Edwards punch & die sets including round, square, oblong hex, and metric profiles.



Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 45
•Punching Capacity (Std): 1 inch diameter through 1/2 inch plate
•Punching Work Height (inches): 41
•Flat Bar Shearing Max Width (inches): 1/4 x 8
•Flat Bar Shearing Max Thickness (inches): 3/8 x 6
•Flat Bar Shearing Work Height (inches): 40
•Angle Shear Max Size 90 Deg (inches): 3 x 3 x 1/4
•Throat Depth (inches): 5-3/4
•Round Bar Shear Capacity (inches): 3/4
•Square Bar Shear Capacity (inches): 5/8
•Stroke (inches): 1-1/2
•Motor (Std): 1-1/2 hp, 115 volt
•Hydraulics: 5 gpm
•Valve Pressure: 2800 psi
•Weight (pounds): 700
•Dimensions (LxWxH): 24 x 40 x 58

INCLUDES

  • 4 stations
  • Shear: 8 x 1/4 inch capacity bar shear
  • Punching station: 1 inch thru 1/2 inch plate
  • Angle shear: 3 x 3 x 1/4

DOCUMENTATION

PDF User Manual

VIDEO

ACCESSORIES

Have a technical question about this product?
avatar
Popular Questions
2 years ago
See more »
2 years ago
Yes this ironworker uses standard Edwards tooling.
See more answers
3 years ago
Need to shear 304 stainless solid round rod on a daily basis. Will the tooling do this or do I need special tooling? See more »
3 years ago
Yes this should do the trick nicely!
See more answers
3 years ago
See more »
3 years ago
No, the bar shear on this machine only accepts 3/4" solid bar at 90 degrees. You would need a machine with a 3/4" capacity on the flat bar shear and then probably need some way to fixture the bar when shearing as well. The 50 ton Edwards and larger machines should be able to handle this application.
See more answers
2 years ago
See more »
2 years ago
The tooling shown in the pictures all comes with the machine. See the Includes tab for clarification and the Accessories tab for optional accessories.
See more answers
5 months ago
See more »
5 months ago
Yes, you can swap out the shear assembly with an optional 12-inch Brake Attachment. See the Accessories tab for this and other optional tooling.
