JET GHB-1340A Geared Head Bench Lathe with FREE Stand

Part #: GHB-1340A
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $13,022.79
Sale Price: $10,599.99

FREE SHIPPING

Multiple configuration options available
2hp 230v single phase motor
13 x 40 inch capacity
Great for hobbyist or job shops

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

Options:

Quantity:

DESCRIPTION

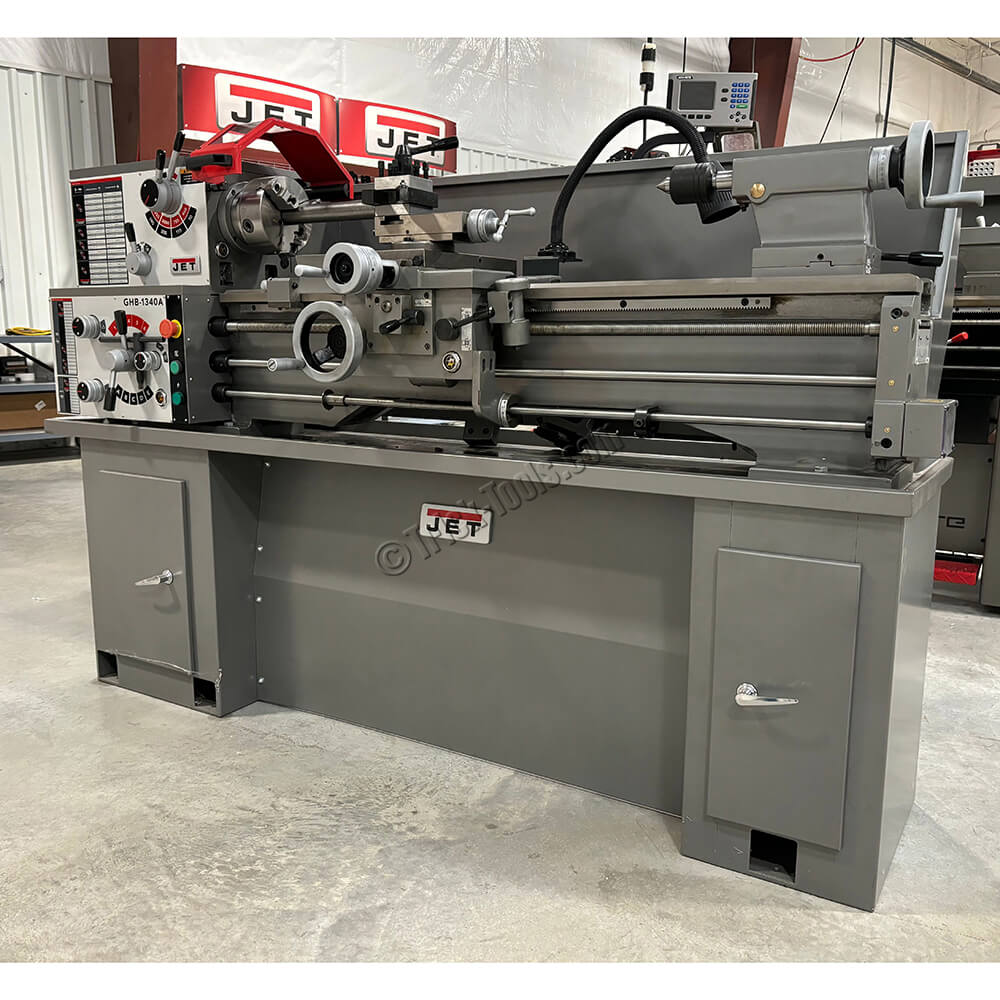

The 13 x 40 lathe is a staple machine in most job shops and the JET GHB-1340A Geared Head Bench Lathe is ready for yours. It features an enclosed gearbox that ensures smooth and quiet operation and its precision roller bearings support a hardened and ground spindle, allowing for tight tolerances essential in high-quality machining.

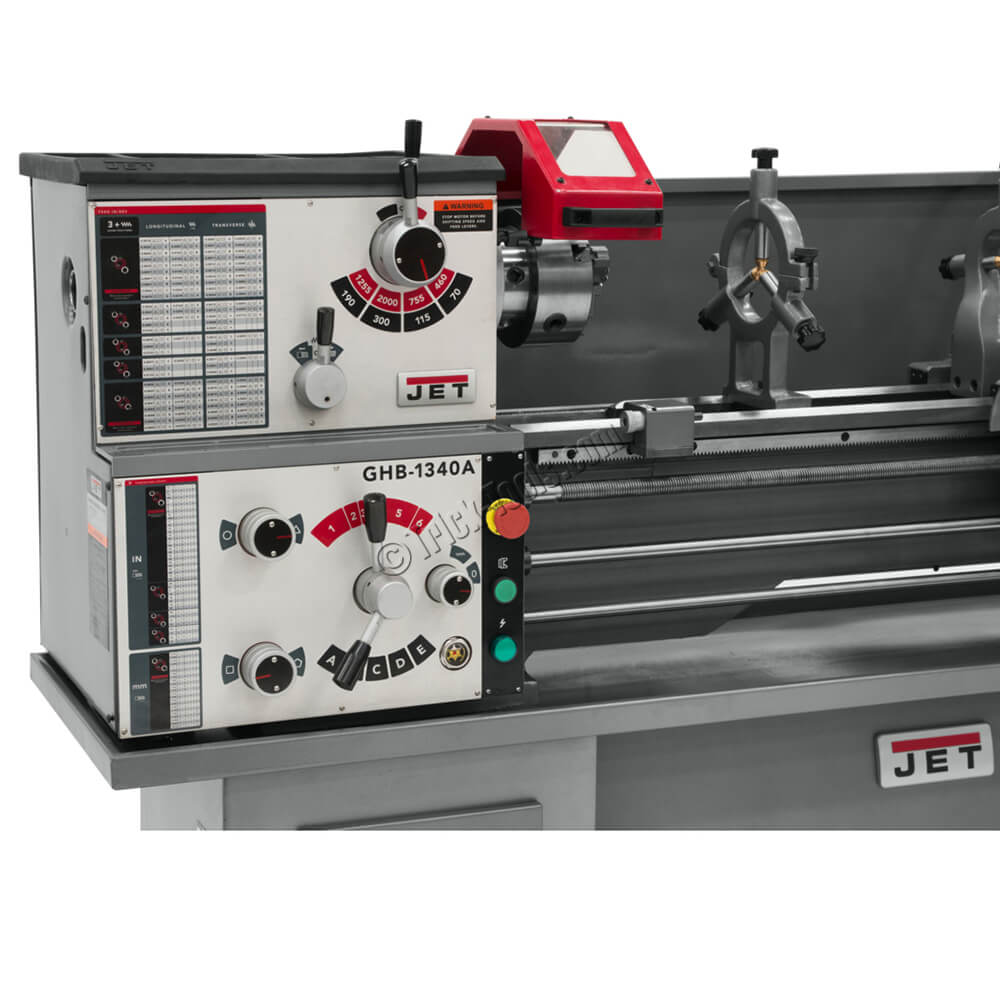

The headstock is continuously oiled during operation, minimizing maintenance needs, and all JET lathes come with the industry-leading JET Red Assurance Two-Year Warranty. Additional features include an independent lead screw and feed rod, apron-mounted spindle actuation control, and option to offset the tailstock for taper turning, ensuring versatility and precision in various machining tasks.

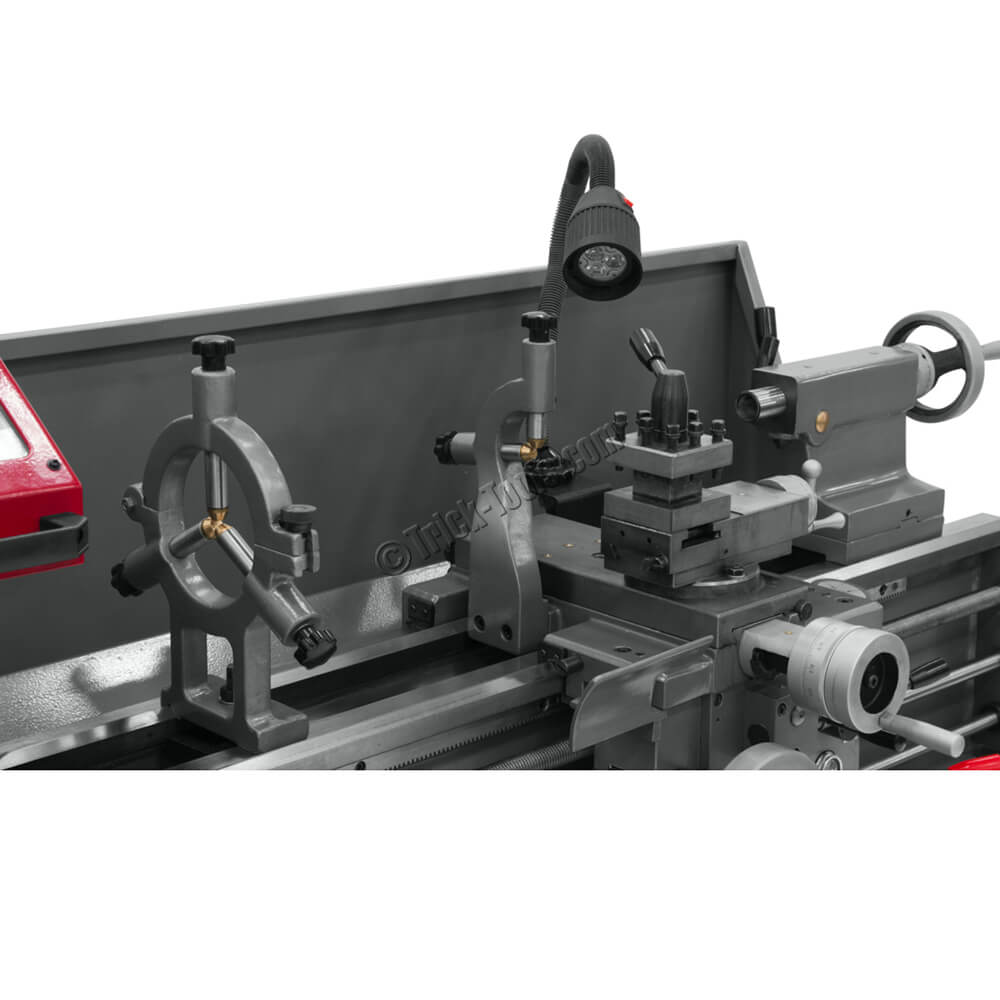

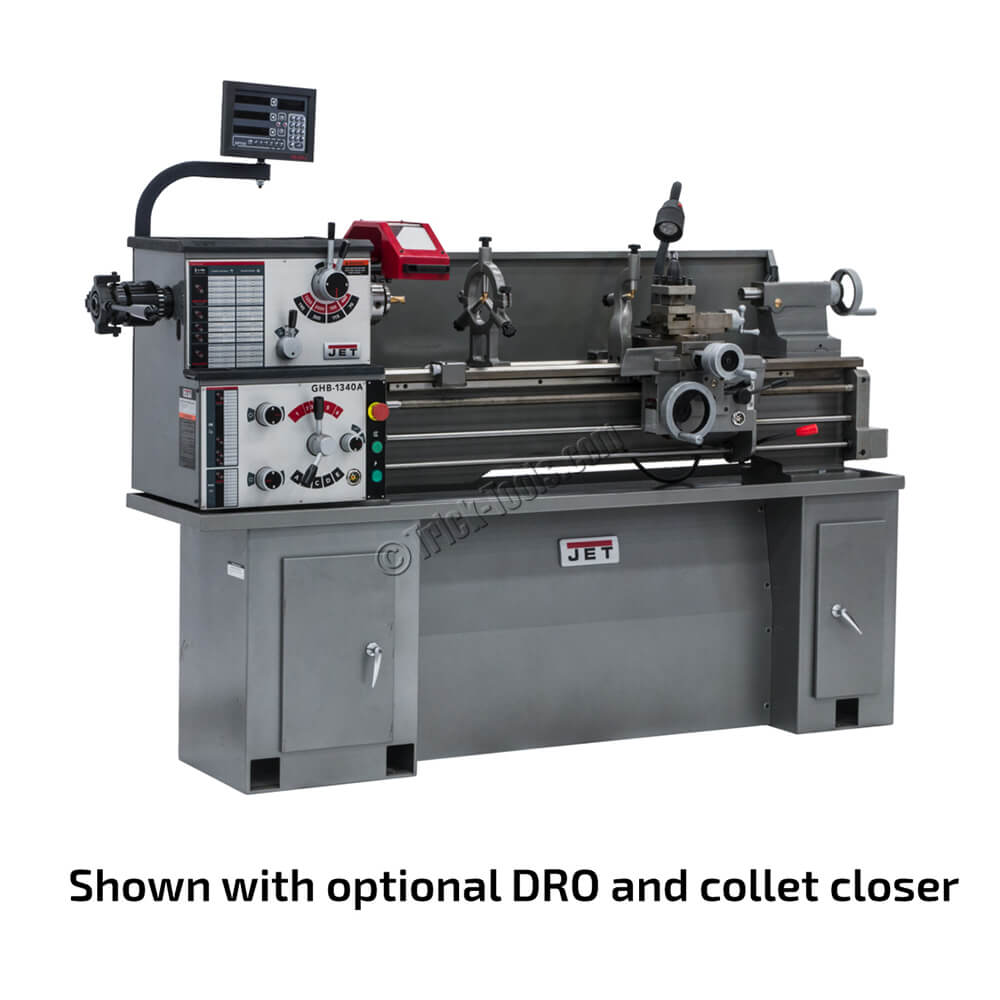

This lathe is equipped with a 6 inch 3-jaw direct mount chuck with a top reversing jaw, a steady rest, follow rest, LED work light, and a FREE stand with built in storage. Optional accessories can be found in the options drop down or on the accessories page and include ACU-RITE or Newall digital read out options, taper attachment, collect closer, and more.

Not seeing the configuration you want or have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

Capacities:

Swing Over Bed: 13 inches
Swing Over Cross Slide: 7-25/32 inches
Swing Through Gap: 18-3/4 inches
Length of Gap: 8 inches
Distance Between Centers: 40 inches

Headstock:

Hole Through Spindle: 1-3/8 inch
Spindle Nose: D1-4
Taper in Spindle Nose: MT-5
Spindle Taper Adapter: MT-3
Spindle Bearing Type: Taper Roller Bearing
Number of Spindle Speeds: 8
Range of Spindle Speeds: 70-2000 RPM

Gearbox:

Number of Longitudinal and Cross Feed Rates: 22/22
Range of Longitudinal Feeds (inch/rev): 0.0018 – 0.0374
Range of Cross Feeds (inch/rev): 0.0006 – 0.0130
Number of Inch Threads: 38
Range of Inch Threads: 3-1/2 – 80 TPI
Number of Metric Threads: 23
Range of Metric Threads: 0.45 - 10mm
Leadscrew: 7/8 in. × 8 TPI
Feed Rod Diameter: 3/4 inch

Compound and Carriage:

Toolpost Type: 4-Way
Maximum Tool Size: 5/8 x 5/8 inch
Maximum Compound Slide Travel: 2-11/16 inches
Maximum Cross Slide Travel: 6-5/16 inches
Maximum Carriage Travel: 35 inches

Tailstock:

Tailstock Spindle Travel: 3-3/4 inches
Diameter of Tailstock Spindle: 1-1/4 inches
Taper in Tailstock Spindle: MT-3

Miscellaneous:

Steady Rest Capacity: 1/4 – 2-5/8 inches
Follow Rest Capacity: 1/4 – 2-3/4 inches
Length of Bed: 54 inches
Width of Bed: 7-3/8 inches
Height of Bed: 12 inches

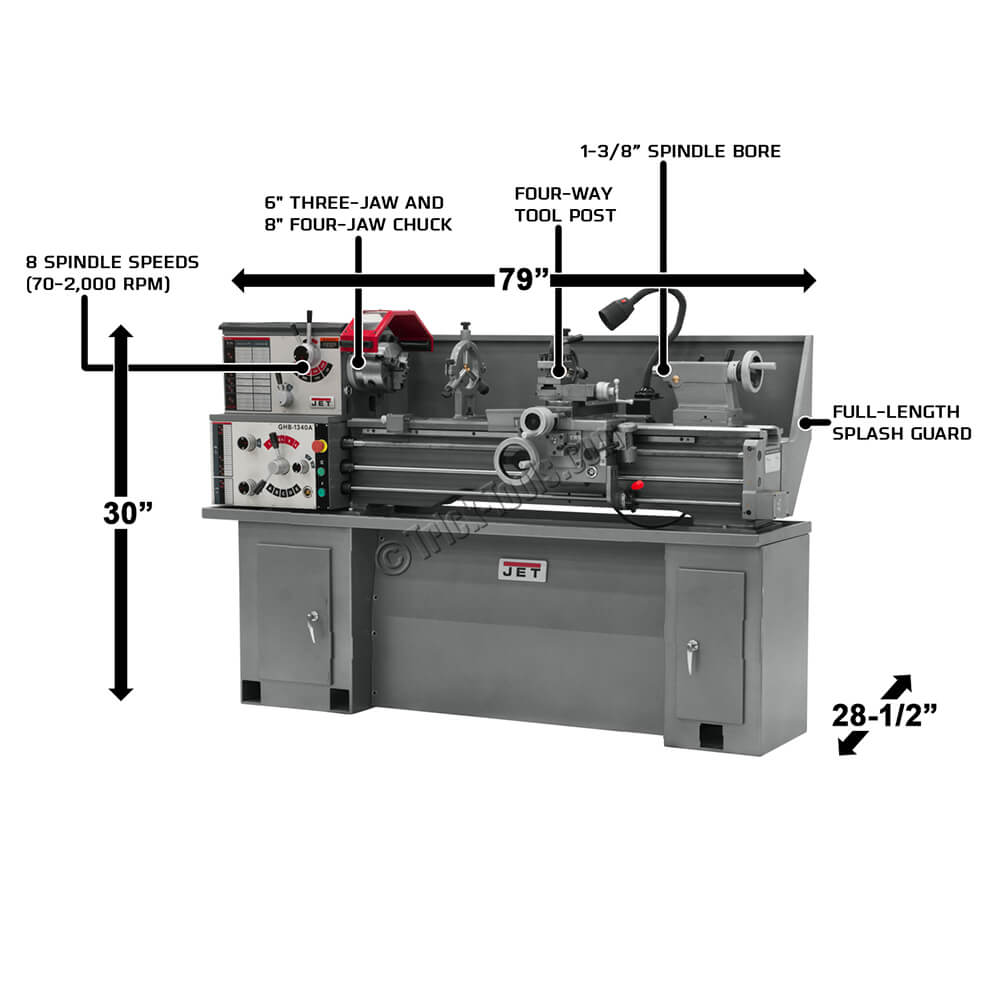

Overall Dimensions: 79 x 28-1/2 x 30 inches (LxWxH)
Main Motor: 2HP, 1PH, 230V only
Net Weight (approx.): 1155 lbs 1210 lbs.
Shipping Weight (approx.): 1365 lbs 1430 lbs.

Warranty:

2 year manufacturer's warranty
