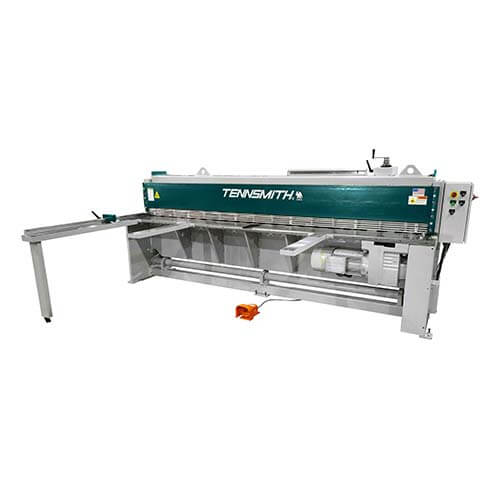

Tennsmith LM1010 121 inch Shear, 10 gauge

Part #: LM1010
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $44,200.00

NEW

Low maintenance mechanical design
Up to 35 strokes per minute
Quick adjust 30 inch back gauge
4 edge blades

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The Tennsmith LM series of low profile mechanical shears feature a low maintenance design and heavier cutting capacity than is found in smaller manual, air, and hydraulic powered shears. This combination of capacity and solid design make these shears a great choice for many shops. CSA certification is available for all Tennsmith MSE and LM shears.

Features

Four edge high carbon /high chromium blades
Independent self-leveling material hold down feet with neoprene inserts
Reversible motor with controls for single, continuous, and job stroke cycles
Precision machined table with hand well
Dual inch / metric inlaid bed scales
Non-metallic gibs
Optional unique 2x back gauge system for rapid adjustments (LM1010 only)

Productivity Package Includes

Five foot squaring arm
Pair of front support arms
Air-operated, rear return sheet support system
Note: This shear must ship via flat-bed semi. Please call us for a shipping quote.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: electric
•Mild Steel Capacity: 10 gauge (3.4mm)
•Stainless Capacity: 14 gauge (2.0mm)
•Cutting Length (inches): 121
•Motor: 12.5hp 60hz
•Strokes: 35/minute
•Weight (pounds): 9400
•Dimensions (LxWxH): 145 x 39 x60
