  Home > Brakes, Shears & Slip Rolls > Brakes > Mittler Bros. 6 foot Ultimate Box & Pan Brake, 18 gauge

Mittler Bros. 6 foot Ultimate Box & Pan Brake, 18 gauge

Part #: 2800-72-18
 Ships From: Factory shipped
Lead Time: Usually ships within 2-4 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $6,975.00
  • Unique 3 finger design
  • 72 inch wide capacity
  • 18 gauge mild steel capacity
  • Tool-less upper set-back adjustments
  • Includes floor stand
FREIGHT:
Freight
ORIGIN:
USA
BRAND:
Mittler Bros logo
Quantity:

DESCRIPTION

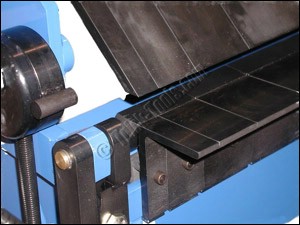

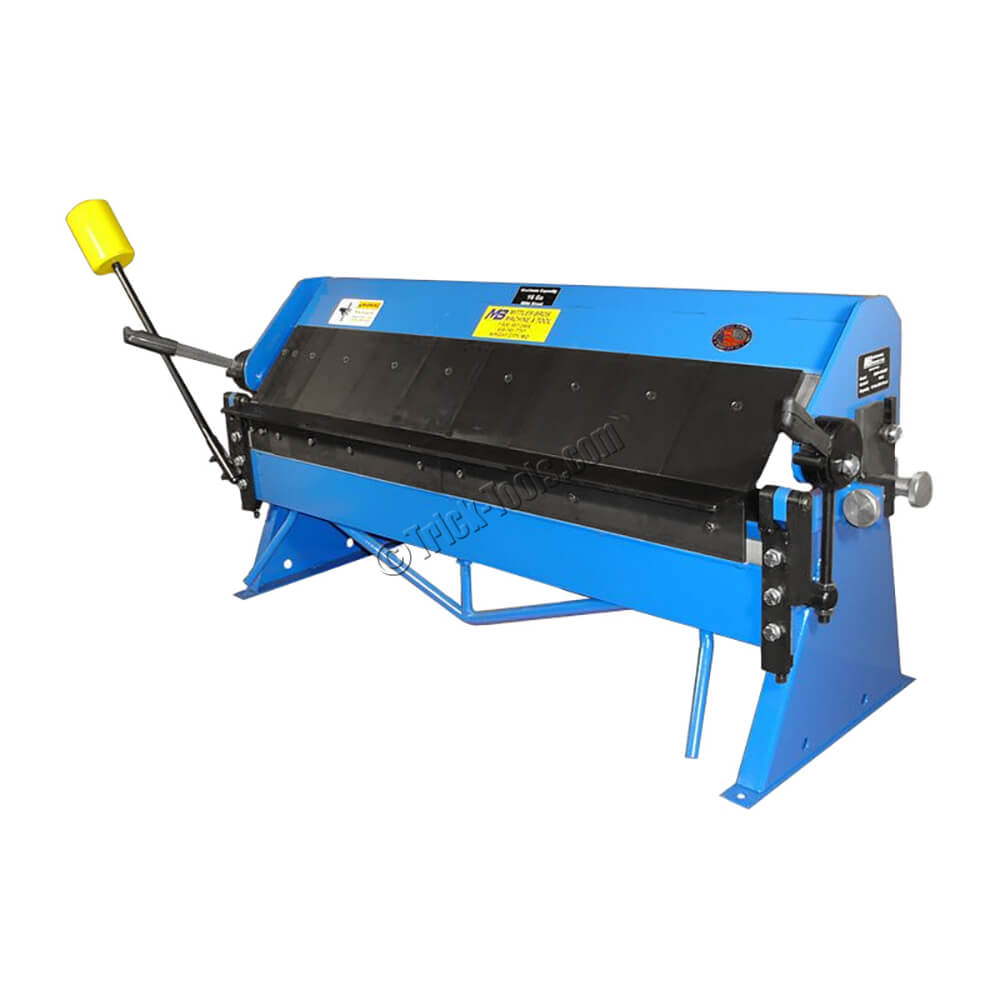

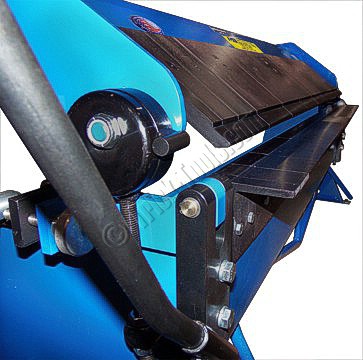

The Mittler Brothers Model 2800-72-18 Ultimate Box and Pan Brake has a unique 3 finger design. This design incorporates movable fingers on the bed and apron as well as the usual upper fingers. This design allows the operator to make bend combinations that before were extremely difficult if not impossible.

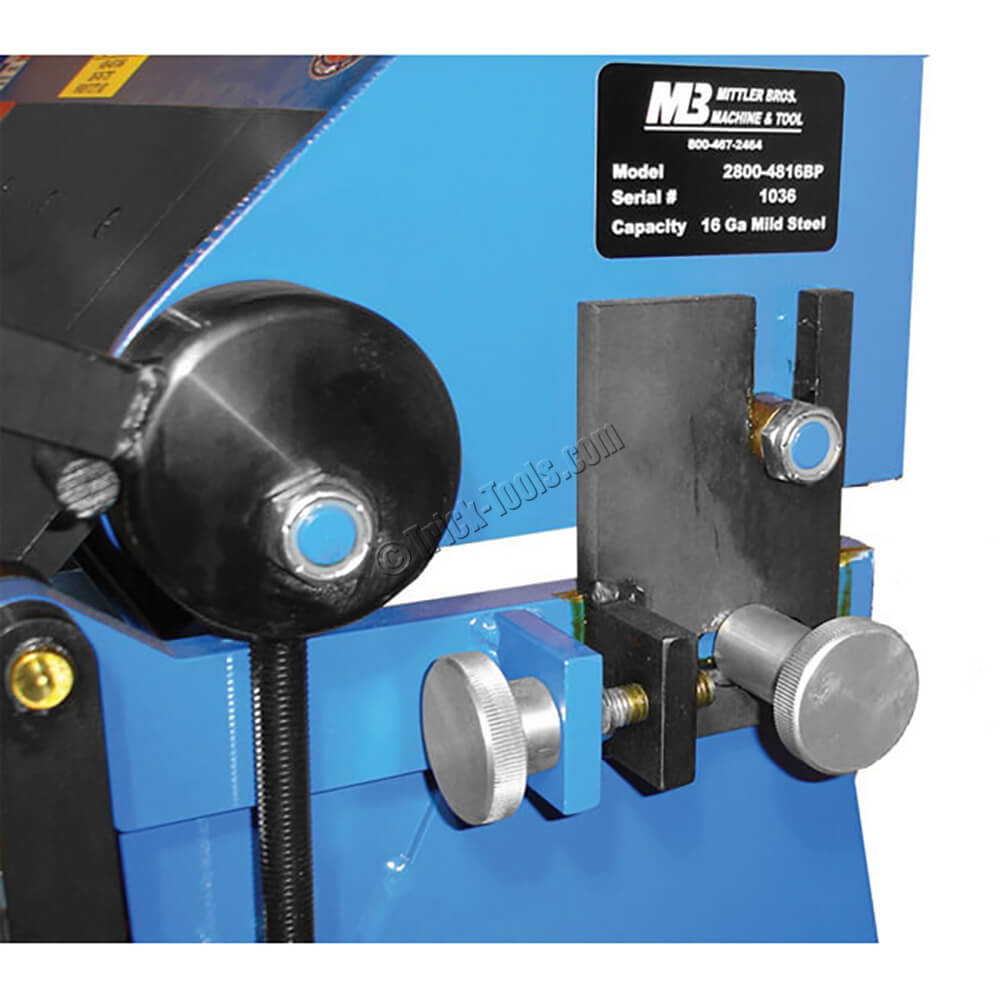

The model 2800-72-18 has tool-less upper set back adjustments and is designed to bend 18 gauge mild steel the full width with the included apron (leaf) angle fingers.

A complete set of upper and bed fingers are included as well as the angle fingers for the apron, two counter weights, and a floor stand.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: segmented lower
•Mild Steel Capacity: 18 gauge (1.2mm)
•Aluminum Capacity: .063 (1.6mm)
•Stainless Capacity: 24 gauge (.6mm)
•Working Length (inches): 72
•Max Depth Of Box (inches): 3.5
•Max Lift Of Beam (inches): 1.5
•Front To Rear Adj (inches): 1
•Min Reverse Bend (inches): .25 (with 1/4 inch apron fingers)
•Number/Width Of Fingers: (11) 6 inch upper fingers (1) each of 1, 2, 3 inch upper fingers (2) 24 inch apron angles (1) each of 1, 2, 3, 6, and 12 inch apron angles (5) 12 inch bed fingers, (1) 1, 2, 3, and 6 inch bed fingers
•Weight (pounds): 1275

DOCUMENTATION

PDFParts manual

PDFFinger assemblies
