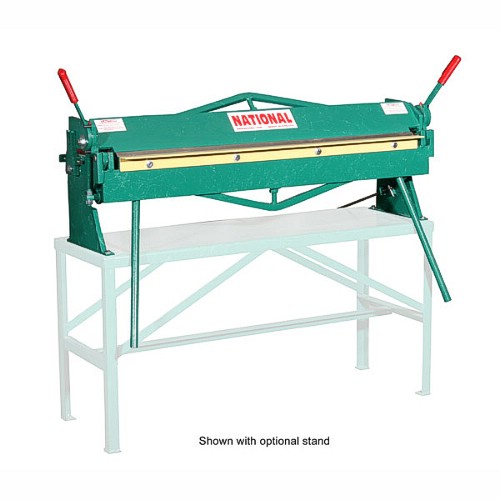

National 4 foot Bench Model Brake, 16 gauge

Part #: S4816
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $1,561.00

Bench top model
Heavy truss rods and braces for greater strength
Replaceable bushings at wear points
5 year warranty

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

Simplicity of design allows the National S4816 brake to work in the most direct fashion. Easy to set up and operate. Body sections are welded steel plates, with heavy truss rods and braces for longer life and greater strength.

This brake comes standard with an extension handle, counterweight, an apron stop for repeat bends, and replaceable bushings at points of wear.

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 48
•Max Lift Of Beam (inches): 1.25
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 48-1/4
•Weight (pounds): 470
•Dimensions (LxWxH): 65 x 19 x 23
