National 72 inch Powered Slip Roll, 16 gauge

Part #: NR7216
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $10,260.00

High carbon steel rolls
Heavy duty reduction gear box
Quick material release
Includes forming scale for repeatability

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

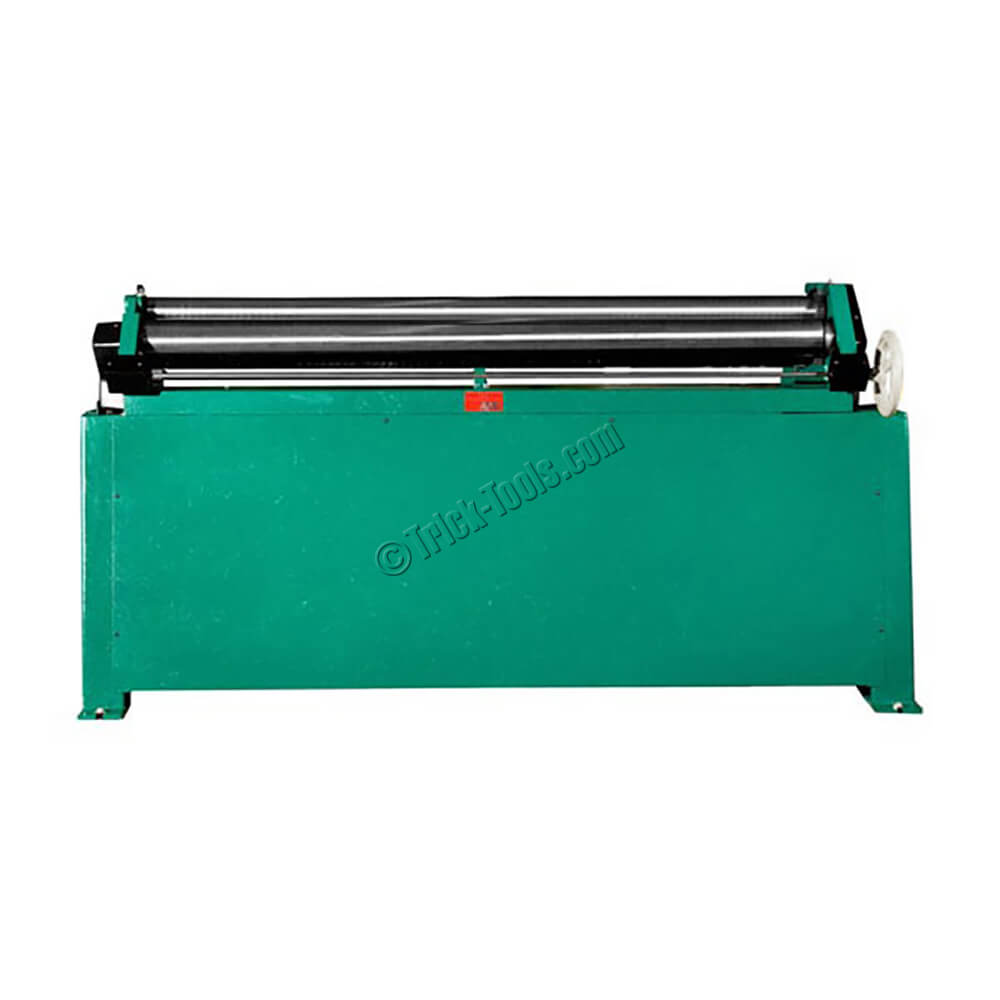

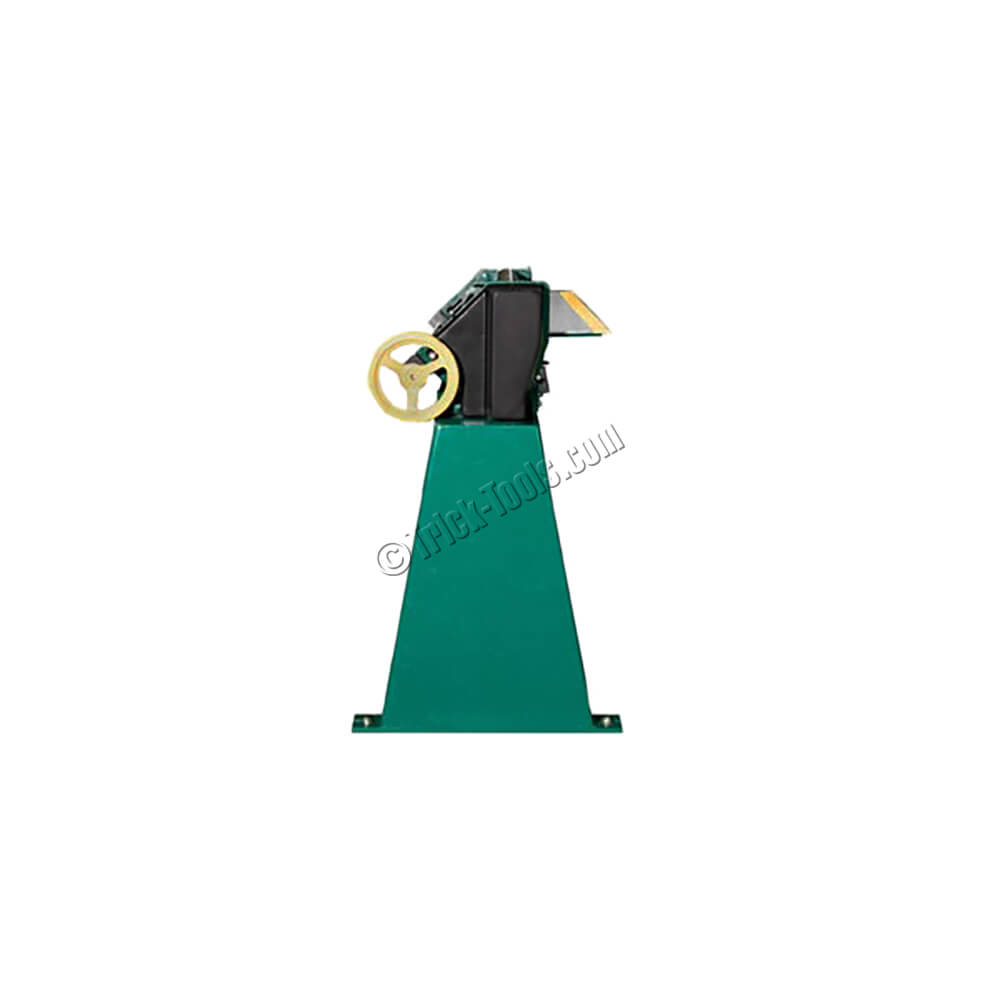

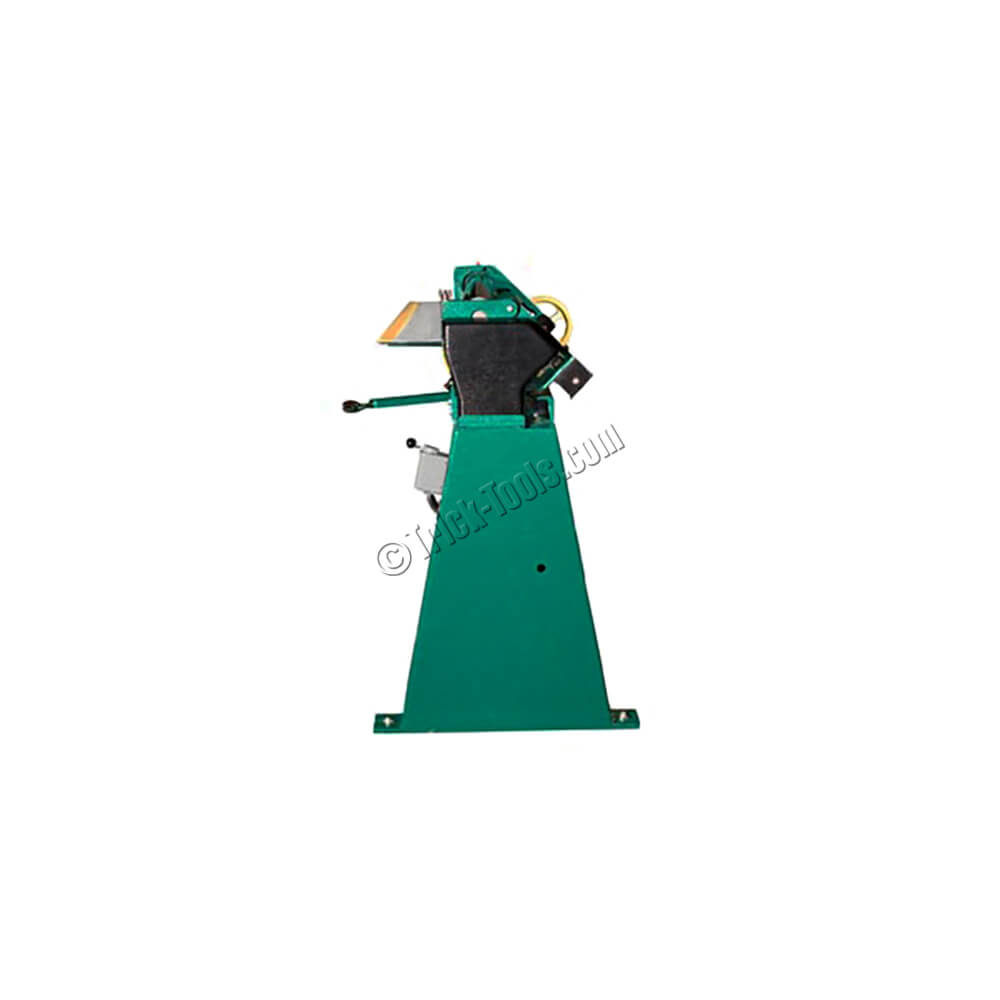

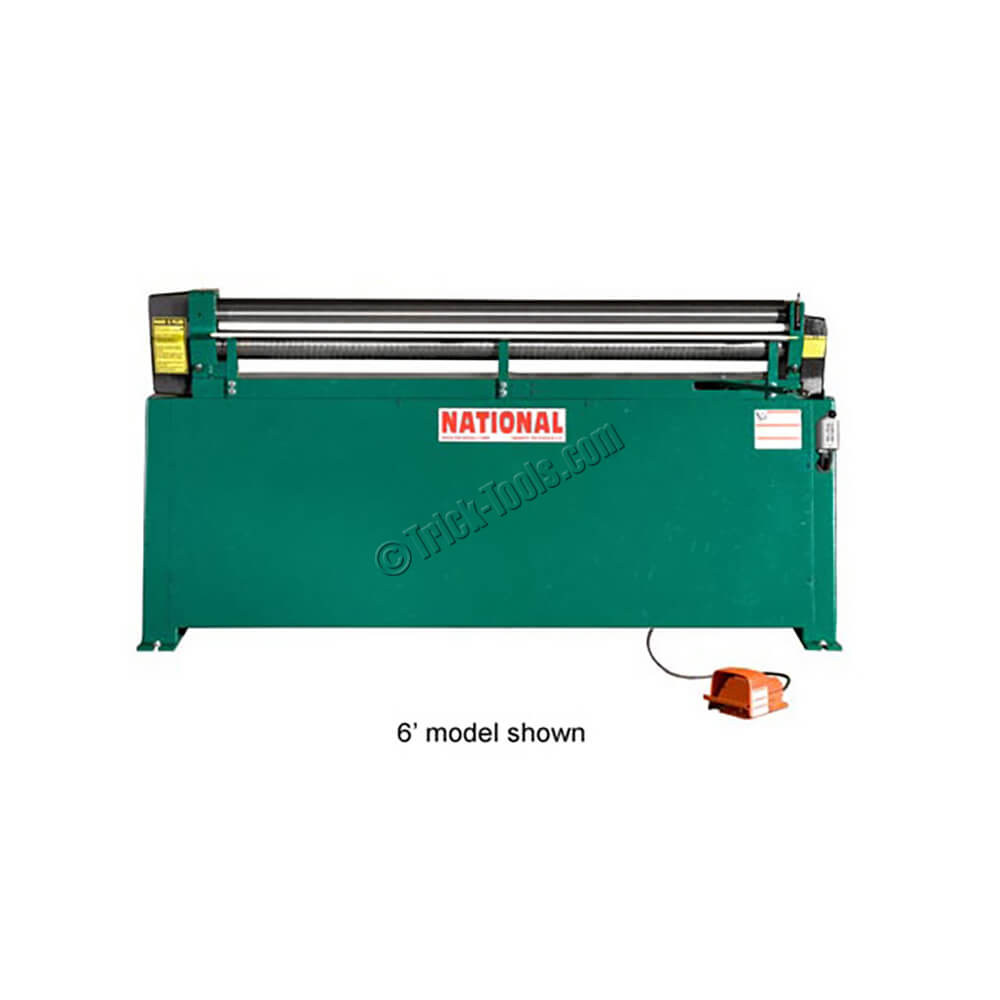

National Sheet Metal's 72-inch Powered Slip Rolls are designed for simple operation. Standard with a forward and reverse drum switch, quick-release upper roll, positive chain drive, and heavy-duty gearbox. A front guard for additional safety and a heavy-duty storage stand is standard.

National's rolls incorporate three precision turned, ground, and polished high carbon steel rolls. Extra heavy-duty end frames with a quick-release handle located on the right front for speedy production forming.

Precision roll adjustment is achieved by turning the hand wheel on the left end of the roll while the forming scale above the hand wheel helps to maintain repeatability.

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

•Type: electric
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 72
•Number/Dia Of Rolls: (3) 4 inch
•Driven Rolls: 2
•Wire Grooves: optional 3/8 inch, 1/2 inch, 5/8 inch
•Cutting Width (inches): 72
•Weight (pounds): 1740
•Dimensions (LxWxH): 88 x 26 x 44
