Pro-Tools MB-105HD Manual Tubing Bender

Part #: MB-105HD/TT
Model: B-105-HD
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $499.99

Bends round, square, and pipe profiles
Can be upgraded to hydraulic when needed
180 degree capable
Degree ring included

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

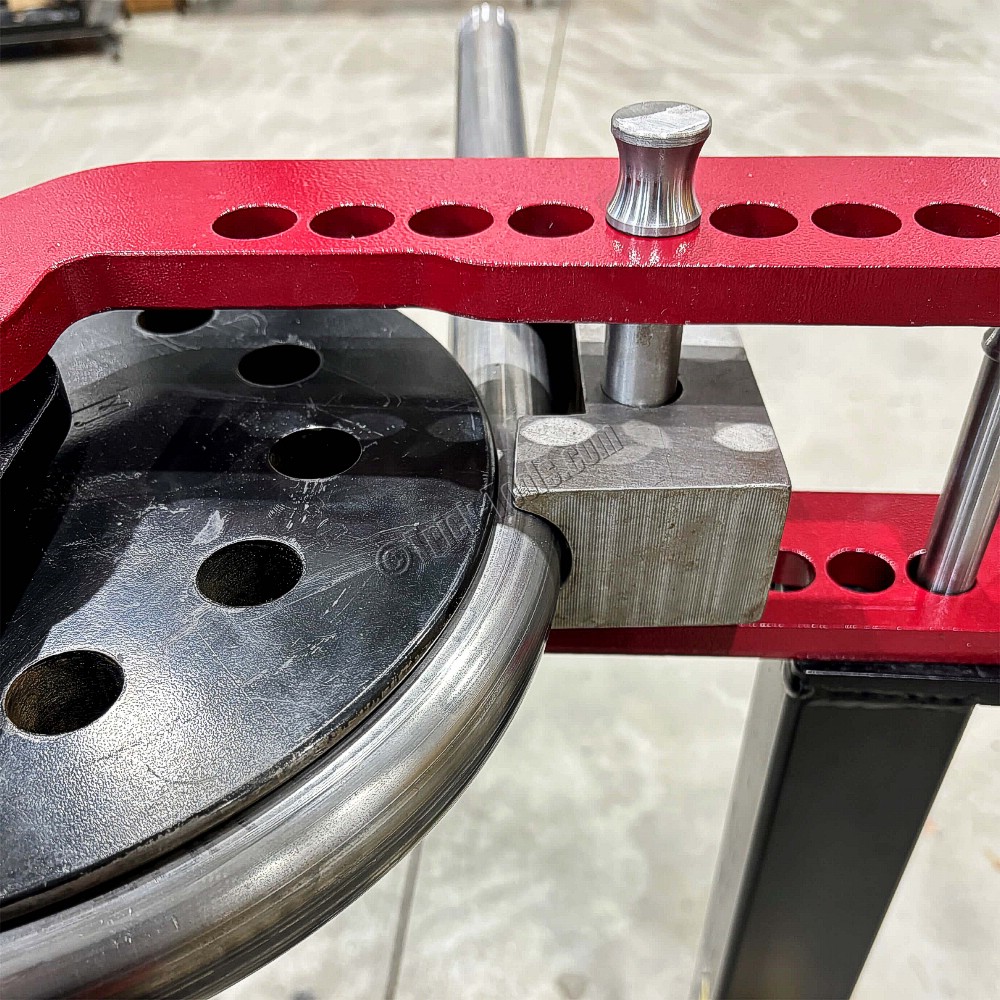

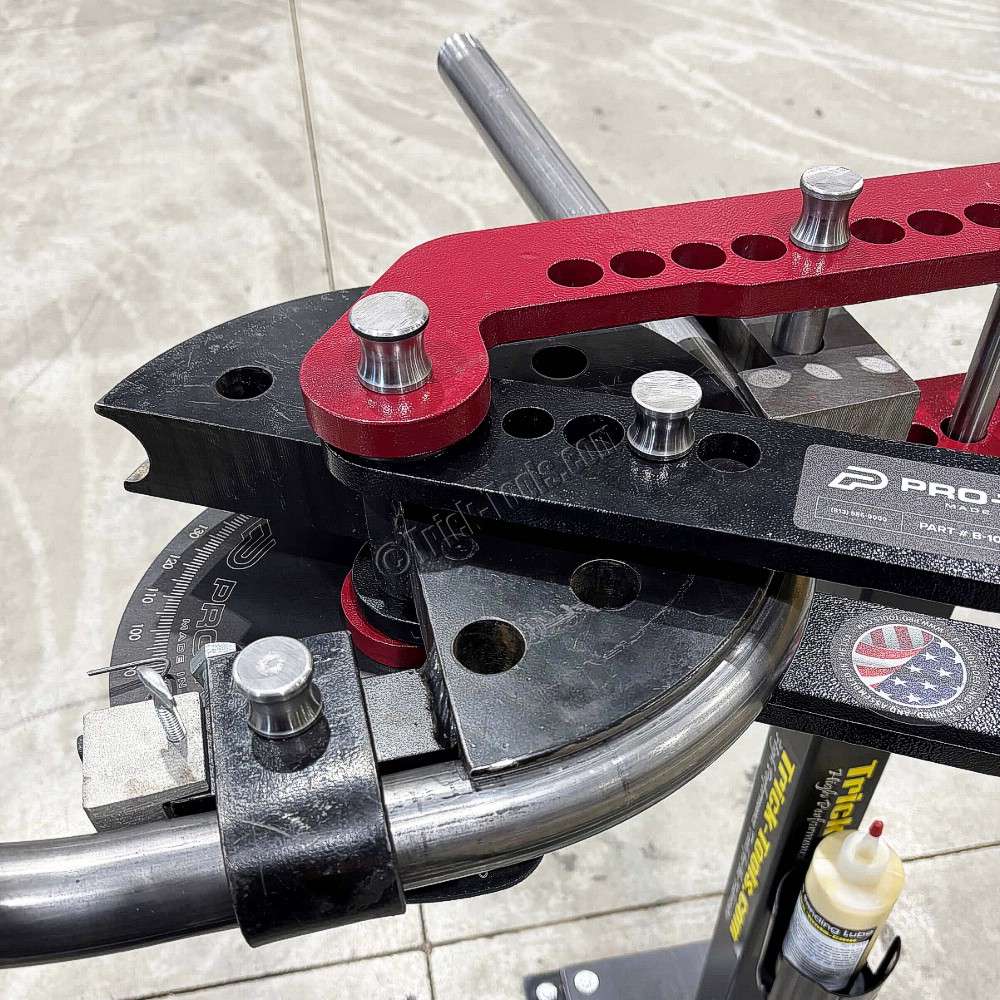

The Pro Tools Model 105HD Manual Tube Bender is an upgraded version of the popular MB-105 bender, featuring 5/8 inch thick main frame arms. It is a great choice for building rock-crawlers, buggies, motorcycle frames, and many other projects.

With its 2 inch OD (1-1/2 inch pipe) capacity and economical pricing, it can pay for itself in the first use. The Model 105 Heavy-Duty uses mechanical leverage to easily bend by hand but can be upgraded to hydraulics at any time. Manual benders must be mounted securely to operate and require an extension handle for leverage, see the accessories tab for options or check out our Deluxe Kit.

Other features include: Steel bushings at the main die pivot to reduce friction and ease die change-out. A Degree Plate is included. An optional stop kit that allows for repeatable bends is also available.

The large selection of available dies for round and square tubing, nominal pipe sizes (NPS), and metric tubing make this machine extremely versatile. Custom sizes and radii can be quoted upon request.

Dies sold separately, see Accessories tab.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2 x .188
•Round Dom Capacity (inches): 2 x .134
•Nominal PIPE Capacity: 1-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 1-1/2 x .083
•Solid Bar Mild Steel Capacity (inches): 1-1/8
•Minimum OD (inches): 1/2
•Bending Style: rotary draw
•Min Center Line Radius (inches): 2
•Max Center Line Radius (inches): 7
•Max Degree of Bend: 180
•Maximum OD (inches): 2
•Weight (pounds): 48
