RaceLine Series Manual Tubing Bender

Part #: TBM-250R
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $295.00

NEW

2 inch OD capacity
Three bending speeds
Heat treated pins
Degree ring included

SHIPPING:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

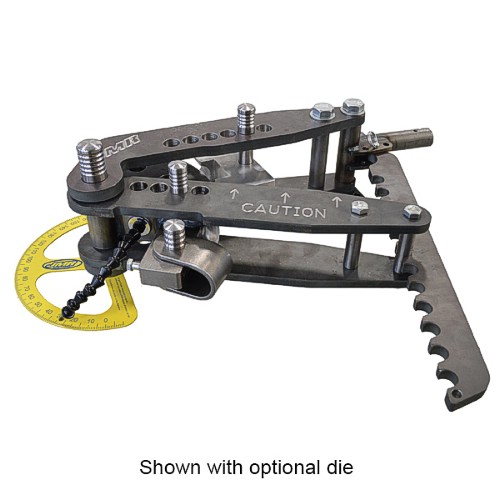

The new RaceLine Series manual tube bender by JMR is designed for the fabricator on a budget, who is still looking for all of heavy duty features JMR benders are known for. This bender features uncoated alloy steel arms, nylon/graphite bushings at the pivot points, and heat treated 4140 steel pins.

The Racer bender's 3 speed design gives plenty of leverage to bend up to 2 inch round tube by hand, but can also be upgraded to hydraulics later for even faster bending. Dies available for round or square tubing and nominal pipe sizes (NPS). Includes degree ring and pointer.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2 x .120
•Round Chrome Moly Capacity (inches): 2 x .120
•Round Aluminum Capacity (inches): 2 x .120
•Nominal PIPE Capacity: 1-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 1-1/2 x .120
•Minimum OD (inches): 1/2
•Bending Style: rotary draw
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 8
•Max Degree of Bend: 180
•Repeatability Control: degree scale
•Maximum OD (inches): 2
