Roper Whitney 5 Jr Hand Punch Kit

Part #: 135010050
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Model: 5 Jr
Price: $83.00
  • 1.2 tons of punching power
  • Smallest hand punch available

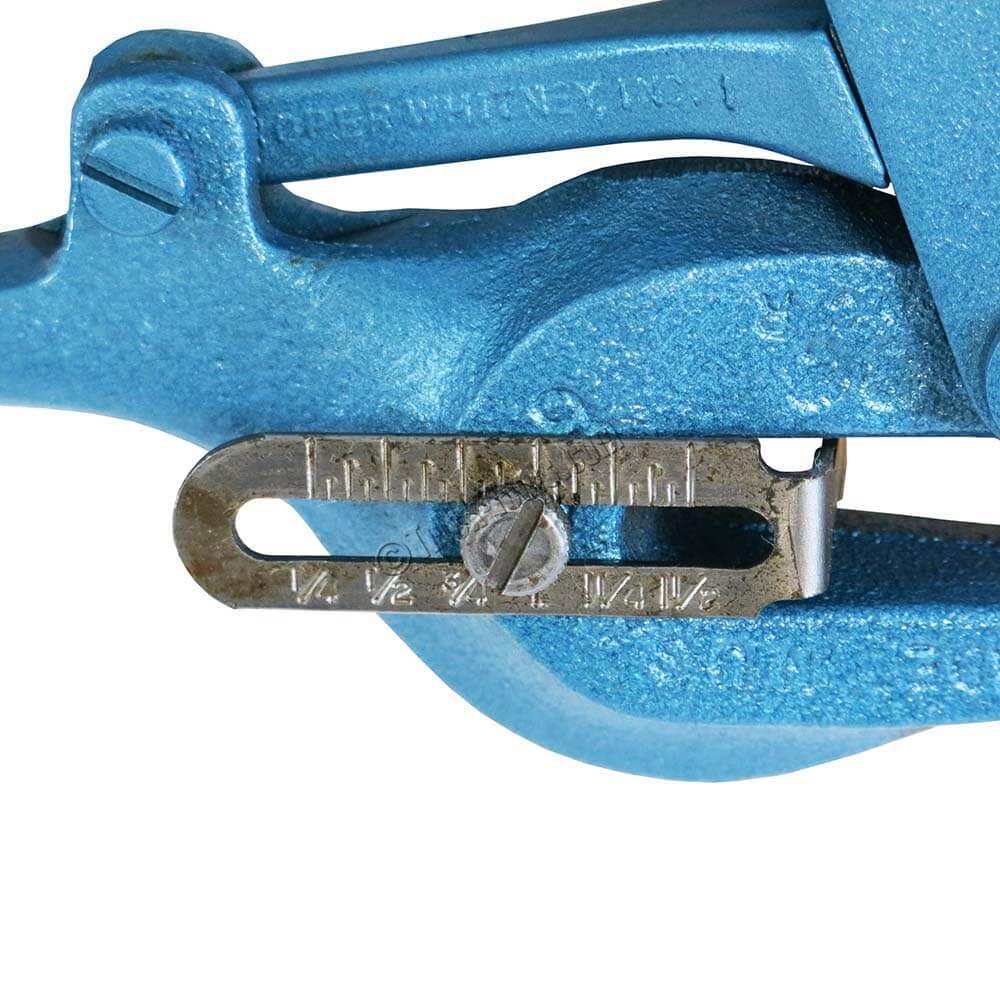

  • Adjustable stop gauge in 1-3/4 inch throat
  • Plastic case with die organizer

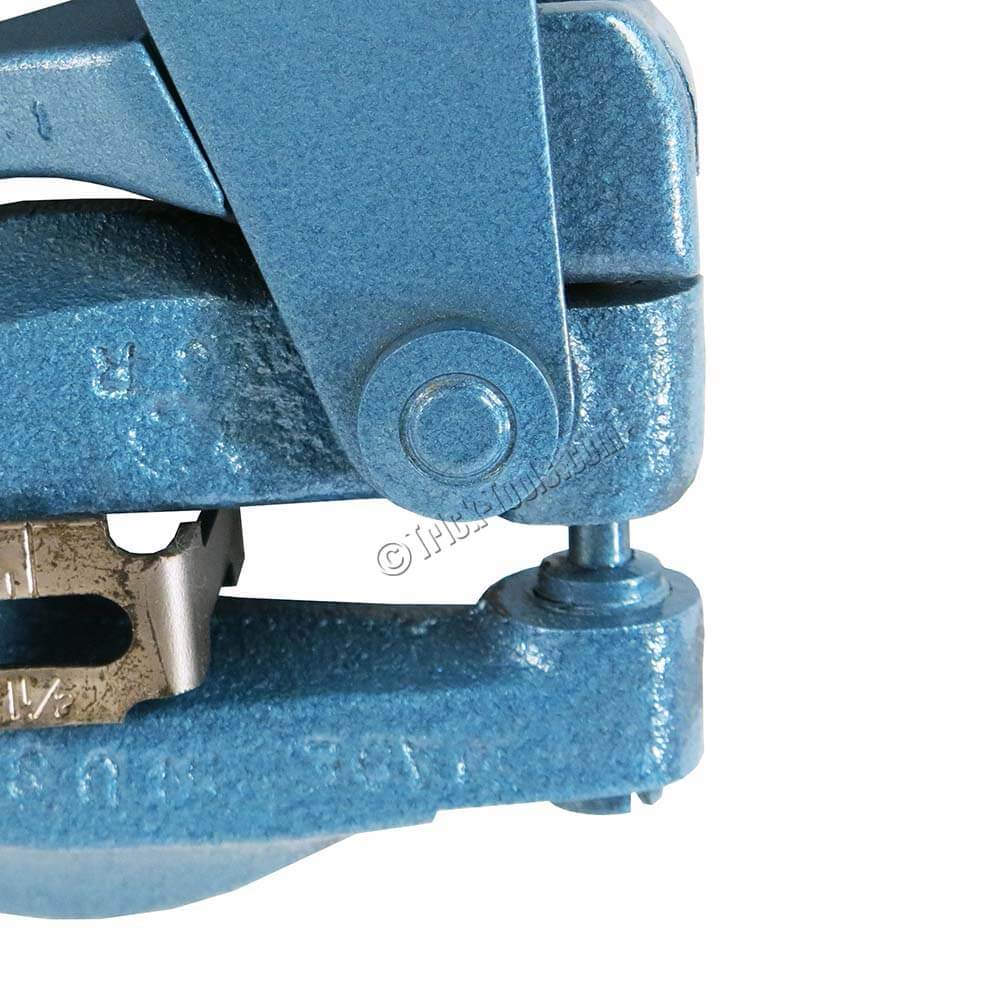

The Roper Whitney 5 Jr Light Duty Portable Punch Kit is for limited punching power (1.2 tons or less). They can save a lot of time over drilling sheet metal and are much more accurate. Easy to carry in the pocket, on a belt or in a tool box. Hardened, machined bearing surfaces are used in these tools to provide dependable long life within the rated capacity. Optional bench mounting base available.


3 year manufacturer's warranty

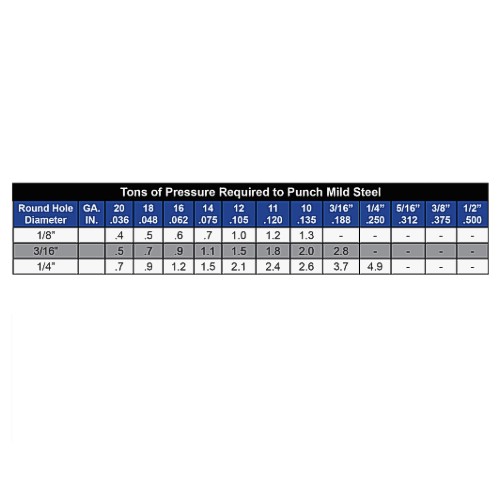

Maximum Capacity: 1.2 tons
Tool Opening (inches): 0.281
Throat Depth (inches): 1.75
Throat Height (inches): 0.438
Open Height (inches): 0.281
Weight (pounds): 5
Dimensions (LxWxH): 8.25 x 3.75 x 1.5

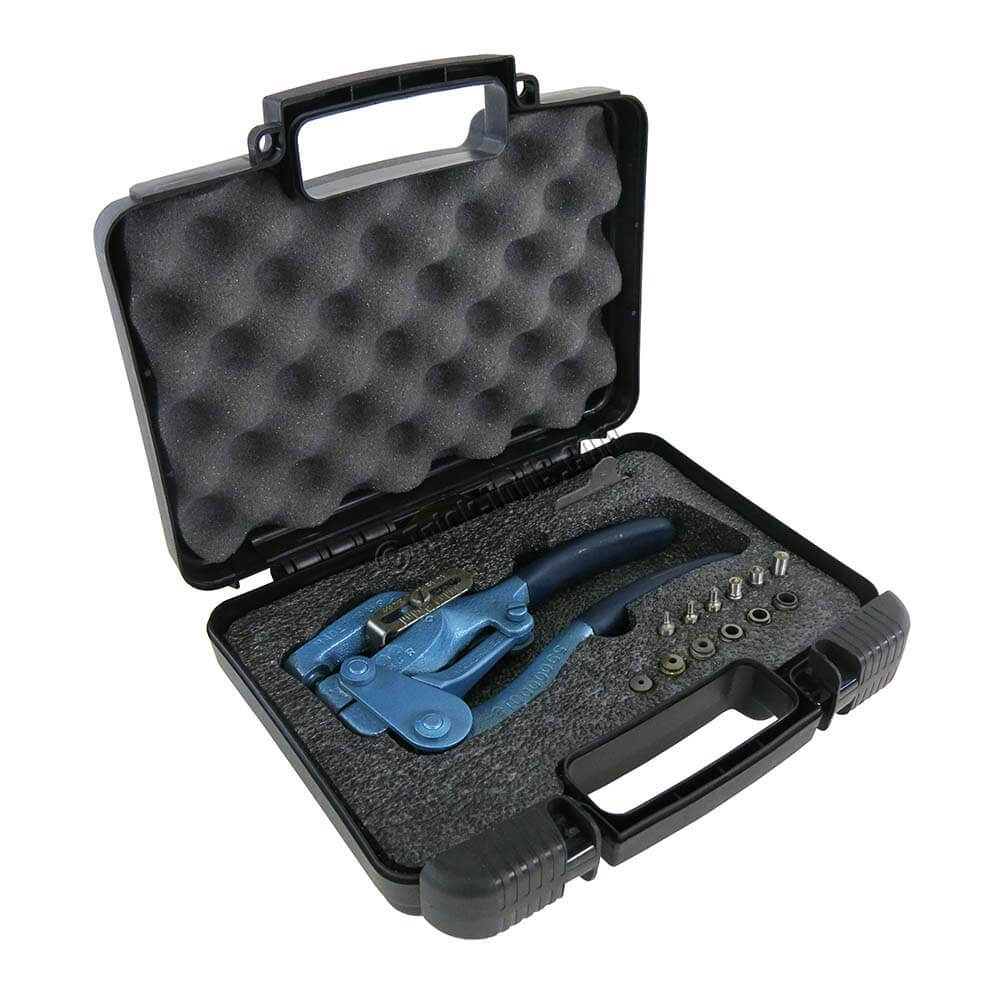

  • 5Jr. Hand punch
  • 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, and 9/32 round punch and die sets
  • Plastic carrying case
