Roto-Star 1 Rotary Welding Positioner Bundle

Part #: Roto1-Bundle
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $5,534.00
Sale Price: $4,199.95

EXCLUSIVE

Free Shipping
Standard on/off foot pedal
6 inch chuck & 12 inch surface plate
Variable speed and reversible

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

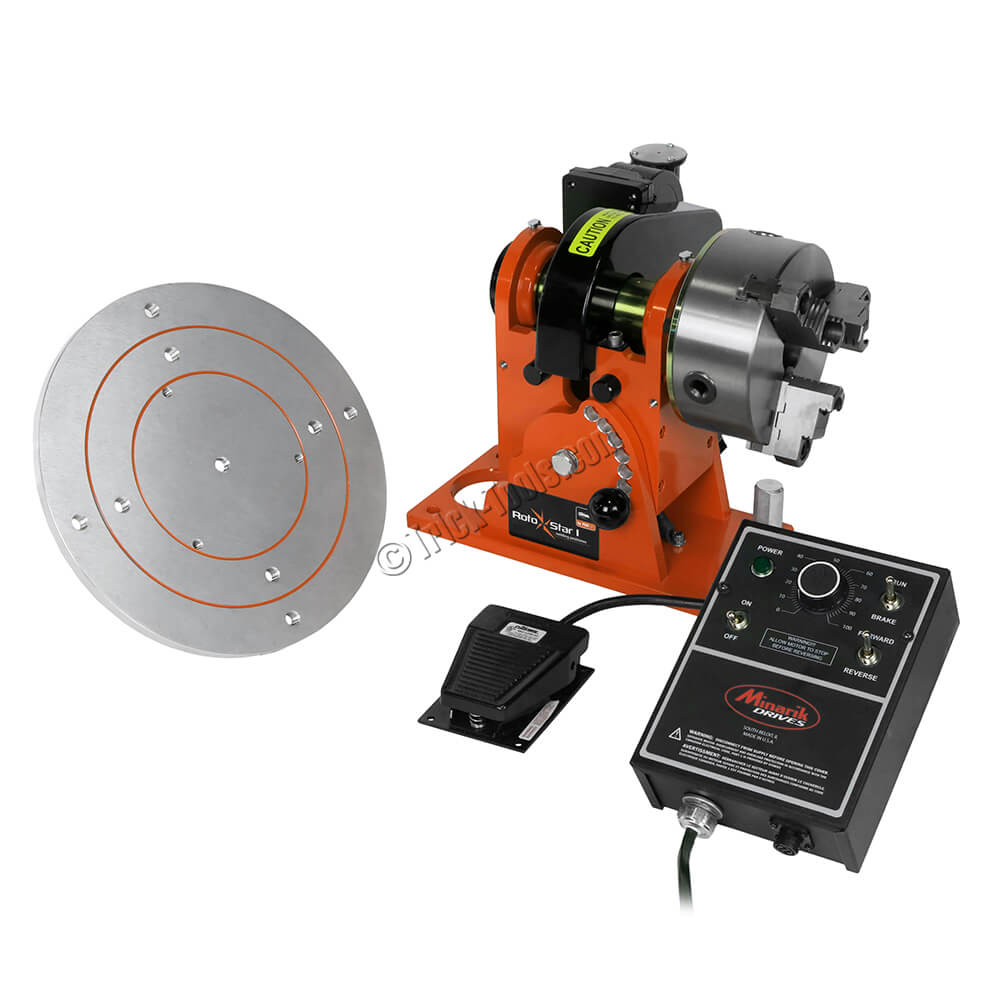

For a limited time get this exclusive bundle with the Roto-Star 1 that includes both a 6-inch chuck and a 12-inch surface plate! The Roto-Star welding positioners are a must for precision welding. These heavy-duty units were designed to increase productivity and improve quality for a variety of applications. They are also adjustable from 0 to 90 degrees by 15 degree increments and features a 300 amp double grounding system which eliminates feedback during high frequency welding. Dial in the speed from 0 to 10 RPM on the variable speed control and includes an on/off foot pedal.

Included in this Roto-Star bundle is a 6 inch 3-jaw chuck, as well as a 12 inch surface plate for fixturing workpieces. The surface plate has a vertical capacity of 200 lbs and can be mounted by simply removing the chuck and using three Allen bolts. The 3-jaw chuck features a through-hole for purge applications and can hold up to 200 lbs.

Optional accessories include an adjustable idler roller assembly or armrest. Roto-Star welding positioners are manufactured in the USA and carry a full one year warranty.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Degrees of Rotation: 360
•Angle(s): 0 - 90, 15 degree increments
•Max Clamp Opening (inches): 6
•Chuck: 3 jaw
•Max Swing (inches): 16
•Vertical Weight Cap (pounds): 200
•Horizontal Weight Cap (pounds): 100
•Thru Spindle Capacity (inches): 1-1/2
•Spindle Rotation: 360 degrees
•Spindle RPM: 1-15
•Grounding Cap: 300 amp
•Voltage: 110 volt
•Weight (pounds): 60
•Dimensions (LxWxH): 15 x 12 x 12
