Scotchman 6509-24M, 65 ton Ironworker

Part #: 6509-24M
 Ships From: Factory shipped
Lead Time: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $28,390.00
  • 4 stations
  • Universal open tooling station
  • 24 inch capacity bar shear
  • Punching station: 1-1/16 inch hole through 3/4 inch steel plate
  • Angle shear 6 x 6 x 3/8
FREIGHT:
Freight
WARRANTY:
Scotchman
ORIGIN:
USA
BRAND:
Scotchman logo
Voltage:
Quantity:

Configuration

DESCRIPTION

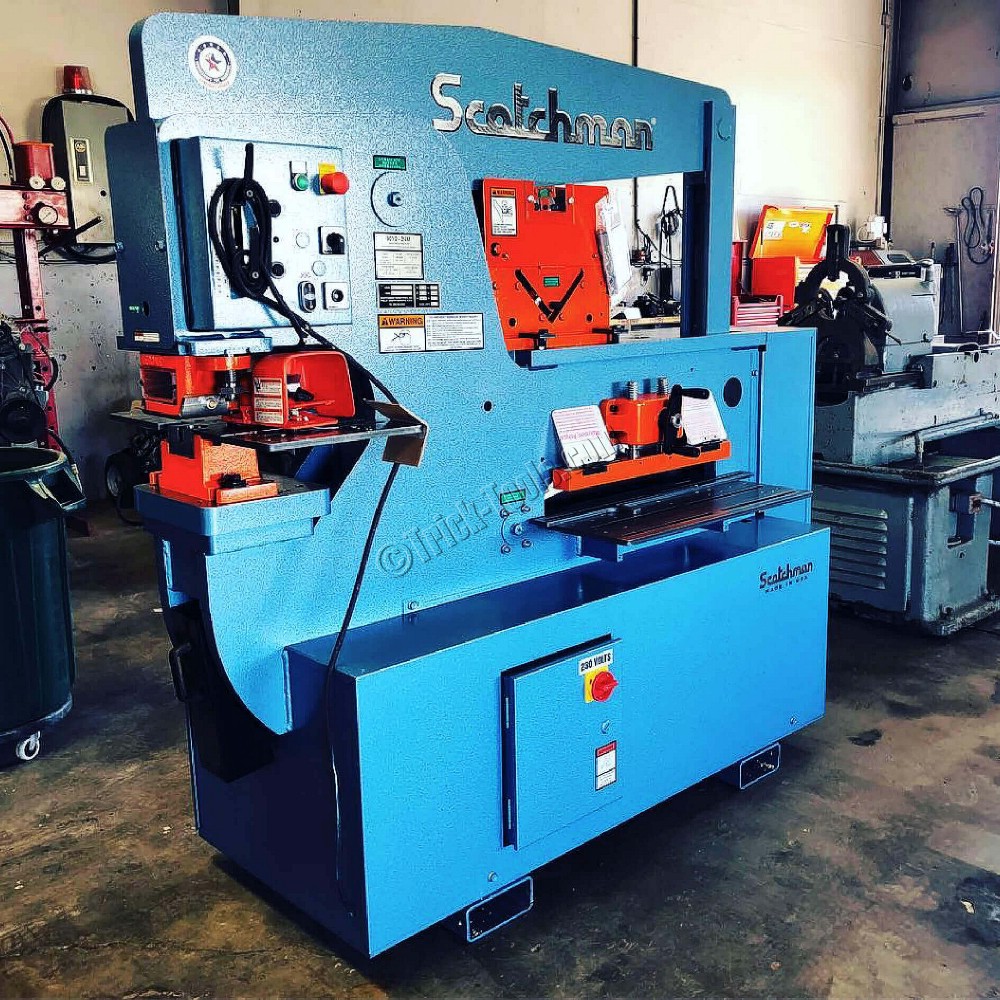

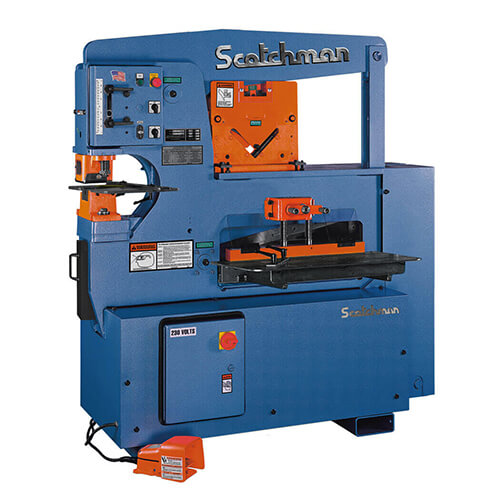

The 6509-24M machine is Scotchman's 65 ton Ironworker. Its 5 hp motor gives it the ability to shear 6 x 6 inch angle and 24 inch of 1/4 inch flat bar! As with the smaller machines in the lineup, it comes standard with punching station, angle and flat bar shears. The machine also features an electric stroke control for precision applications and custom tool setups.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 65
•Punching Capacity (Std): 1-1/4 inch OD in 1/2 inch plate
•Punching Throat Depth (inches): 9
•Flat Bar Shearing Max Width (inches): 1/4 x 24
•Flat Bar Shearing Max Thickness (inches): 1 x 6
•Angle Shear Max Size 90 Deg (inches): 6 x 6 x 3/8 or 5 x 5 x 1/2
•Angle Shear Max Size 45 Deg (inches): 3 x 3 x 3/8
•Throat Depth (inches): 9
•Special Tooling Max Cap: 4
•Pipe Notcher Capacity (inches): 3/4 to 2 inch
•Rectangular Notcher Capacity (inches): 2 x 2.5 x .375
•90 Deg V Notcher Capacity (inches): 6 x 6 x .313
•Round Bar Shear Capacity (inches): 1/4 to 1-1/4
•Square Bar Shear Capacity (inches): 1/4 to 1
•Square Tube Shear Capacity (inches): 1/2 to 2
•Picket Tool Capacity (inches): 1/2 to 1
•Cycle Time: 1/4 inch stroke = 40 spm; 3/4 inch stroke = 17 spm
•Motor (Std): 5 hp, 220/440 volt, 3 phase
•Motor (Opt): 5 hp, 220 volt, 1 phase
•Hydraulics: 2605 psi
•Weight (pounds): 2750
•Dimensions (LxWxH): 24 x 60 x 66

INCLUDES

  • 65 ton punch station: 1-1/16 inch hole in 3/4 inch steel plate
  • Keyed punch ram for safety
  • 9 inch throat depth
  • Punch gauging table with fence and scale
  • Die holder complete with 2 inch die insert
  • Punch nut with wrench and stripper
  • One round punch and die: max diameter 1-1/4 inch
  • Adjustable electric stroke control with scale
  • Electric remote foot pedal
  • Angle shear: 6 x 6 x 3/8 inch at 90 degree or 5 x 5 x 1/2 inch at 90 degree
  • 24 inch Flat Bar shear with 4-way reversible blade
  • Tool table work area
  • Two-stage hydraulic pump
  • LED work lights
  • Electrical box supplied with emergency palm button and lock-out tag-out accommodations
  • 230/460 volt / 3-phase electrics, must specify voltage
  • All guards necessary to comply with ANSI B 11-5 standards
  • Made in the USA

VIDEO







ACCESSORIES

Have a technical question about this product?
avatar
Popular Questions
4 years ago
i need to know how many amps this machine takes See more »
4 years ago
220 volt 3 phase would be 14 amps, 220 volt 1 phase is 23.5 amps
See more answers
10 months ago
See more »
10 months ago
Scotchman ironworkers are manufactured in the United States. Specifically, they are produced in Philip, South Dakota, where the company has its headquarters and production facilities.
