Siegmund System 16 Welding Workstation with Casters

Part #: S2-167100
Ships From: Factory shipped

Lead Time: In stock while supplies last!

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,900.00

FREE SHIPPING

47 x 31 inch table with casters
Includes clamps, stops, and ball-lock bolts
16mm holes spaced 50mm apart
Accepts all Siegmund System 16 clamps and accessories

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

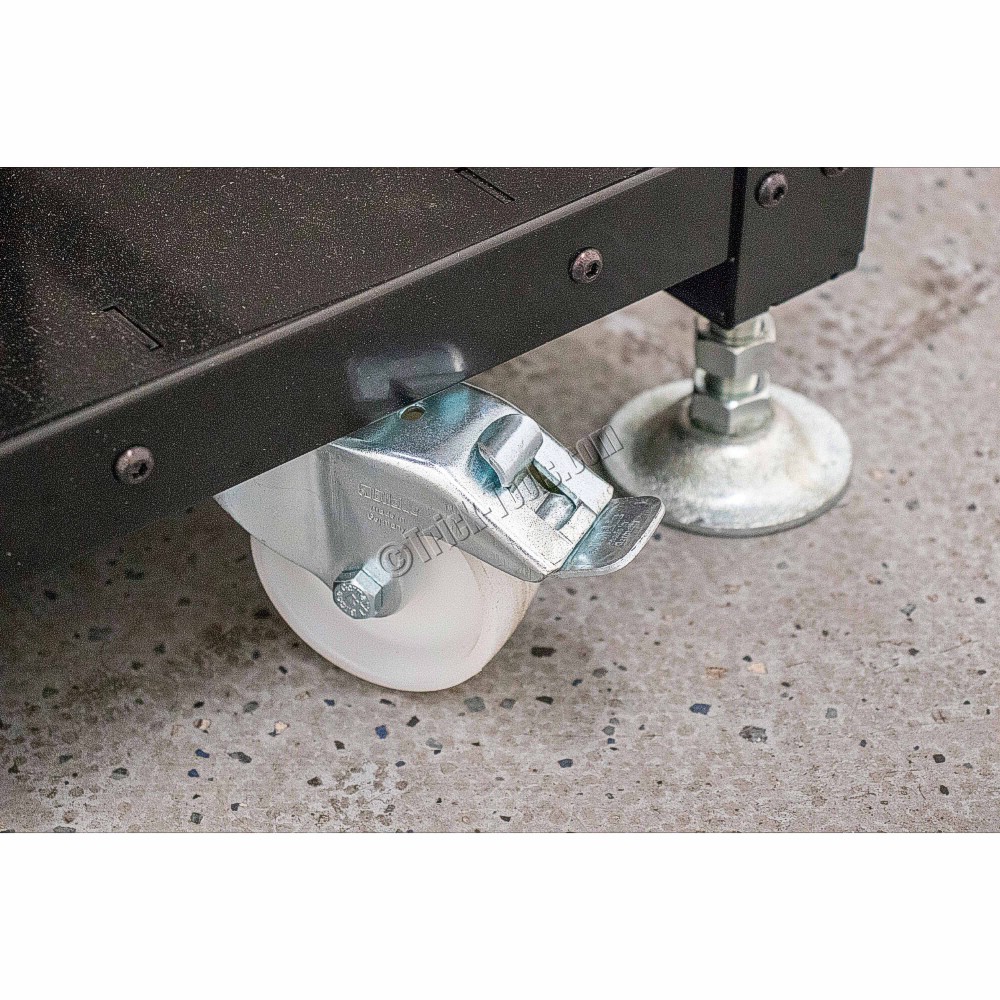

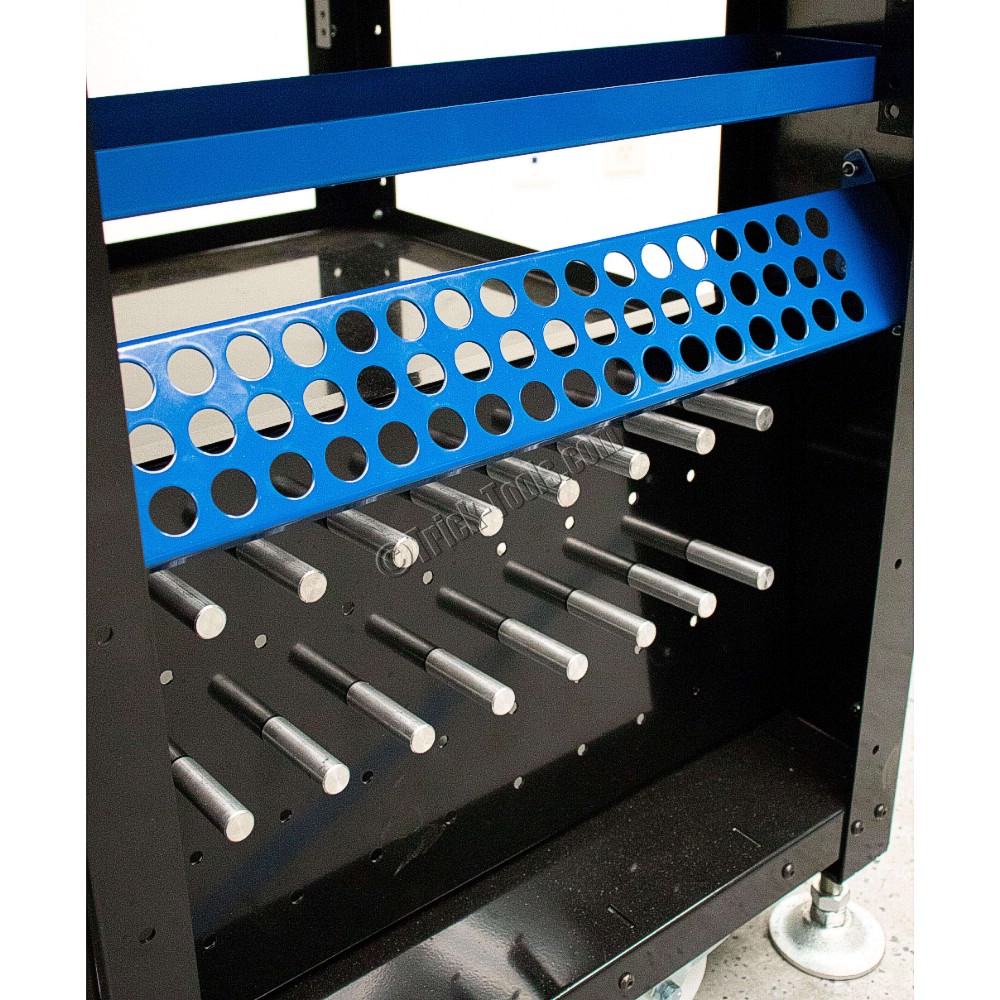

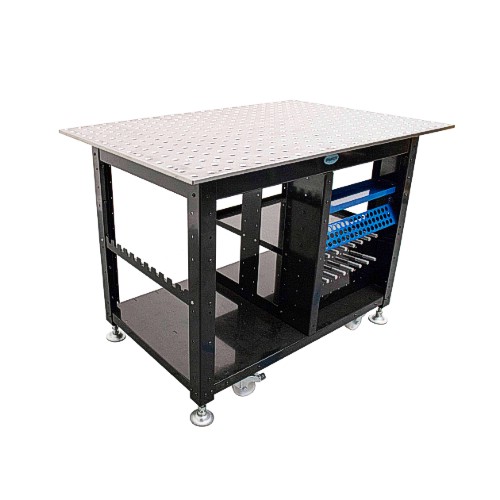

Arguably the highest quality mobile fixturing station on the market, this Siegmund welding cart can help take your welding processes to the next level. The cart includes a 47 x 31 inch table top, heavy duty casters and leveling feet, and storage shelves for clamps and welding tools. The tool steel table top has a flatness rating of +/- .0157 inches per foot and is reversible should it ever become damaged.

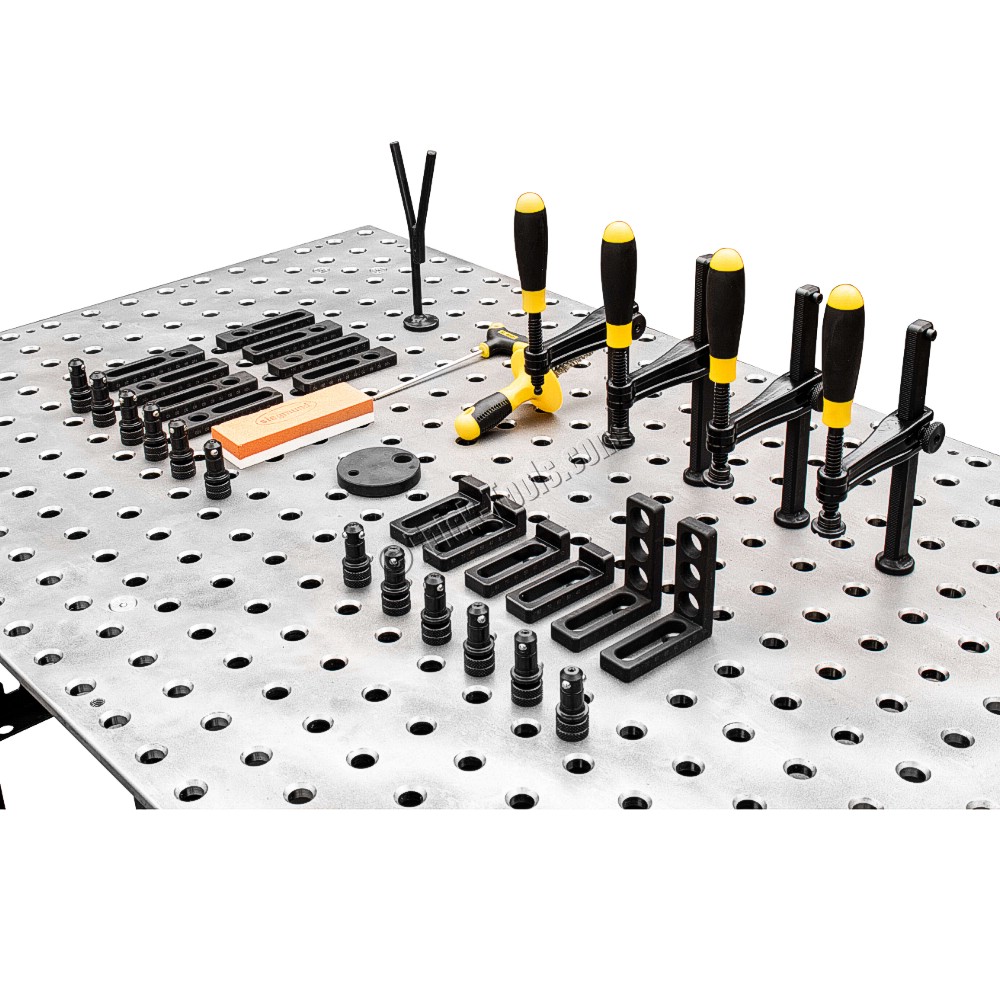

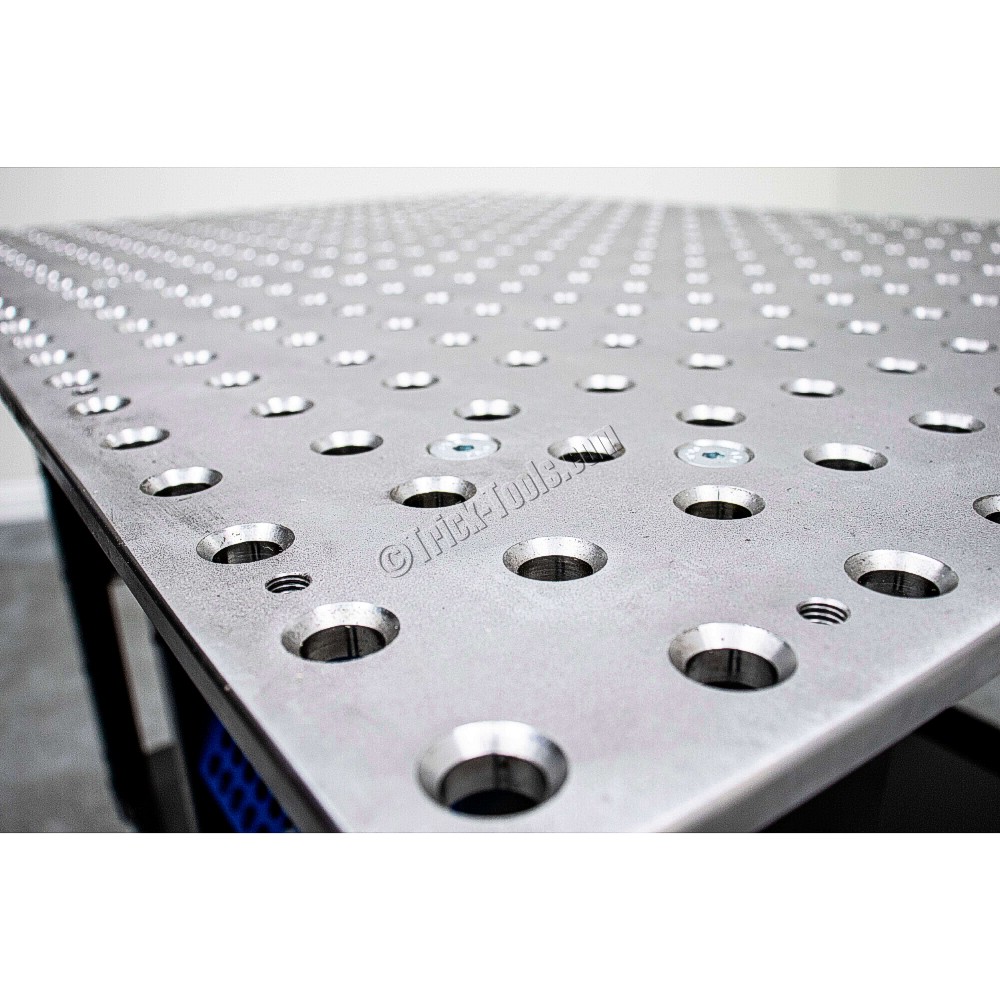

In addition to the included clamps, stops, and ball lock bolts, the Siegmund work station can utilize all of the available 16mm tooling from Siegmund. The 16mm fixturing holes are laid out in a 50mm square grid pattern which makes jig and pattern layout a snap. The table is rated to support 2200 lbs with the fine adjustment leveling feet and 880 lbs when the casters are being used.

A wide variety of clamps and fixturing components are available for these tables to make them useful for virtually any welding project. See accessories tab for more information.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 880 lbs with casters / 2200 lbs with leveling feet
•Size: 47 x 31 inches
•Flatness: +/- .0157 inches per foot
•Hole diameter: 16mm
•Hole spacing: 50mm
•Plate thickness: 12mm (0.47 inches)
•Weight (pounds): 360
