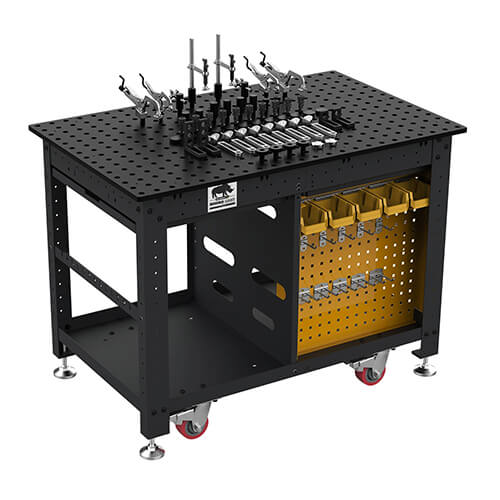

Strong Hand Rhino Cart Mobile Fixturing Station, 48 x 30 inch

Part #: TD5-4830Q-K3
 Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $3,385.00
FREE SHIPPING
  • 48 x 30 inch mobile table with storage
  • Includes casters and leveling feet
  • 5/8 inch holes spaced 2 inches apart
  • Accepts all BuildPro clamps and accessories
FREIGHT:
Freight
ORIGIN:
Import
BRAND:
Strong Hand Tools logo
Quantity:

DESCRIPTION

The 48 x 30 inch Rhino Cart Mobile Fixturing Station is unlike any welding table on the market! This revolutionary design takes the popular BuildPro welding table top, with its precision finish and unique modular fixturing design, and combines it with a handy mobile cart. The nitride treated steel top features a black oxide finish and is reversible if one side is eventually damaged.

The package comes complete with a 66 piece fixturing kit and the cart features heavy-duty casters as well as leveling feet for more permanent placement. The 36-inch tall cart features plenty of storage to keep necessary fabrication tools readily at hand and a multitude of accessories for customizing it to fit your needs. The new F3 series includes some new improvements including removable slag trays, pass through cable slots, and improved storage for ball lock bolts and clamps.

Table Top Specifications

  • Hole diameter: .625 +.001/+.003
  • Hole spacing: 2.000 +/- .002
  • Plate thickness: .625


Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 1500 lbs
•Size: 30 x 48 inches
•Flatness: ±0.015 inch per 24 inches
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 470
•Dimensions (LxWxH): 48 x 30 x 36

INCLUDES

  • 48 x 30 x 36 inch tall fixturing cart with casters, leveling feet, slag tray, and storage
  • (10) T55055 - Adjustable Lock Bolts
  • (2) T54201 - Locating Pins
  • (2) PTT522K - 2.3 inch Inserta Pliers
  • (2) PTT634K - 4 inch Inserta Pliers
  • (2) UDN5150 - Inserta Clamps
  • (2) T54217 - Inserta Clamp Top V-Pads
  • (2) TCX5210 - Side Clamps
  • (4) T54205 - 2 inch Locate Stops
  • (4) T54203 - 1.5 inch Locate Stops
  • (8) T54216 - V-Block
  • (4) T54211 - V-Block Spacers
  • (8) T50632-01 - D-Stop Bars
  • (12) T50737 - Magnetic Rest Spacers
  • (2) T50304 - 2 inch Right Angle Brackets
  • (2) T50305 - 4 inch Right Angle Brackets

DOCUMENTATION

PDF User Manual
