Swag Off Road Standard Duty Finger Brake

Part #: SDFBWELD
Model: 6PB20TFBA
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $470.95

19.25 inch bending length
2 inch wide lower V-die
Great addition to common 20 ton H-frame presses
Fully welded frame

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

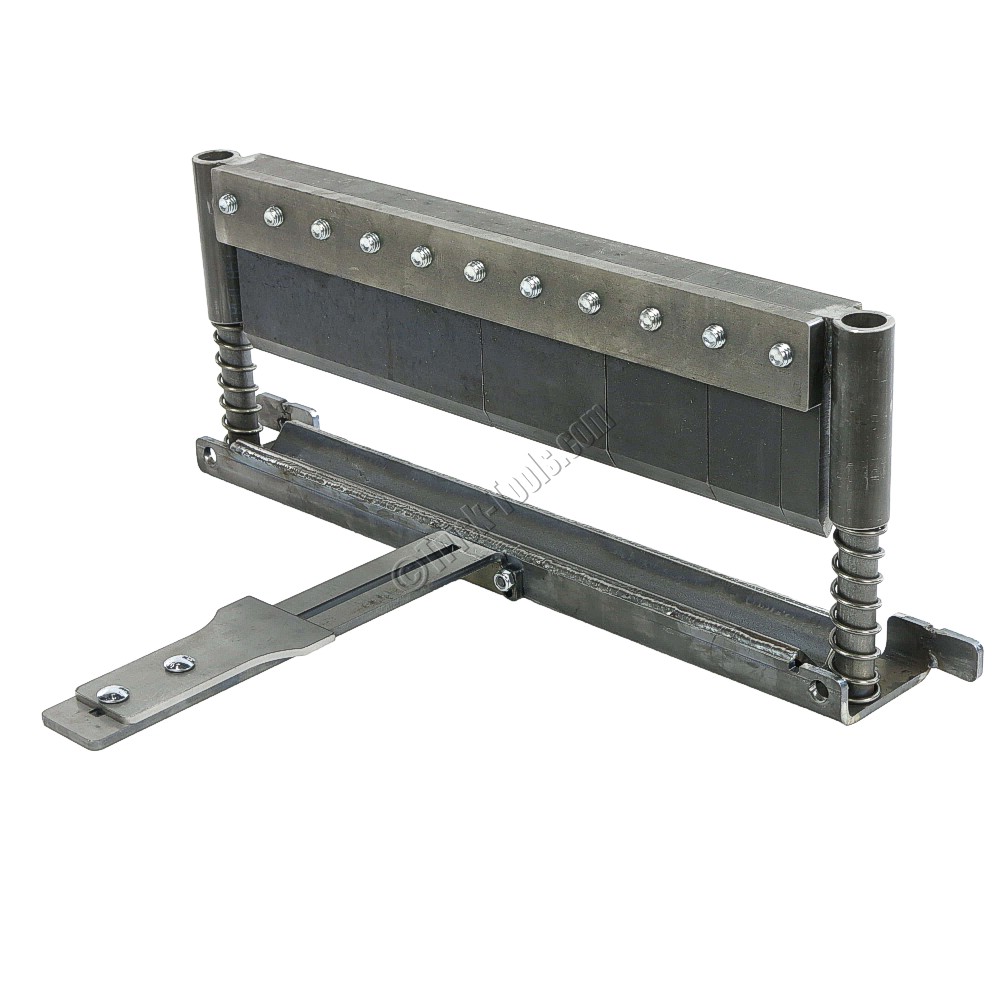

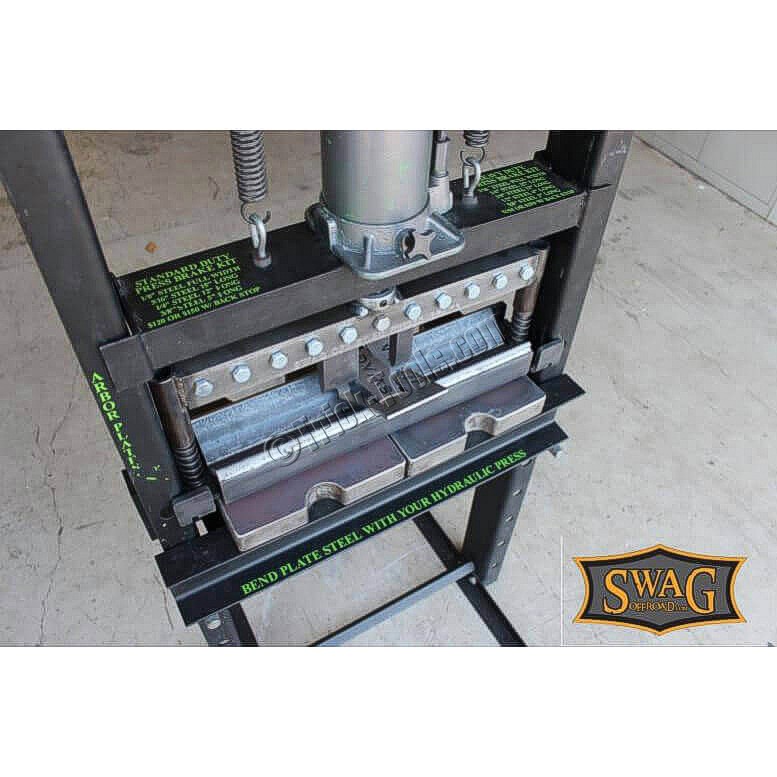

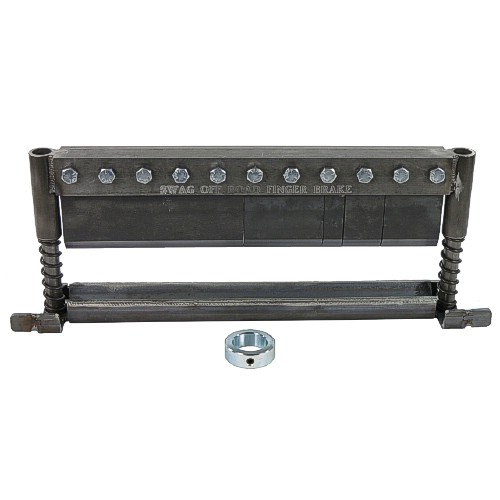

This press brake from Swag Off Road is the perfect addition to the 20-ton press found in many home workshops or garages. The segmented fingers in the top bar are made from 4140 steel and can be removed or rearranged to allow bending in restricted areas or on parts that may already have another bend in them. The fingers are segmented into 1, 2, 3, 4, and 9.5 inch pieces for a maximum bending length of 19.25 inches. The frame is fully welded and ready to install into your press. Installed in a 20-ton press, this brake is capable of bending the following steel sections and lengths:

19 inches in 1/8 inch mild steel
15 inches in 3/16 inch mild steel
12 inches in 1/4 inch mild steel
5 inches in 3/8 inch mild steel.

This brake features a 2 inch wide V die. Bending heavy material? Check out the heavy-duty version of this brake.

Warranty:

1 year manufacturer's warranty
