Ercolina TB100 Programable Tubing Bender

Part #: TB100
Model: TB100, TB100-4, TB100P, TB100P-4, TB100TLR, TB100TLR-4, TB100TSR, TB100TSR-4
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $41,100.00

NEW

4 inch OD capacity
Electric gear drive
Stores up to 12 bends per program
Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

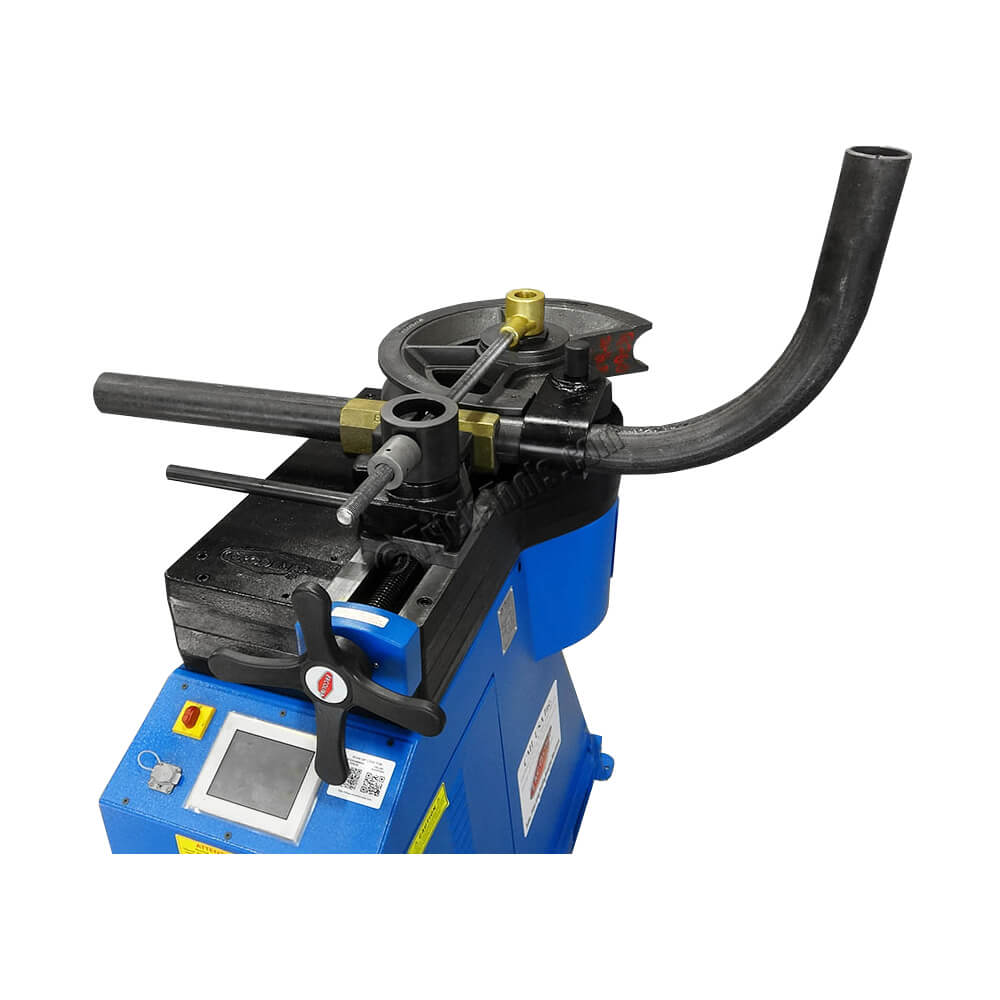

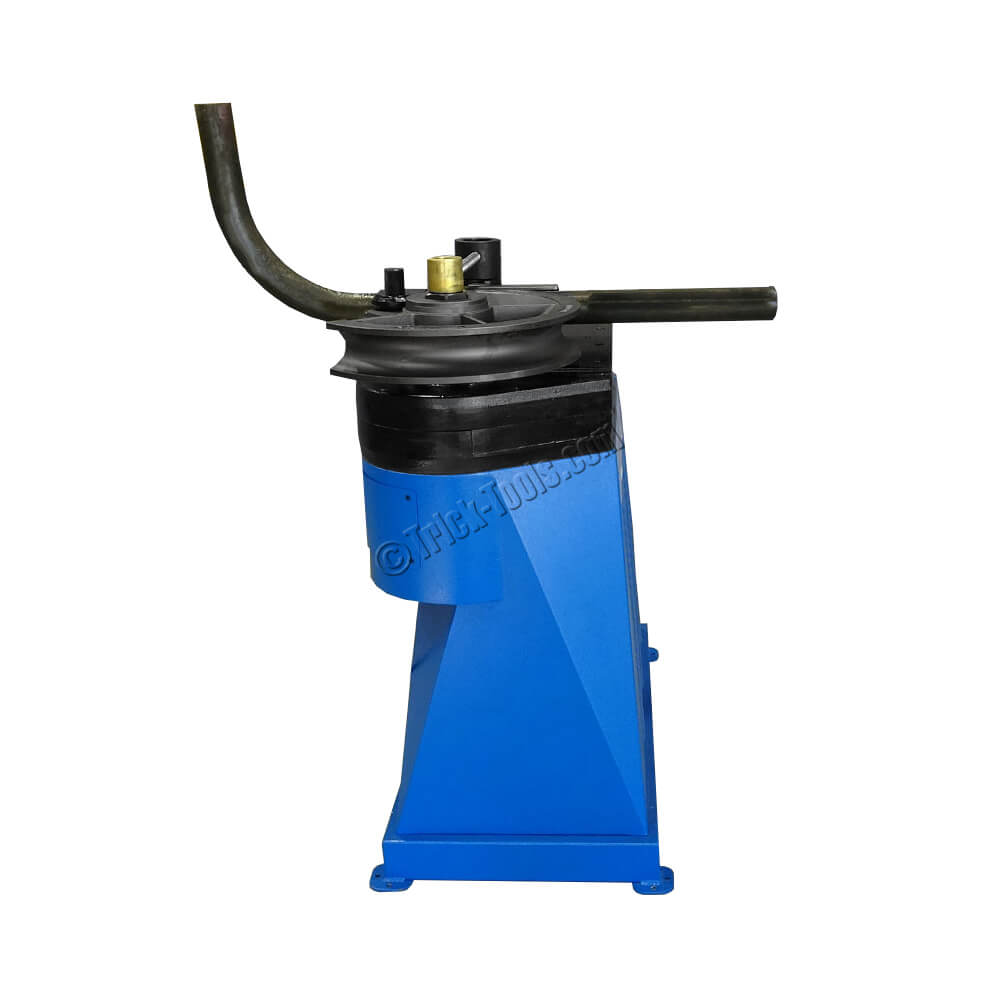

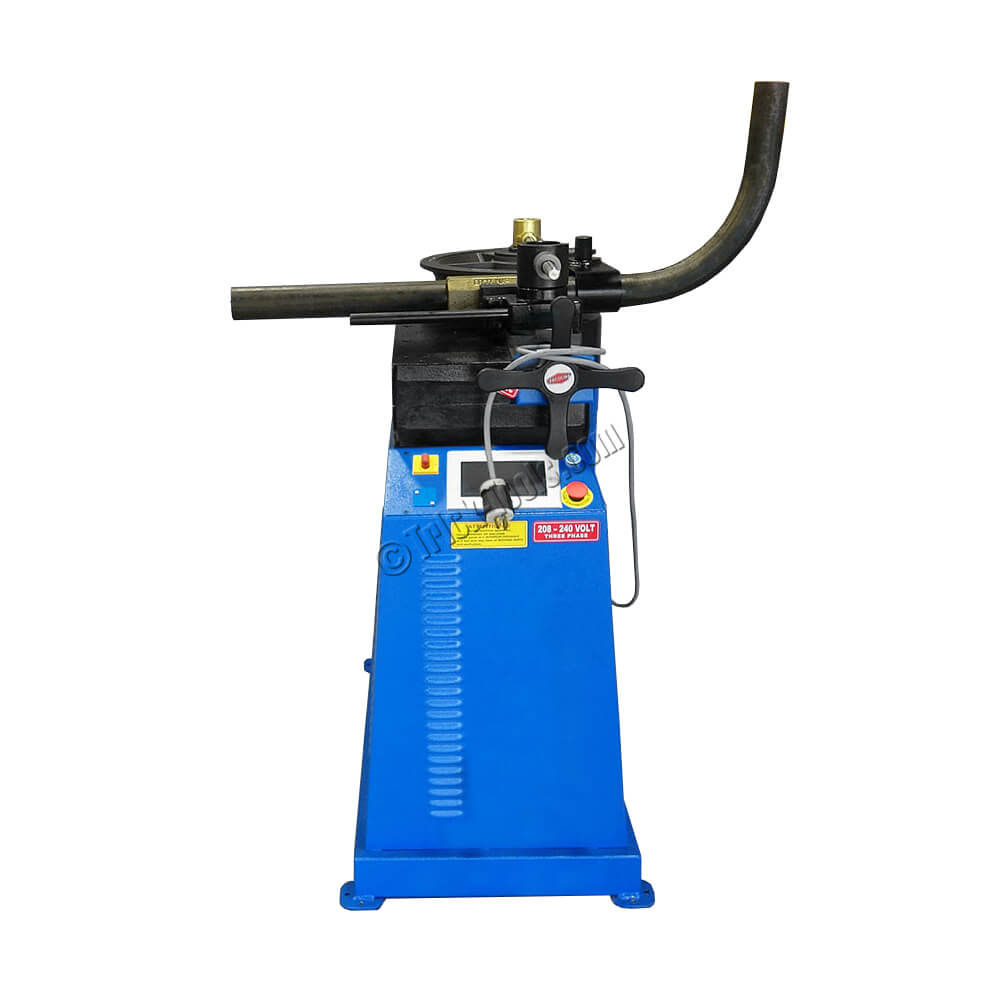

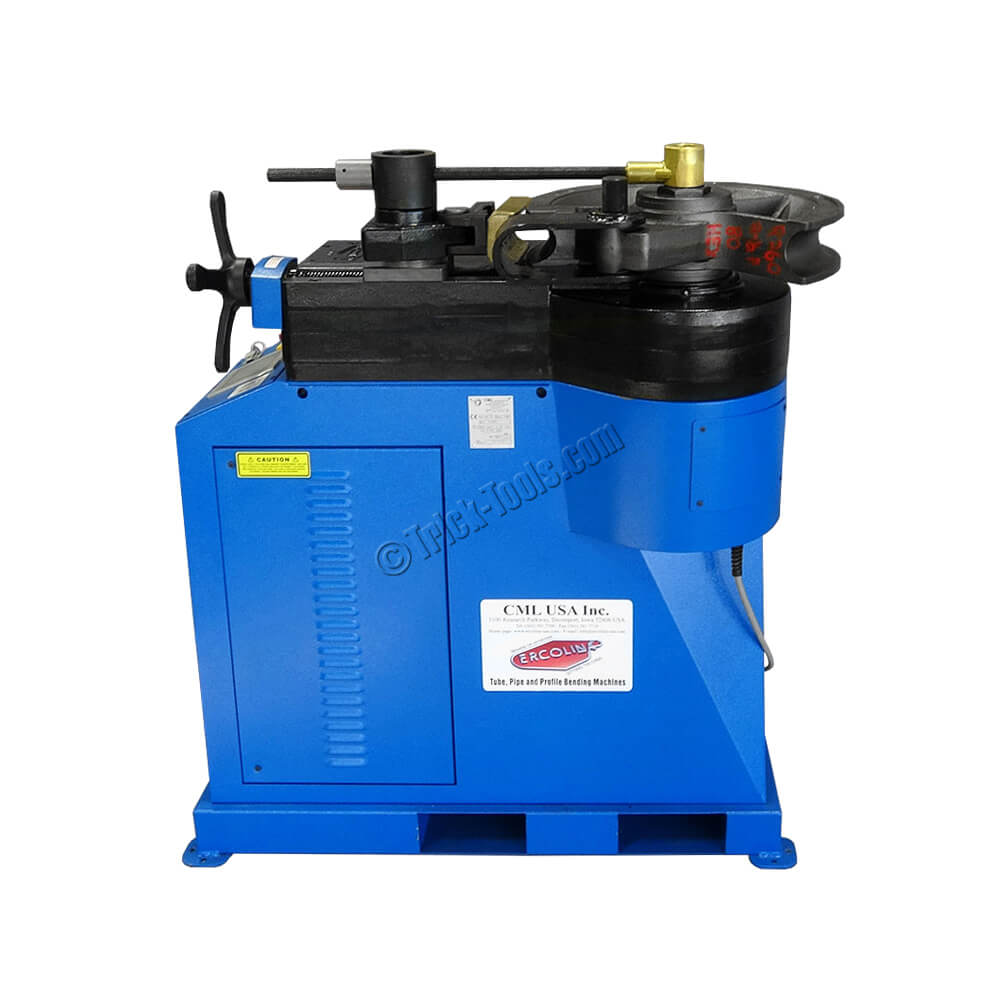

Ecrolina offers a large variety of high-quality benders and this TB100 Top Bender can bend up to 4-inch round tubing or 3-inch Schedule 40 pipe. The programmable touch screen can handle up to 12 bends per program and an unlimited number of programs when used with a removable USB drive. The swing away counter die and top loading configuration make for quick loading and unloading of material. The TB10 is all electric with a heavy-duty steel gearbox for quiet operation.

Select a tooling package when purchasing this bender and SAVE!

PIPEKIT4 (5 piece kit)

1-1/4 NPS (1.660 inch OD) x 3.5 inch CLR
1-1/2 NPS (1.900 inch OD) x 3.9 inch CLR
2 NPS (2.375 inch OD) x 5.9 inch CLR
2-1/2 NPS (2.875 inch OD) x 11.8 inch CLR
3 NPS (3.500 inch OD) x 11.8 inch CLR

TUBEKIT1SR (6 piece kit)

3/4 inch OD x 2.6 inch CLR
7/8 inch OD x 2.2 inch CLR
1 inch OD x 2.6 inch CLR
1-1/4 inch OD x 3.2 inch CLR
1-1/2 inch OD x 3.9 inch CLR
2 inch OD x 5.9 inch CLR

TUBEKIT1 (7 piece kit)

3/4 inch OD x 2.6 inch CLR
7/8 inch OD x 2.6 inch CLR
1 inch OD x 3.2 inch CLR
1-1/4 inch OD x 4.4 inch CLR
1-1/2 inch OD x 5.9 inch CLR
1-3/4 inch OD x 6.7 inch CLR
2 inch OD x 7.5 inch CLR

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 4 x .120
•Nominal PIPE Capacity: 3 inch Sch 40 (2-1/2 Sch 40 Stainless)
•Square Mild Steel Capacity (inches): 3-1/2 x .125
•Solid Bar Mild Steel Capacity (inches): 2
•Minimum OD (inches): 1/4
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 17
•Max Degree of Bend: 180
•Motor: 220v or 440v 3 phase
•Control Method: programmable on board computer
•Maximum OD (inches): 4
•Weight (pounds): 1030
•Dimensions (LxWxH): 34 x 20 x 47 inches
